◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#49675) — 195 parça

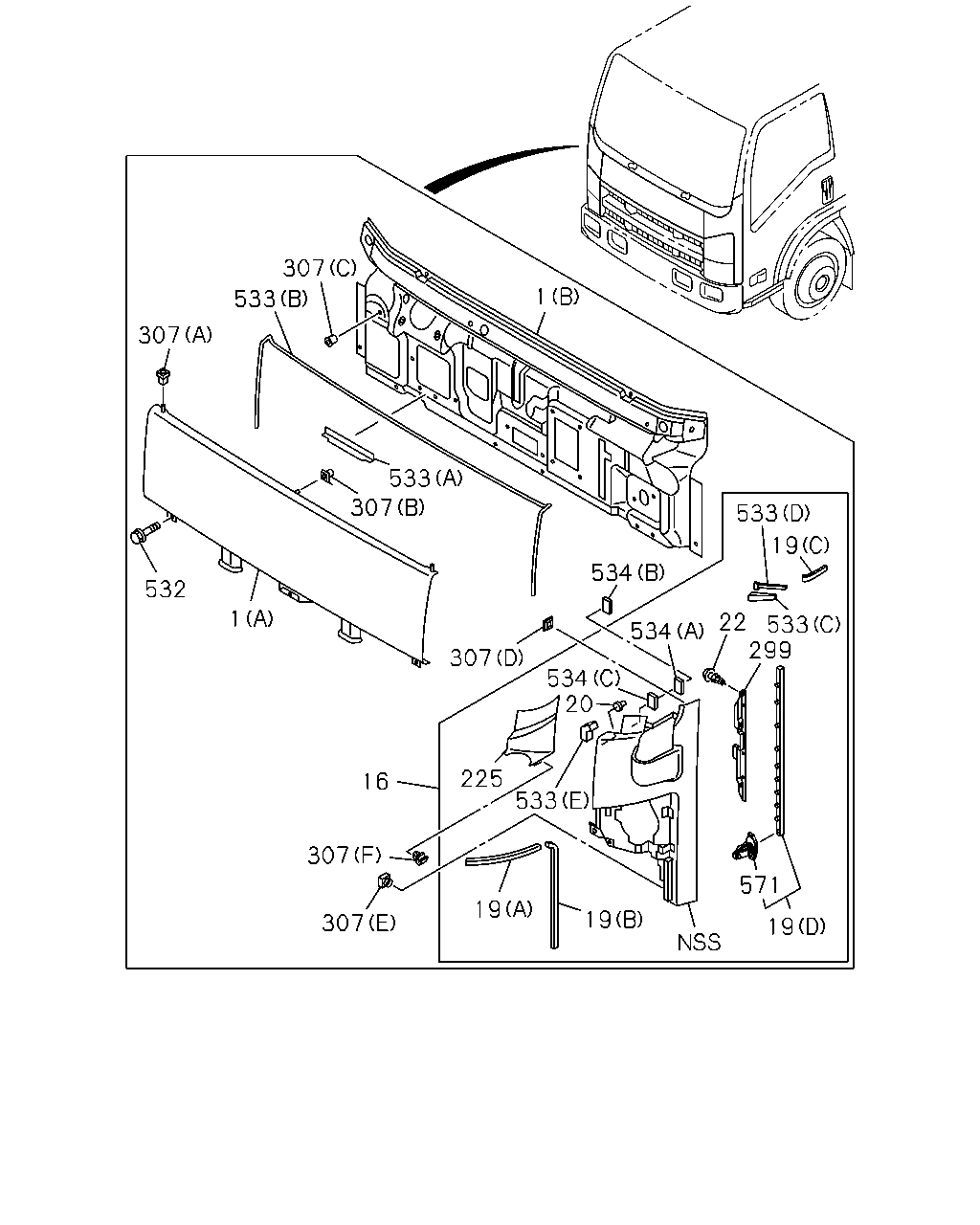

çizim 158453
307 1 533 307 533 307 533 19 534 532 1 22 533 299 534 307 534 20 225 16 533 307 571 19 19 307 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98100-514-0 01 1 0811-0901 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98100-514-0 01 1 0902-1101 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1102- ● ●
1 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0811-0901 ●
1 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0902- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-954-1 01 1 0811-0901 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-954-1 01 1 0902-1101 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1102- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97417-315-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97417-316-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97407-904-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97407-909-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97412-096-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97412-107-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97417-302-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97417-308-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97412-105-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97412-116-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97417-303-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97417-310-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-097-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-108-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97417-304-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97417-311-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97409-579-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97409-588-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97417-305-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97417-312-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-098-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-109-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97407-905-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97407-910-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97412-099-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97412-110-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97407-342-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97407-343-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97412-100-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97412-111-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97407-906-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97407-911-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97412-101-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97412-112-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97407-907-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97407-912-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97412-102-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97412-113-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97417-306-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97417-314-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK YELLOW 		8-97412-104-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK YELLOW 		8-97412-115-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> ORANGE 		8-97417-307-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> ORANGE 		8-97417-313-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-106-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-117-8 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-842-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-843-9 01 1 0904- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97406-039-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97406-040-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97415-715-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97415-716-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97414-635-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97414-636-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97409-870-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97409-872-9 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97405-621-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97405-625-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-103-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-114-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97405-619-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97405-623-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97405-620-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-7 01 1 0811-0901 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 0902- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97405-624-8 01 1 0902- ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0811-0901 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0902- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0811-0901 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0902- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0811-0901 ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0902- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0811-0901 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0902- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0811-0901 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0902- ● ●
20 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 0811-0901 ●
20 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 0902- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0811-0901 ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0902- ● ●
225 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 0811-0901 ●
225 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 0902- ● ●
225 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 0811-0901 ●
225 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 0902- ● ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0811-0901 ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0902- ● ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0811-0901 ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0902- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0811-0901 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0902- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0811-0901 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0902- ● ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0811-0901 ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0902- ● ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0811-0901 ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0902- ● ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0811-0901 ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0902- ● ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0811-0901 ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0902- ● ●
307 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 0811-0901 ●
307 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 0902- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0811-0901 ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0902- ● ●
533 SEAL; FRT PANEL
(A) 		8-98021-002-1 01 1 0811-0901 ●
533 SEAL; FRT PANEL
(A) 		8-98021-002-1 01 1 0902- ● ●
533 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 0811-0901 ●
533 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 0902-1506 ● ●
533 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1507- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0811-0901 ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0902- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0811-0901 ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0902- ● ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0811-0901 ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0902- ● ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0811-0901 ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0902- ● ●
534 FASTENER
(A) 20X30 		8-98059-208-0 02 1 0811-0901 ●
534 FASTENER
(A) 20X30 		8-98059-208-1 02 1 0902- ● ●
534 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 40X25 		8-98089-411-1 02 1 0902- ●
534 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) 40X25 		8-98089-412-1 02 1 0902- ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0811-0901 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0902- ● ●

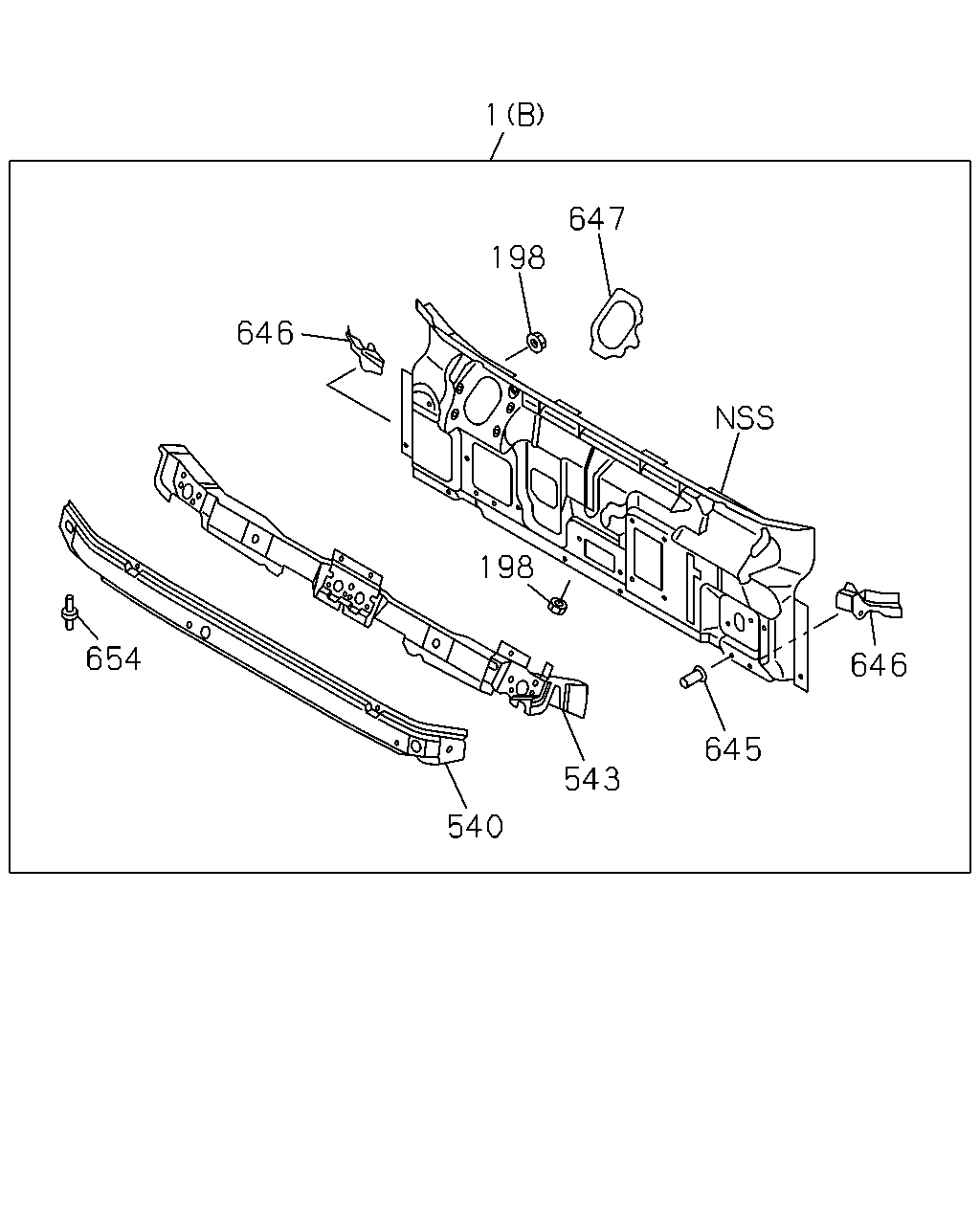

çizim 158458
1 647 198 646 198 654 646 645 543 540
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98100-514-0 01 1 0811-0901 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98100-514-0 01 1 0902-1101 ● ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-858-0 01 1 1102- ● ●
1 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0811-0901 ●
1 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0902- ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-954-1 01 1 0811-0901 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-954-1 01 1 0902-1101 ● ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-856-0 01 1 1102- ● ●
198 NUT; PANEL
PTO MANUAL CONTROL(6WC) M6 		9-09114-086-0 08 1 0811-0901 ●
198 NUT; PANEL
PTO MANUAL CONTROL(6WC) M6 		9-09114-086-0 08 1 0902- ● ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) M6 		9-09114-086-0 06 1 0811-0901 ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) M6 		9-09114-086-0 06 1 0902- ● ●
540 PANEL; FRONT,OUTER 8-97585-963-0 01 1 0811-0901 ●
540 PANEL; FRONT,OUTER 8-97585-963-0 01 1 0902- ● ●
543 CLOSING; FRT MTG RAIL 8-98008-130-0 01 1 0811-0901 ●
543 CLOSING; FRT MTG RAIL 8-98008-130-0 01 1 0902- ● ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0811-0901 ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0902- ● ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 0811-0901 ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 0902- ● ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 0811-0901 ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 0902- ● ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0811-0901 ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0902- ● ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 0811-0901 ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
