◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#49673) — 70 parça

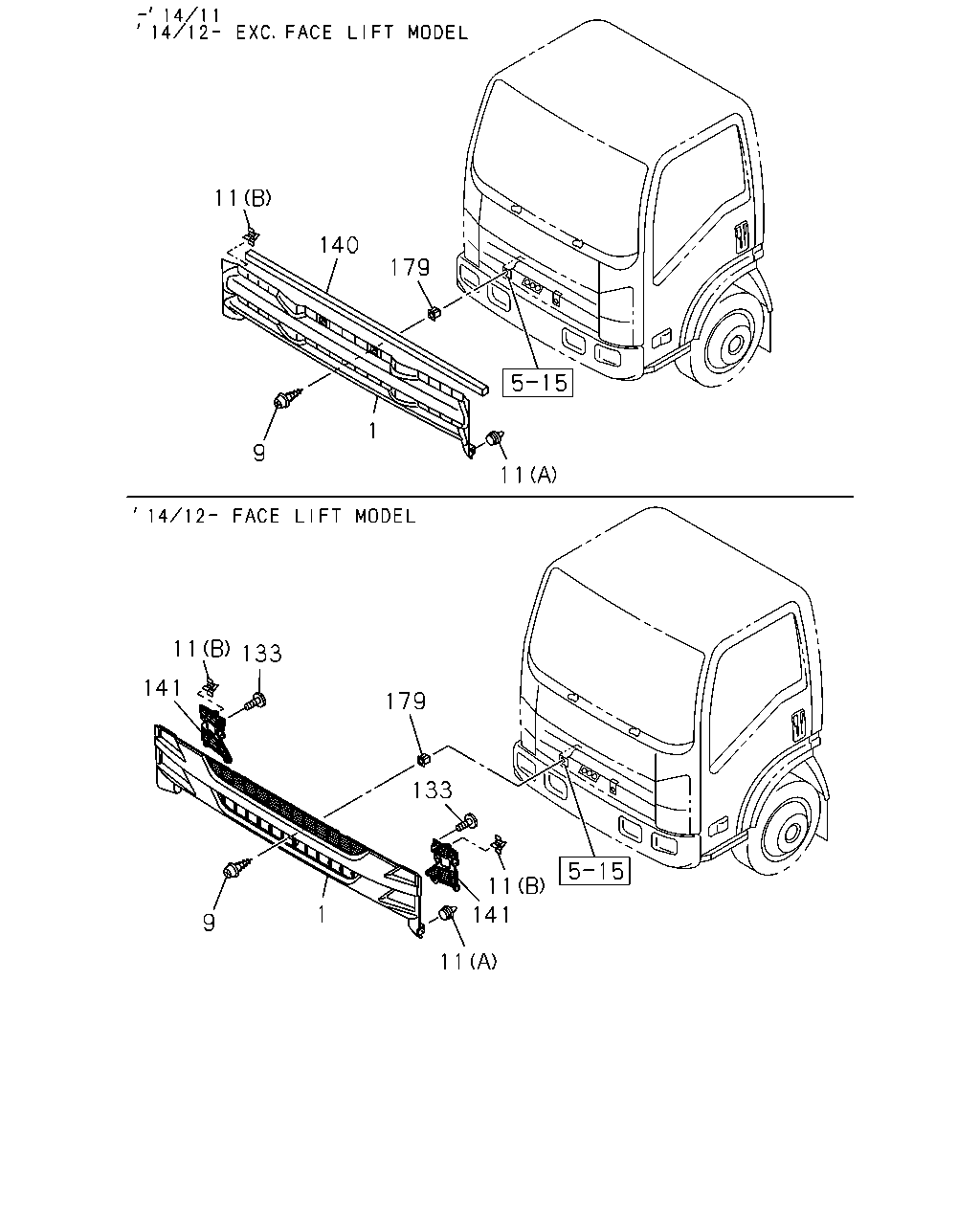

çizim 158727
11 140 179 11 9 1 179 133 11 141 133 9 1 11 11 141
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-640-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97465-869-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97429-395-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(534) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-394-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-386-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97429-381-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-385-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97429-372-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97429-393-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97429-388-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97429-391-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97429-390-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-387-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97429-392-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97429-389-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97429-374-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97429-373-1 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97417-567-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97417-567-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-257-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-257-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-266-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-266-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-258-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-258-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97409-645-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97409-645-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-259-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-259-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-260-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-260-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97412-261-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97412-261-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97412-262-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97412-262-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-263-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-263-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-265-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-265-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-267-3 01 1 0904-1411 ● ●
1 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-267-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 0811-0901 ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 0902-1411 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 0811-0901 ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 0902-1411 ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 0811-0901 ●
1 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 0902-1411 ● ●
1 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1412- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 0811-0901 ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 0902-1411 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1412- ● ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 0811-0901 ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 0902-1411 ● ●
1 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-465-3 01 1 1412- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0811-0901 ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0902- ● ●
11 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0811-0901 ●
11 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0902- ● ●
11 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 0811-0901 ●
11 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 0902- ● ●
133 SCREW; COVER
FACE LIFT MODEL<TX7> T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 1412- ● ●
140 SEAL; RAD GRILLE 8-98054-279-0 01 1 0811-0901 ●
140 SEAL; RAD GRILLE 8-98054-279-0 01 1 0902-1411 ● ●
140 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> 		8-98054-279-0 01 1 1412- ● ●
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-643-0 01 1 1412- ● ●
141 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-644-0 01 1 1412- ● ●
179 RETAINER; GRILLE,RAD
D=7X7 L=7.5 		8-94291-927-0 01 1 0811-0901 ●
179 RETAINER; GRILLE,RAD
D=7X7 L=7.5 		8-94291-927-0 01 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
