5-15 — CAB MOUNTING; CAB SIDE (#49669) — 128 parça

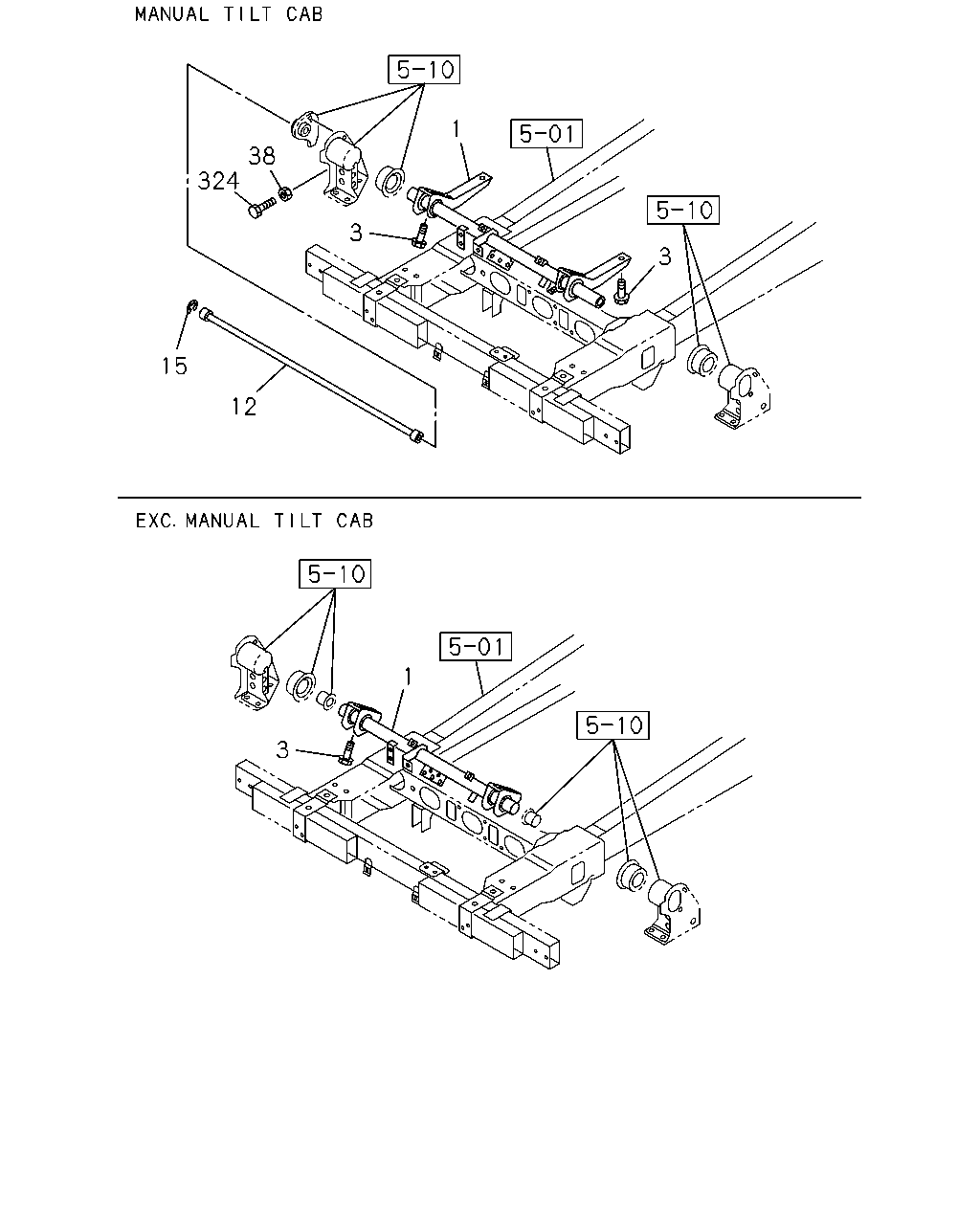

1 38 324 3 3 15 12 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	0811-0901	●
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	0902-	●	●
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98021-413-2	01	1	0811-0901	●
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98021-413-2	01	1	0902-	●	●
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0811-0901	●
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0902-	●	●
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0811-0901	●
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0902-	●	●
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	0811-0901	●
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	0902-	●	●
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0811-0901	●
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0902-	●	●
38	NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0811-0901	●
38	NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0902-	●	●
324	BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0811-0901	●
324	BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0902-	●	●

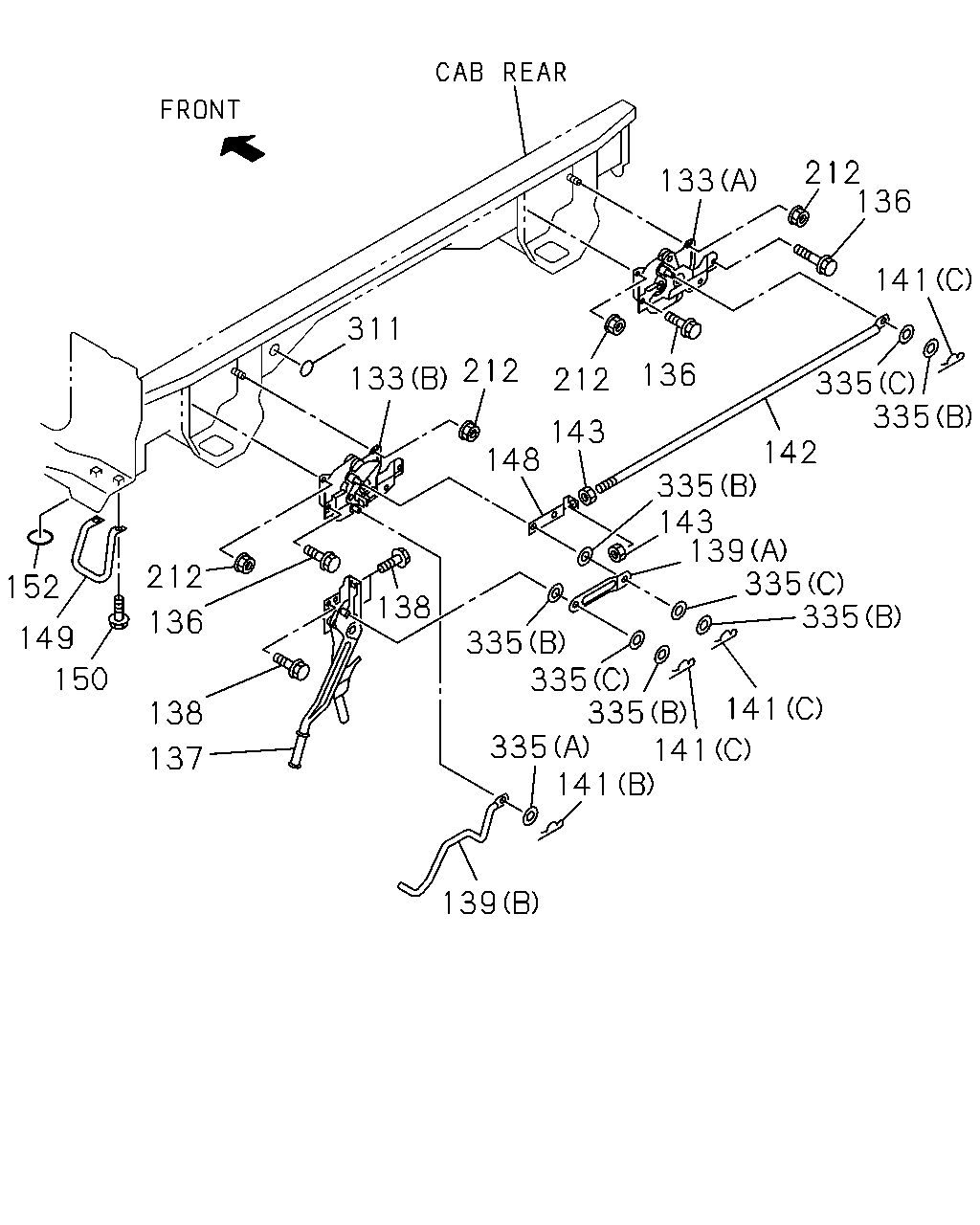

212 136 133 141 311 212 136 133 212 335 335 143 148 142 335 143 139 335 335 212 152 138 136 149 335 335 335 335 141 141 150 141 138 137 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	0811-0901	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	0902-	●	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	0811-0901	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	0902-1105	●	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-	●	●
136	BOLT; CAB LK MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	04	1	0811-0901	●
136	BOLT; CAB LK MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	04	1	0902-	●	●
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	0811-0901	●
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	0902-	●	●
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	03	1	0811-0901	●
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	03	1	0902-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	0811-0901	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	0902-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	0811-0901	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	0902-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0811-0901	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0902-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0811-0901	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0902-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0811-0901	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0902-	●	●
142	ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	0811-0901	●
142	ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	0902-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10	0-91110-510-0	02	1	0811-0901	●
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10	0-91110-510-0	02	1	0902-	●	●
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	0811-0901	●
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	0902-	●	●
149	HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	0811-0901	●
149	HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	0902-	●	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	02	1	0811-0901	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	02	1	0902-1103	●	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE	0-28650-825-0	02	1	1104-	●	●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK	1-76798-019-0	02	1	0811-0901	●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK	1-76798-019-0	02	1	0902-	●	●
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	0811-0901	●
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	0902-	●	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	0811-0901	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	0902-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14	5-09550-002-0	01	1	0811-0901	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14	5-09550-002-0	01	1	0902-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22	0-91610-512-0	05	1	0811-0901	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22	0-91610-512-0	05	1	0902-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	0811-0901	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	0902-	●	●

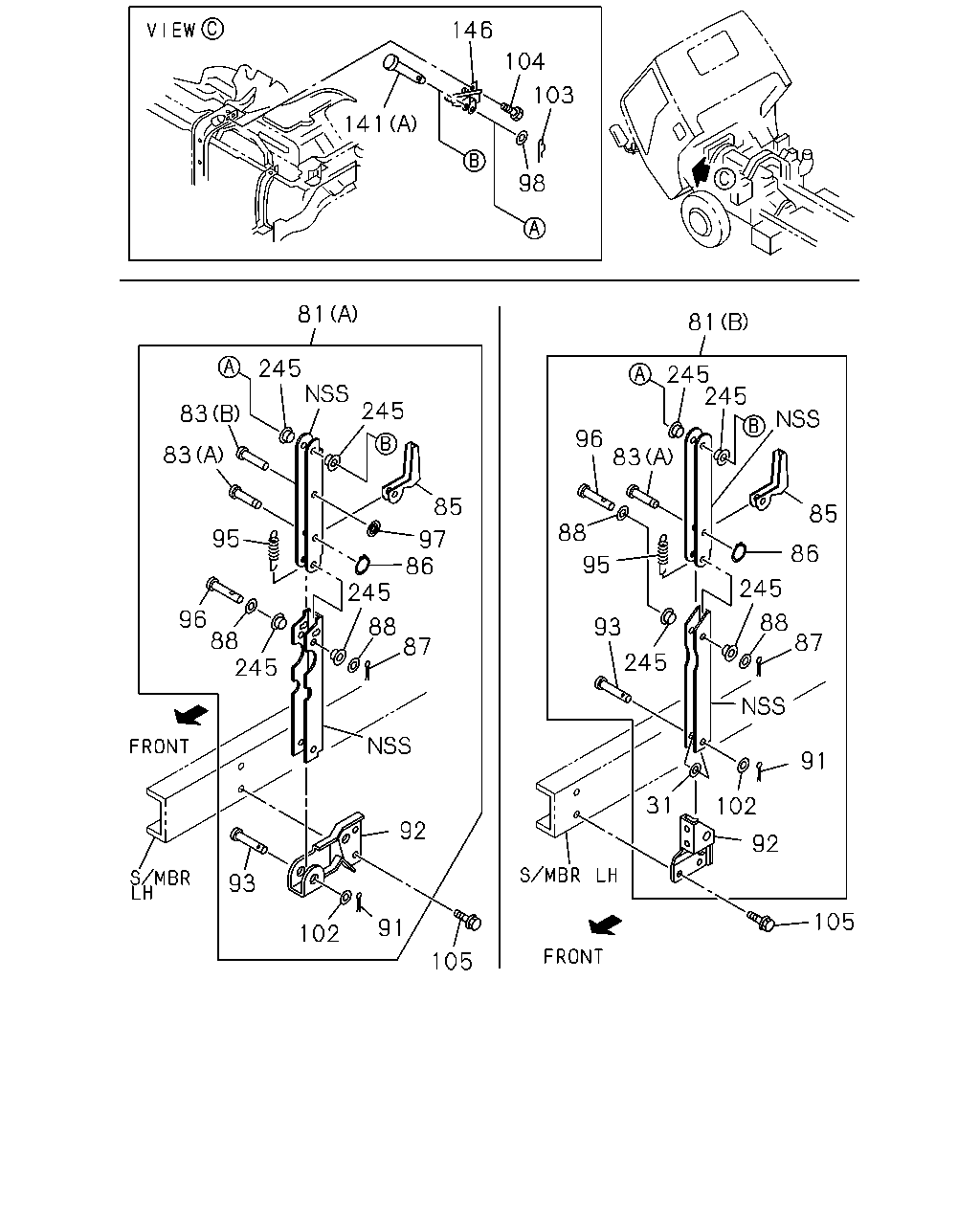

146 104 103 141 98 81 81 245 245 245 245 83 96 83 83 85 85 88 95 97 86 86 95 245 245 96 88 245 88 87 88 87 93 245 91 31 102 92 92 93 105 91 102 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	WASHER; WAVE MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0),SHIMMY DAMPER<S3V> ID=13 OD=22	8-98060-839-0	01	1	0902-		●
31	WASHER; WAVE FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> ID=13 OD=22	8-98060-839-0	01	1	0902-		●
81	STAY ASM; CAB TILT FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> (B)	8-98123-308-0	01	1	0902-		●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0),SHIMMY DAMPER<S3V> (B)	8-98123-313-0	01	1	0902-		●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98123-311-0	01	1	0811-0901	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98123-311-0	01	1	0902-0902	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98123-311-0	01	1	0902-0902		●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98141-229-2	01	1	0902-	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98141-229-2	01	1	0902-		●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	0811-0901	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	0902-	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97231-416-0	01	1	0902-		●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	0811-0901	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	0902-	●	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0),SHIMMY DAMPER<S3V>	8-94331-481-0	01	1	0902-		●
85	LEVER; LOCK,CAB STAY FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0902-		●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	0811-0901	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	0902-	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-421-1	01	1	0902-		●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	0811-0901	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	0902-	●	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20	0-81123-020-0	01	1	0811-0901	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20	0-81123-020-0	01	1	0902-	●	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0811-0901	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0902-	●	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20	0-81124-020-0	01	1	0811-0901	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20	0-81124-020-0	01	1	0902-	●	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0),SHIMMY DAMPER<S3V>	8-97385-586-1	01	1	0902-		●
92	BRACKET; CAB STAY TO FRAME FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-97385-586-1	01	1	0902-		●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	0811-0901	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	0902-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98049-333-1	01	1	0902-		●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	0811-0901	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	0902-	●	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0811-0901	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0902-	●	●
96	PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	0811-0901	●
96	PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	0902-	●	●
97	NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	0811-0901	●
97	NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	0902-	●
97	NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97231-415-0	01	1	0902-		●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0	1-09985-183-0	01	1	0811-0901	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0	1-09985-183-0	01	1	0902-	●	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	0811-0901	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	0902-	●	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	0811-0901	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	0902-	●	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	0811-0901	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	0902-	●	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0811-0901	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0902-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0811-0901	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0902-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0811-0901	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0902-	●	●
146	BRACKET ASM; CAB STAY UPR FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ>	8-98035-848-1	01	1	0902-		●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0),SHIMMY DAMPER<S3V>	8-98035-848-1	01	1	0902-		●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	0811-0901	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	0902-	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ> SHIMMY DAMPER<S3V> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98001-523-1	01	1	0902-		●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	0811-0901	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	0902-	●	●

145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0811-0901	●
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0902-	●	●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0811-0901	●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0902-	●	●
