5-10 — CAB MOUNTING; FRAME SIDE (#49668) — 78 parça

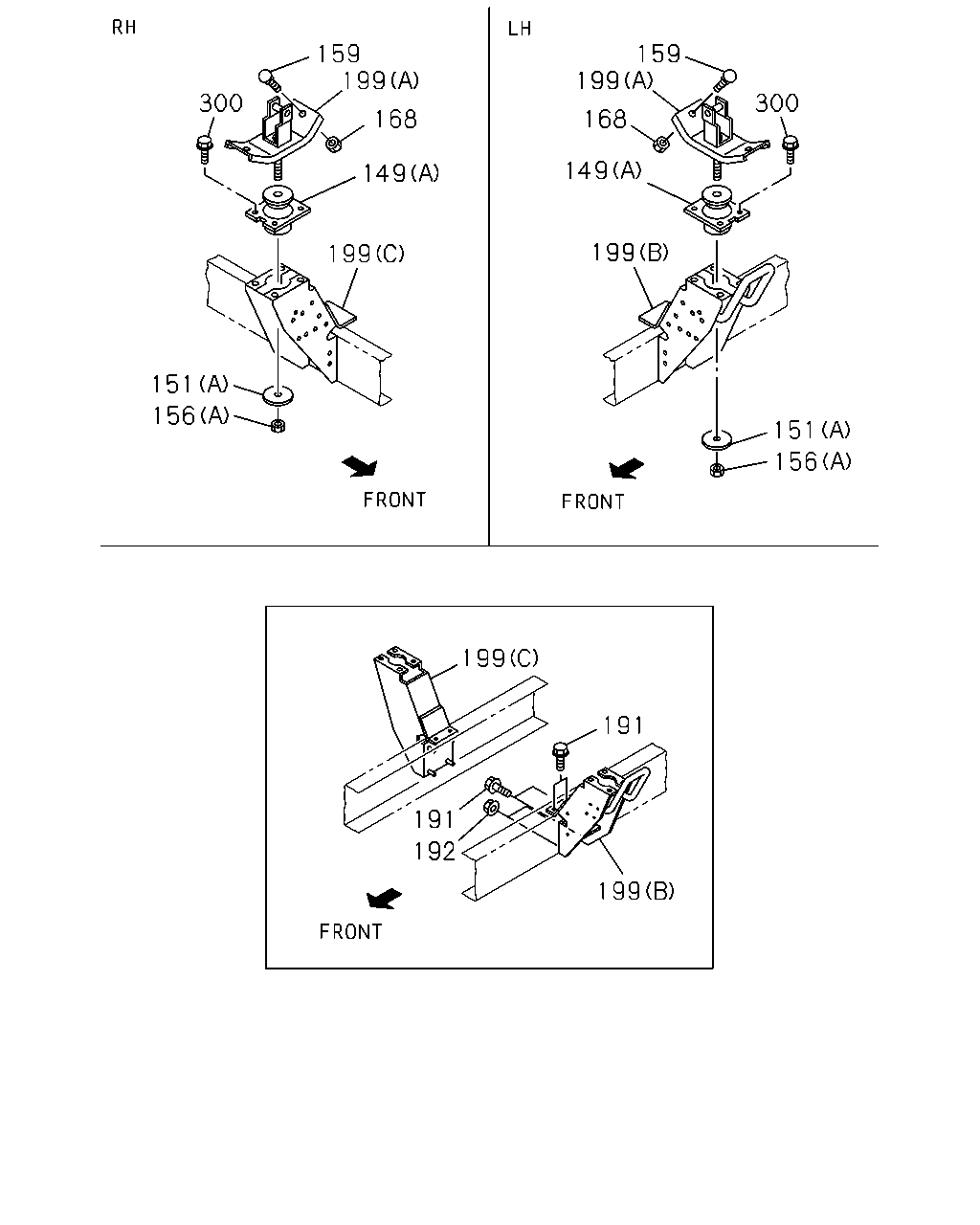

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0811-0901	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0902-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0811-0901	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0902-	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0811-0901	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0902-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0811-0901	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0902-	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	0811-0901	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	0902-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0811-0901	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0902-	●	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0811-0901	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0902-	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	0811-0901	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91180-108-0	04	1	0902-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0811-0901	●
191	BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0902-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	0811-0901	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	0902-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	0811-0901	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	0902-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	0811-0901	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	0902-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0811-0901	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0902-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	0811-0901	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	0902-	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0811-0901	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0902-	●	●

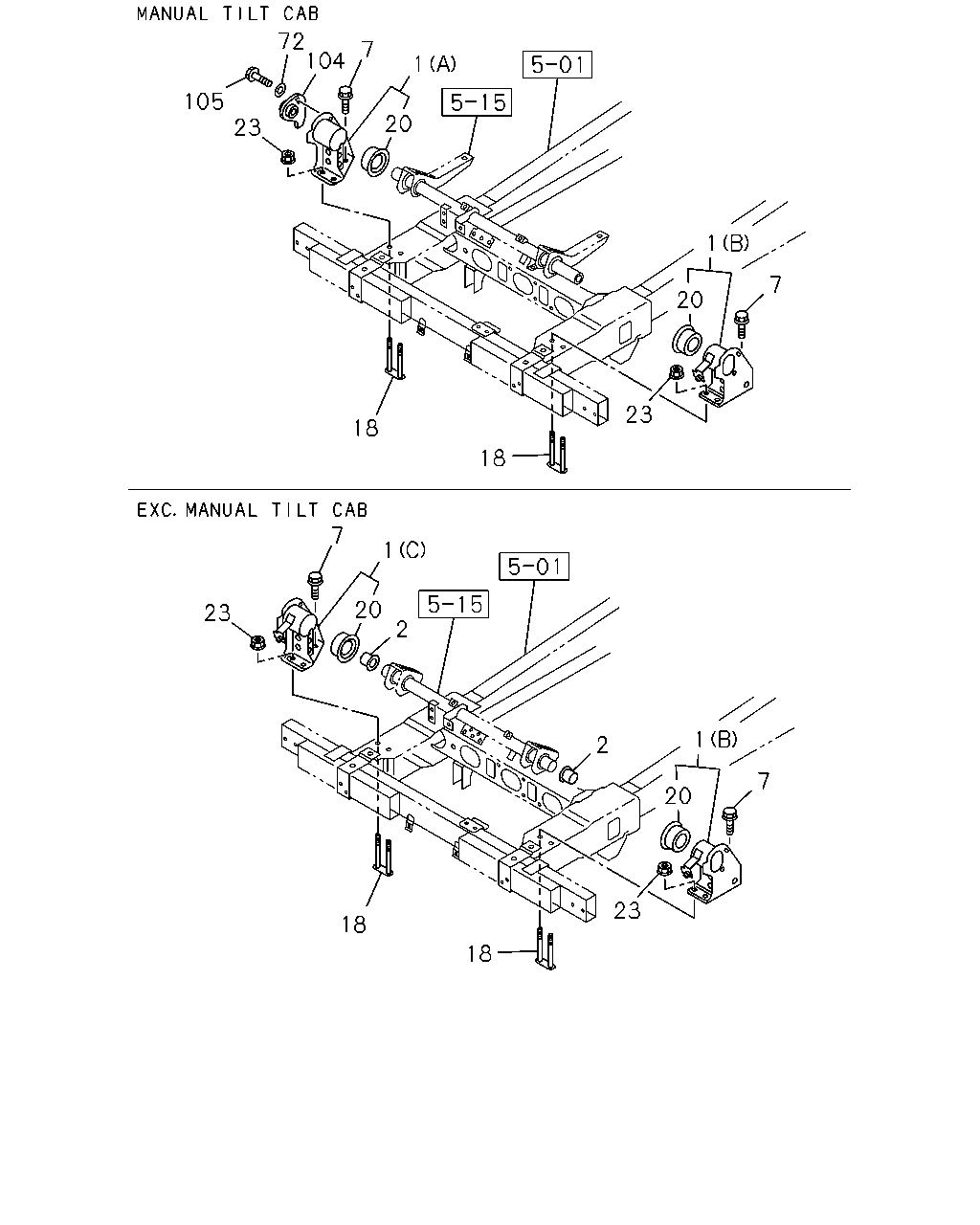

72 104 7 1 105 20 23 1 7 20 23 18 18 7 1 20 23 2 1 2 7 20 23 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (A)	8-98021-409-3	01	1	0811-0901	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (A)	8-98021-409-3	01	1	0902-	●	●
1	BRACKET; CAB MTG (B)	8-98021-408-3	01	1	0811-0901	●
1	BRACKET; CAB MTG (B)	8-98021-408-3	01	1	0902-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98021-407-4	01	1	0811-0901	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98021-407-4	01	1	0902-	●	●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0811-0901	●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0902-	●	●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0811-0901	●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0902-	●	●
18	PLATE; MTG BRKT FIX	8-98029-285-1	02	1	0811-0901	●
18	PLATE; MTG BRKT FIX	8-98029-285-1	02	1	0902-	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	0811-0901	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0902-	●	●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	0811-0901	●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	0902-	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0811-0901	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0902-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	0811-0901	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	0902-	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0811-0901	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0902-	●	●

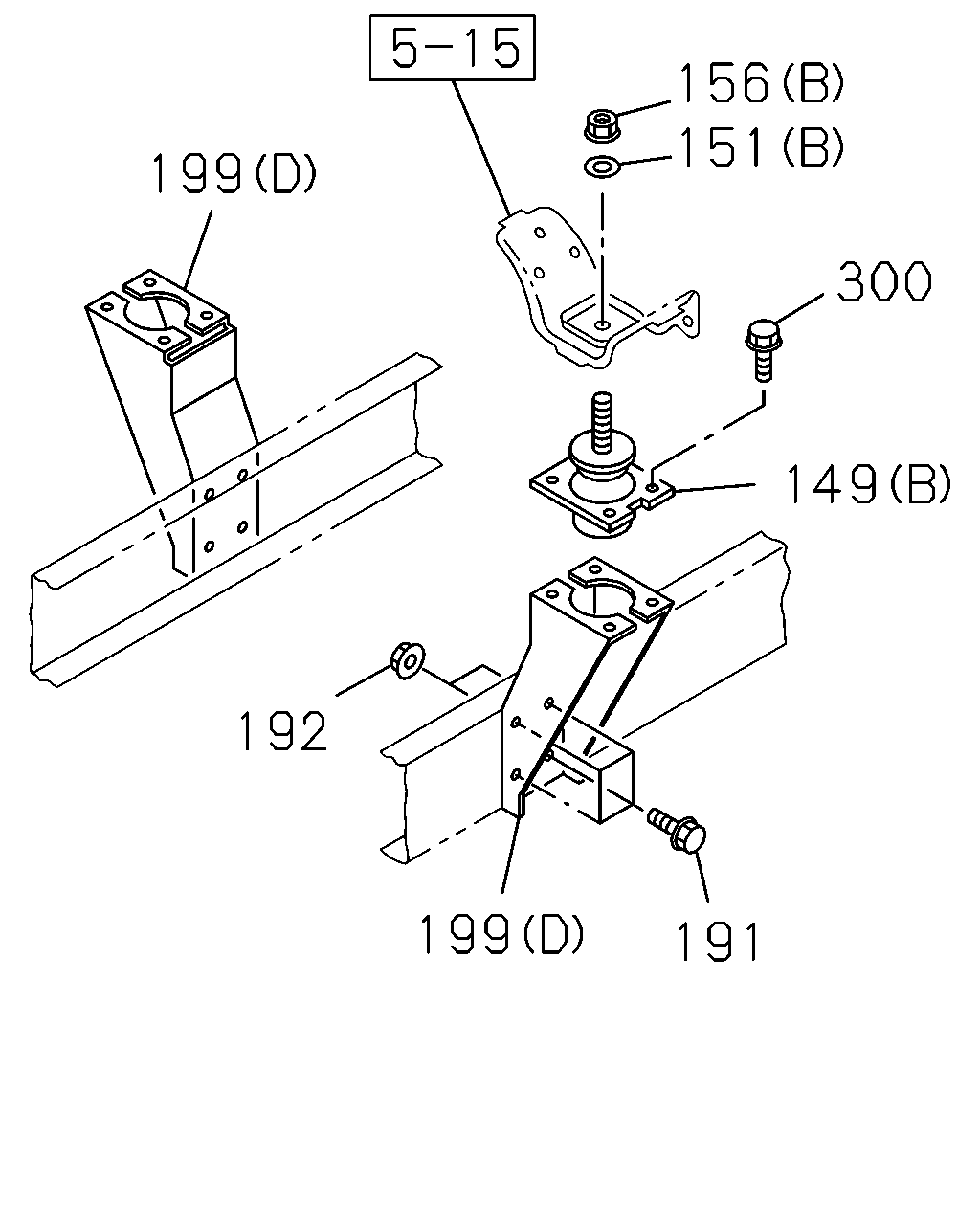

156 151 199 300 149 192 199 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0811-0901	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0902-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0811-0901	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0902-	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0811-0901	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0902-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0811-0901	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0902-	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	0811-0901	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16	0-91111-516-0	02	1	0902-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0811-0901	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0902-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0811-0901	●
191	BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0902-	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	0811-0901	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	0902-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	0811-0901	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	01	1	0902-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	0811-0901	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	0902-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0811-0901	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0902-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	0811-0901	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	02	1	0902-	●	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0811-0901	●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0902-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
