5-01 — FRAME AND OTHER PARTS (#49667) — 142 parça

130 24 51 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0811-0901	●
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0902-	●
24	BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	0902-		●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0811-0901	●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0902-	●
24	BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	0902-		●
39	BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0811-0901	●
39	BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0902-	●
39	BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	0902-		●
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0811-0901	●
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0902-	●
51	BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	0902-		●
130	MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	0811-	●
165	BRACKET; RAD STAY	8-98000-886-0	01	1	0811-0901	●
165	BRACKET; RAD STAY	8-98000-886-0	01	1	0902-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 62 67 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28050-820-0	02	1	1302-	●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	0811-0901	●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	0902-	●	●
62	NUT; MBR M10 FLANGE	0-91180-210-0	04	1	0811-0901	●
62	NUT; MBR M10 FLANGE	0-91180-210-0	04	1	0902-	●	●
67	NUT; C/MBR M10 FLANGE	0-91180-210-0	04	1	0811-0901	●
67	NUT; C/MBR M10 FLANGE	0-91180-210-0	04	1	0902-	●
67	NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-210-0	04	1	0902-		●
118	NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0811-	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28061-030-0	08	1	1302-	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28051-030-0	08	1	0811-0901	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28051-030-0	08	1	0902-1301	●
176	BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28051-030-0	08	1	0902-1301		●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) M10X30 FLANGE	0-28051-030-0	08	1	1302-	●
176	BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28051-030-0	08	1	1302-		●
376	RIVET; FRAME (A) D8X22 TAPER END	9-06750-822-0	AR	1	0811-0901	●
376	RIVET; FRAME (A) D8X22 TAPER END	9-06750-822-0	AR	1	0902-	●	●
376	RIVET; FRAME (B) D8X26 TAPER END	9-06750-826-0	AR	1	0811-0901	●
376	RIVET; FRAME (B) D8X26 TAPER END	9-06750-826-0	AR	1	0902-	●	●
376	RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0811-0901	●
376	RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0902-	●	●
376	RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0811-0901	●
376	RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0902-	●	●
376	RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0811-0901	●
376	RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0902-	●	●
376	RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0811-0901	●
376	RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0902-	●	●
376	RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0811-0901	●
376	RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0902-	●	●
376	RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0811-0901	●
376	RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0902-	●	●
376	RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	0811-0901	●
376	RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	0902-	●	●
376	RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0811-0901	●
376	RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0902-	●	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	0811-0901	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	0902-	●	●
376	RIVET; FRAME (L) D12X32 TAPER END	9-06751-232-0	AR	1	0811-0901	●
376	RIVET; FRAME (L) D12X32 TAPER END	9-06751-232-0	AR	1	0902-	●	●
376	RIVET; FRAME (M) D12X34 TAPER END	9-06751-234-0	AR	1	0811-0901	●
376	RIVET; FRAME (M) D12X34 TAPER END	9-06751-234-0	AR	1	0902-	●	●
376	RIVET; FRAME (N) D12X36 TAPER END	9-06751-236-0	AR	1	0811-0901	●
376	RIVET; FRAME (N) D12X36 TAPER END	9-06751-236-0	AR	1	0902-	●	●

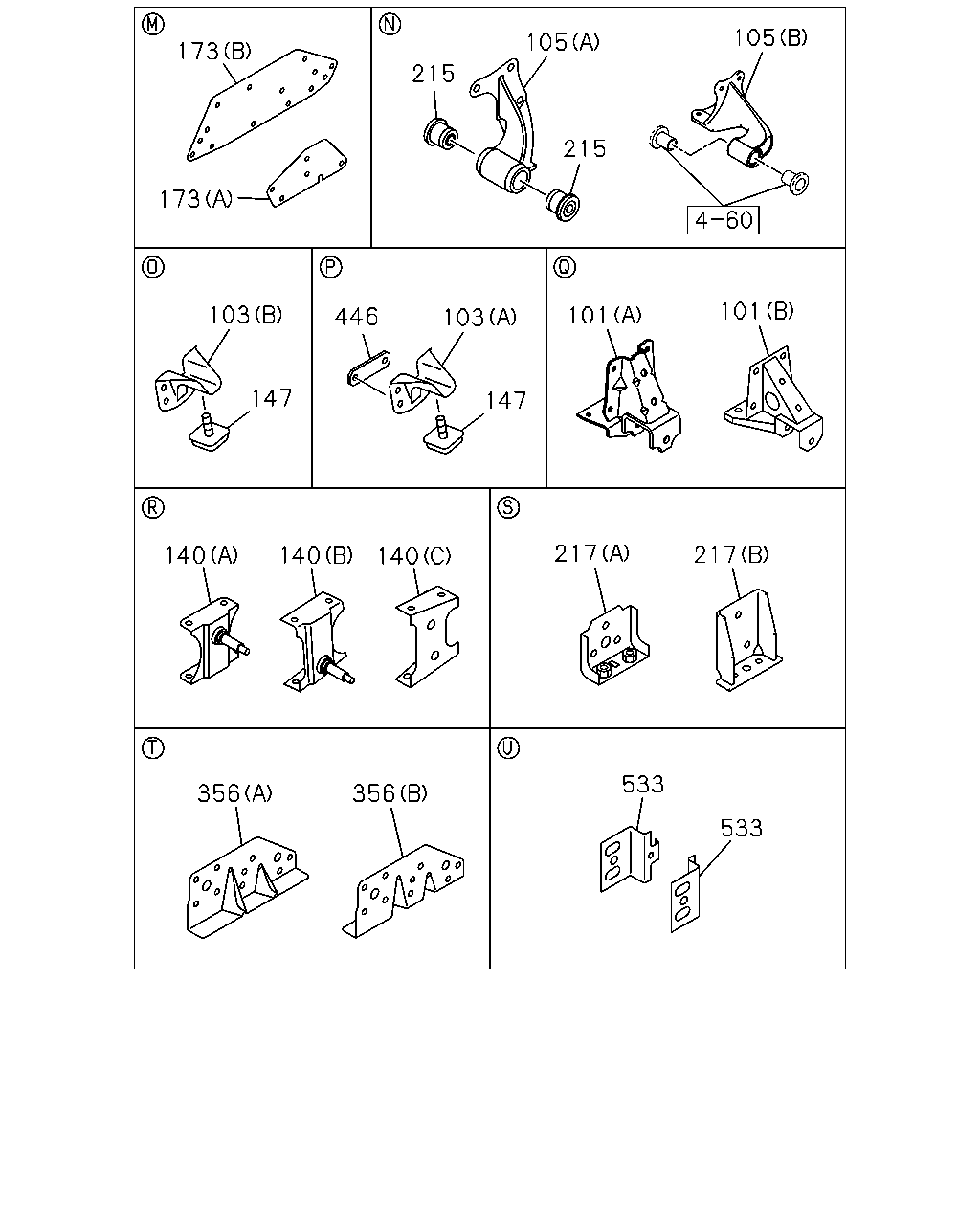

105 105 173 215 215 173 101 103 101 446 103 147 147 217 217 140 140 140 533 356 356 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BRACKET; RR SPR,FRT (B)	8-98034-042-0	02	1	0902-		●
101	BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	0811-1309	●
101	BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1310-	●
103	STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0811-	●
103	STOPPER; SUB SPR (A)	8-97223-750-0	02	1	0811-	●
105	BRACKET; RR SPR,RR (B)	8-98031-058-0	01	1	0902-		●
105	BRACKET; RR SPR,RR (B)	8-98031-059-0	01	1	0902-		●
105	BRACKET; RR SPR,RR (A)	8-98032-488-0	01	1	0811-	●
105	BRACKET; RR SPR,RR (A)	8-98032-489-0	01	1	0811-	●
140	BRACKET; S/ABS,RR (C)	8-98006-174-0	02	1	0902-		●
140	BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	0811-	●
140	BRACKET; S/ABS,RR (A)	8-98006-180-0	01	1	0811-	●
147	RUBBER; SUB SPRING	8-97254-387-0	04	1	0811-	●
173	STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	0811-	●
173	STIFFENER; RR SPRING (A)	8-98012-948-2	02	1	0811-	●
215	BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0811-	●
217	BRACKET; HELPER RUBBER,RR SPRING (B)	8-97163-899-1	02	1	0902-		●
217	BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	0811-	●
356	BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	0811-0901	●
356	BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	0902-1301	●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	0902-1301		●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-610-1	01	1	1302-		●
356	BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	0811-0901	●
356	BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	0902-1301	●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98062-611-1	01	1	0902-1301		●
356	BRACKET; ENG SUPPORT,INNER EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98062-611-1	01	1	1302-		●
446	STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	0811-1309	●
533	STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	0902-1309		●
533	STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1310-	●
533	STIFFENER; REINFORCEMENT FRT INDEPENDENT SUSPENSION(FF0)	8-98006-680-1	02	1	1310-		●

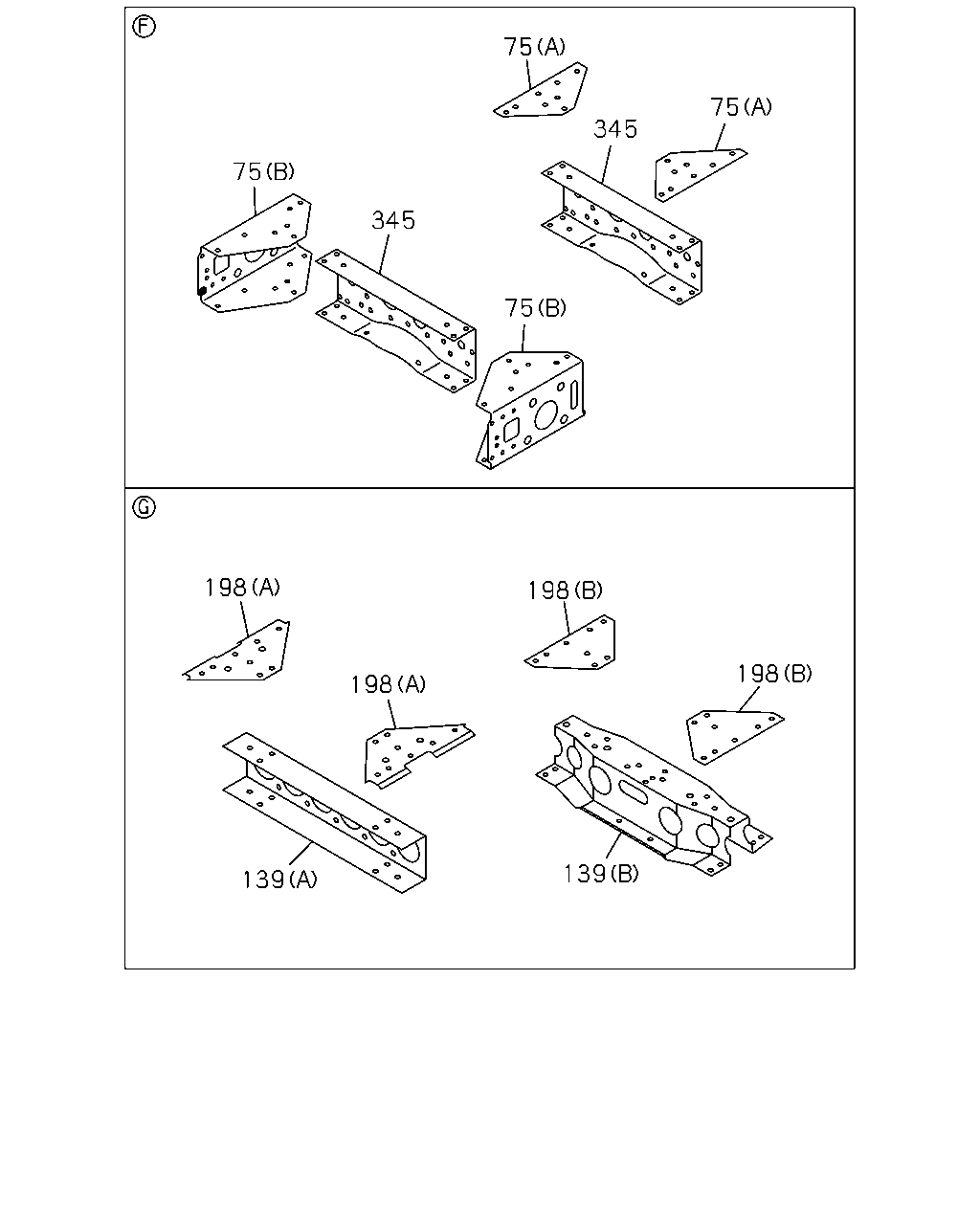

75 75 345 75 345 75 198 198 198 198 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	GUSSET; 5TH C/MBR (B)	8-98006-124-1	01	1	0902-		●
75	GUSSET; 5TH C/MBR (B)	8-98011-312-1	01	1	0902-		●
75	GUSSET; 5TH C/MBR (A)	8-98011-863-0	04	1	0811-	●
139	MEMBER; CROSS,6TH (B)	8-98006-168-1	01	1	0902-		●
139	MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	0811-	●
198	GUSSET; 6TH C/MBR (B)	8-98011-865-0	02	1	0902-		●
198	GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0811-	●
198	GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0811-	●
345	MEMBER; CROSS,5TH	8-98011-861-2	01	1	0811-0901	●
345	MEMBER; CROSS,5TH	8-98011-861-2	01	1	0902-	●	●

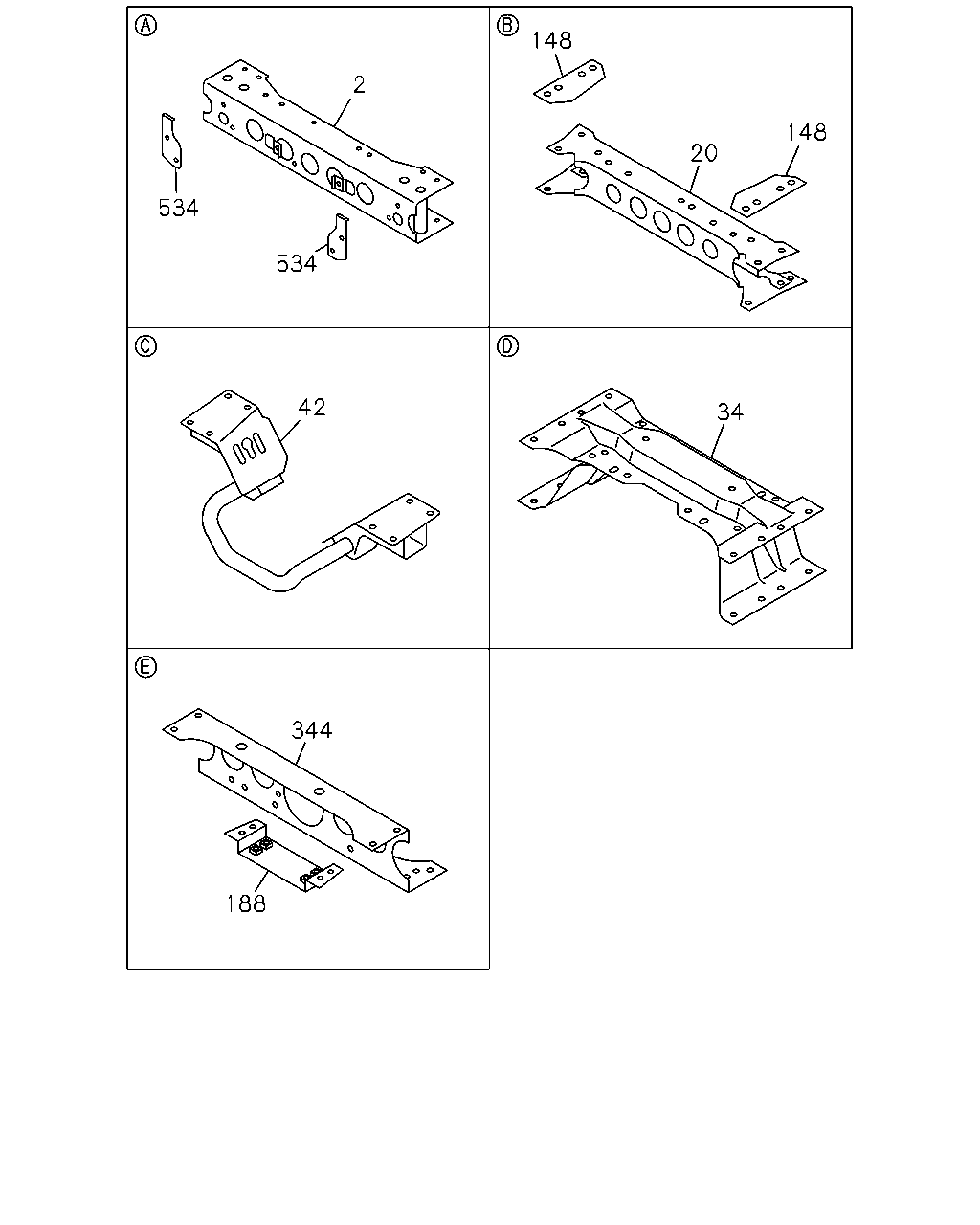

148 2 148 20 534 534 42 34 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97384-741-3	01	1	0811-0901	●
2	MEMBER; CROSS,1ST	8-97384-741-5	01	1	0902-	●	●
20	MEMBER; CROSS,2ND FRT INDEPENDENT SUSPENSION(FF0)	8-98038-419-2	01	1	0902-		●
20	MEMBER; CROSS,2ND	8-98088-281-1	01	1	0811-0901	●
20	MEMBER; CROSS,2ND	8-98088-281-1	01	1	0902-	●
20	MEMBER; CROSS,2ND EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98088-281-1	01	1	0902-		●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	0902-1301		●
34	MEMBER; CROSS,3RD	8-97384-743-1	01	1	1302-	●
34	MEMBER; CROSS,3RD FRT INDEPENDENT SUSPENSION(FF0)	8-97384-743-1	01	1	1302-		●
34	MEMBER; CROSS,3RD	8-98081-959-0	01	1	0811-0901	●
34	MEMBER; CROSS,3RD	8-98081-959-0	01	1	0902-1301	●
34	MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	0902-1301		●
34	MEMBER; CROSS,3RD EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-959-0	01	1	1302-		●
42	MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0811-0901	●
42	MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0902-	●
42	MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	0902-		●
148	SPACER; C/MBR	8-98081-958-0	04	1	0811-0901	●
148	SPACER; C/MBR	8-98081-958-0	04	1	0902-1301	●
148	SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	0902-1301		●
148	SPACER; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98081-958-0	04	1	1302-		●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	0811-	●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	0811-	●
534	BRACKET; BACK BAR	8-98061-413-0	01	1	0811-0901	●
534	BRACKET; BACK BAR	8-98061-413-0	01	1	0902-	●	●
534	BRACKET; BACK BAR	8-98061-414-0	01	1	0811-0901	●
534	BRACKET; BACK BAR	8-98061-414-0	01	1	0902-	●	●

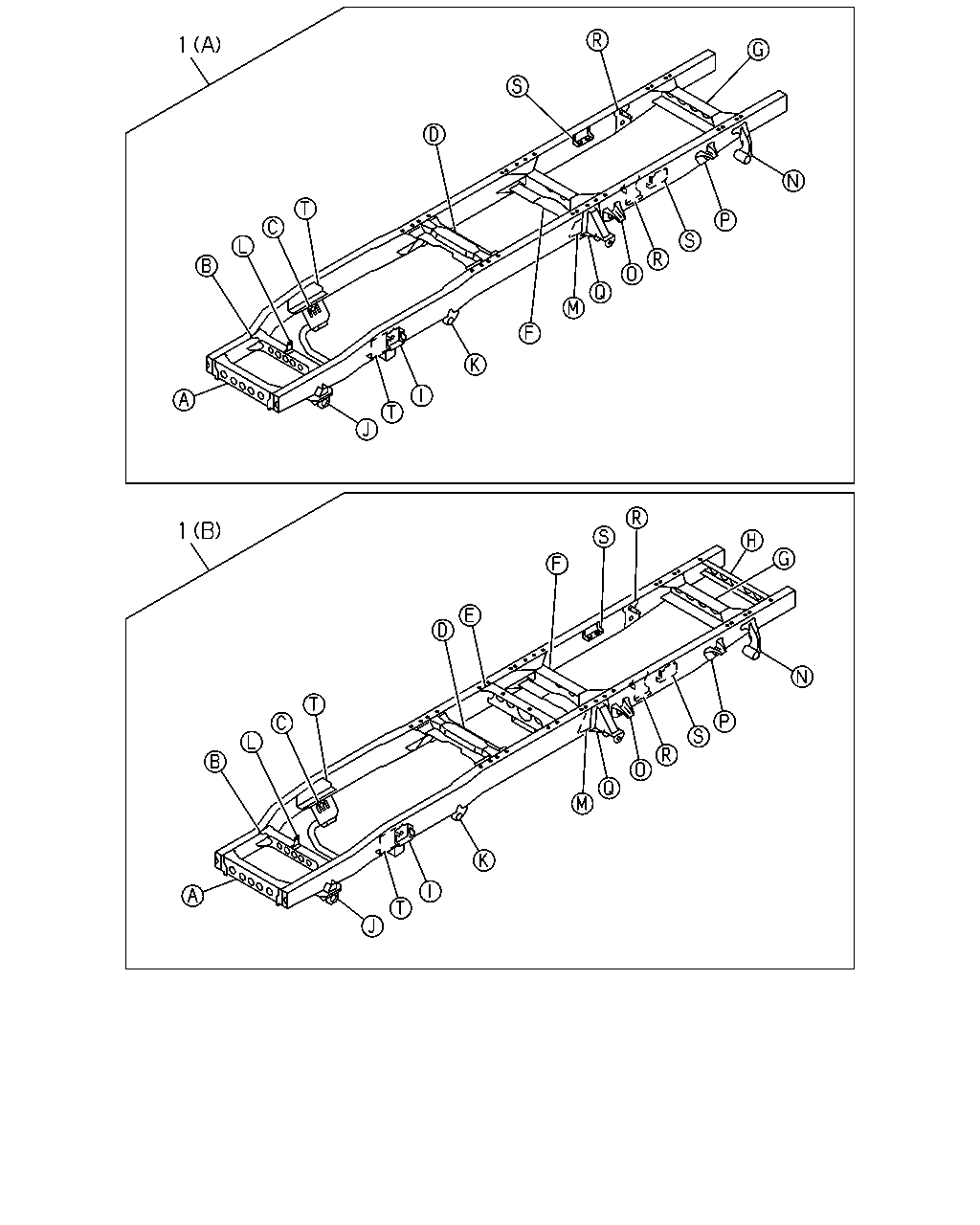

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98140-572-1	01	1	0902-		●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-303-3	01	1	0902-		●
1	FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (A)	8-98023-302-3	01	1	0902-		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98137-599-0	01	1	0811-1301	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98226-469-0	01	1	1302-1309	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98255-008-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98137-600-0	01	1	0811-1301	●
1	FRAME ASM (B)	8-98226-470-0	01	1	1302-1309	●
1	FRAME ASM (B)	8-98255-009-1	01	1	1310-	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98140-572-1	01	1	0902-		●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98023-303-3	01	1	0902-		●
1	FRAME ASM EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> (A)	8-98023-302-3	01	1	0902-		●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98137-599-0	01	1	0811-1301	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98226-469-0	01	1	1302-1309	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98255-008-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) (B)	8-98137-600-0	01	1	0811-1301	●
1	FRAME ASM (B)	8-98226-470-0	01	1	1302-1309	●
1	FRAME ASM (B)	8-98255-009-1	01	1	1310-	●
