Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#49666) — 26 parça
Tümü
A - NMR6SE
B - NMR6SN
◀

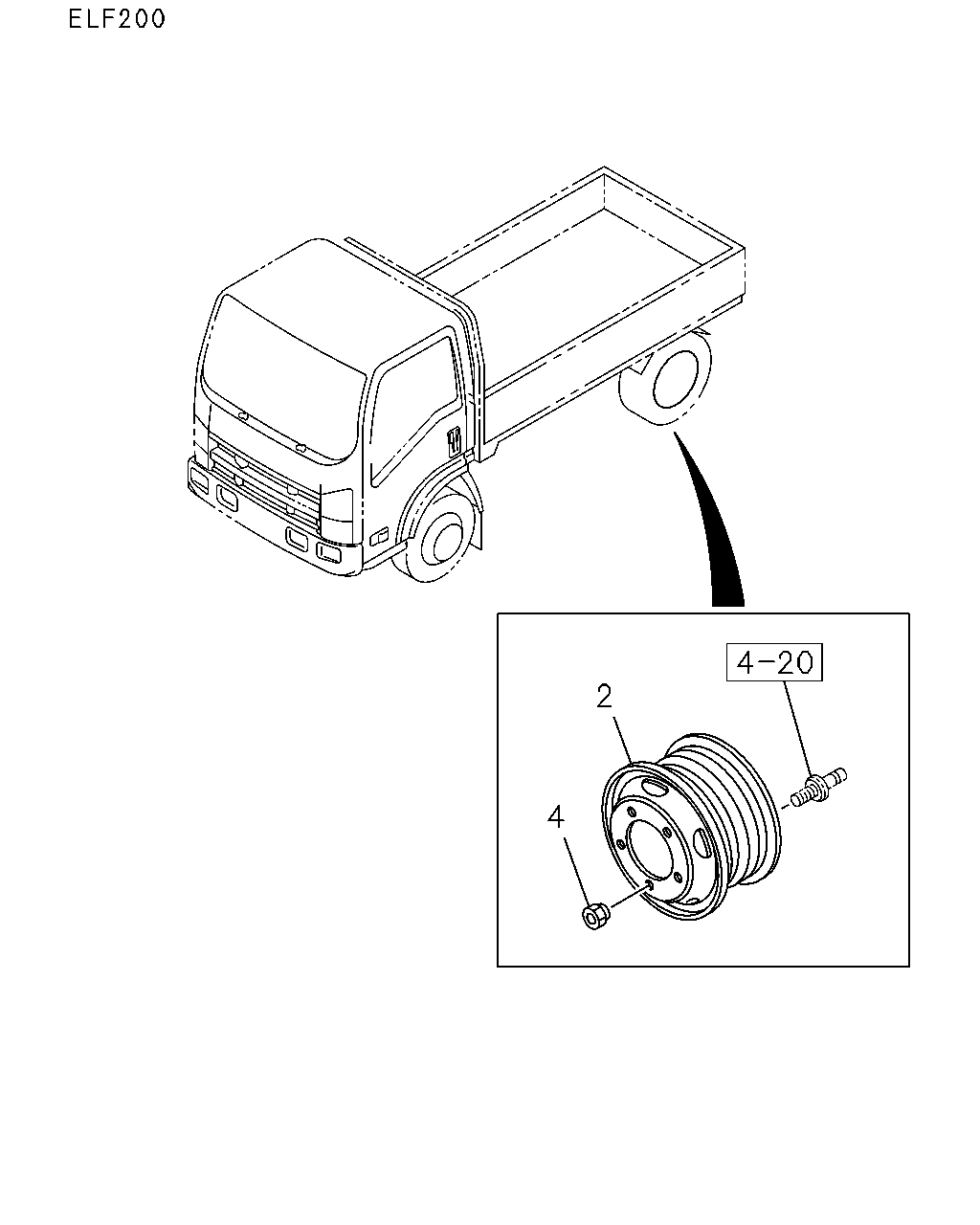

[480A] REAR(NO.2) (8 parça)

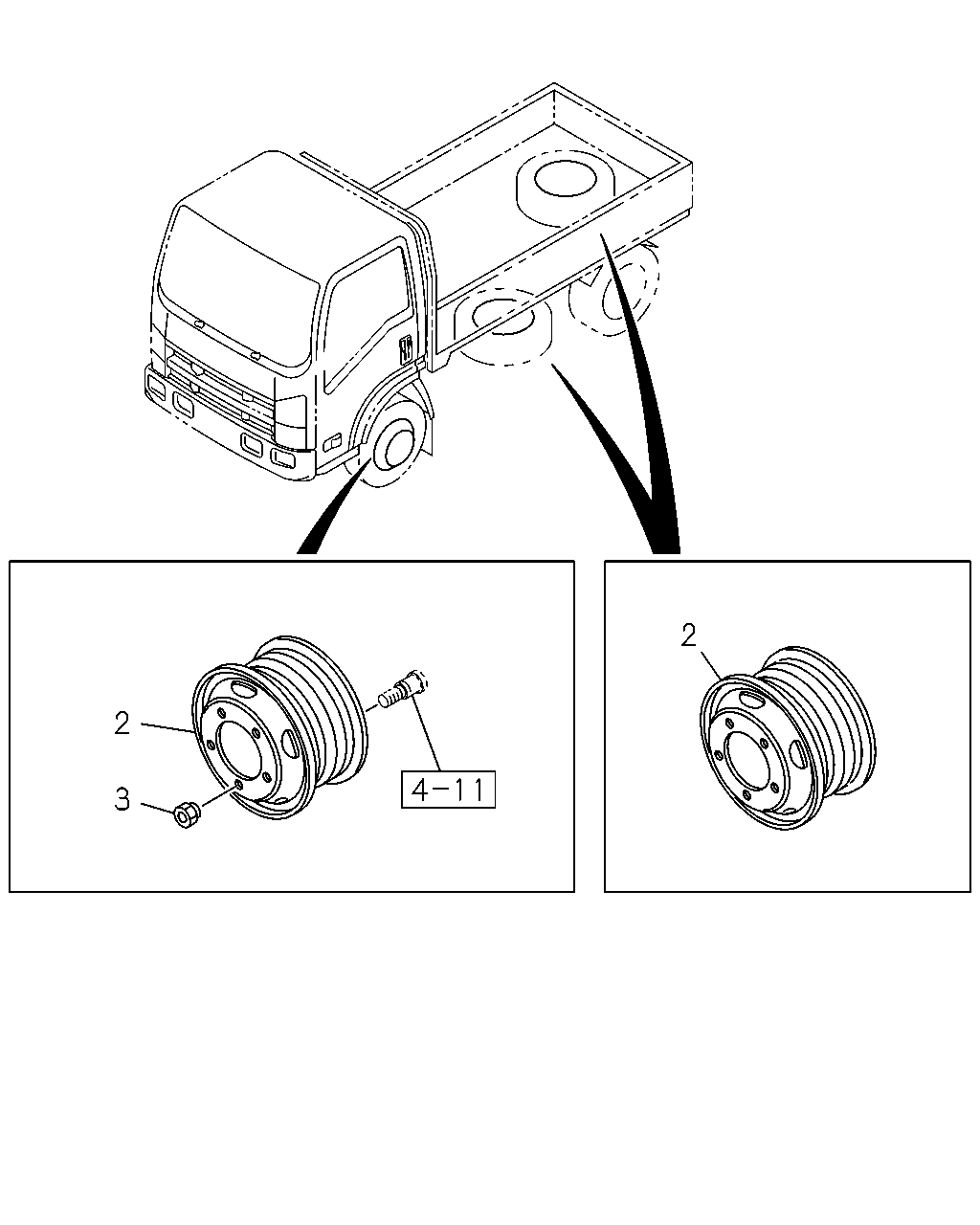

[480A] FRONT AND SPARE (8 parça)

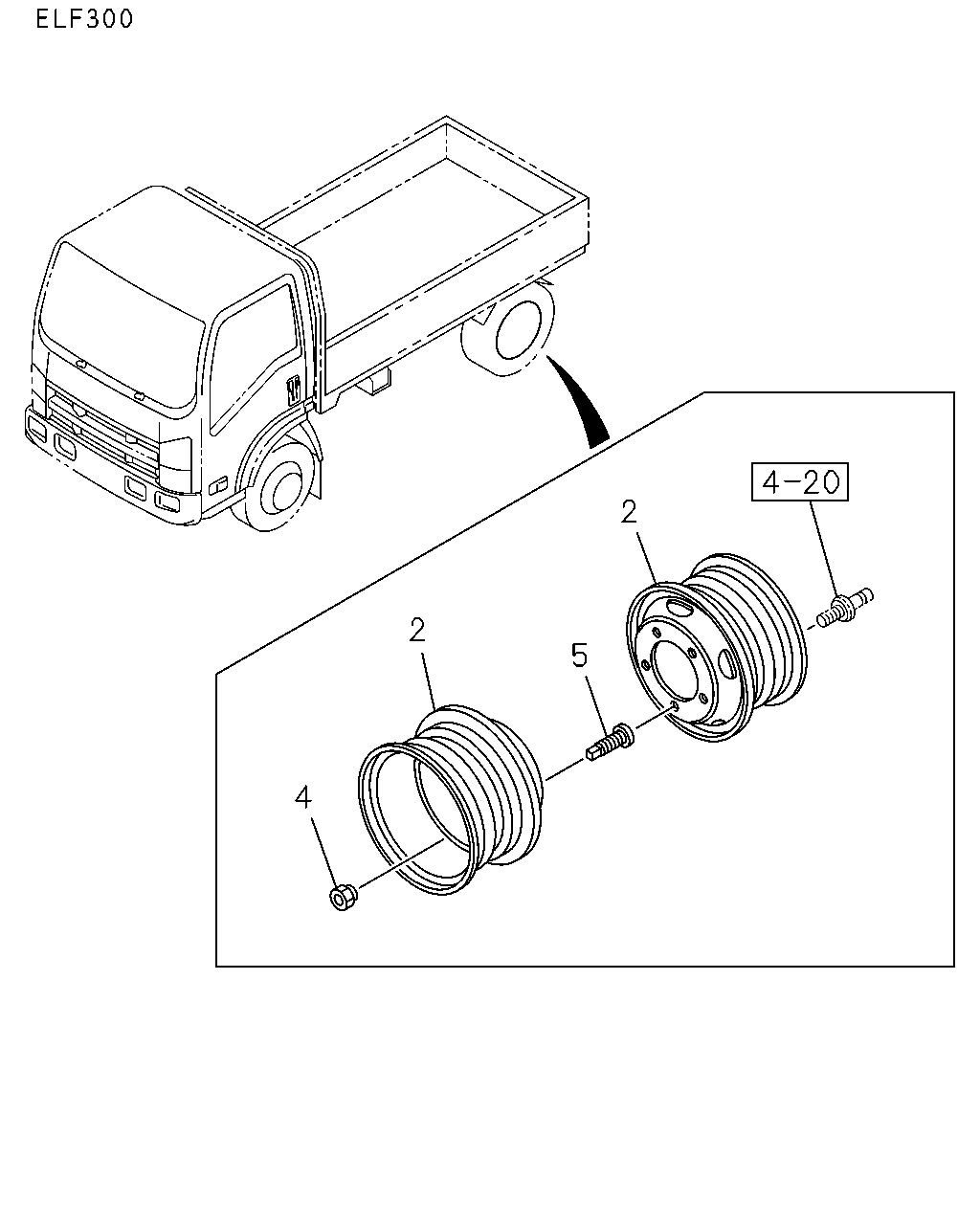

[480A] REAR(NO.1) (10 parça)
▶
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE
8-97258-376-0
01
1
0902-
●
2
WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE
8-97258-376-0
04
1
0902-
●
2
WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0811-
●
2
WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0811-
●
4
NUT; WHEEL,RR AXLE
M14 RH THREAD
8-98007-905-0
06
1
0902-
●
4
NUT; WHEEL,RR AXLE
M14 LH THREAD
8-98007-906-0
06
1
0902-
●
4
NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
0811-
●
4
NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
0811-
●
2
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE
8-97258-376-0
01
1
0902-
●
2
WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE
8-97258-376-0
04
1
0902-
●
2
WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0811-
●
2
WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0811-
●
3
NUT; WHEEL,FRT AXLE
M14 RH THREAD
8-98007-905-0
06
1
0902-
●
3
NUT; WHEEL,FRT AXLE
M14 LH THREAD
8-98007-906-0
06
1
0902-
●
3
NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
0811-
●
3
NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
0811-
●
2
2
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE
8-97258-376-0
01
1
0902-
●
2
WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE
8-97258-376-0
04
1
0902-
●
2
WHEEL; DISC
SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0811-
●
2
WHEEL; DISC
FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0811-
●
4
NUT; WHEEL,RR AXLE
M14 RH THREAD
8-98007-905-0
06
1
0902-
●
4
NUT; WHEEL,RR AXLE
M14 LH THREAD
8-98007-906-0
06
1
0902-
●
4
NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
0811-
●
4
NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
0811-
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
0811-
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
0811-
●
