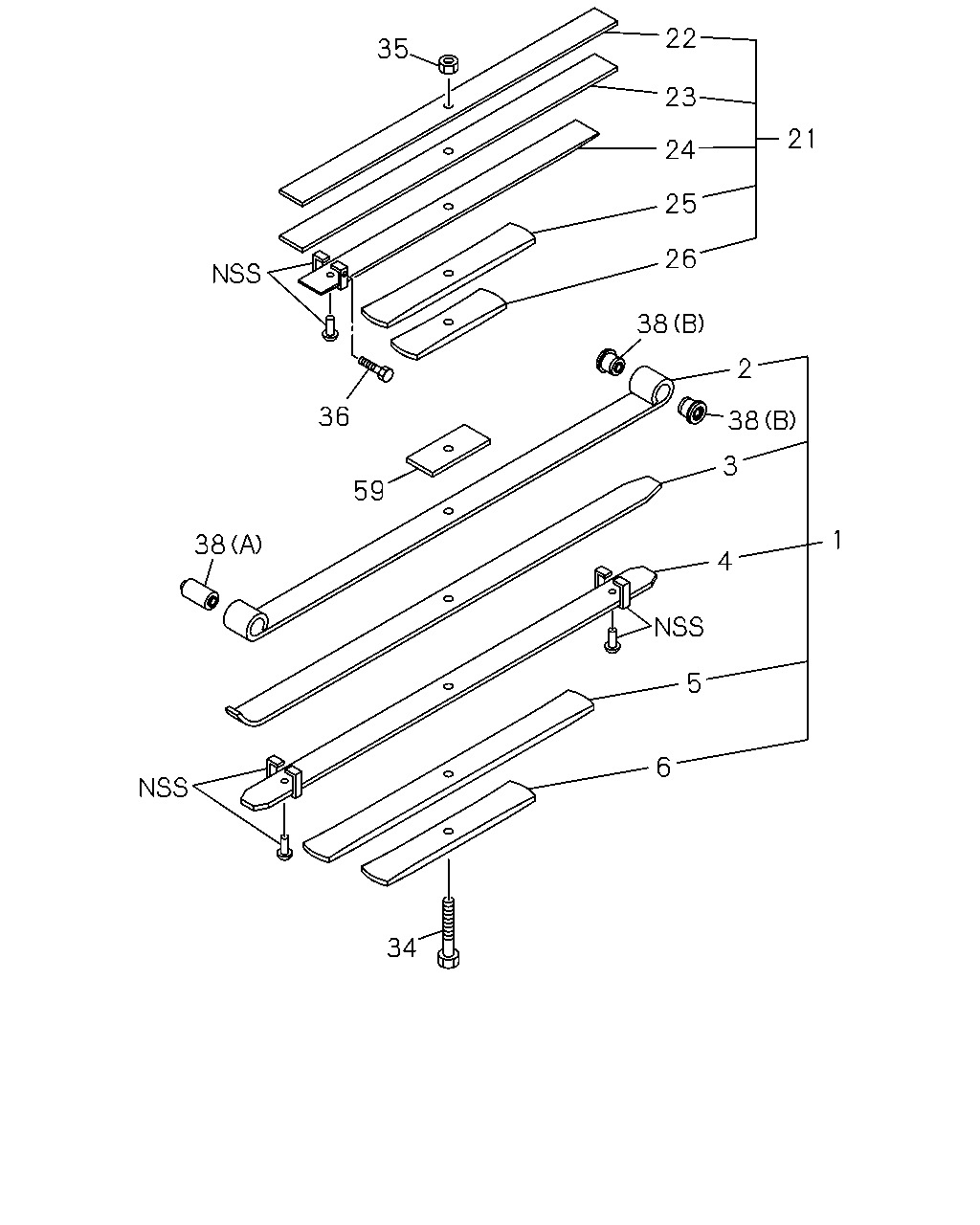

4-65B — REAR LEAF SPRING (#49665) — 19 parça

22 35 23 21 24 25 26 38 2 36 38 3 59 1 38 4 5 6 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98022-373-0	8-98090-236-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98022-373-0	8-98090-237-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98022-373-0	8-98090-238-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98022-373-0	8-98090-239-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98022-373-0	8-98090-240-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98022-373-0	8-98090-241-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98022-373-0	8-98090-242-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98022-373-0	8-98090-243-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98022-373-0	8-98090-244-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98022-373-0	8-98090-245-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98022-373-0	8-98090-246-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98022-373-0	8-98090-247-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98022-373-0	8-98037-584-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98022-373-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-98022-373-0	8-98040-332-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98022-373-0	5-87610-163-0	01	1	-
38	BUSHING; LEAF SPR,RR (B), OD=40 L=43.7 ASM PART: A = 8-98022-373-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98022-373-0	8-97074-826-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: A = 8-98022-373-0	8-94367-965-0	01	1	-
