4-60 — REAR SUSPENSION (#49662) — 45 parça
çizim 158692
227 230 225 4 502 1 6 155 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98001-551-1 02 1 0902- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0811- ●
4 U-BOLT; RR SPR
L=245 		8-94127-921-3 04 1 0902- ●
4 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0811- ●
5 NUT; U-BOLT,RR SPR
M16 		8-97360-121-0 08 1 0811-0901 ●
5 NUT; U-BOLT,RR SPR
M16 		8-97360-121-0 08 1 0902- ● ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0811-0901 ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0902- ● ●
155 BRACKET; S/ABS 8-94128-360-4 01 1 0902- ●
155 BRACKET; S/ABS 8-94128-361-4 01 1 0902- ●
225 RUBBER; CUSHION,RR SPR 8-98002-085-1 02 1 0902- ●
225 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0811-1509 ●
225 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1510- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 0811-0901 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 0902- ● ●
230 SPACER; CUSHION RUBBER 8-97136-853-0 02 1 0902- ●
230 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0811- ●
502 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) L=130 T=4.5 		8-94119-069-2 02 1 0811-0901 ●
502 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) L=130 T=4.5 		8-94119-069-2 02 1 0902- ●
502 CLAMP; RR LEAF SPR
L=130 T=4.5 		8-94119-069-2 02 1 0902- ●

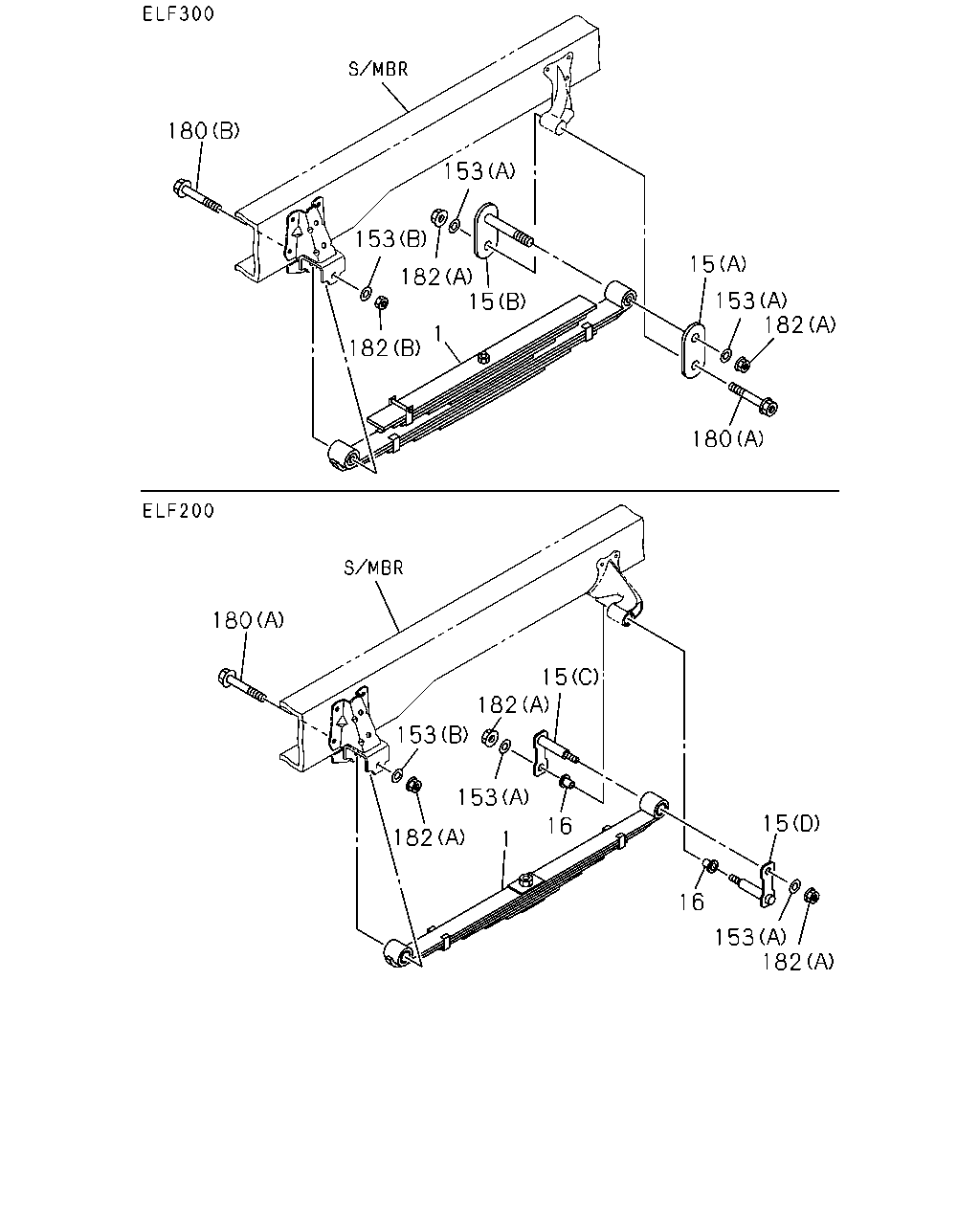

çizim 158713
180 153 153 15 182 15 153 182 1 182 180 180 15 182 153 153 15 16 182 1 16 153 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98001-551-1 02 1 0902- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0811- ●
15 SHACKLE; RR SPR
(D) 		8-94113-322-3 02 1 0902- ●
15 SHACKLE; RR SPR
(C) 		8-97033-966-1 02 1 0902- ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0811- ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0811- ●
16 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0902- ●
16 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 0902- ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 02 1 0902- ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5 		8-98011-489-0 04 1 0811-0901 ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5 		8-98011-489-0 04 1 0902- ● ●
153 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 0811- ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 0811-0901 ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 0902- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0811- ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 0811-0901 ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 0902- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0811- ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (A) M16 		0-91110-516-0 02 1 0902- ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 02 1 0902- ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (A) M16 		0-91110-516-0 04 1 0811-0901 ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (A) M16 		0-91110-516-0 04 1 0902- ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0811- ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 0811-0901 ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 0902- ● ●
