4-55 — FRONT LEAF SPRING (#49661) — 64 parça

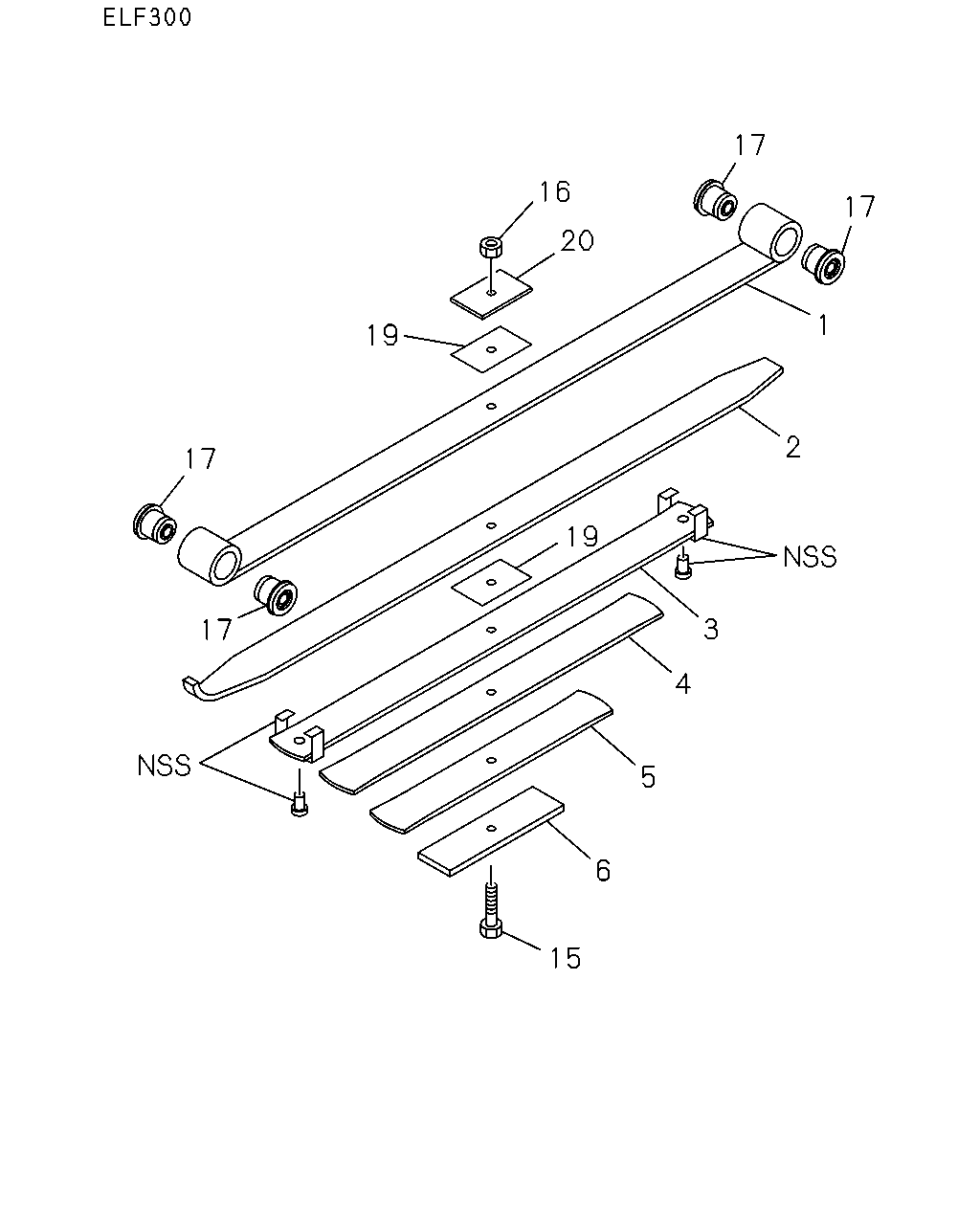

17 16 17 20 1 19 2 17 3 17 4 5 6 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98001-533-0	8-98042-335-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-881-0	8-98090-248-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98079-885-0	8-98094-367-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98079-887-0	8-98094-369-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98001-533-0	8-98042-336-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-881-0	8-98090-249-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98079-885-0	8-98094-368-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98079-887-0	8-98094-370-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98001-533-0	8-98042-337-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98079-885-0	8-98063-908-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98079-887-0	8-98063-914-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-881-0	8-98090-250-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98001-533-0	8-98042-338-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98079-885-0	8-98063-909-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98079-887-0	8-98063-915-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-881-0	8-98090-251-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98001-533-0	8-98042-339-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98079-885-0	8-98063-910-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98079-887-0	8-98063-916-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-881-0	8-98090-252-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98001-533-0	8-98042-340-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98079-885-0	8-98063-911-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98079-887-0	8-98063-917-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98079-881-0	8-98090-253-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0	8-98041-353-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: C = 8-98079-885-0, D = 8-98079-887-0	8-98063-131-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0, C = 8-98079-885-0, D = 8-98079-887-0	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0, C = 8-98079-885-0, D = 8-98079-887-0	8-98040-327-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0	8-94478-008-1	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98079-885-0, D = 8-98079-887-0	8-94478-008-1	01	1	-
20	SEAT; LEAF SPR,FRT ASM PART: C = 8-98079-885-0, D = 8-98079-887-0	8-98040-316-0	02	1	-
20	SEAT; LEAF SPR,FRT ASM PART: A = 8-98001-533-0, B = 8-98079-881-0	8-98041-369-0	01	1	-

17 16 17 20 1 19 2 17 19 3 17 4 5 6 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98001-533-0	8-98042-335-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-881-0	8-98090-248-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98079-885-0	8-98094-367-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98079-887-0	8-98094-369-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98001-533-0	8-98042-336-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-881-0	8-98090-249-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98079-885-0	8-98094-368-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98079-887-0	8-98094-370-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98001-533-0	8-98042-337-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98079-885-0	8-98063-908-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98079-887-0	8-98063-914-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-881-0	8-98090-250-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98001-533-0	8-98042-338-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98079-885-0	8-98063-909-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98079-887-0	8-98063-915-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-881-0	8-98090-251-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98001-533-0	8-98042-339-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98079-885-0	8-98063-910-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98079-887-0	8-98063-916-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-881-0	8-98090-252-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98001-533-0	8-98042-340-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98079-885-0	8-98063-911-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98079-887-0	8-98063-917-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98079-881-0	8-98090-253-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0	8-98041-353-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: C = 8-98079-885-0, D = 8-98079-887-0	8-98063-131-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0, C = 8-98079-885-0, D = 8-98079-887-0	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0, C = 8-98079-885-0, D = 8-98079-887-0	8-98040-327-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98001-533-0, B = 8-98079-881-0	8-94478-008-1	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98079-885-0, D = 8-98079-887-0	8-94478-008-1	01	1	-
20	SEAT; LEAF SPR,FRT ASM PART: C = 8-98079-885-0, D = 8-98079-887-0	8-98040-316-0	02	1	-
20	SEAT; LEAF SPR,FRT ASM PART: A = 8-98001-533-0, B = 8-98079-881-0	8-98041-369-0	01	1	-
