Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#49660) — 182 parça

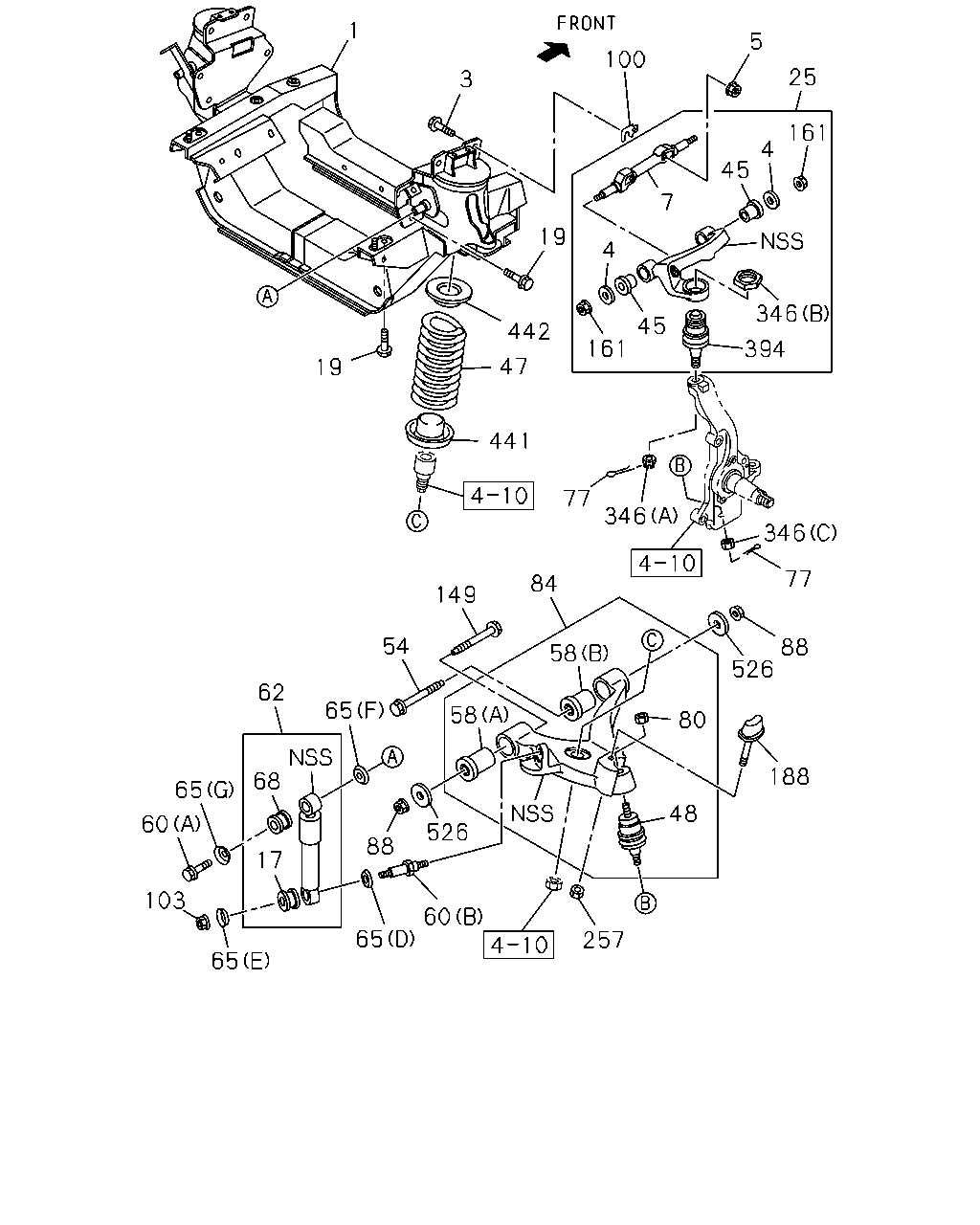

1 19 442 47 441 77 84 149 54 62 68 65 3 17 65 88 60 526 58 58 80 48 188 526 77 346 346 161 394 346 45 7 4 45 4 161 25 5 100 3 88 19 257 65 65 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98021-830-1	01	1	0902-1306	●
1	MEMBER; CROSS,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-98247-588-0	01	1	1307-	●
3	BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16X70 FLANGE	0-28861-670-0	04	1	0902-	●
4	WASHER; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98021-786-0	04	1	0902-	●
5	NUT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	0902-	●
7	PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-654-0	02	1	0902-	●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	0902-1201	●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-	●
17	BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0811-0901		●
17	BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0902-		●
17	BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	0902-	●
19	BOLT; FRT SUSP TO C/MBR FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28661-230-0	14	1	0902-	●
25	ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-652-0	01	1	0902-	●
25	ARM; UPR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98021-653-0	01	1	0902-	●
45	BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97188-369-0	04	1	0902-	●
47	SPRING; COIL,FRT SUSP FRT INDEPENDENT SUSPENSION(FF0)	8-97357-109-1	02	1	0902-	●
48	JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-97142-452-1	02	1	0902-	●
54	PIN; FULCRUM,LWR LINK FRT INDEPENDENT SUSPENSION(FF0)	8-98021-825-1	02	1	0902-	●
58	BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94336-509-1	02	1	0902-	●
58	BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98009-049-1	02	1	0902-	●
60	BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (A) M10X20 FLANGE	0-28651-020-0	02	1	0902-	●
60	BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97145-460-0	02	1	0902-	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98093-668-0	02	1	0902-1201	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-653-0	02	1	1202-1506	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98316-234-0	02	1	1507-	●
62	ABSORBER ASM; SHOCK,FRT	8-98085-709-1	02	1	0811-0901		●
62	ABSORBER ASM; SHOCK,FRT	8-98085-709-1	02	1	0902-1506		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-709-1	02	1	0902-1506	●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506	●
62	ABSORBER ASM; SHOCK,FRT	8-98316-235-0	02	1	1507-		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98316-235-0	02	1	1507-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40	0-91614-620-0	02	1	0902-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15	8-97360-056-0	02	1	0902-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0	8-97360-057-0	02	1	0902-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5	8-97360-058-0	02	1	0902-	●
65	WASHER; S/ABS (A) ID=17 OD=32	9-09164-616-0	02	1	0811-0901		●
65	WASHER; S/ABS (A) ID=17 OD=32	9-09164-616-0	02	1	0902-1011		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	9-09164-616-0	02	1	0902-1011	●
65	WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1012-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1012-	●
65	WASHER; S/ABS (B) ID=10.5 OD=38	9-51631-062-0	04	1	0811-0901		●
65	WASHER; S/ABS (B) ID=10.5 OD=38	9-51631-062-0	04	1	0902-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10.5 OD=38	9-51631-062-0	04	1	0902-	●
65	WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	0811-0901		●
65	WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	0902-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	0902-	●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	0902-1201	●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-	●
68	BUSHING; S/ABS TOKICO	8-94224-694-0	02	1	0811-0901		●
68	BUSHING; S/ABS TOKICO	8-94224-694-0	02	1	0902-		●
68	BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	8-94224-694-0	02	1	0902-	●
77	PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=30	0-81124-030-0	04	1	0902-	●
80	NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) M16	0-91111-516-0	02	1	0902-	●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-259-0	01	1	0902-1508	●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98330-120-0	01	1	1509-	●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98001-260-0	01	1	0902-1508	●
84	ARM; LWR CONT FRT INDEPENDENT SUSPENSION(FF0)	8-98330-121-0	01	1	1509-	●
88	NUT; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) M22	0-91110-522-0	04	1	0902-	●
100	SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=1.2	8-98029-250-0	AR	1	0902-	●
100	SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=2.3	8-98029-251-0	AR	1	0902-	●
100	SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) T=4.5	8-98029-252-0	AR	1	0902-	●
149	BOLT; ARM TO LWR CONT ARM FRT INDEPENDENT SUSPENSION(FF0)	8-98021-826-1	02	1	0902-	●
161	NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(FF0) M16 FLANGE	0-91180-216-0	04	1	0902-	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	0902-	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0811-0901		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0902-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	0902-	●
257	NUT; CUSHION RUBBER FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-210-0	02	1	0902-	●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (C) M22	0-91111-522-0	02	1	0902-	●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (A) M18 SLOTTED	8-97245-632-0	02	1	0902-	●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M52	8-98021-784-0	02	1	0902-0909	●
346	NUT; LINK END FRT INDEPENDENT SUSPENSION(FF0) (B) M52	8-98158-133-0	02	1	0910-	●
394	END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-97327-369-5	02	1	0902-	●
441	SEAT; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-580-2	02	1	0902-	●
442	INSULATOR; COIL SPR FRT INDEPENDENT SUSPENSION(FF0)	8-97354-550-1	02	1	0902-	●
526	WASHER; LWR LINK FRT INDEPENDENT SUSPENSION(FF0) ID=23	0-91614-522-0	04	1	0902-	●

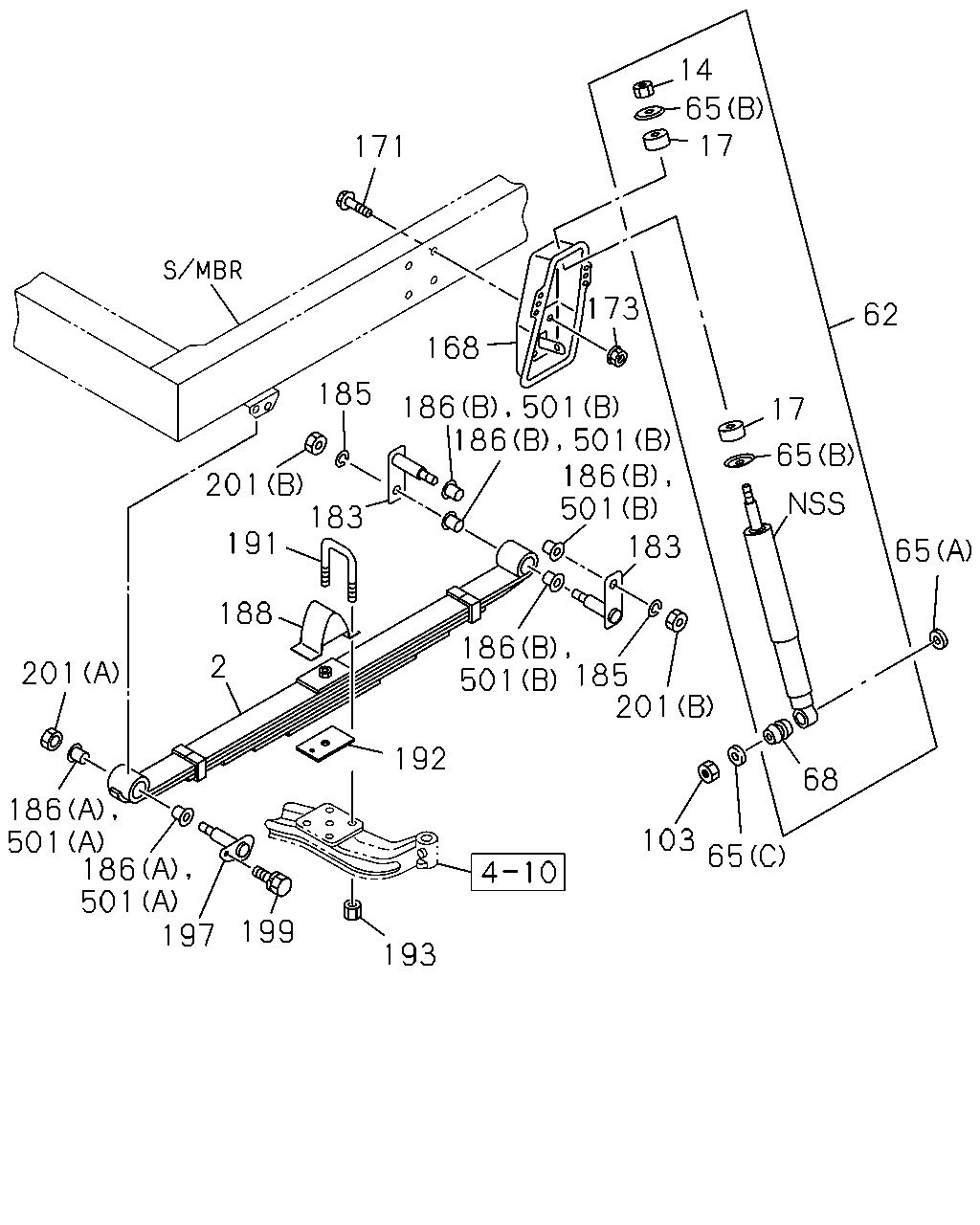

14 65 17 171 173 62 168 185 186 501 183 17 65 201 183 191 65 188 186 501 185 201 2 201 192 68 186 501 186 501 197 103 65 199 193 186 186 501 501

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF	8-98079-885-0	01	1	0902-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 6-LEAF	8-98079-887-0	01	1	0902-	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98001-533-0	01	1	0811-		●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-881-0	01	1	0811-		●
14	NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0811-0901		●
14	NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0902-		●
14	NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(FF0) M10	8-94317-772-0	02	1	0902-	●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	0902-1201	●
17	BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-	●
17	BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0811-0901		●
17	BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0902-		●
17	BUSHING; RUBBER,S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	9-51631-603-0	04	1	0902-	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98093-668-0	02	1	0902-1201	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98197-653-0	02	1	1202-1506	●
62	ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98316-234-0	02	1	1507-	●
62	ABSORBER ASM; SHOCK,FRT	8-98085-709-1	02	1	0811-0901		●
62	ABSORBER ASM; SHOCK,FRT	8-98085-709-1	02	1	0902-1506		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-709-1	02	1	0902-1506	●
62	ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) BEST VALUE PARTS	5-87610-159-0	02	1	1304-1506	●
62	ABSORBER ASM; SHOCK,FRT	8-98316-235-0	02	1	1507-		●
62	ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98316-235-0	02	1	1507-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (D) ID=21 OD=40	0-91614-620-0	02	1	0902-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (E) ID=15	8-97360-056-0	02	1	0902-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (F) ID=20.0	8-97360-057-0	02	1	0902-	●
65	WASHER; S/ABS FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10.5	8-97360-058-0	02	1	0902-	●
65	WASHER; S/ABS (A) ID=17 OD=32	9-09164-616-0	02	1	0811-0901		●
65	WASHER; S/ABS (A) ID=17 OD=32	9-09164-616-0	02	1	0902-1011		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	9-09164-616-0	02	1	0902-1011	●
65	WASHER; S/ABS (A) ID=17 OD=32	0-91614-616-0	02	1	1012-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=17 OD=32	0-91614-616-0	02	1	1012-	●
65	WASHER; S/ABS (B) ID=10.5 OD=38	9-51631-062-0	04	1	0811-0901		●
65	WASHER; S/ABS (B) ID=10.5 OD=38	9-51631-062-0	04	1	0902-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10.5 OD=38	9-51631-062-0	04	1	0902-	●
65	WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	0811-0901		●
65	WASHER; S/ABS (C) ID=12.5	9-51679-022-0	02	1	0902-		●
65	WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=12.5	9-51679-022-0	02	1	0902-	●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0)	8-97370-319-0	02	1	0902-1201	●
68	BUSHING; S/ABS FRT INDEPENDENT SUSPENSION(FF0) HITACHI	8-98197-281-0	02	1	1202-	●
68	BUSHING; S/ABS TOKICO	8-94224-694-0	02	1	0811-0901		●
68	BUSHING; S/ABS TOKICO	8-94224-694-0	02	1	0902-		●
68	BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) TOKICO	8-94224-694-0	02	1	0902-	●
103	NUT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(FF0) M14	0-91110-514-0	02	1	0902-	●
103	NUT; S/ABS TO LWR LINK M12	0-91111-512-0	02	1	0811-0901		●
103	NUT; S/ABS TO LWR LINK M12	0-91111-512-0	02	1	0902-		●
103	NUT; S/ABS TO LWR LINK EXC. FRT INDEPENDENT SUSPENSION(FF0) M12	0-91111-512-0	02	1	0902-	●
168	BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52>	8-98002-080-1	01	1	0902-	●
168	BRACKET; S/ABS,FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52>	8-98002-081-0	01	1	0902-	●
168	BRACKET; S/ABS,FRT SUSP	8-98002-082-1	01	1	0811-0901		●
168	BRACKET; S/ABS,FRT SUSP	8-98002-082-1	01	1	0902-		●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-082-1	01	1	0902-	●
168	BRACKET; S/ABS,FRT SUSP	8-98002-083-0	01	1	0811-0901		●
168	BRACKET; S/ABS,FRT SUSP	8-98002-083-0	01	1	0902-		●
168	BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98002-083-0	01	1	0902-	●
171	BOLT; S/ABS BRKT M10X30 FLANGE	0-28651-030-0	08	1	0811-0901		●
171	BOLT; S/ABS BRKT M10X30 FLANGE	0-28651-030-0	08	1	0902-		●
171	BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28651-030-0	08	1	0902-	●
173	NUT; S/ABS M10 FLANGE	0-91180-210-0	08	1	0811-0901		●
173	NUT; S/ABS M10 FLANGE	0-91180-210-0	08	1	0902-1006		●
173	NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-210-0	08	1	0902-1006	●
173	NUT; S/ABS M10 FLANGE	0-91180-110-0	08	1	1007-		●
173	NUT; S/ABS EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE	0-91180-110-0	08	1	1007-	●
183	SHACKLE; FRT SUSP	8-98034-341-0	04	1	0811-0901		●
183	SHACKLE; FRT SUSP	8-98034-341-0	04	1	0902-		●
183	SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98034-341-0	04	1	0902-	●
185	WASHER; LK,PIN ID=16.5	8-98011-489-0	04	1	0811-0901		●
185	WASHER; LK,PIN ID=16.5	8-98011-489-0	04	1	0902-		●
185	WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(FF0) ID=16.5	8-98011-489-0	04	1	0902-	●
186	BUSHING; SHACKLE (B)	8-97081-531-0	08	1	0811-0901		●
186	BUSHING; SHACKLE (B)	8-97081-531-0	08	1	0902-1010		●
186	BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97081-531-0	08	1	0902-1010	●
186	BUSHING; SHACKLE (A)	8-97259-495-0	04	1	0811-0901		●
186	BUSHING; SHACKLE (A)	8-97259-495-0	04	1	0902-1010		●
186	BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97259-495-0	04	1	0902-1010	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT INDEPENDENT SUSPENSION(FF0)	8-98009-114-0	02	1	0902-	●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0811-0901		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0902-		●
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98033-515-0	02	1	0902-	●
191	U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) REAR L=105	8-97304-074-1	02	1	0902-	●
191	U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(FF0) FRONT L=115	8-97304-075-1	02	1	0902-	●
191	U-BOLT; FRT SPR L=105	8-97304-074-1	04	1	0811-0901		●
191	U-BOLT; FRT SPR L=105	8-97304-074-1	04	1	0902-		●
191	U-BOLT; FRT SPR EXC. FRT INDEPENDENT SUSPENSION(FF0),FRONT STABILIZER SHAFT<F59> L=105	8-97304-074-1	04	1	0902-	●
192	PIECE; DIST EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94249-413-1	02	1	0902-	●
193	NUT; U BOLT M14 FLANGE	8-97360-124-0	08	1	0811-0901		●
193	NUT; U BOLT M14 FLANGE	8-97360-124-0	08	1	0902-		●
193	NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) M14 FLANGE	8-97360-124-0	08	1	0902-	●
197	PIN; FRT SPR,FRT	8-97261-861-0	02	1	0811-0901		●
197	PIN; FRT SPR,FRT	8-97261-861-0	02	1	0902-1010		●
197	PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97261-861-0	02	1	0902-1010	●
197	PIN; FRT SPR,FRT	8-94117-900-1	02	1	1011-		●
197	PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94117-900-1	02	1	1011-	●
199	BOLT M10X25 FLANGE	0-28651-025-0	02	1	0811-0901		●
199	BOLT M10X25 FLANGE	0-28651-025-0	02	1	0902-		●
199	BOLT EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X25 FLANGE	0-28651-025-0	02	1	0902-	●
201	NUT; PIN LK (B) M16	0-91110-516-0	04	1	0811-0901		●
201	NUT; PIN LK (B) M16	0-91110-516-0	04	1	0902-		●
201	NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M16	0-91110-516-0	04	1	0902-	●
201	NUT; PIN LK (A) M16 FLANGE	8-97360-125-0	02	1	0811-0901		●
201	NUT; PIN LK (A) M16 FLANGE	8-97360-125-0	02	1	0902-		●
201	NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16 FLANGE	8-97360-125-0	02	1	0902-	●
501	BUSHING; LEAF SPR,FRT (A)	8-97081-531-0	04	1	1011-		●
501	BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97081-531-0	04	1	1011-	●
501	BUSHING; LEAF SPR,FRT (B)	8-97081-531-0	08	1	1011-		●
501	BUSHING; LEAF SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97081-531-0	08	1	1011-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
