Sayfa 4-40 - Isuzu EPC

4-40 — STEERING UNIT (#49657) — 46 parça

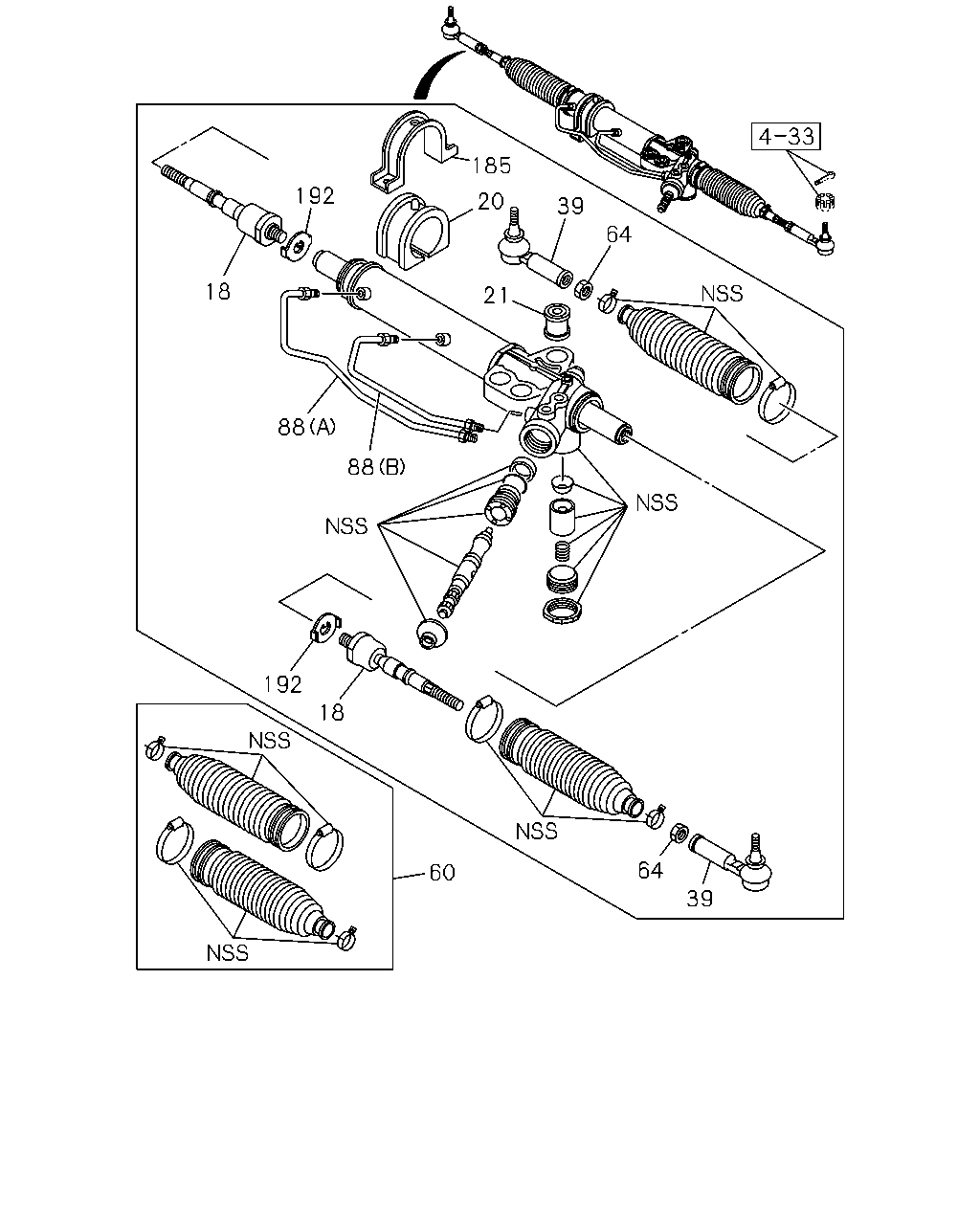

185 192 20 39 64 18 21 88 88 192 18 64 60 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	ROD ASM; INNER ASM PART: A = 8-97388-318-2	8-98048-487-0	02	1	-
20	RUBBER; MTG ASM PART: A = 8-97388-318-2	8-98061-373-0	01	1	-
21	RUBBER; MTG,PINION SIDE ASM PART: A = 8-97388-318-2	8-98061-372-0	03	1	-
39	ROD END ASM; OUTER ASM PART: A = 8-97388-318-2	8-98008-838-0	02	1	-
60	BOOT KIT; STRG HSG ASM PART: A = 8-97388-318-2	8-97357-199-0	01	1	-
64	NUT; ROD END OUTER TO INNER M18 ASM PART: A = 8-97388-318-2	0-91111-518-0	02	1	-
88	PIPE; HSG TO VLV (B) ASM PART: A = 8-97388-318-2	8-98051-924-0	01	1	-
88	PIPE; HSG TO VLV (A) ASM PART: A = 8-97388-318-2	8-98051-925-0	01	1	-
185	BRACKET; P/S ASM PART: A = 8-97388-318-2	8-97373-370-0	01	1	-
192	WASHER; LK,JOINT ASM PART: A = 8-97388-318-2	8-97357-196-0	02	1	-

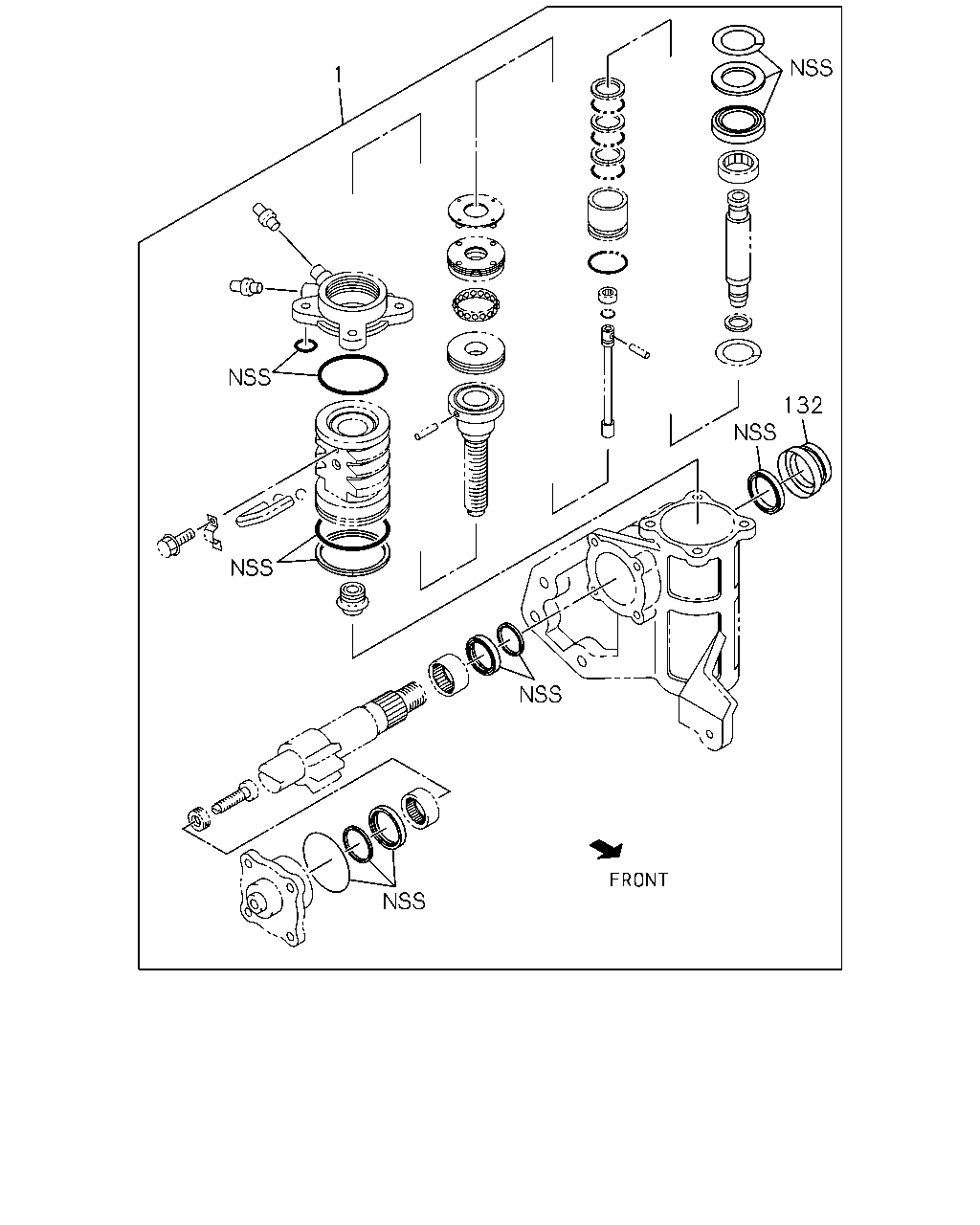

1 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-98110-218-1	8-97356-138-0	01	1	-
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-98101-298-3	8-98171-736-0	01	1	1309-
1	REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-98101-298-3	8-98171-736-0	01	1	-1309
132	COVER; DUST,STRG UNIT ASM PART: C = 8-98110-218-1	8-97076-372-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: B = 8-98101-298-3	8-97076-372-0	01	1	-1309
132	COVER; DUST,STRG UNIT ASM PART: B = 8-98101-298-3	8-97076-372-0	01	1	1309-

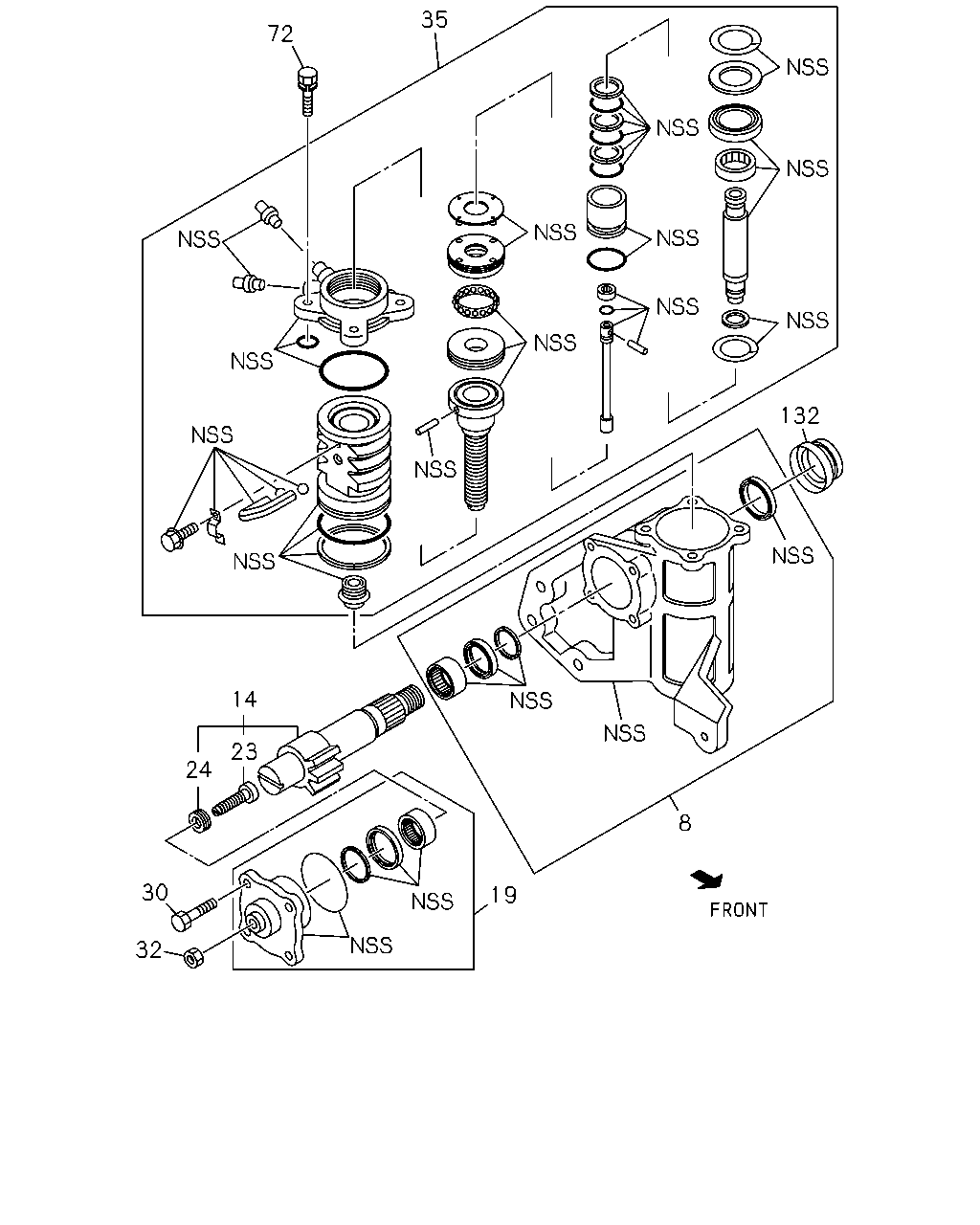

35 72 132 14 23 24 8 30 19 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOX ASM; STRG UNIT ASM PART: C = 8-98110-218-1	8-98101-308-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: B = 8-98101-298-3	8-98101-308-0	01	1	-1309
8	BOX ASM; STRG UNIT ASM PART: B = 8-98101-298-3	8-98101-308-0	01	1	1309-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-98101-298-3	8-98061-393-0	01	1	1309-
14	SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-98110-218-1	8-98061-393-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-98101-298-3	8-98061-393-0	01	1	-1309
19	COVER; SIDE STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-333-0	01	1	1309-
19	COVER; SIDE STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-333-0	01	1	-1309
19	COVER; SIDE STRG UNIT ASM PART: C = 8-98110-218-1	8-98036-333-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: B = 8-98101-298-3	8-97014-842-0	01	1	-1309
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: C = 8-98110-218-1	8-97014-842-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: B = 8-98101-298-3	8-97014-842-0	01	1	1309-
24	RETAINER; STRG UNIT ASM PART: C = 8-98110-218-1	8-97014-841-0	01	1	-
24	RETAINER; STRG UNIT ASM PART: B = 8-98101-298-3	8-97014-841-0	01	1	1309-
24	RETAINER; STRG UNIT ASM PART: B = 8-98101-298-3	8-97014-841-0	01	1	-1309
30	BOLT; COVER STRG UNIT ASM PART: C = 8-98110-218-1	8-98036-336-0	04	1	-
30	BOLT; COVER STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-336-0	04	1	-1309
30	BOLT; COVER STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-336-0	04	1	1309-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-98110-218-1	8-98036-337-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-337-0	01	1	-1309
32	NUT; ADJ SCREW,STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-337-0	01	1	1309-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-98101-298-3	8-98112-932-3	01	1	-1309
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-98101-298-3	8-98112-932-3	01	1	1309-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-98110-218-1	8-98112-932-3	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-336-0	04	1	1309-
72	BOLT; HSG FIX STRG UNIT ASM PART: C = 8-98110-218-1	8-98036-336-0	04	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: B = 8-98101-298-3	8-98036-336-0	04	1	-1309
132	COVER; DUST,STRG UNIT ASM PART: C = 8-98110-218-1	8-97076-372-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: B = 8-98101-298-3	8-97076-372-0	01	1	-1309
132	COVER; DUST,STRG UNIT ASM PART: B = 8-98101-298-3	8-97076-372-0	01	1	1309-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
