◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#49656) — 6 parça

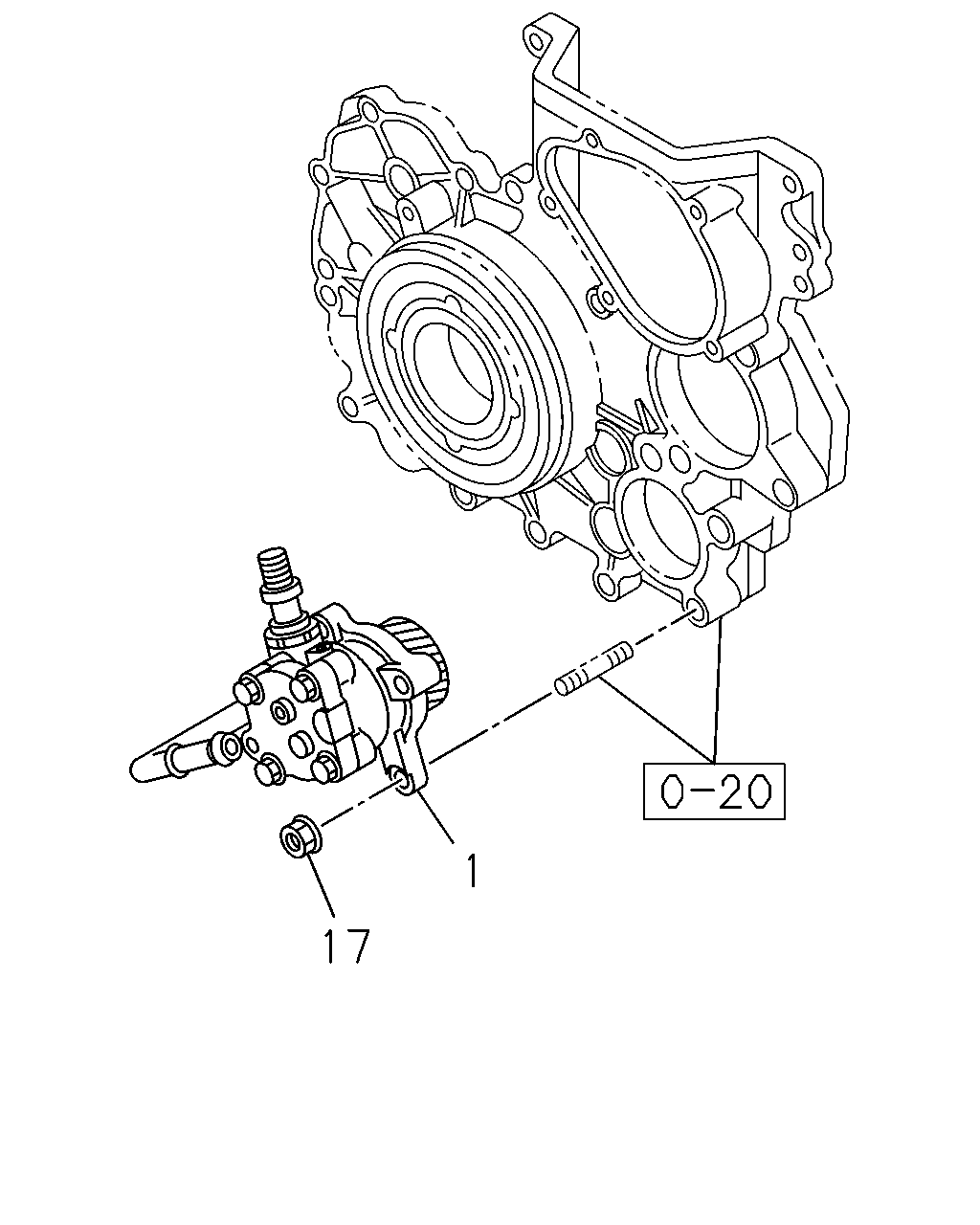

çizim 158697
1 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. FRT INDEPENDENT SUSPENSION(FF0) 		8-98006-823-4 01 1 0902- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98043-205-4 01 1 0811-0901 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98043-205-4 01 1 0902- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98043-205-4 01 1 0902- ●
17 NUT; POWER STRG PUMP
M8 FLANGE 		0-91180-208-0 03 1 0811-0901 ●
17 NUT; POWER STRG PUMP
M8 FLANGE 		0-91180-208-0 03 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
