Sayfa 4-35 - Isuzu EPC

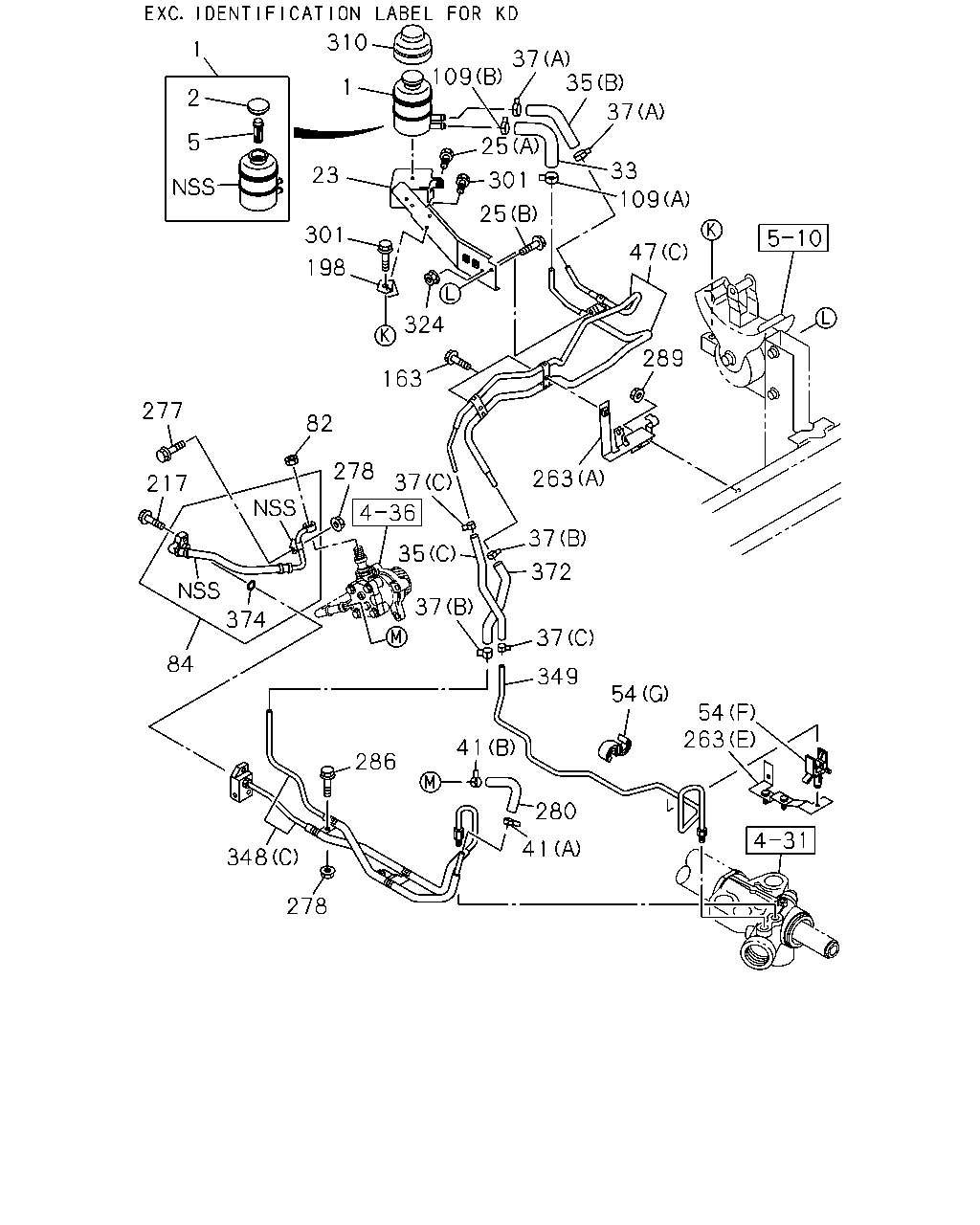

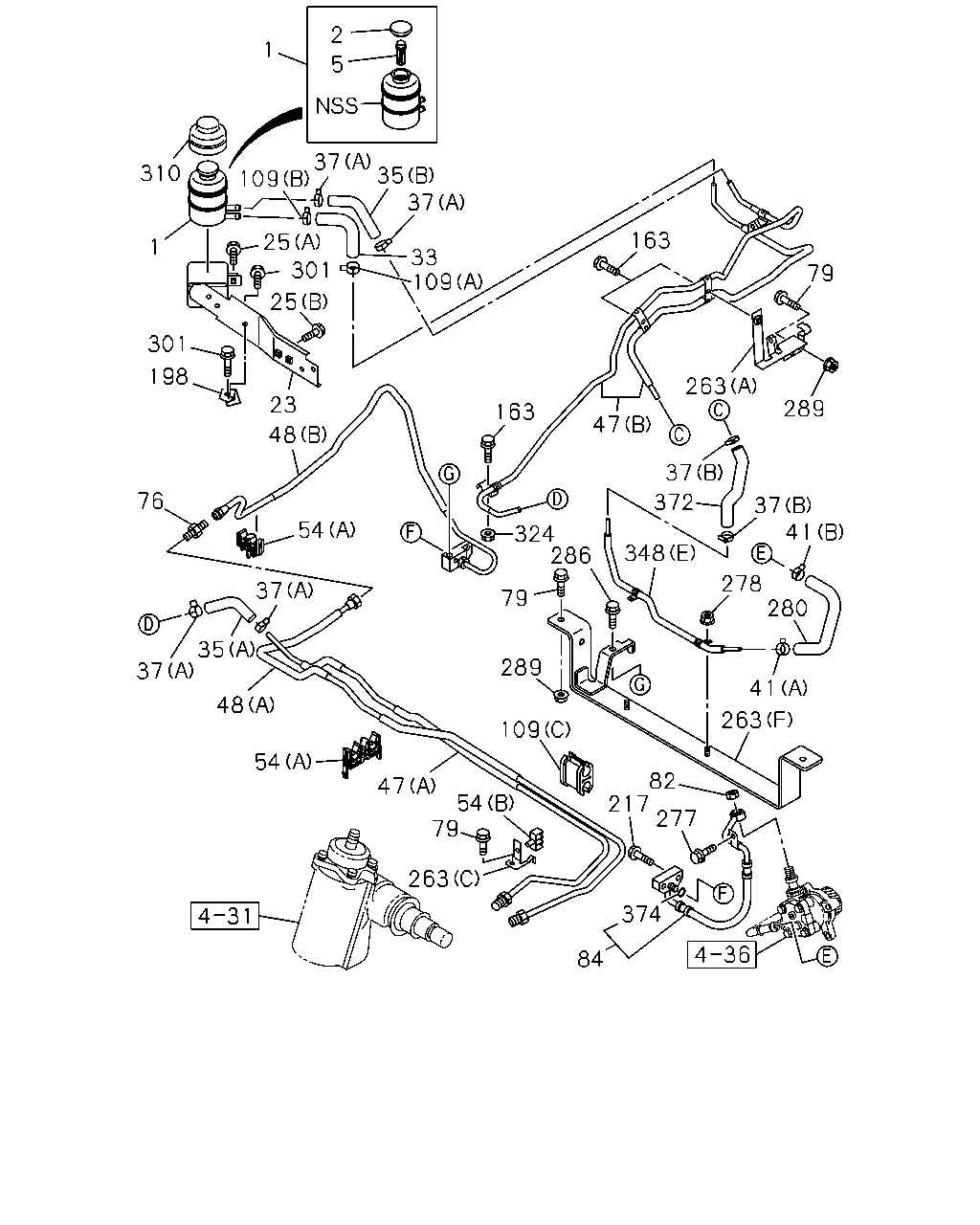

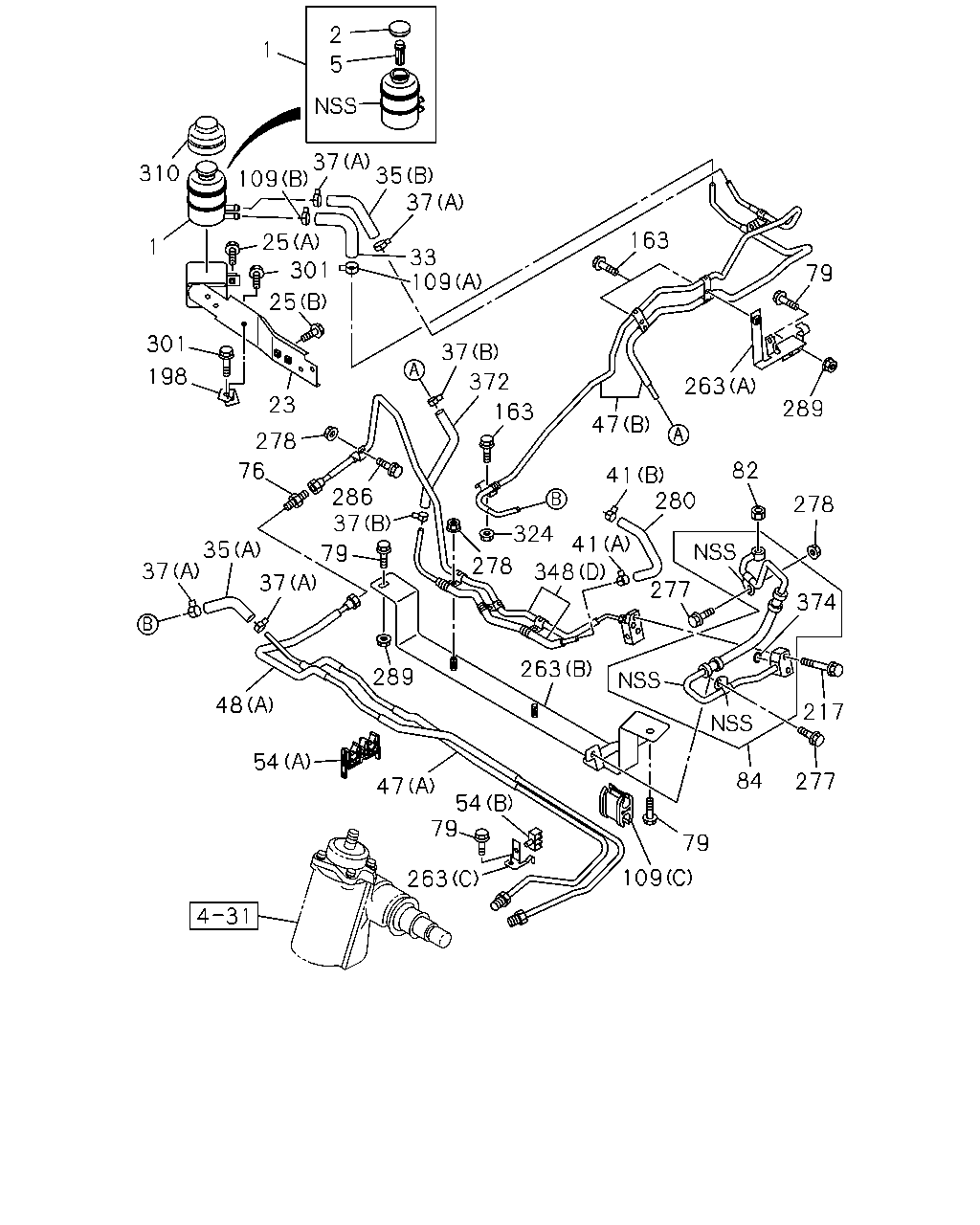

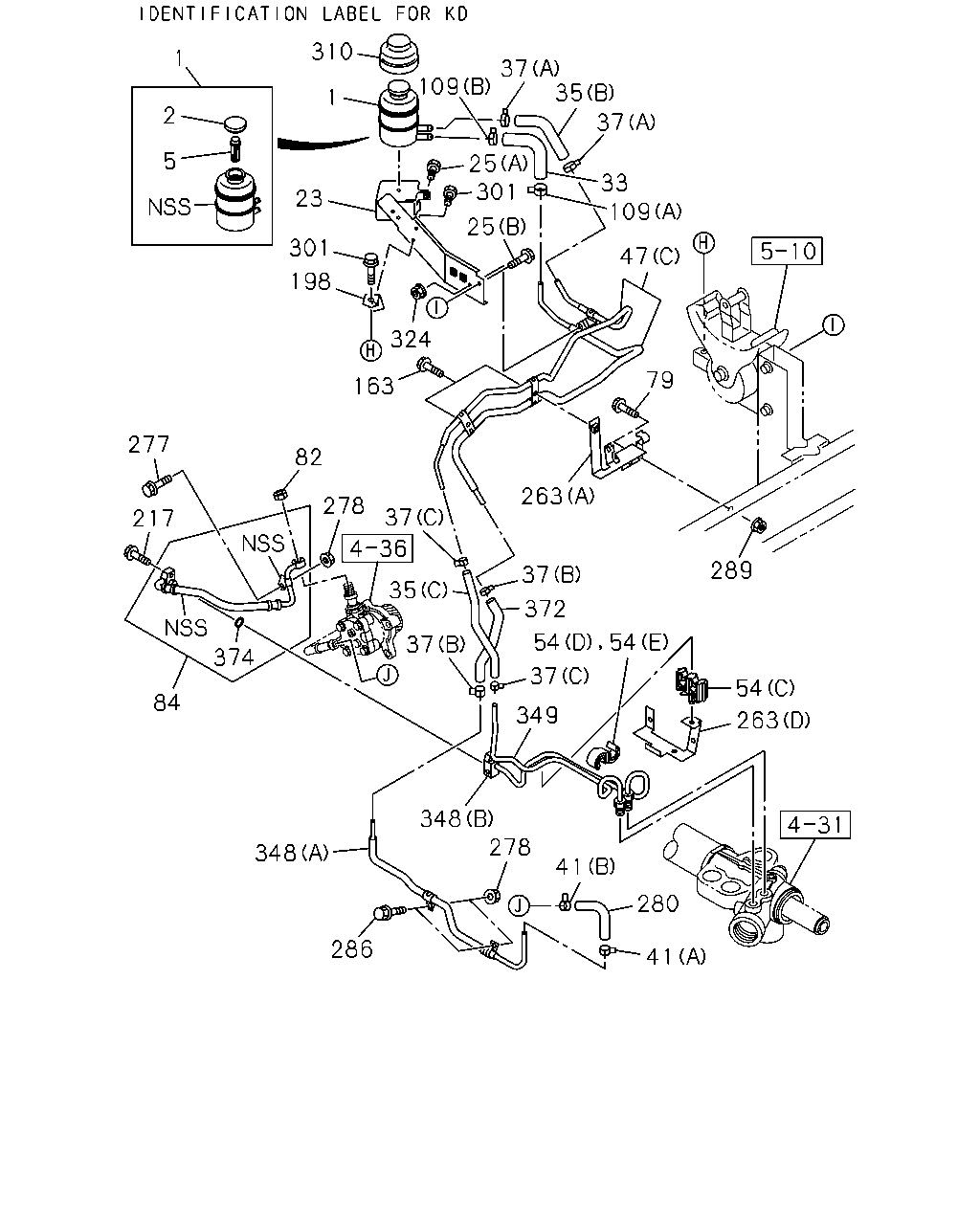

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#49655) — 661 parça

1 2 5 310 109 37 35 37 33 109 1 25 25 301 301 23 48 198 76 54 37 37 35 48 54 47 54 79 263 109 374 277 217 82 263 280 37 289 372 263 37 79 163 163 324 286 79 289 348 278 41 1 47 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0811-0901	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0902-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0811-0901	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0902-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0811-0901	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0902-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0811-0901	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0811-0901	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0811-0901	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0902-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0902-	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0902-1011	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-19.5	8-94426-597-0	02	1	0902-1005		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1006-		●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-94238-568-0	02	1	0902-0911		●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	0912-		●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0902-0911	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0902-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98054-224-0	01	1	0902-1011		●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-		●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0811-0901	●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0902-1011	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-168-2	01	1	0902-1011		●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-		●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0811-0901	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0902-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	0902-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	0811-0901	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	0902-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	0902-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1401-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10 & 15	1-09709-279-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (E) ID=12 & 15	1-09709-281-1	01	1	0902-0902		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 10	1-09709-277-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 H=40	8-94462-219-0	01	1	0902-		●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-0901	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-		●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0811-0901	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-		●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	0811-0901	●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	0902-	●
76	UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	0902-		●
79	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0811-0901	●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0902-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28651-230-0	02	1	0902-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0811-0901	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0902-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98067-870-2	01	1	0902-0906		●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	0907-		●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0811-0901	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0902-1312	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	0902-1312		●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0902-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0902-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0811-0901	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0902-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0811-0901	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0902-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	0902-		●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	0902-		●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0902-	●	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0902-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	0902-		●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0811-0901	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0902-1312	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	0902-1312		●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0902-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0902-1002	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28050-820-0	01	1	0902-1002		●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0811-0901	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0902-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0811-0901	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0902-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	0902-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0811-0901	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0902-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	0902-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98068-041-2	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98138-593-1	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0811-0901	●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0902-1012	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98047-170-3	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-		●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	0811-0901	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0902-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-		●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0811-0901	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0902-	●	●

1 2 5 310 1 23 301 198 324 163 109 37 25 25 301 35 33 37 109 47 79 263 289 37 372 54 54 37 349 54 263 280 41 41 278 348 348 286 84 374 37 35 37 278 82 217 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0811-0901	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0902-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0811-0901	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0902-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0811-0901	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0902-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0811-0901	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0811-0901	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0811-0901	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0902-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0902-	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0902-1011	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-19.5	8-94426-597-0	02	1	0902-1005		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1006-		●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-94238-568-0	02	1	0902-0911		●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	0912-		●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0902-0911	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0902-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98054-224-0	01	1	0902-1011		●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-		●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0811-0901	●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0902-1011	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-168-2	01	1	0902-1011		●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-		●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0811-0901	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0902-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10 & 15	1-09709-279-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (E) ID=12 & 15	1-09709-281-1	01	1	0902-0902		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 10	1-09709-277-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 H=40	8-94462-219-0	01	1	0902-		●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-0901	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-		●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0811-0901	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-		●
79	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0811-0901	●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0902-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28651-230-0	02	1	0902-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0811-0901	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0902-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98067-870-2	01	1	0902-0906		●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	0907-		●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0811-0901	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0902-1312	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	0902-1312		●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0902-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0902-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0811-0901	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0902-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0811-0901	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0902-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	0902-		●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	0902-		●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0902-	●	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0902-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	0902-		●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0811-0901	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0902-1312	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	0902-1312		●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0902-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0902-1002	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28050-820-0	01	1	0902-1002		●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0811-0901	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0902-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0811-0901	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0902-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	0902-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0811-0901	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0902-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	0902-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98068-041-2	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98138-593-1	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0811-0901	●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0902-1012	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98047-170-3	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98045-721-1	01	1	0902-0906		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	0907-		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98138-816-1	01	1	0902-0906		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	0907-		●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	0811-0901	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0902-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-		●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0811-0901	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0902-	●	●

1 2 5 310 109 37 35 37 33 25 1 301 198 76 278 23 25 301 37 35 37 48 54 47 289 79 37 286 37 372 163 324 278 47 163 79 263 289 82 278 280 41 41 348 263 277 374 54 79 263 109 79 84 277 217 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0811-0901	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0902-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0811-0901	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0902-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0811-0901	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0902-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0811-0901	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0811-0901	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0811-0901	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0902-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0902-	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0902-1011	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-19.5	8-94426-597-0	02	1	0902-1005		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1006-		●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-94238-568-0	02	1	0902-0911		●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	0912-		●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0902-0911	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0902-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98054-224-0	01	1	0902-1011		●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-		●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0811-0901	●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0902-1011	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-168-2	01	1	0902-1011		●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-		●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0811-0901	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0902-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	0902-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	0811-0901	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	0902-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=1337	8-98125-313-0	01	1	0902-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-106-0	01	1	1401-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10 & 15	1-09709-279-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (E) ID=12 & 15	1-09709-281-1	01	1	0902-0902		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 10	1-09709-277-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 H=40	8-94462-219-0	01	1	0902-		●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-0901	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-		●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0811-0901	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-		●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	0811-0901	●
76	UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	0902-	●
76	UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	0902-		●
79	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0811-0901	●
79	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0902-	●
79	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X30 FLANGE	0-28651-230-0	02	1	0902-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0811-0901	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0902-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98067-870-2	01	1	0902-0906		●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	0907-		●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0811-0901	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0902-1312	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	0902-1312		●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0902-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0902-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0811-0901	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0902-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0811-0901	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0902-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	0902-		●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	0902-		●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0902-	●	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0902-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	0902-		●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0811-0901	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0902-1312	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	0902-1312		●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0902-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0902-1002	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28050-820-0	01	1	0902-1002		●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0811-0901	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0902-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0811-0901	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0902-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	0902-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0811-0901	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0902-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	0902-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98068-041-2	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98138-593-1	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0811-0901	●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0902-1012	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98047-170-3	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-		●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	0811-0901	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0902-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-		●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0811-0901	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0902-	●	●

1 2 5 310 23 1 301 198 324 163 82 277 217 374 84 278 35 37 37 286 348 278 41 280 41 349 372 37 37 263 289 54 54 263 47 109 33 37 35 37 109 25 25 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0811-0901	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0902-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0811-0901	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0902-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0811-0901	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0902-	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0811-0901	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0811-0901	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0902-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0811-0901	●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0902-	●	●
35	HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-895-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	0902-	●
35	HOSE; RETURN,P/S TANK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=150	0-09809-150-0	01	1	0902-		●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0811-0901	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-264-0	01	1	0902-1011	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1012-	●	●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-19.5	8-94426-597-0	02	1	0902-1005		●
37	CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) (C) ID=11-17	8-98173-762-1	02	1	1006-		●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0811-0901	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0902-0911	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-94238-568-0	02	1	0902-0911		●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●
37	CLIP; HOSE,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-98008-098-0	02	1	0912-		●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0902-0911	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0811-0901	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0902-	●	●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98054-224-0	01	1	0902-1011		●
47	PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98173-324-0	01	1	1012-		●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0811-0901	●
47	PIPE; RETURN (B)	8-98047-168-2	01	1	0902-1011	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98047-168-2	01	1	0902-1011		●
47	PIPE; RETURN (B)	8-98174-013-0	01	1	1012-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98174-013-0	01	1	1012-		●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0811-0901	●
47	PIPE; RETURN (A)	8-98125-312-0	01	1	0902-	●
47	PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98125-312-0	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=10 & 15	1-09709-279-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) (E) ID=12 & 15	1-09709-281-1	01	1	0902-0902		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=12 & 15	1-09709-281-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=10 & 10	1-09709-277-1	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0902-		●
54	CLIP; OIL PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=10 H=40	8-94462-219-0	01	1	0902-		●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0811-0901	●
54	CLIP; OIL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0902-		●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0811-0901	●
54	CLIP; OIL PIPE (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-	●
54	CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0902-		●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0811-0901	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0902-	●	●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98067-870-2	01	1	0902-0906		●
84	HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98148-204-0	01	1	0907-		●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0811-0901	●
84	HOSE; FLEX,P/S	8-98095-050-0	01	1	0902-1312	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98095-050-0	01	1	0902-1312		●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●
84	HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-		●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0902-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-	●
109	CLIP; RUBBER HOSE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10X2 H=22	8-94252-455-2	01	1	0902-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0811-0901	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0902-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0902-	●
163	BOLT; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE	0-28650-825-0	01	1	0902-		●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0811-0901	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0902-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0811-0901	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0902-	●	●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98045-688-1	01	1	0902-		●
263	BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98138-713-1	01	1	0902-		●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0902-	●	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0811-0901	●
263	BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	0902-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98063-136-0	01	1	0902-		●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0811-0901	●
263	BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	0902-1312	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98094-949-1	01	1	0902-1312		●
263	BRACKET; P/S PIPE (F)	8-98250-108-0	01	1	1401-	●
263	BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98250-108-0	01	1	1401-		●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0902-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0811-0901	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0902-1002	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28050-820-0	01	1	0902-1002		●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●
277	BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0902-	●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0901	●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
278	NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> M8 FLANGE	0-91180-108-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98089-499-0	01	1	0902-		●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0811-0901	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0902-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0811-0901	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
289	NUT; BRKT,POWER STRG FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	01	1	0902-		●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0811-0901	●
289	NUT; BRKT,POWER STRG M12 FLANGE	0-91180-112-0	01	1	0902-	●
289	NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE	0-91180-112-0	01	1	0902-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0811-0901	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0902-	●	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
324	NUT; OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98045-722-1	01	1	0902-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98068-041-2	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98156-812-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98138-593-1	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98156-813-0	01	1	1101-		●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0811-0901	●
348	PIPE; OIL,P/S PRESS (D)	8-98047-170-3	01	1	0902-1012	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98047-170-3	01	1	0902-1012		●
348	PIPE; OIL,P/S PRESS (D)	8-98156-807-0	01	1	1101-1312	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98156-807-0	01	1	1101-1312		●
348	PIPE; OIL,P/S PRESS (E)	8-98250-107-0	01	1	1401-	●
348	PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-107-0	01	1	1401-		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98045-721-1	01	1	0902-0906		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) IDENTIFICATION LABEL FOR KD<6UT>	8-98148-145-0	01	1	0907-		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98138-816-1	01	1	0902-0906		●
349	PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98148-146-0	01	1	0907-		●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●
372	HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-		●
372	HOSE; RUBBER	8-98054-269-0	01	1	0811-0901	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0902-1312	●	●
372	HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-		●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0811-0901	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0902-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
