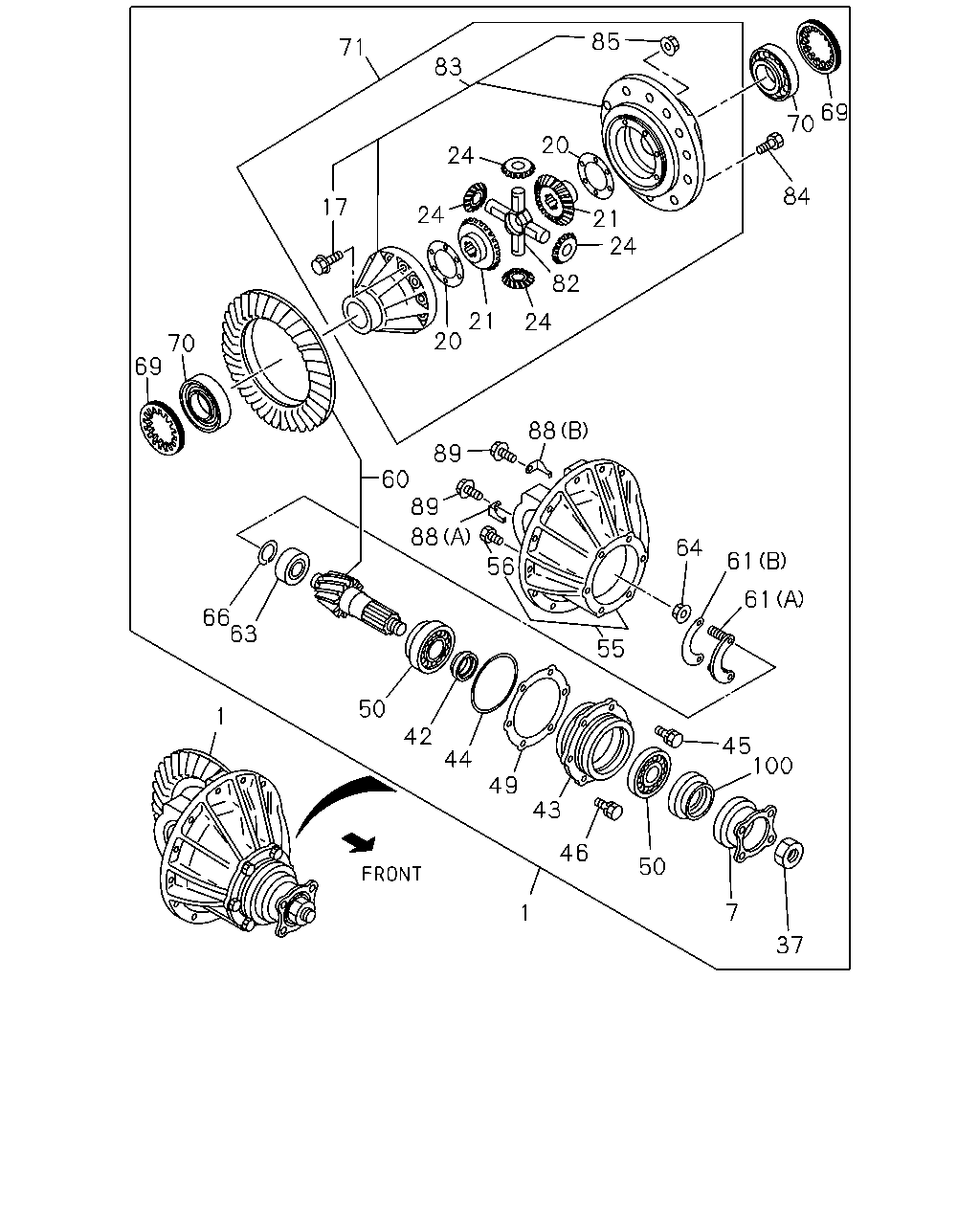

4-25 — REAR FINAL DRIVE (#49651) — 83 parça

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 41/8	8-98015-139-0	01	1	0811-0901	●
1	DRIVE ASM; FINAL,RR 41/8	8-98015-139-0	01	1	0902-	●	●
7	FLANGE; FINAL	8-94477-723-4	01	1	0811-0901	●
7	FLANGE; FINAL	8-94477-723-4	01	1	0902-	●	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0811-0901	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0902-	●	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0811-0901	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0902-	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-0	02	1	0811-0901	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0902-	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0811-0901	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0902-	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0811-0901	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0902-	●	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0811-0901	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0902-	●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0811-0901	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0902-	●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0811-0901	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0902-	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0811-0901	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0902-0909	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0811-0901	●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0902-0909	●	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0811-0901	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0902-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0811-0901	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0902-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0811-0901	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0902-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0811-0901	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0902-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0811-0901	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0902-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0811-0901	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0902-	●	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0811-0901	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0902-	●	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0811-0901	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0902-	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0811-0901	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0902-	●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0811-0901	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0902-	●	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97319-158-0	01	1	0811-0901	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97319-158-0	01	1	0902-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0811-0901	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0902-	●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0811-0901	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0902-	●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0811-0901	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0902-	●	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0811-0901	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0902-	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0811-0901	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0902-	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0811-0901	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0902-	●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0811-0901	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0902-	●	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0811-0901	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0902-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0811-0901	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	0902-	●	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0811-0901	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0902-	●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0811-0901	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0902-	●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0811-0901	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0902-	●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91180-210-0	12	1	0811-0901	●
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91180-210-0	12	1	0902-	●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0811-0901	●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0902-	●	●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0811-0901	●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0902-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0811-0901	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0902-	●	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0811-0901	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0902-	●	●
