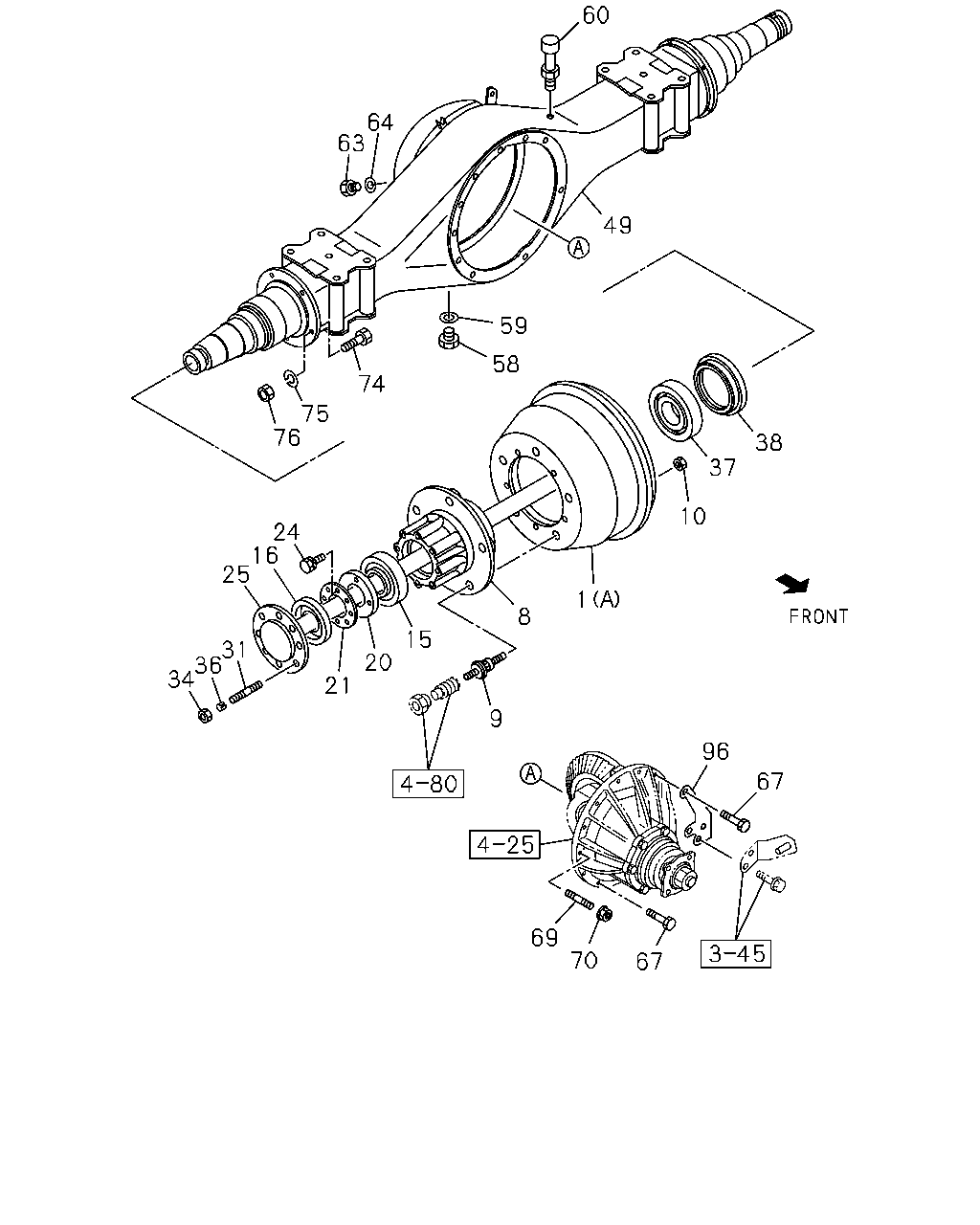

4-20 — REAR AXLE CASE AND SHAFT (#49650) — 148 parça

49 63 64 69 70 60 59 9 58 74 154 75 76 2 38 37 24 8 15 20 21 16 1 25 31 34 36 96 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97366-736-0	02	1	0902-1308	●
1	DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98248-899-0	02	1	1309-	●
1	DRUM; BRK,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-94455-285-2	02	1	0902-	●
1	DRUM; BRK,RR (A)	8-97034-770-3	02	1	0811-1310		●
1	DRUM; BRK,RR (A)	8-98248-900-0	02	1	1311-		●
2	BOLT; BRK DRUM EXC. FRT INDEPENDENT SUSPENSION(FF0) M6X18	0-20800-618-0	02	1	0902-	●
8	HUB; RR AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-94335-927-4	02	1	0902-	●
8	HUB; RR AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	5-42311-009-3	02	1	0902-	●
8	HUB; RR AXLE	8-97026-139-3	02	1	0811-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0902-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0902-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0811-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0811-		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0811-0901		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0902-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0811-0901		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0902-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0811-0901		●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0902-1207	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0811-0901		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0902-1106	●	●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0811-0901		●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0902-1303	●	●
20	NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0811-0901		●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	0902-	●	●
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0811-0901		●
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0902-1508	●	●
24	BOLT; LK WASHER M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	SHAFT; AXLE,RR	8-94366-192-0	02	1	0902-	●
25	SHAFT; AXLE,RR	8-97032-496-0	02	1	0811-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0902-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0811-		●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	12	1	0902-	●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	16	1	0811-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0902-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0811-		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0811-0901		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0902-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0811-0901		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0902-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0811-0901		●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0902-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0811-0901		●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0902-	●	●
49	CASE; RR AXLE	8-98061-921-0	01	1	0902-	●
49	CASE; RR AXLE	8-97032-861-5	01	1	0811-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0811-0901		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0902-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0811-0901		●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0902-	●	●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0811-0901		●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0902-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0811-0901		●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0902-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0811-0901		●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0902-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0811-0901		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0902-0909	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0811-0901		●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0902-	●	●
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0811-0901		●
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0902-	●	●
74	BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	0902-	●
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0811-		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-810-0	12	1	0902-	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0811-		●
76	NUT; RR BRK ASM SETTING M10	0-91110-510-0	12	1	0902-	●
76	NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0811-		●
96	BRACKET; LSPV,AXLE CASE	8-98030-956-0	01	1	0902-	●
96	BRACKET; LSPV,AXLE CASE	8-98030-957-0	01	1	0811-		●
154	SCREW; SLOTTED FRT INDEPENDENT SUSPENSION(FF0) M6X16 CK-HEAD	0-36410-616-0	02	1	0902-1402	●
154	SCREW; SLOTTED FRT INDEPENDENT SUSPENSION(FF0) M6X16 CK-HEAD	0-36410-616-0	02	1	1409-	●

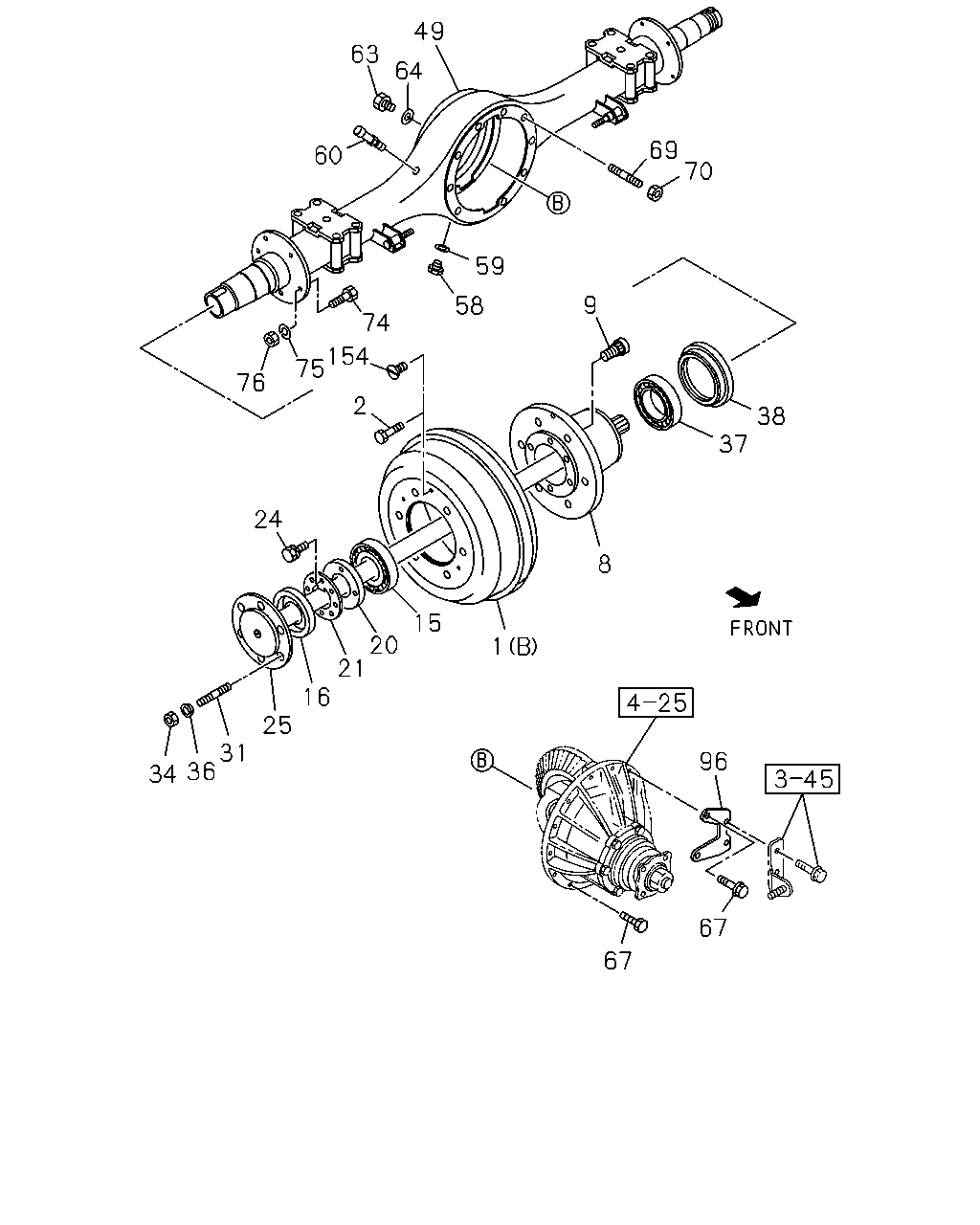

60 64 63 49 59 58 74 75 76 38 37 10 24 16 25 1 8 15 31 36 34 20 21 9 96 67 69 70 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97366-736-0	02	1	0902-1308	●
1	DRUM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98248-899-0	02	1	1309-	●
1	DRUM; BRK,RR EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-94455-285-2	02	1	0902-	●
1	DRUM; BRK,RR (A)	8-97034-770-3	02	1	0811-1310		●
1	DRUM; BRK,RR (A)	8-98248-900-0	02	1	1311-		●
8	HUB; RR AXLE FRT INDEPENDENT SUSPENSION(FF0)	8-94335-927-4	02	1	0902-	●
8	HUB; RR AXLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	5-42311-009-3	02	1	0902-	●
8	HUB; RR AXLE	8-97026-139-3	02	1	0811-		●
9	PIN; WHEEL,RR AXLE M14X50 RH THREAD	9-42331-605-5	06	1	0902-	●
9	PIN; WHEEL,RR AXLE M14X50 LH THREAD	9-42332-605-5	06	1	0902-	●
9	PIN; WHEEL,RR AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	0811-		●
9	PIN; WHEEL,RR AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	0811-		●
10	NUT; WHEEL PIN,RR AXLE M20	0-91110-520-0	10	1	0811-		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0811-0901		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0902-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0811-0901		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0902-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0811-0901		●
16	SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0902-1207	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0811-0901		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0902-1106	●	●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0811-0901		●
20	NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0902-1303	●	●
20	NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0811-0901		●
21	WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	0902-	●	●
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0811-0901		●
24	BOLT; LK WASHER M6X10 FLANGE	0-28050-610-0	04	1	0902-1508	●	●
24	BOLT; LK WASHER M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●
25	SHAFT; AXLE,RR	8-94366-192-0	02	1	0902-	●
25	SHAFT; AXLE,RR	8-97032-496-0	02	1	0811-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0902-	●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	0811-		●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	12	1	0902-	●
34	NUT; AXLE SHAFT M10 FLANGE	0-91180-210-0	16	1	0811-		●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0902-	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	0811-		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0811-0901		●
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0902-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0811-0901		●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0902-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0811-0901		●
38	SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0902-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0811-0901		●
38	SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0902-	●	●
49	CASE; RR AXLE	8-98061-921-0	01	1	0902-	●
49	CASE; RR AXLE	8-97032-861-5	01	1	0811-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0811-0901		●
58	PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0902-	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0811-0901		●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	0902-	●	●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0811-0901		●
60	BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0902-	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0811-0901		●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0902-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0811-0901		●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0902-	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0811-0901		●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50061-040-0	11	1	0902-0909	●	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	11	1	0910-	●	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0811-0901		●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0902-	●	●
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0811-0901		●
70	NUT; CARRIER M10 FLANGE	0-91180-210-0	02	1	0902-	●	●
74	BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	0902-	●
74	BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	0811-		●
75	WASHER; LK,RR BRK ASM SETTING ID=10.2	0-91510-810-0	12	1	0902-	●
75	WASHER; LK,RR BRK ASM SETTING ID=12.2	0-91510-812-0	12	1	0811-		●
76	NUT; RR BRK ASM SETTING M10	0-91110-510-0	12	1	0902-	●
76	NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	0811-		●
96	BRACKET; LSPV,AXLE CASE	8-98030-956-0	01	1	0902-	●
96	BRACKET; LSPV,AXLE CASE	8-98030-957-0	01	1	0811-		●
