0-13B — OIL PAN AND LEVEL GAUGE (#4965) — 104 parça

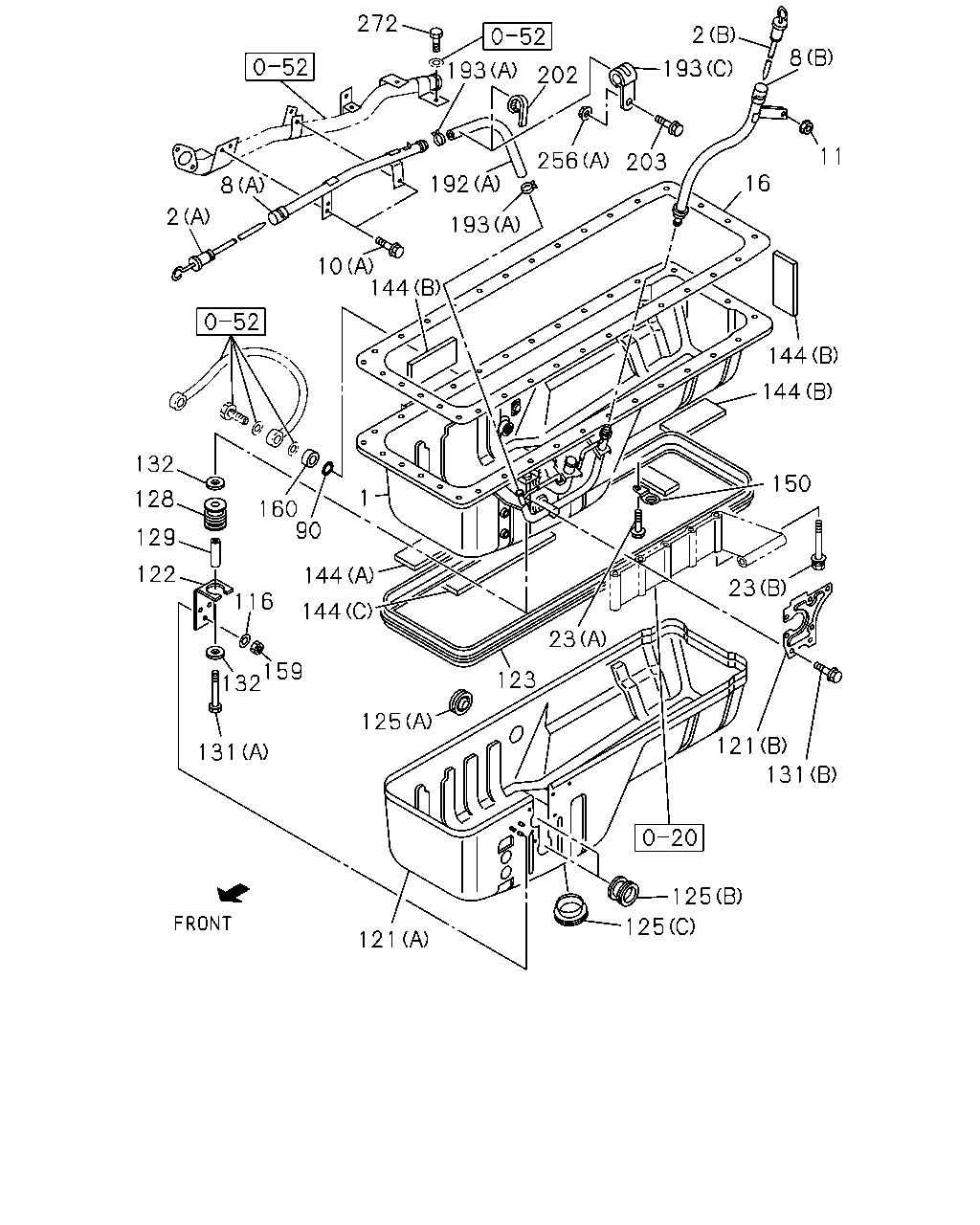

çizim 6891
272 2 8 193 193 202 11 256 203 16 192 8 2 193 10 144 144 144 132 150 1 128 160 90 129 122 144 23 116 144 23 159 132 123 125 121 131 131 125 125 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 1-11360-826-0 01 1 9606-9705 ●
1 PAN ASM; OIL
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-11360-826-1 01 1 9706-9905 ●
1 PAN ASM; OIL
ANTI NOISE EQUIPMENT<SV9> 		1-11360-848-0 01 1 9706-9905 ●
1 PAN ASM; OIL 1-11360-848-1 01 1 9906- ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 9606-9905 ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 9906- ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 9606-9905 ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 9906- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 9606-9905 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 9906- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 9606-9905 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 9906- ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9905 ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9906- ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9606-9905 ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9906- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9606-9905 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9906- ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9606-9905 ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9906- ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9606-9905 ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9906- ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-588-0 01 1 9606-9905 ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-588-0 01 1 9906- ●
116 WASHER; LK,COVER
ANTI NOISE EQUIPMENT<SV9> ID=6.1 		9-09150-506-0 04 1 9606-9905 ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 04 1 9906- ●
121 COVER; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (A) 		1-19381-347-0 01 1 9606-9705 ●
121 COVER; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (A) 		1-19381-378-0 01 1 9706-9905 ●
121 COVER; OIL PAN
(A) 		1-19381-378-0 01 1 9906- ●
121 COVER; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (B) 		1-19381-357-0 01 1 9606-9905 ●
121 COVER; OIL PAN
(B) 		1-19381-357-0 01 1 9906- ●
122 BRACKET; OIL PAN COVER
ANTI NOISE EQUIPMENT<SV9> 		1-19389-171-0 01 1 9606-9905 ●
122 BRACKET; OIL PAN COVER 1-19389-171-0 01 1 9906- ●
123 RUBBER; SEAL OIL
ANTI NOISE EQUIPMENT<SV9> 		1-19387-042-1 01 1 9606-9905 ●
123 RUBBER; SEAL OIL 1-19387-042-1 01 1 9906- ●
125 GROMMET; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (A) ID=34 		1-09333-032-0 01 1 9606-9905 ●
125 GROMMET; OIL PAN
(A) ID=34 		1-09333-032-0 01 1 9906- ●
125 GROMMET; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (B) ID=18 		1-09333-056-0 02 1 9606-9905 ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 02 1 9906- ●
125 GROMMET; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (C) ID=60 		1-09333-090-0 01 1 9606-9905 ●
125 GROMMET; OIL PAN
(C) ID=60 		1-09333-090-0 01 1 9906- ●
128 RUBBER; MTG,OIL PAN
ANTI NOISE EQUIPMENT<SV9> 		1-09337-004-0 06 1 9606-9905 ●
128 RUBBER; MTG,OIL PAN 1-09337-004-0 06 1 9906- ●
129 TUBE; DIST
ANTI NOISE EQUIPMENT<SV9> M8X10 		1-11369-081-0 03 1 9606-9905 ●
129 TUBE; DIST
M8X10 		1-11369-081-0 03 1 9906- ●
131 BOLT; COVER NOISE SHIELD
ANTI NOISE EQUIPMENT<SV9> (A) M8X50 		0-10805-850-0 03 1 9606-9905 ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10805-850-0 03 1 9906- ●
131 BOLT; COVER NOISE SHIELD
ANTI NOISE EQUIPMENT<SV9> (B) M6X10 FLANGE 		0-28080-610-0 06 1 9606-9905 ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 9906- ●
132 WASHER; PL,OIL PAN COVER
ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26 		9-09164-808-0 06 1 9606-9905 ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=26 		9-09164-808-0 06 1 9906- ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (B) 80X200 		1-19389-157-0 07 1 9606-9705 ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (B) 80X200 		1-19389-192-0 07 1 9706-9905 ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-192-0 07 1 9906- ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (C) 80X300 		1-19389-163-0 01 1 9606-9705 ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (C) 80X300 		1-19389-193-0 01 1 9706-9905 ●
144 INSULATOR; OIL PAN
(C) 80X300 		1-19389-193-0 01 1 9906- ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (A) 80X400 		1-19389-164-0 02 1 9606-9705 ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (A) 80X400 		1-19389-194-0 02 1 9706-9905 ●
144 INSULATOR; OIL PAN
(A) 80X400 		1-19389-194-0 02 1 9906- ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9606-9905 ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9906- ●
159 NUT; PLATE
ANTI NOISE EQUIPMENT<SV9> M6 		9-09110-406-0 04 1 9606-9905 ●
159 NUT; PLATE
M6 		9-09110-406-0 04 1 9906- ●
160 ADAPTER 1-11369-126-0 01 1 9606-9905 ●
160 ADAPTER 1-11369-126-0 01 1 9906- ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9606-9905 ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9906- ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9606-9905 ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9906- ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-0 02 1 9606-9905 ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 9906- ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9606-9905 ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9906- ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41) (C) ID=26 L=26 		1-09701-236-0 01 1 9607-9905 ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9906- ●
202 CLIP; BAND,RUBBER COVER
L=250 		5-09707-030-0 01 1 9606-9606 ●
202 CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41) L=250 		5-09707-030-1 01 1 9607-9905 ●
202 CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 9906- ●
203 BOLT; CLIP
EXC. HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9905 ●
203 BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906- ●
256 NUT; CLIP
EXC. HEATER & DEFROSTER(C41) (A) M8 FLANGE 		0-91150-108-0 01 1 9607-9905 ●
256 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8 FLANGE 		0-91150-108-0 01 1 9906- ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 9606-9905 ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 9906- ●

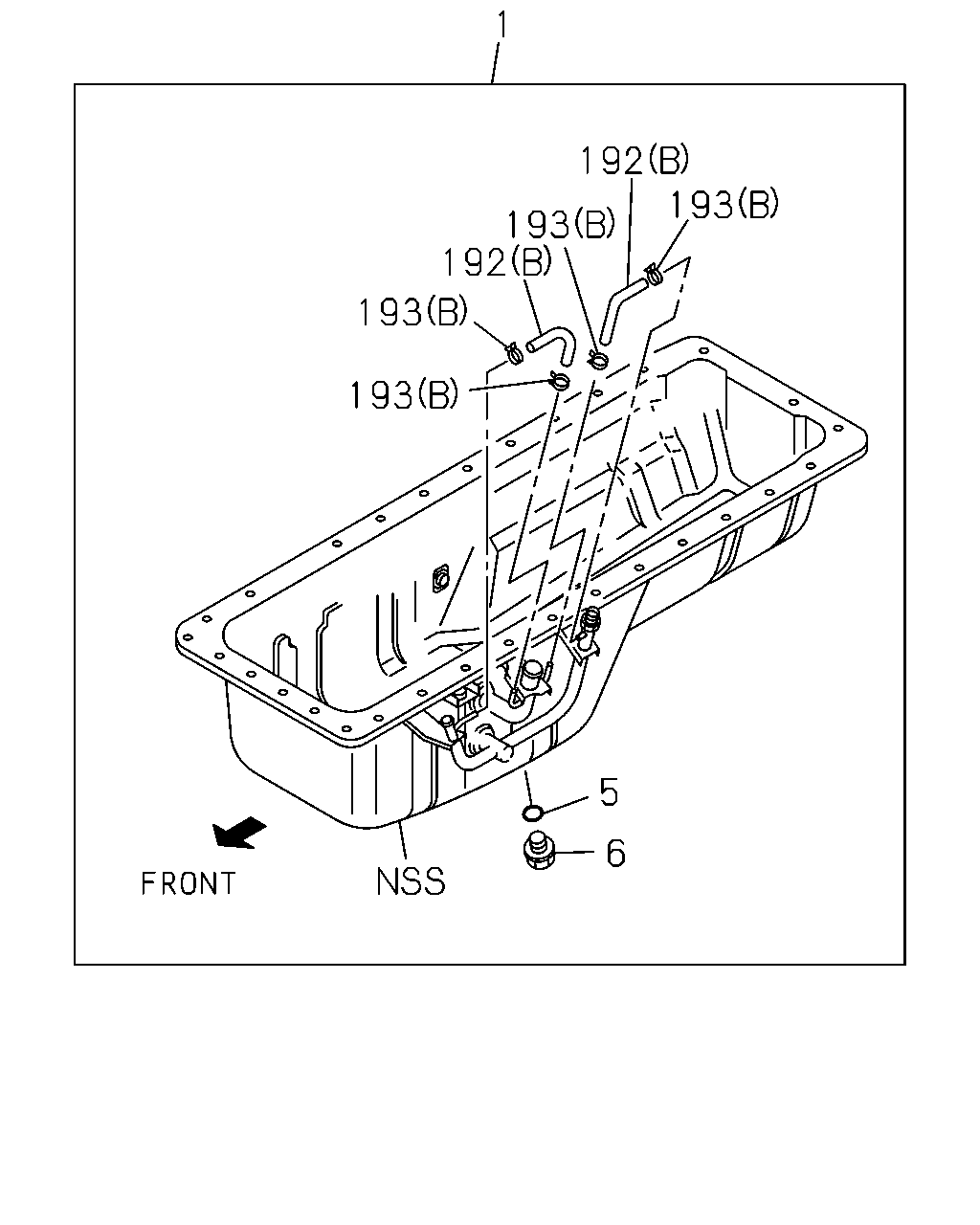

çizim 39357
1 192 193 193 192 193 193 5 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 1-11360-826-0 01 1 9606-9705 ●
1 PAN ASM; OIL
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-11360-826-1 01 1 9706-9905 ●
1 PAN ASM; OIL
ANTI NOISE EQUIPMENT<SV9> 		1-11360-848-0 01 1 9706-9905 ●
1 PAN ASM; OIL 1-11360-848-1 01 1 9906- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9606-9905 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9906- ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9606-9905 ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9906- ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9606-9905 ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9906- ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9606-9905 ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9906- ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-0 02 1 9606-9905 ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 9906- ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9606-9905 ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9906- ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41) (C) ID=26 L=26 		1-09701-236-0 01 1 9607-9905 ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9906- ●
