4-11 — FRONT HUB AND DRUM OR ROTOR (#49649) — 91 parça

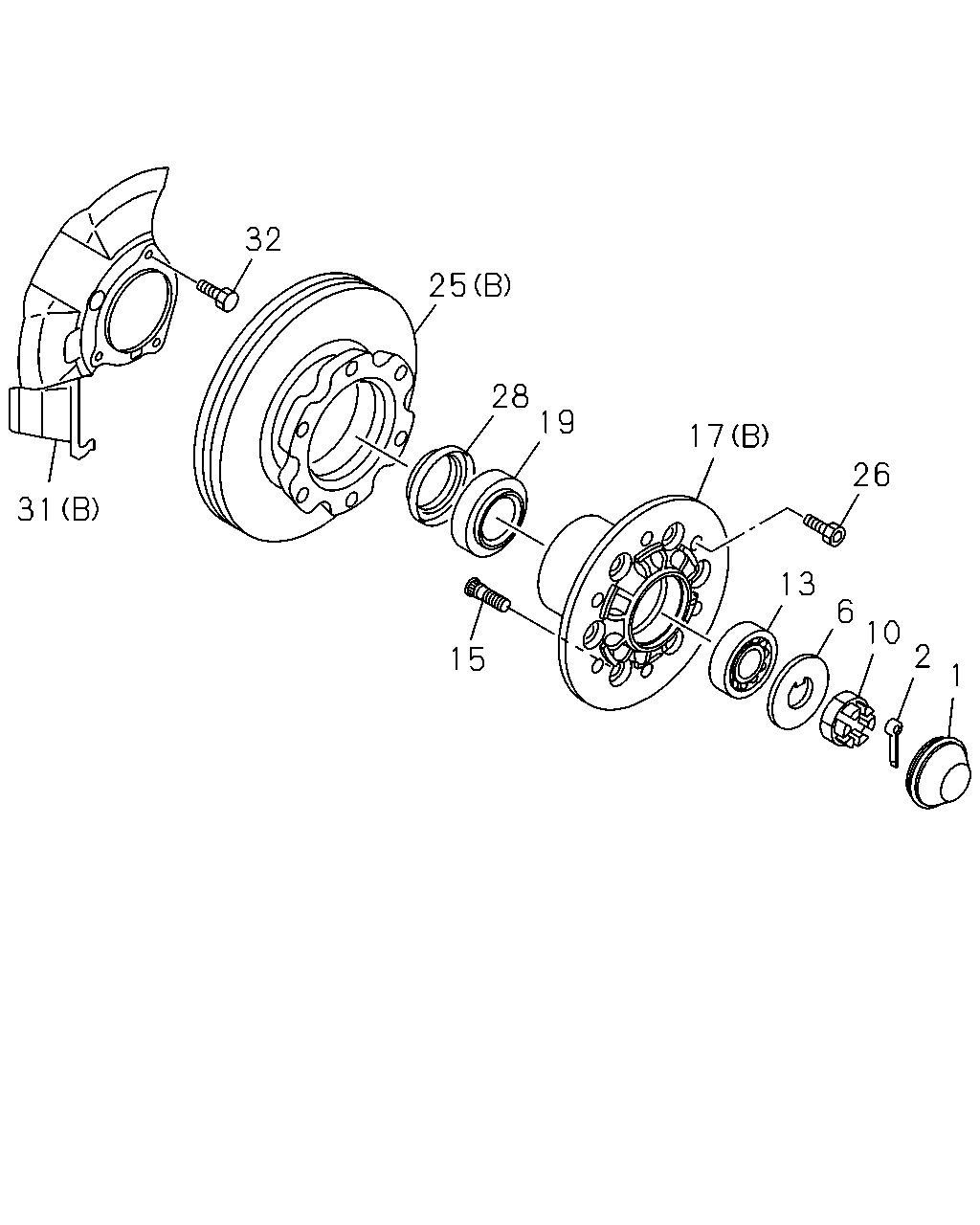

32 25 28 19 17 26 31 13 6 10 2 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98276-604-0	02	1	1407-1407	●
1	CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-		●
1	CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98276-604-0	02	1	1408-	●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0811-0901		●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0902-1406		●
1	CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-97360-101-0	02	1	0902-1406	●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1407-1407		●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0811-0901		●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0902-		●
2	PIN; SPLIT,HUB TO AXLE SHAFT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> OD=4.6 L=40	0-81125-040-0	02	1	0902-	●
6	WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-94247-356-1	02	1	0902-1502	●
6	WASHER; LK,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98282-435-0	02	1	1503-	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0811-0901		●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0902-		●
10	NUT; FRT HUB BRG FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-94247-357-1	02	1	0902-	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0811-0901		●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0902-		●
13	BEARING; HUB OUTER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> NSK	9-00093-172-0	02	1	0902-	●
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0811-0901		●
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0902-		●
13	BEARING; HUB OUTER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> BEST VALUE PARTS	5-87610-134-0	02	1	0902-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> M14X39 RH THREAD	8-97126-490-1	06	1	0902-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> M14X39 LH THREAD	8-97126-491-1	06	1	0902-	●
15	PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	0811-		●
15	PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	0811-		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-98049-154-0	02	1	0902-	●
17	HUB; FRT AXLE (A)	8-97017-193-0	02	1	0811-		●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> NTN	8-98008-156-1	02	1	1206-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> NSK	8-94336-289-0	02	1	0902-	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0811-1009		●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-		●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0811-1009		●
19	BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-		●
25	ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-98001-342-0	02	1	0902-1308	●
25	ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-98248-893-0	02	1	1309-	●
25	ROTOR; DISC BRK,FRT (A)	8-97387-229-0	02	1	0811-		●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98021-780-0	12	1	0902-	●
26	BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	0811-		●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-97211-082-0	02	1	0902-	●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0811-		●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-97353-960-1	01	1	0902-	●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-97353-961-1	01	1	0902-	●
31	COVER; DUST,FRT BRAKE (A)	8-98037-377-0	02	1	0811-		●
32	BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> M8X10 W/LK WASHER	8-98029-928-0	06	1	0902-	●
32	BOLT; DUST COVER TO KNUCKLE M8X12 FLANGE	0-28050-812-0	08	1	0811-		●

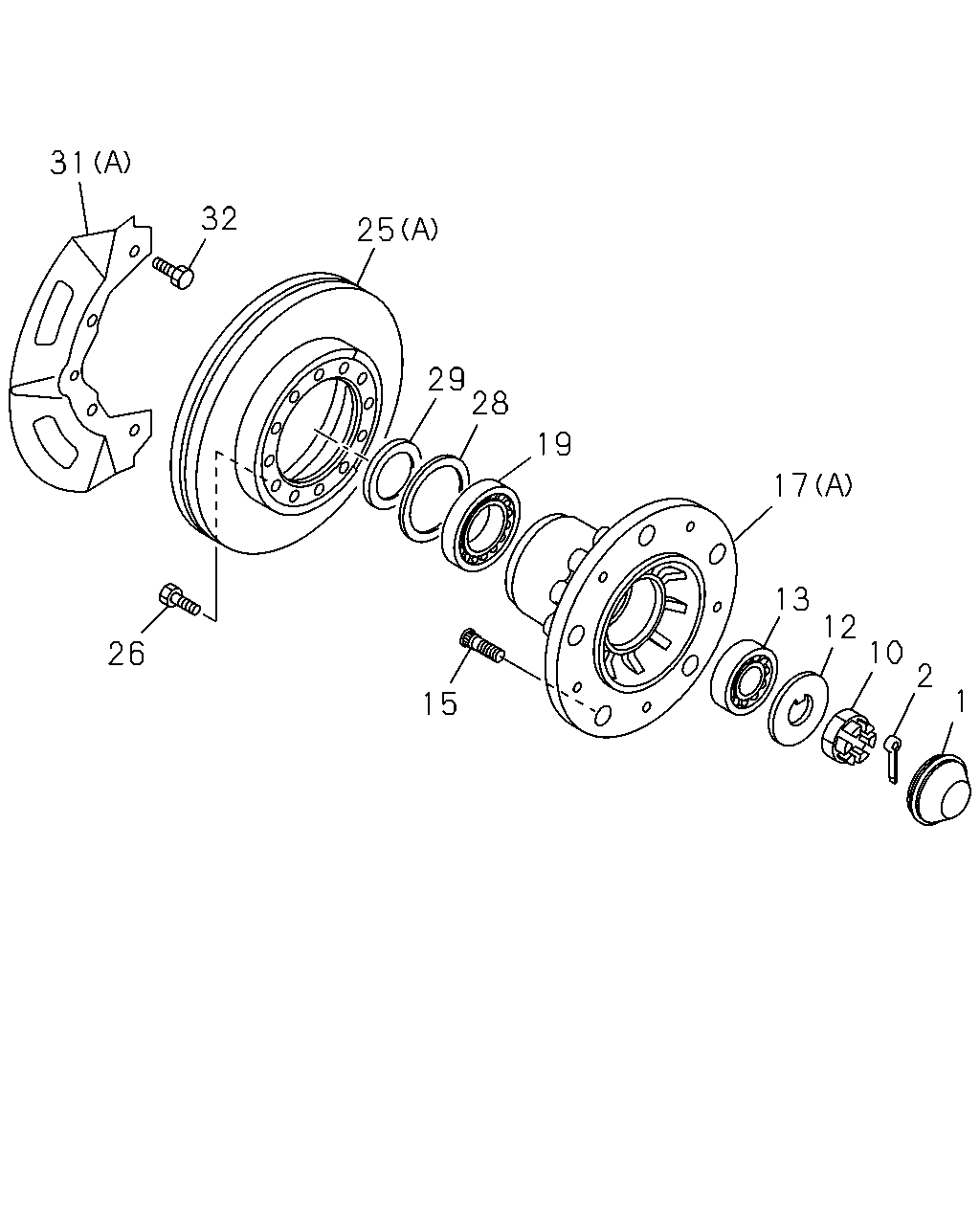

31 32 25 29 28 19 17 13 12 10 2 26 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98276-604-0	02	1	1407-1407	●
1	CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-		●
1	CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98276-604-0	02	1	1408-	●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0811-0901		●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	0902-1406		●
1	CAP; HUB,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-97360-101-0	02	1	0902-1406	●
1	CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1407-1407		●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0811-0901		●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	0902-		●
2	PIN; SPLIT,HUB TO AXLE SHAFT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> OD=4.6 L=40	0-81125-040-0	02	1	0902-	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0811-0901		●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0902-		●
10	NUT; FRT HUB BRG FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-94247-357-1	02	1	0902-	●
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0811-1502		●
12	WASHER; LK,FRT HUB BRG	8-98282-435-0	02	1	1503-		●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0811-0901		●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0902-		●
13	BEARING; HUB OUTER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> NSK	9-00093-172-0	02	1	0902-	●
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0811-0901		●
13	BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	0902-		●
13	BEARING; HUB OUTER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> BEST VALUE PARTS	5-87610-134-0	02	1	0902-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> M14X39 RH THREAD	8-97126-490-1	06	1	0902-	●
15	PIN; WHEEL,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> M14X39 LH THREAD	8-97126-491-1	06	1	0902-	●
15	PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	0811-		●
15	PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	0811-		●
17	HUB; FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-98049-154-0	02	1	0902-	●
17	HUB; FRT AXLE (A)	8-97017-193-0	02	1	0811-		●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> NTN	8-98008-156-1	02	1	1206-	●
19	BEARING; HUB INNER,FRT AXLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> NSK	8-94336-289-0	02	1	0902-	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-94248-088-2	02	1	0811-1009		●
19	BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1010-		●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0811-1009		●
19	BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1010-		●
25	ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-98001-342-0	02	1	0902-1308	●
25	ROTOR; DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-98248-893-0	02	1	1309-	●
25	ROTOR; DISC BRK,FRT (A)	8-97387-229-0	02	1	0811-		●
26	BOLT; BRK,DISC TO HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-98021-780-0	12	1	0902-	●
26	BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	0811-		●
28	SEAL; OIL,FRT HUB FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52>	8-97211-082-0	02	1	0902-	●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0811-		●
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0811-		●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-97353-960-1	01	1	0902-	●
31	COVER; DUST,FRT BRAKE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> (B)	8-97353-961-1	01	1	0902-	●
31	COVER; DUST,FRT BRAKE (A)	8-98037-377-0	02	1	0811-		●
32	BOLT; DUST COVER TO KNUCKLE FRT INDEPENDENT SUSPENSION(FF0) DISC BRAKE FRT<J52> M8X10 W/LK WASHER	8-98029-928-0	06	1	0902-	●
32	BOLT; DUST COVER TO KNUCKLE M8X12 FLANGE	0-28050-812-0	08	1	0811-		●
