◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#49646) — 295 parça

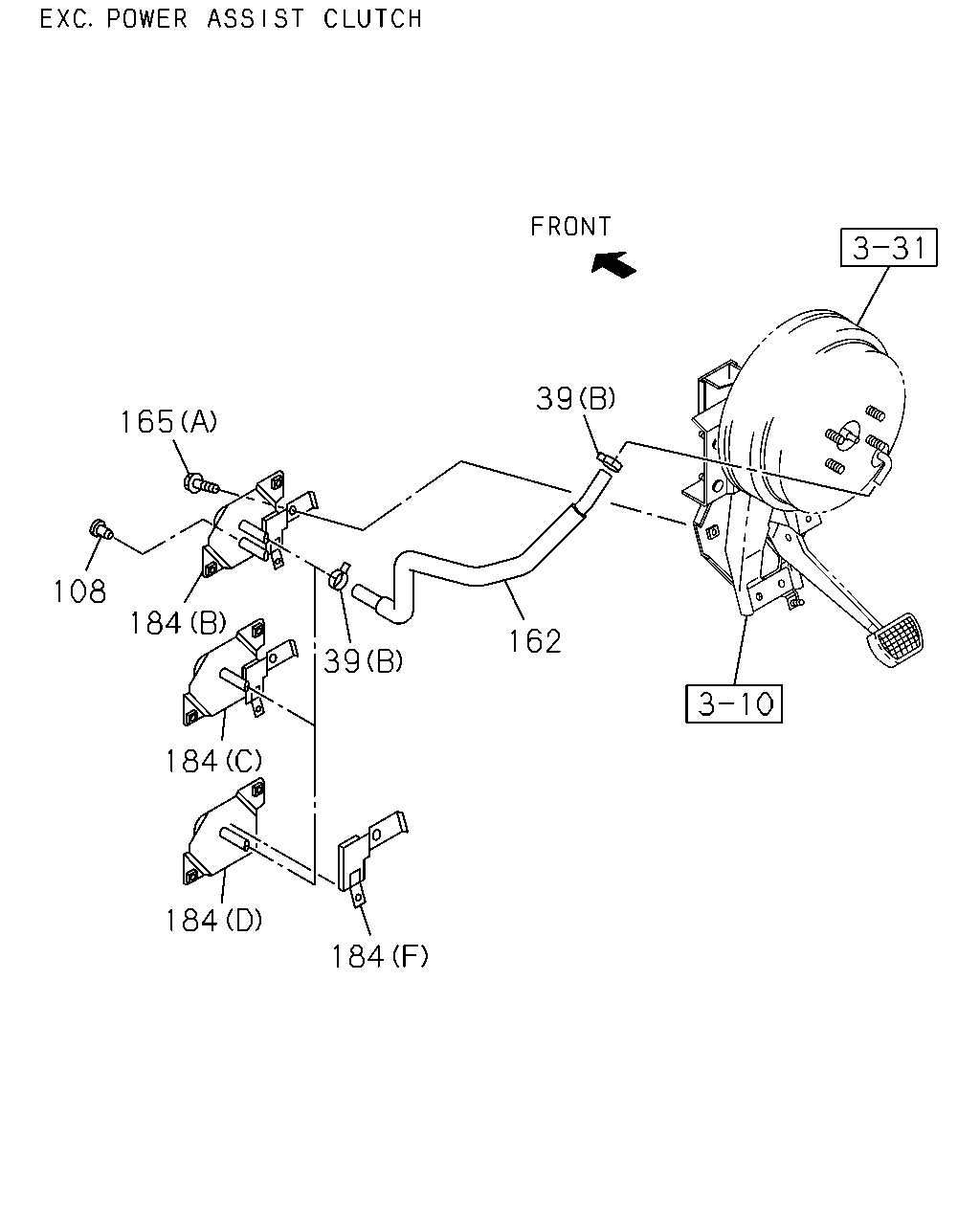

çizim 158672
39 162 39 165 108 184 184 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0902- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0811-0901 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0902- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 		9-09956-353-0 01 1 0811-0901 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 		9-09956-353-0 01 1 0902-0908 ● ●
162 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-154-2 01 1 0811-0901 ●
162 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-154-2 01 1 0902- ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0811-0901 ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0902-1001 ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1002-1002 ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1003- ● ●
165 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811-0901 ●
165 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0902- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98156-346-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-468-1 01 1 1102- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98156-347-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98183-469-1 01 1 1102- ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98150-760-0 01 1 0909-1001 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98150-760-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-466-1 01 1 1102-1311 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-537-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0811-0901 ●
184 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0902-0908 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 02 1 1002-1012 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1101-1101 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1102-1311 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-536-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0811-0901 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0902-1204 ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ●

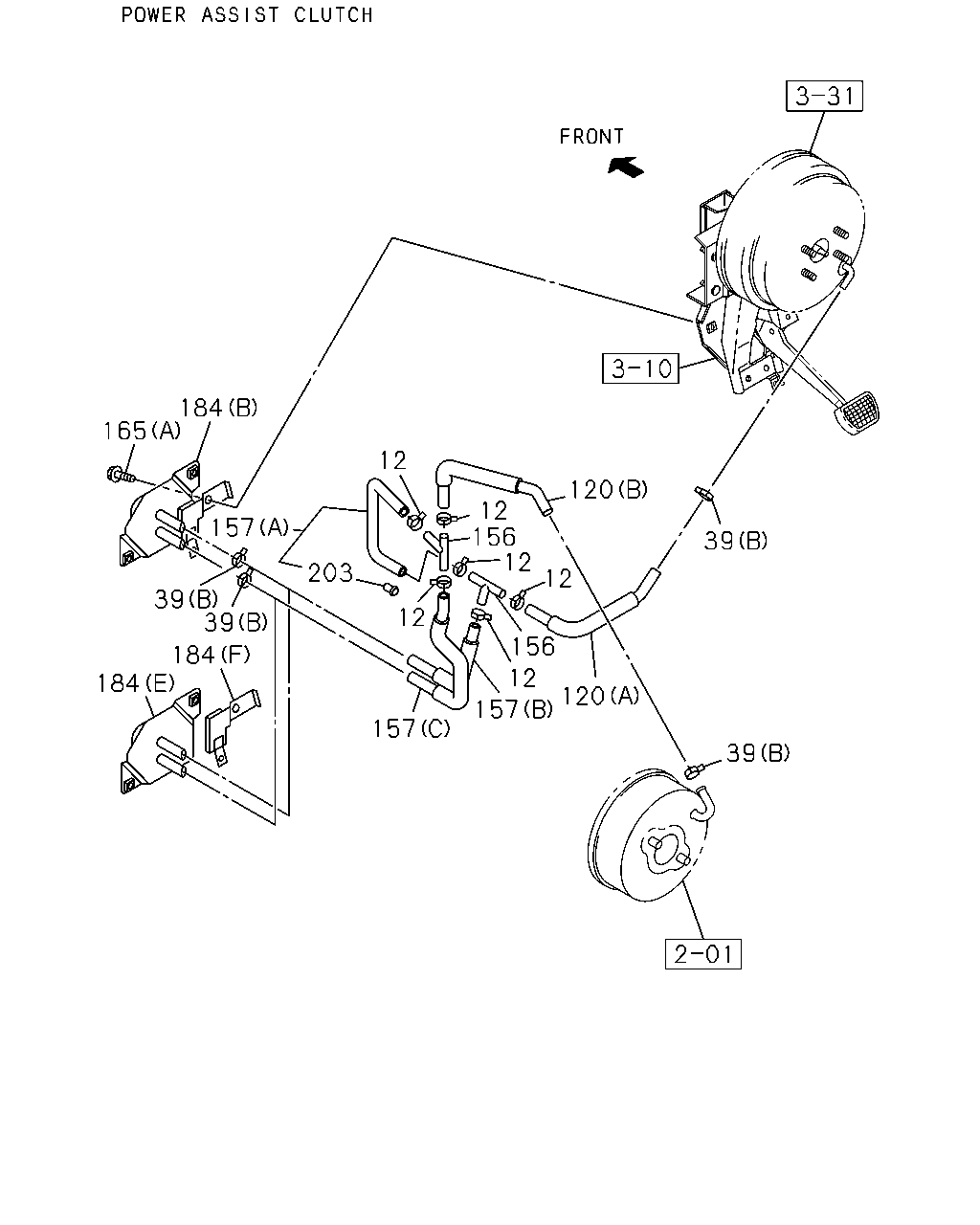

çizim 158676
39 39 120 12 12 12 12 12 12 157 157 157 156 156 120 184 184 184 39 39 203 165
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 06 1 0811-0901 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 06 1 0902- ● ●
12 CLIP; HOSE
ID=15.5 		8-98008-097-0 02 1 0811-0901 ●
12 CLIP; HOSE
ID=15.5 		8-98008-097-0 02 1 0902- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0902- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0811-0901 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0902- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-856-2 01 1 0811-0901 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-856-2 01 1 0902- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-857-3 01 1 0811-0901 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-857-3 01 1 0902- ● ●
156 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0811-0901 ●
156 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0902- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-858-1 01 1 0811-0901 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98060-858-1 01 1 0902- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-859-2 01 1 0811-0901 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98060-859-2 01 1 0902- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98060-860-2 01 1 0811-0901 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98060-860-2 01 1 0902- ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0811-0901 ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0902-1001 ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1002-1002 ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1003- ● ●
165 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811-0901 ●
165 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0902- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98156-346-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-468-1 01 1 1102- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98156-347-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98183-469-1 01 1 1102- ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98150-760-0 01 1 0909-1001 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98150-760-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-466-1 01 1 1102-1311 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-537-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0811-0901 ●
184 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0902-0908 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 02 1 1002-1012 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1101-1101 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1102-1311 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-536-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0811-0901 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0902-1204 ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) 		8-94386-540-0 01 1 0907- ● ●

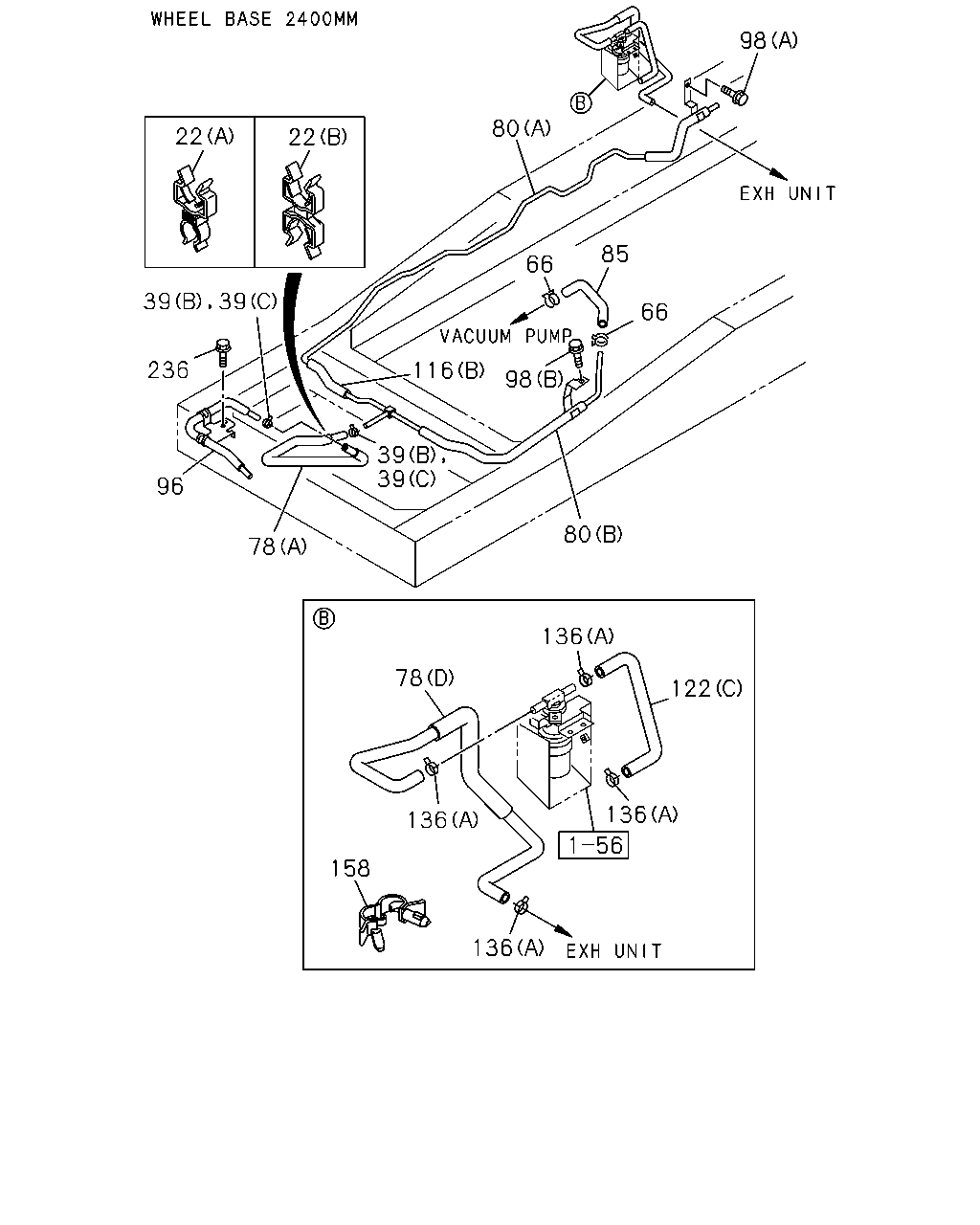

çizim 158678
98 80 22 22 85 66 66 236 116 98 39 39 96 80 78 136 78 122 136 136 158 136
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLIP; HOSE,VAC TANK
(A) 		8-97289-095-0 01 1 0811-0901 ●
22 CLIP; HOSE,VAC TANK
(A) 		8-97289-095-0 01 1 0902-1101 ● ●
22 CLIP; HOSE,VAC TANK
(B) ID=22 & 22 		8-94464-837-0 01 1 1102- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0902- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0811-0901 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0902- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0811-0901 ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 02 1 0912- ● ●
78 HOSE; VAC,PIPE TO PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98138-840-0 01 1 1201- ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-237-0 01 1 0811-0901 ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-237-0 01 1 0902-0909 ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98138-842-0 01 1 0910-1112 ● ●
78 HOSE; VAC,PIPE TO PIPE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98138-842-0 01 1 1201- ● ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98098-174-0 01 1 0811-0901 ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98098-174-0 01 1 0902- ●
78 HOSE; VAC,PIPE TO PIPE
(D) 		8-98098-174-0 01 1 0902- ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98042-690-1 01 1 0811-1104 ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (C) 		8-98189-223-0 01 1 1105- ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (C) 		8-98042-691-2 01 1 0811-1104 ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98189-224-0 01 1 1105- ●
80 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 1201- ● ●
80 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0902-1301 ●
80 PIPE; VAC,ENG SIDE
(A) 		8-98056-002-2 01 1 1302- ●
80 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1302- ●
80 PIPE; VAC,ENG SIDE
(A) 		8-98065-063-2 01 1 0811-0901 ●
80 PIPE; VAC,ENG SIDE
(A) 		8-98065-063-2 01 1 0902-1301 ●
80 PIPE; VAC,ENG SIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0902-1301 ●
80 PIPE; VAC,ENG SIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1302- ●
80 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 0811-0901 ●
80 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 0902-1112 ● ●
80 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98075-014-0 01 1 1201- ● ●
85 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98135-573-0 01 1 1201- ● ●
85 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 0811-0901 ●
85 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 0902-1112 ● ●
85 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98075-176-0 01 1 1201- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-732-1 01 1 0811-0901 ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-732-1 01 1 0902-0909 ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
L=353 		8-98138-795-0 01 1 0910- ● ●
98 BOLT; VAC PIPE FIX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1201- ● ●
98 BOLT; VAC PIPE FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0811-0901 ●
98 BOLT; VAC PIPE FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-002-1 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-002-1 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
(B) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
(B) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-003-1 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-003-1 01 1 0902- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98076-068-1 01 1 0811-0901 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98076-068-1 01 1 0902- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
(C) 		8-98076-068-1 01 1 0902- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98042-689-2 01 1 0811-1104 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98189-222-0 01 1 1105- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98089-657-0 01 1 0811-1104 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98189-226-0 01 1 1105- ●
136 CLIP; VAC HOSE
WHEEL BASE 3300MM(33W) (B) L=140 		5-09707-031-1 01 1 0811- ●
136 CLIP; VAC HOSE
WHEEL BASE 3300MM(33W) (A) ID=16 		8-94238-568-0 02 1 0811-0911 ●
136 CLIP; VAC HOSE
WHEEL BASE 3300MM(33W) (A) ID=16 		8-98008-098-0 02 1 0912- ●
136 CLIP; VAC HOSE
(A) ID=16 		8-94238-568-0 04 1 0811-0901 ●
136 CLIP; VAC HOSE
(A) ID=16 		8-94238-568-0 04 1 0902-0911 ● ●
136 CLIP; VAC HOSE
(A) ID=16 		8-98008-098-0 04 1 0912- ● ●
158 CLIP; HOSE
WHEEL BASE 2400MM(24W) ID=18-24 L=14.5 		1-09709-298-0 01 1 0811-0901 ●
158 CLIP; HOSE
WHEEL BASE 2400MM(24W) ID=18-24 L=14.5 		1-09709-298-0 01 1 0902- ●
158 CLIP; HOSE
ID=18-24 L=14.5 		1-09709-298-0 01 1 0902- ●
236 BOLT; PIPE
M6X12 FLANGE 		0-28050-612-0 01 1 0811-0901 ●
236 BOLT; PIPE
M6X12 FLANGE 		0-28050-612-0 01 1 0902- ● ●

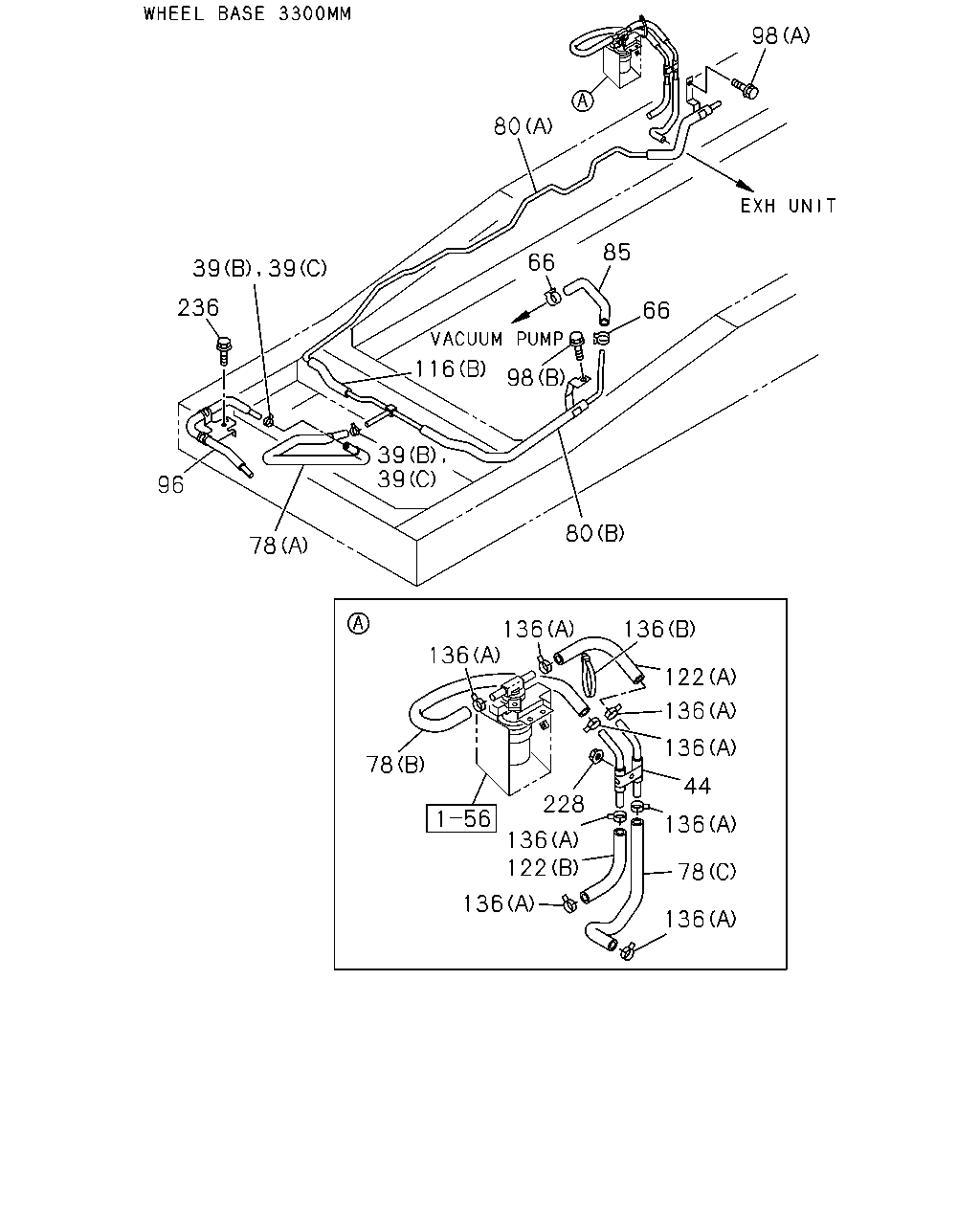

çizim 158681
98 80 85 66 236 66 116 98 39 39 96 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0902- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0811-0901 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0902- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
44 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) 		8-98042-654-0 01 1 0811- ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0811-0901 ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 02 1 0912- ● ●
78 HOSE; VAC,PIPE TO PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98138-840-0 01 1 1201- ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-237-0 01 1 0811-0901 ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-237-0 01 1 0902-0909 ● ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98138-842-0 01 1 0910-1112 ● ●
78 HOSE; VAC,PIPE TO PIPE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98138-842-0 01 1 1201- ● ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98098-174-0 01 1 0811-0901 ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 2400MM(24W) (D) 		8-98098-174-0 01 1 0902- ●
78 HOSE; VAC,PIPE TO PIPE
(D) 		8-98098-174-0 01 1 0902- ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98042-690-1 01 1 0811-1104 ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (C) 		8-98189-223-0 01 1 1105- ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (C) 		8-98042-691-2 01 1 0811-1104 ●
78 HOSE; VAC,PIPE TO PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98189-224-0 01 1 1105- ●
80 PIPE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 1201- ● ●
80 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 0902-1301 ●
80 PIPE; VAC,ENG SIDE
(A) 		8-98056-002-2 01 1 1302- ●
80 PIPE; VAC,ENG SIDE
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98056-002-2 01 1 1302- ●
80 PIPE; VAC,ENG SIDE
(A) 		8-98065-063-2 01 1 0811-0901 ●
80 PIPE; VAC,ENG SIDE
(A) 		8-98065-063-2 01 1 0902-1301 ●
80 PIPE; VAC,ENG SIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 0902-1301 ●
80 PIPE; VAC,ENG SIDE
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98065-063-2 01 1 1302- ●
80 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 0811-0901 ●
80 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 0902-1112 ● ●
80 PIPE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98075-014-0 01 1 1201- ● ●
85 HOSE; VAC,ENG SIDE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98135-573-0 01 1 1201- ● ●
85 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 0811-0901 ●
85 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 0902-1112 ● ●
85 HOSE; VAC,ENG SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98075-176-0 01 1 1201- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-732-1 01 1 0811-0901 ●
96 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-732-1 01 1 0902-0909 ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
L=353 		8-98138-795-0 01 1 0910- ● ●
98 BOLT; VAC PIPE FIX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1201- ● ●
98 BOLT; VAC PIPE FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0811-0901 ●
98 BOLT; VAC PIPE FIX
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-002-1 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-002-1 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
(B) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
(B) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-003-1 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-003-1 01 1 0902- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98076-068-1 01 1 0811-0901 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98076-068-1 01 1 0902- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
(C) 		8-98076-068-1 01 1 0902- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98042-689-2 01 1 0811-1104 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98189-222-0 01 1 1105- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (A) 		8-98089-657-0 01 1 0811-1104 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
WHEEL BASE 3300MM(33W) (B) 		8-98189-226-0 01 1 1105- ●
136 CLIP; VAC HOSE
WHEEL BASE 3300MM(33W) (B) L=140 		5-09707-031-1 01 1 0811- ●
136 CLIP; VAC HOSE
WHEEL BASE 3300MM(33W) (A) ID=16 		8-94238-568-0 02 1 0811-0911 ●
136 CLIP; VAC HOSE
WHEEL BASE 3300MM(33W) (A) ID=16 		8-98008-098-0 02 1 0912- ●
136 CLIP; VAC HOSE
(A) ID=16 		8-94238-568-0 04 1 0811-0901 ●
136 CLIP; VAC HOSE
(A) ID=16 		8-94238-568-0 04 1 0902-0911 ● ●
136 CLIP; VAC HOSE
(A) ID=16 		8-98008-098-0 04 1 0912- ● ●
228 NUT; PIPE
WHEEL BASE 3300MM(33W) M6 FLANGE 		0-91180-106-0 01 1 0811- ●
236 BOLT; PIPE
M6X12 FLANGE 		0-28050-612-0 01 1 0811-0901 ●
236 BOLT; PIPE
M6X12 FLANGE 		0-28050-612-0 01 1 0902- ● ●

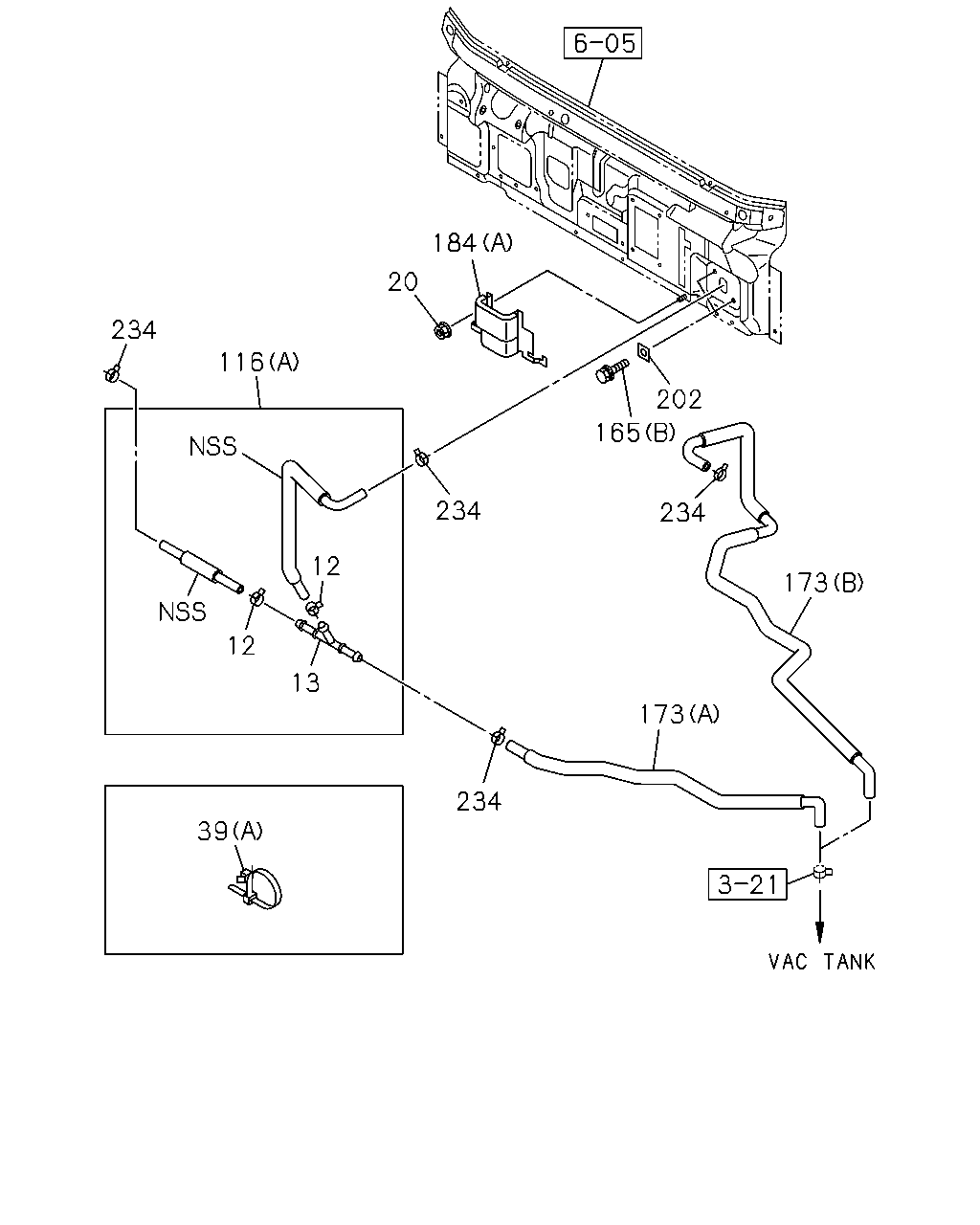

çizim 158683
184 20 234 116 202 165 234 234 12 173 12 13 173 234 39
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 06 1 0811-0901 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 06 1 0902- ● ●
12 CLIP; HOSE
ID=15.5 		8-98008-097-0 02 1 0811-0901 ●
12 CLIP; HOSE
ID=15.5 		8-98008-097-0 02 1 0902- ● ●
13 JOINT; HOSE,VAC 8-98035-106-0 01 1 0811-0901 ●
13 JOINT; HOSE,VAC 8-98035-106-0 01 1 0902- ● ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE 		0-91180-106-0 01 1 0811-0901 ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE 		0-91180-106-0 01 1 0902- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-98008-098-0 02 1 0912- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 0902- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0811-0901 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 0902- ● ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
39 CLIP; HOSE,VAC
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 0912- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-002-1 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-002-1 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
(B) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
(B) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0902- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-003-1 01 1 0811-0901 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98113-003-1 01 1 0902- ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0811-0901 ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0902-1001 ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1002-1002 ● ●
165 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1003- ● ●
165 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0811-0901 ●
165 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0902- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98047-184-2 01 1 0811-0901 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98047-184-2 01 1 0902- ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98031-774-1 01 1 0811-0901 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98031-774-1 01 1 0902- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98156-346-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-468-1 01 1 1102- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98156-347-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98183-469-1 01 1 1102- ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98150-760-0 01 1 0909-1001 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98150-760-0 01 1 1002-1101 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-466-1 01 1 1102-1311 ● ●
184 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-537-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0811-0901 ●
184 BRACKET; UNION FIX
(B) 		8-98089-763-0 01 1 0902-0908 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (B) 		8-98089-763-0 01 1 0909-1001 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 02 1 1002-1012 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98089-763-0 01 1 1101-1101 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-465-1 01 1 1102-1311 ● ●
184 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-536-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0811-0901 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98039-684-3 01 1 0902-1204 ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98211-373-0 01 1 1205- ● ●
202 SEAL 8-97856-616-0 02 1 0811-0901 ●
202 SEAL 8-97856-616-0 02 1 0902- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 0811-0901 ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 0902- ● ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 0811-0901 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
