◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#49645) — 96 parça
çizim 158670
19 67 68 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-0901 ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0902- ● ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-0901 ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-0901 ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
4 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
4 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
19 BRACKET; OIL PIPE 8-98009-117-2 01 1 0811-0901 ●
19 BRACKET; OIL PIPE 8-98009-117-2 01 1 0902-1006 ● ●
19 BRACKET; OIL PIPE 8-98162-759-0 01 1 1007- ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0811-0901 ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0902- ●
67 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE 		0-91180-108-0 02 1 0902- ●
68 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0811-0901 ●
68 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0902- ● ●
68 BRACKET; CLIP
(B) 		8-98060-870-1 01 1 0811-0901 ●
68 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 0902- ●
68 BRACKET; CLIP
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-870-2 01 1 0902- ●
68 BRACKET; CLIP
(C) 		8-98090-213-1 01 1 0811-0901 ●
68 BRACKET; CLIP
(C) 		8-98090-213-1 01 1 0902-1009 ●
68 BRACKET; CLIP
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98090-213-1 01 1 0902-1009 ●
68 BRACKET; CLIP
(D) 		8-98178-046-0 01 1 1010- ●
68 BRACKET; CLIP
EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98178-046-0 01 1 1010- ●

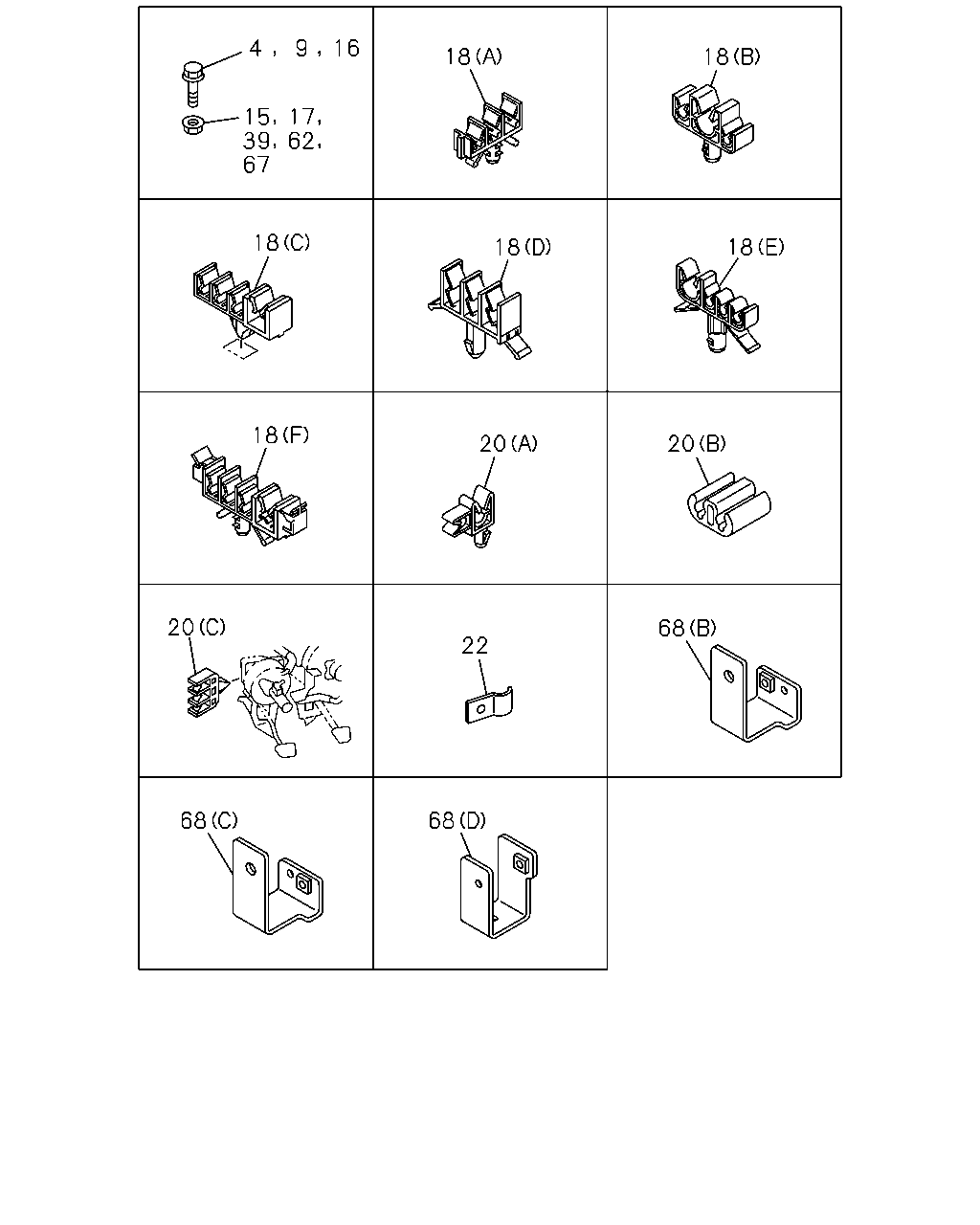

çizim 158675
9 16 4 18 18 15 39 67 17 62 18 18 18 18 20 20 20 68 22 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-0901 ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0902- ● ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-0901 ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0811-0901 ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
4 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
4 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
4 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
9 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
9 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 0811- ●
15 NUT; CLIP,OIL PIPE
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
15 NUT; CLIP,OIL PIPE
M6 FLANGE 		0-91180-106-0 02 1 0902- ●
15 NUT; CLIP,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) M6 FLANGE 		0-91180-106-0 02 1 0902- ●
16 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) M8X12 FLANGE 		0-28050-812-0 02 1 0902- ●
17 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
17 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0902- ●
17 NUT; BRKT TO FRAME
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE 		0-91180-108-0 02 1 0902- ●
18 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 & 4.76X3 		8-97168-819-0 01 1 0902-1301 ●
18 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 01 1 1302- ●
18 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (C) ID=10 & 4.76X3 		8-97168-819-0 01 1 1302- ●
18 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (F) ID=10 & 4.76X3 		8-97326-158-1 03 1 0811- ●
18 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0811-0901 ●
18 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0902- ● ●
18 CLIP; BRK PIPE
(A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0811-0901 ●
18 CLIP; BRK PIPE
(A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0902- ● ●
18 CLIP; BRK PIPE
(A) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0811-0901 ●
18 CLIP; BRK PIPE
(A) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0902- ● ●
18 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 07 1 0811-0901 ●
18 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 07 1 0902- ● ●
18 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0811-0901 ●
18 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0902- ● ●
18 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 0811-0901 ●
18 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 0902-1005 ● ●
18 CLIP; BRK PIPE
(B) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1006- ● ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0811-0901 ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0811-0901 ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0902- ● ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0902- ● ●
18 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 02 1 0811-0901 ●
18 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 02 1 0811-0901 ●
18 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 02 1 0902- ● ●
18 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97326-158-1 02 1 0902- ● ●
20 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0811-0901 ●
20 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0902- ● ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 6.35 		8-94474-113-0 01 1 0811-0901 ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 6.35 		8-94474-113-0 01 1 0902- ● ●
20 CLIP; BRK PIPE
(A) ID=12 & 6.35 		8-97215-437-0 01 1 0811-0901 ●
20 CLIP; BRK PIPE
(A) ID=12 & 6.35 		8-97215-437-0 01 1 0902- ● ●
22 CLIP; PIPE TO FRAME
B=14 L=16 		9-09916-996-0 02 1 0811-0901 ●
22 CLIP; PIPE TO FRAME
B=14 L=16 		9-09916-996-0 02 1 0902- ●
22 CLIP; PIPE TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) B=14 L=16 		9-09916-996-0 02 1 0902- ●
39 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0902- ●
39 NUT; BRKT FIX
M10 FLANGE 		0-91180-110-0 01 1 0811- ●
62 NUT
M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
62 NUT
M10 FLANGE 		0-91180-110-0 01 1 0902- ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0811-0901 ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0902- ●
67 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE 		0-91180-108-0 02 1 0902- ●
68 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0811-0901 ●
68 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0902- ● ●
68 BRACKET; CLIP
(B) 		8-98060-870-1 01 1 0811-0901 ●
68 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 0902- ●
68 BRACKET; CLIP
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-870-2 01 1 0902- ●
68 BRACKET; CLIP
(C) 		8-98090-213-1 01 1 0811-0901 ●
68 BRACKET; CLIP
(C) 		8-98090-213-1 01 1 0902-1009 ●
68 BRACKET; CLIP
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98090-213-1 01 1 0902-1009 ●
68 BRACKET; CLIP
(D) 		8-98178-046-0 01 1 1010- ●
68 BRACKET; CLIP
EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98178-046-0 01 1 1010- ●
