3-55 — BRAKE PIPING; OIL,REAR (#49644) — 16 parça

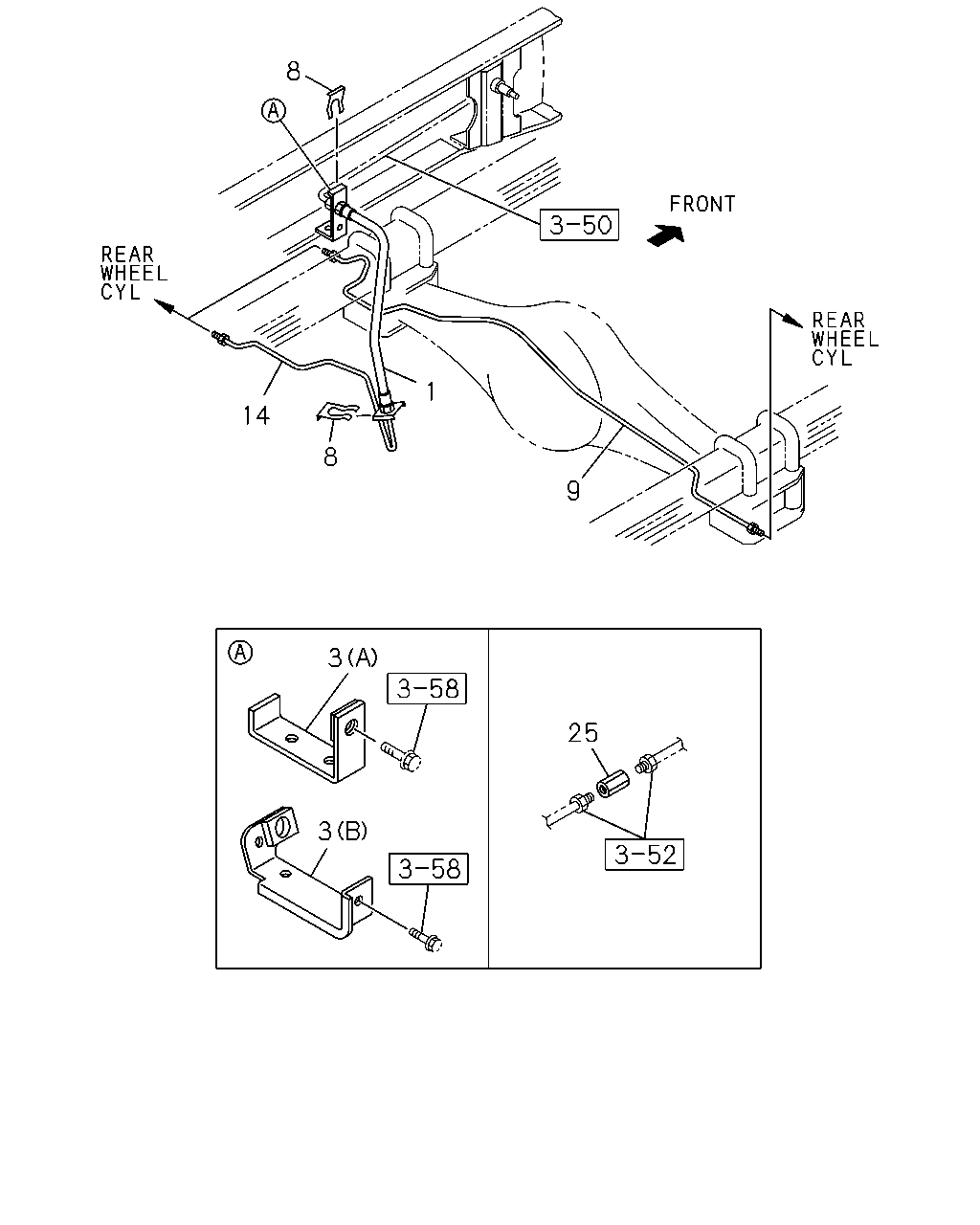

çizim 158680
8 1 14 8 9 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0811-0901 ●
1 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0902- ● ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97251-436-0 01 1 0902- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0811- ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0811-0901 ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0902- ● ●
9 PIPE; BRK,RR AXLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-861-0 01 1 0902- ●
9 PIPE; BRK,RR AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98021-864-0 01 1 0902- ●
9 PIPE; BRK,RR AXLE
REAR WIDE TREAD(V4T) 		8-98021-870-0 01 1 0811- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-860-0 01 1 0902- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-869-0 01 1 0811- ●
25 CONNECTOR
FRT INDEPENDENT SUSPENSION(FF0) M10 STRAIGHT 		0-92107-005-0 02 1 0902- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0811-0901 ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0811-0901 ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0902- ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0902- ● ●
