3-52 — BRAKE PIPING; OIL,FRONT (#49643) — 63 parça

52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE	8-98026-082-1	01	1	0902-	●
52	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE	8-98026-083-0	01	1	0902-	●
52	PIPE; BRK (B) 2WAY TO LSPV,FRONT	8-98039-554-0	01	1	0902-	●
52	PIPE; BRK (A) 2WAY TO LSPV,REAR	8-98113-417-0	01	1	0902-	●
52	PIPE; BRK WHEEL BASE 2400MM(24W) (B) 2WAY TO LSPV,FRONT	8-97389-446-1	01	1	0811-		●
52	PIPE; BRK WHEEL BASE 2400MM(24W) (A) 2WAY TO LSPV,REAR	8-98113-418-0	01	1	0811-		●
52	PIPE; BRK WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,FRONT	8-97389-449-1	01	1	0811-		●
52	PIPE; BRK WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,REAR	8-98113-419-0	01	1	0811-		●

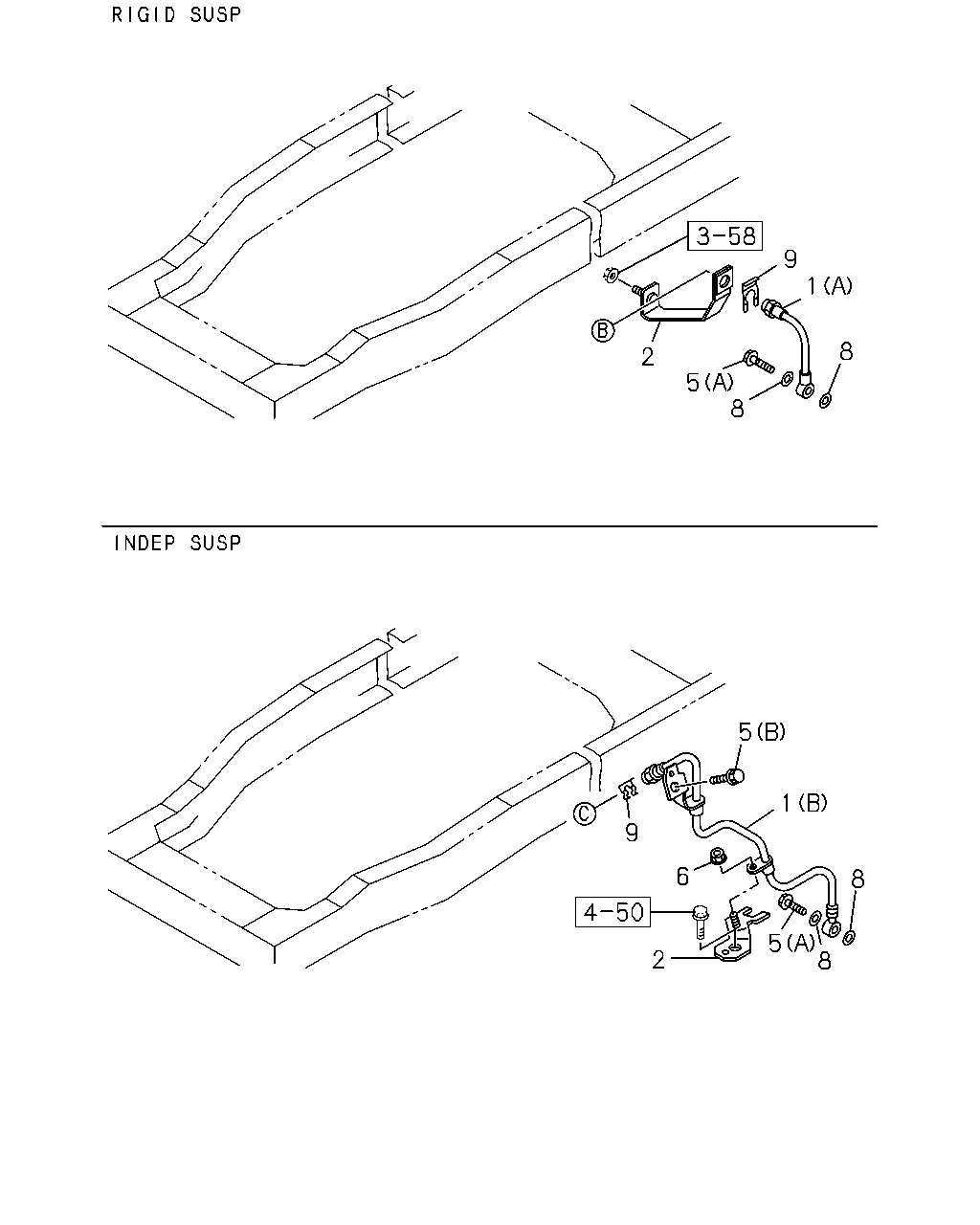

9 1 8 2 5 8 5 1 9 6 8 8 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97358-770-3	01	1	0902-	●
1	HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97358-771-3	01	1	0902-	●
1	HOSE; FLEX,FRT BRK (A)	8-97366-925-1	02	1	0811-		●
2	BRACKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0)	8-97369-635-1	01	1	0902-	●
2	BRACKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0)	8-97369-636-1	01	1	0902-	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97389-691-1	01	1	0811-0901		●
2	BRACKET; FLEX HOSE,FRT BRK	8-97389-691-1	01	1	0902-		●
2	BRACKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-691-1	01	1	0902-	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97389-692-1	01	1	0811-0901		●
2	BRACKET; FLEX HOSE,FRT BRK	8-97389-692-1	01	1	0902-		●
2	BRACKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-692-1	01	1	0902-	●
5	BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (B) M8X12 FLANGE	0-28050-812-0	02	1	0902-	●
5	BOLT; EYE,FLEX HOSE,FRT BRK (A) M10X22	8-98014-005-0	02	1	0811-0901		●
5	BOLT; EYE,FLEX HOSE,FRT BRK (A) M10X22	8-98014-005-0	02	1	0902-		●
5	BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (A) M10X22	8-98014-005-0	02	1	0902-	●
6	NUT; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) M8 FLANGE	0-91180-108-0	02	1	0902-	●
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	04	1	0811-0901		●
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	04	1	0902-		●
8	GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) ID=10.2 OD=16.0	9-09571-410-0	04	1	0902-	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0811-0901		●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0902-	●	●

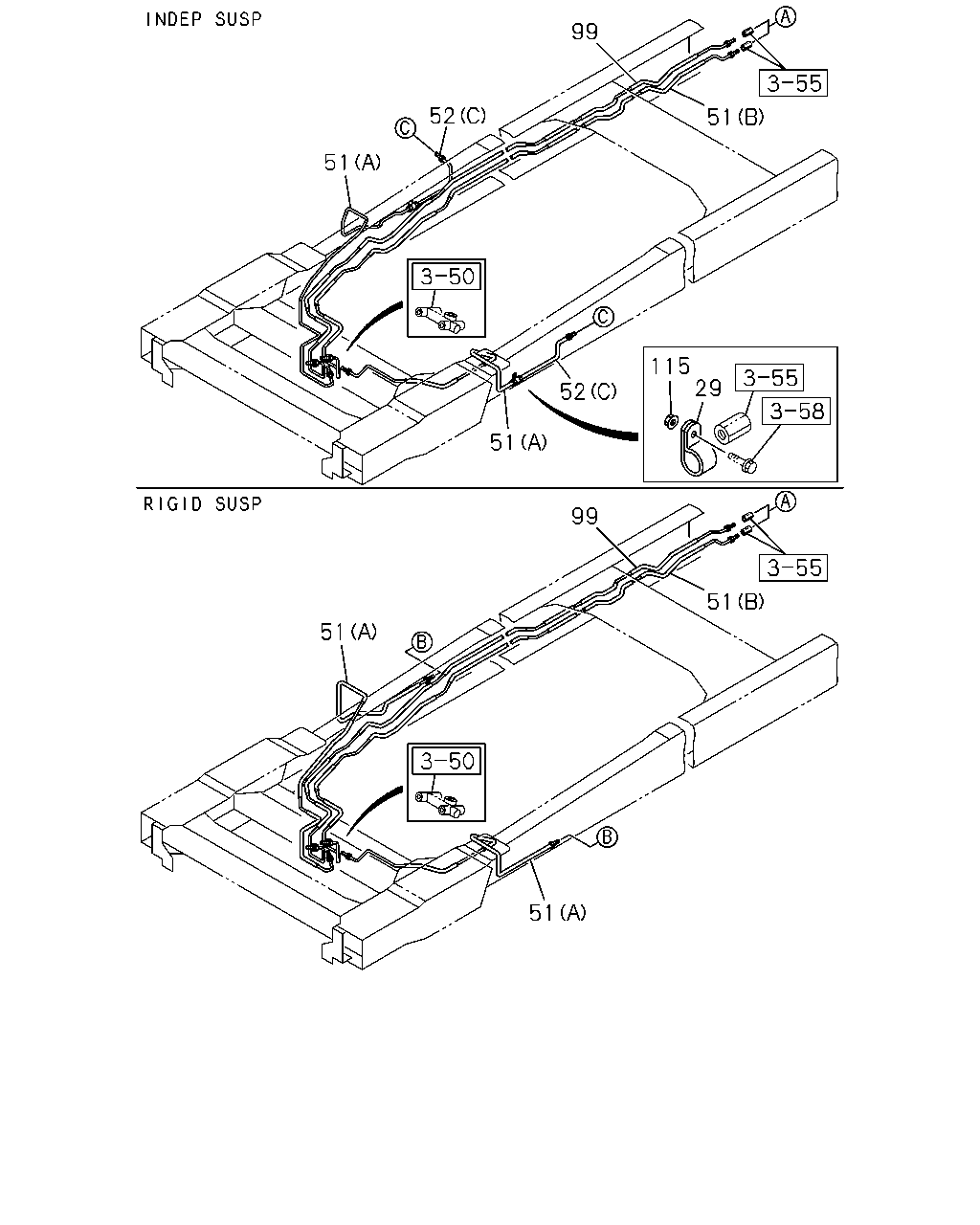

99 52 51 51 115 29 52 51 99 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; UNION FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20	0-95235-532-0	02	1	0902-	●
51	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-97389-389-0	01	1	0902-	●
51	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98054-532-1	01	1	0902-	●
51	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT	8-98139-683-0	01	1	0902-1301	●
51	PIPE; BRK (B) 5/6WAY TO 2WAY,FRONT	8-98139-683-0	01	1	1302-		●
51	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT	8-98139-683-0	01	1	1302-	●
51	PIPE; BRK EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98054-530-0	01	1	0902-	●
51	PIPE; BRK EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98054-531-1	01	1	0902-	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98051-509-0	01	1	0811-0901		●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98051-509-0	01	1	0902-		●
51	PIPE; BRK DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT	8-98051-509-0	01	1	0902-	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-510-0	01	1	0811-0901		●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-510-0	01	1	0902-		●
51	PIPE; BRK DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT	8-98051-510-0	01	1	0902-	●
51	PIPE; BRK (B) 5/6WAY TO 2WAY,FRONT	8-98064-515-1	01	1	0811-0901		●
51	PIPE; BRK (B) 5/6WAY TO 2WAY,FRONT	8-98139-680-0	01	1	0902-1301		●
51	PIPE; BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT	8-98139-680-0	01	1	0902-1301	●
51	PIPE; BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 5/6WAY TO 2WAY,FRONT	8-98139-680-0	01	1	1302-	●
52	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE	8-98026-082-1	01	1	0902-	●
52	PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE	8-98026-083-0	01	1	0902-	●
52	PIPE; BRK (B) 2WAY TO LSPV,FRONT	8-98039-554-0	01	1	0902-	●
52	PIPE; BRK (A) 2WAY TO LSPV,REAR	8-98113-417-0	01	1	0902-	●
52	PIPE; BRK WHEEL BASE 2400MM(24W) (B) 2WAY TO LSPV,FRONT	8-97389-446-1	01	1	0811-		●
52	PIPE; BRK WHEEL BASE 2400MM(24W) (A) 2WAY TO LSPV,REAR	8-98113-418-0	01	1	0811-		●
52	PIPE; BRK WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,FRONT	8-97389-449-1	01	1	0811-		●
52	PIPE; BRK WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,REAR	8-98113-419-0	01	1	0811-		●
99	PIPE ASM; 4/5/6 WAY FRT INDEPENDENT SUSPENSION(FF0)	8-98051-512-1	01	1	0902-1301	●
99	PIPE ASM; 4/5/6 WAY	8-98051-512-1	01	1	1302-		●
99	PIPE ASM; 4/5/6 WAY FRT INDEPENDENT SUSPENSION(FF0)	8-98051-512-1	01	1	1302-	●
99	PIPE ASM; 4/5/6 WAY	8-98064-513-1	01	1	0811-0901		●
99	PIPE ASM; 4/5/6 WAY	8-98131-078-0	01	1	0902-1301		●
99	PIPE ASM; 4/5/6 WAY EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98131-078-0	01	1	0902-1301	●
99	PIPE ASM; 4/5/6 WAY EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98131-078-0	01	1	1302-	●
115	NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) M6 FLANGE	0-91180-106-0	02	1	0902-	●
