Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
3 - Brakes, Brake System
▶
3-21 - VACUUM TANK
▶

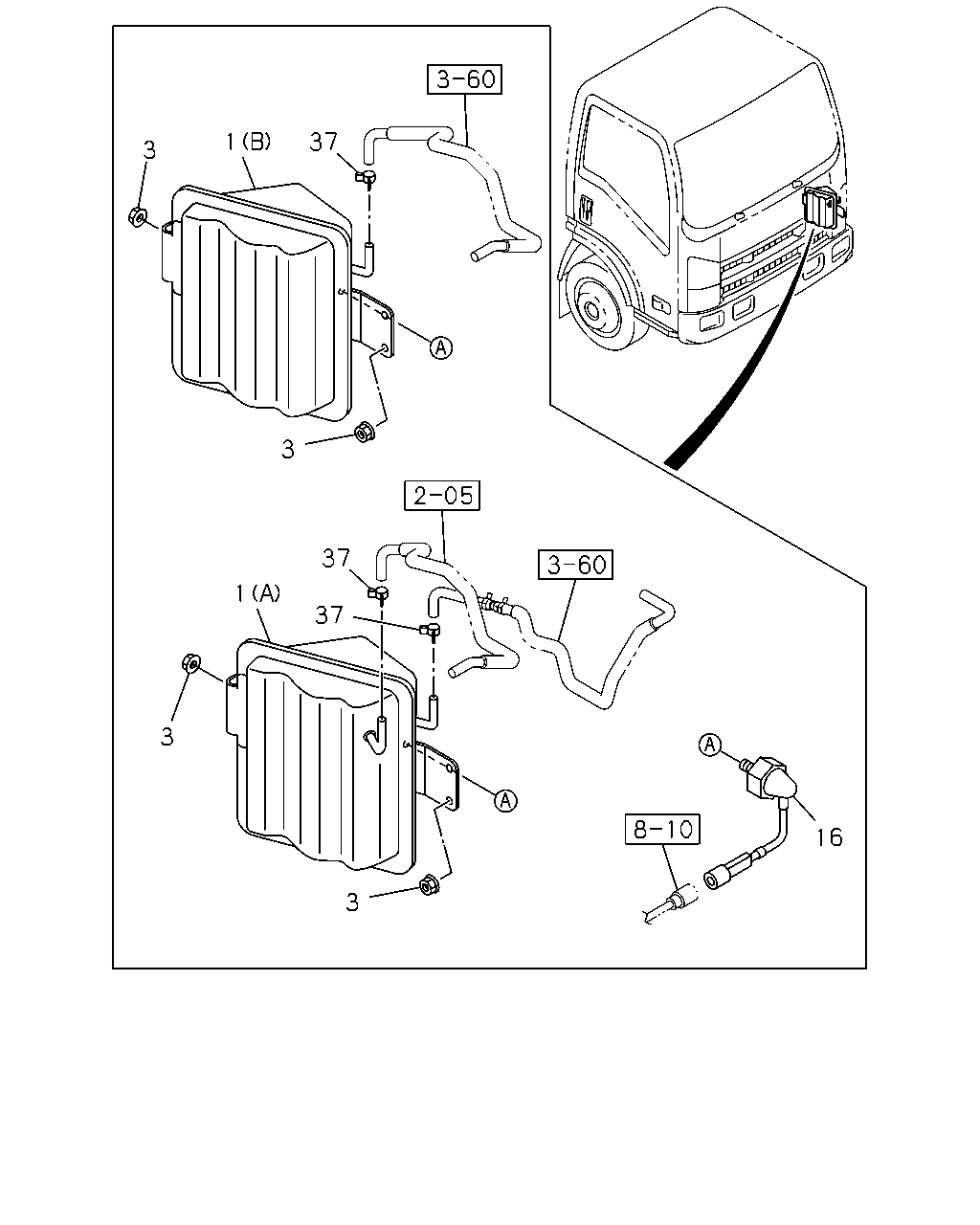

3-21 — VACUUM TANK
(#49638) — 12 parça
Tümü
A - NMR6SN
B - NMR6SE
1
37
3
3
37
1
37
3
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-123-0
01
1
0811-0901
●
1
TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-123-0
01
1
0902-
●
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-124-1
01
1
0811-0901
●
1
TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-124-1
01
1
0902-
●
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
0811-0901
●
3
NUT; VAC TANK TO BRKT
8-98008-071-0
03
1
0902-
●
●
16
SWITCH; VAC
8-98049-417-0
01
1
0811-0901
●
16
SWITCH; VAC
8-98049-417-0
01
1
0902-
●
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
02
1
0811-0901
●
37
CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
02
1
0902-
●
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
01
1
0811-0901
●
37
CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5
8-94367-944-0
01
1
0902-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
