3-10 — BRAKE PEDAL AND CONTROL (#49636) — 50 parça

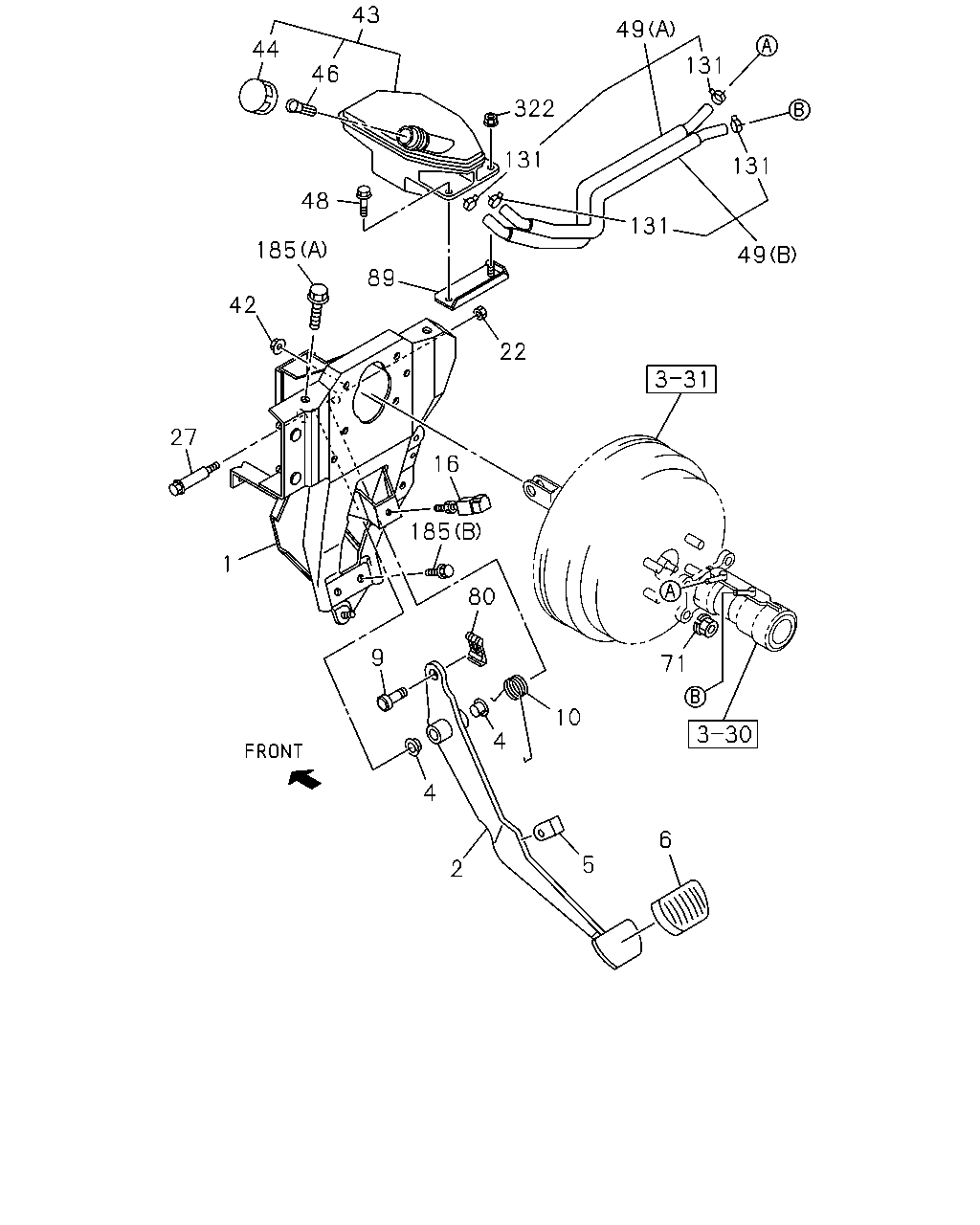

çizim 158668
43 49 44 131 46 322 131 131 48 131 185 49 89 42 22 27 16 185 1 80 9 71 10 4 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-98029-185-1 01 1 0811-0901 ●
1 BRACKET ASM; PEDAL 8-98029-185-1 01 1 0902- ● ●
2 PEDAL; BRK 8-98003-157-0 01 1 0811-0901 ●
2 PEDAL; BRK 8-98003-157-0 01 1 0902- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0811-0901 ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0902- ● ●
5 STOPPER; BRK PEDAL 8-98029-187-0 01 1 0811-0901 ●
5 STOPPER; BRK PEDAL 8-98029-187-0 01 1 0902- ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 0811-0901 ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 0902- ● ●
9 PIN; JAW JOINT 8-97387-230-0 01 1 0811-0901 ●
9 PIN; JAW JOINT 8-97387-230-0 01 1 0902-1007 ● ●
9 PIN; JAW JOINT 8-98147-657-0 01 1 1008- ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0811-0901 ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0902- ● ●
16 SWITCH; STOP LAMP 8-98000-028-0 01 1 0811-0901 ●
16 SWITCH; STOP LAMP 8-98000-028-0 01 1 0902- ● ●
22 NUT; SHAFT
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0811-0901 ●
22 NUT; SHAFT
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0902- ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0811-0901 ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0902- ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 0811-0901 ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 0902- ● ●
43 TANK ASM; OIL 8-97387-219-3 01 1 0811-0901 ●
43 TANK ASM; OIL 8-97387-219-3 01 1 0902- ● ●
44 CAP; OIL TANK 8-98022-268-0 01 1 0811-0901 ●
44 CAP; OIL TANK 8-98022-268-0 01 1 0902- ● ●
46 FILTER; RESERVOIR,BRK 8-98022-269-0 01 1 0811-0901 ●
46 FILTER; RESERVOIR,BRK 8-98022-269-0 01 1 0902- ● ●
48 BOLT; OIL TANK TO BRKT
M6X20 W/PL WASHER 		8-97370-668-0 01 1 0811-0901 ●
48 BOLT; OIL TANK TO BRKT
M6X20 W/PL WASHER 		8-97370-668-0 01 1 0902- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-98030-658-1 01 1 0811-0901 ●
49 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-98030-658-1 01 1 0902- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-98030-659-1 01 1 0811-0901 ●
49 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-98030-659-1 01 1 0902- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 0811-0901 ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 0902- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0811-0901 ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0902- ● ●
89 BRACKET; M/CYL 8-98005-493-1 01 1 0811-0901 ●
89 BRACKET; M/CYL 8-98005-493-1 01 1 0902- ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-98031-178-0 04 1 0811-0901 ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-98031-178-0 04 1 0902- ● ●
185 BOLT; BRKT
(A) M10X25 FLANGE 		0-28661-025-0 02 1 0811-0901 ●
185 BOLT; BRKT
(A) M10X25 FLANGE 		0-28661-025-0 02 1 0902- ● ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-98033-926-0 02 1 0811-0901 ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-98033-926-0 02 1 0902-0903 ● ●
185 BOLT; BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 02 1 0904- ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 01 1 0811-0901 ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 01 1 0902- ● ●
