3-05 — REAR WHEEL BRAKE (#49634) — 97 parça

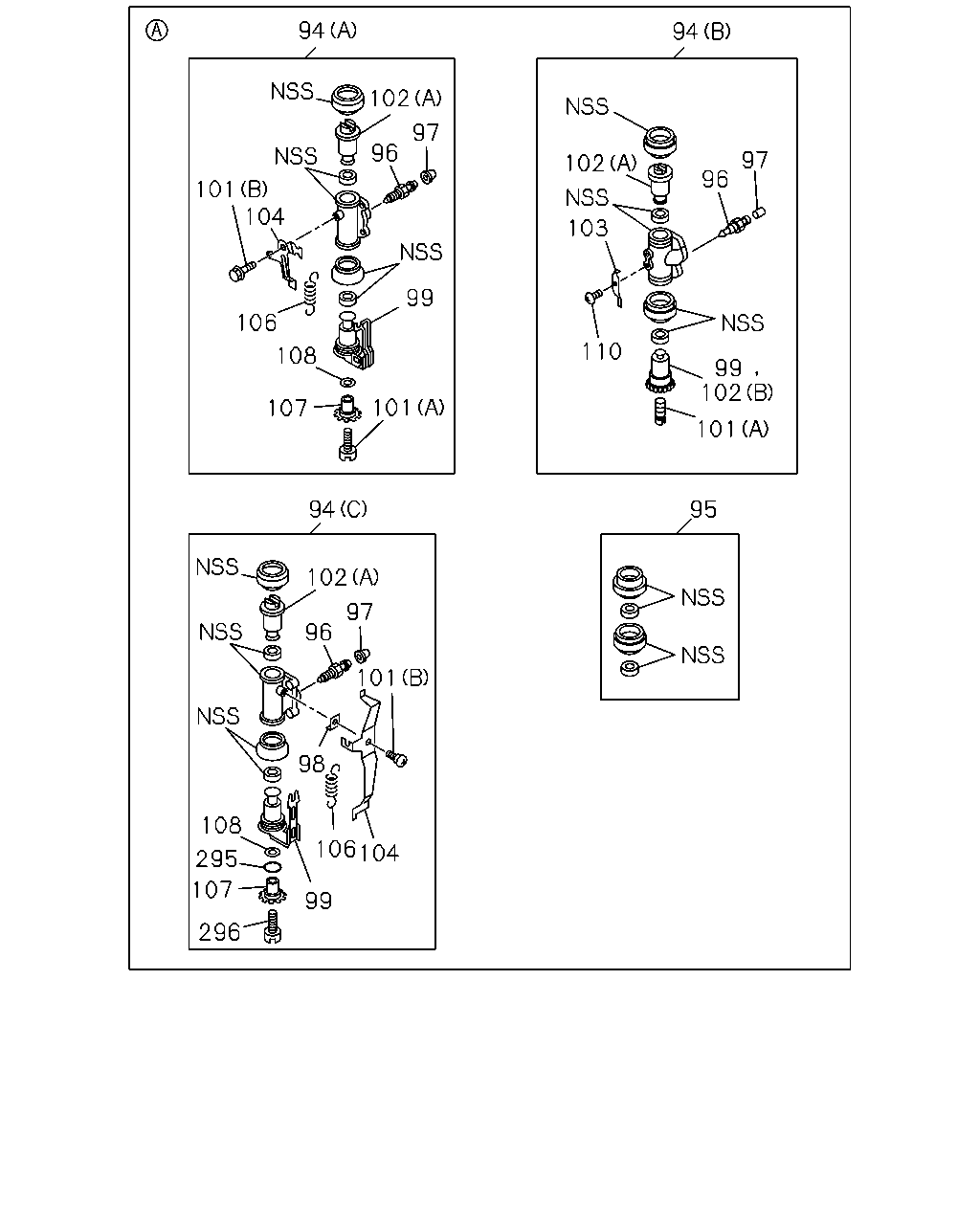

94 94 102 97 96 97 102 96 101 104 103 99 106 110 108 99 102 101 107 101 94 95 102 97 96 101 98 108 106 104 295 107 99 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	CYLINDER; WHEEL,RR BRK FRT INDEPENDENT SUSPENSION(FF0) (C) FRONT	8-97191-497-0	01	1	0902-	●
94	CYLINDER; WHEEL,RR BRK FRT INDEPENDENT SUSPENSION(FF0) (C) REAR	8-97191-499-0	01	1	0902-	●
94	CYLINDER; WHEEL,RR BRK FRT INDEPENDENT SUSPENSION(FF0) (C)	8-97191-502-0	02	1	0902-	●
94	CYLINDER; WHEEL,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) FRONT	8-97139-840-0	01	1	0902-	●
94	CYLINDER; WHEEL,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) REAR	8-97139-841-0	01	1	0902-	●
94	CYLINDER; WHEEL,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97139-842-0	02	1	0902-	●
94	CYLINDER; WHEEL,RR BRK (A)	8-97349-689-0	02	1	0811-		●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-690-0	01	1	0811-		●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-692-0	01	1	0811-		●
95	CUP SET; RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	5-87831-781-0	01	1	0902-	●
95	CUP SET; RR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0)	5-87831-621-0	01	1	0902-	●
95	CUP SET; RR WHEEL CYL	5-87831-622-0	01	1	0811-		●
96	SCREW; BLEEDER,RR BRK FRT INDEPENDENT SUSPENSION(FF0)	8-97191-759-0	01	1	0902-	●
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	0811-0901		●
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	01	1	0902-		●
96	SCREW; BLEEDER,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98050-476-0	01	1	0902-	●
97	CAP; BLEEDER,RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-774-0	01	1	0902-	●
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0811-0901		●
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0902-		●
97	CAP; BLEEDER,RR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98050-479-0	01	1	0902-	●
98	SPRING; RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-768-0	04	1	0902-	●
99	PISTON; RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-731-0	02	1	0902-	●
99	PISTON; RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-732-0	02	1	0902-	●
99	PISTON; RR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97078-698-0	03	1	0902-	●
99	PISTON; RR WHEEL CYL	8-97349-727-0	02	1	0811-		●
99	PISTON; RR WHEEL CYL	8-97349-728-0	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97191-770-0	04	1	0902-	●
101	SCREW; ADJ,RR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97078-623-0	04	1	0902-	●
101	SCREW; ADJ,RR WHEEL CYL (A) M12X30.2 RH THREAD	5-47622-003-1	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL (A) M12X30.2 LH THREAD	5-47622-004-1	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0811-		●
102	PISTON; REAR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97191-755-0	04	1	0902-	●
102	PISTON; REAR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97078-698-0	01	1	0902-	●
102	PISTON; REAR WHEEL CYL (A) D=25.4	8-94128-531-1	04	1	0811-0901		●
102	PISTON; REAR WHEEL CYL (A) D=25.4	8-94128-531-1	04	1	0902-		●
102	PISTON; REAR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) D=25.4	8-94128-531-1	04	1	0902-	●
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94128-486-0	04	1	0902-	●
104	LEVER; ADJ FRT INDEPENDENT SUSPENSION(FF0)	8-97191-739-0	02	1	0902-	●
104	LEVER; ADJ FRT INDEPENDENT SUSPENSION(FF0)	8-97191-740-0	02	1	0902-	●
104	LEVER; ADJ	8-97349-743-0	02	1	0811-		●
104	LEVER; ADJ	8-97349-744-0	02	1	0811-		●
106	SPRING; ADJ LEVER FRT INDEPENDENT SUSPENSION(FF0)	8-97191-743-0	02	1	0902-	●
106	SPRING; ADJ LEVER FRT INDEPENDENT SUSPENSION(FF0)	8-97191-744-0	02	1	0902-	●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0811-		●
107	GEAR; ADJ,RR W/CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-747-0	02	1	0902-	●
107	GEAR; ADJ,RR W/CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-748-0	02	1	0902-	●
107	GEAR; ADJ,RR W/CYL	8-97349-737-0	02	1	0811-		●
107	GEAR; ADJ,RR W/CYL	8-97349-739-0	02	1	0811-		●
108	WASHER; THRUST,GEAR ADJ FRT INDEPENDENT SUSPENSION(FF0)	8-97191-762-0	04	1	0902-	●
108	WASHER; THRUST,GEAR ADJ	8-97029-304-0	04	1	0811-		●
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94128-727-0	04	1	0902-	●
295	SEAL; DUST FRT INDEPENDENT SUSPENSION(FF0)	8-97191-751-0	04	1	0902-	●
296	BOLT; ADJ,RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-764-0	02	1	0902-	●
296	BOLT; ADJ,RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-765-0	02	1	0902-	●

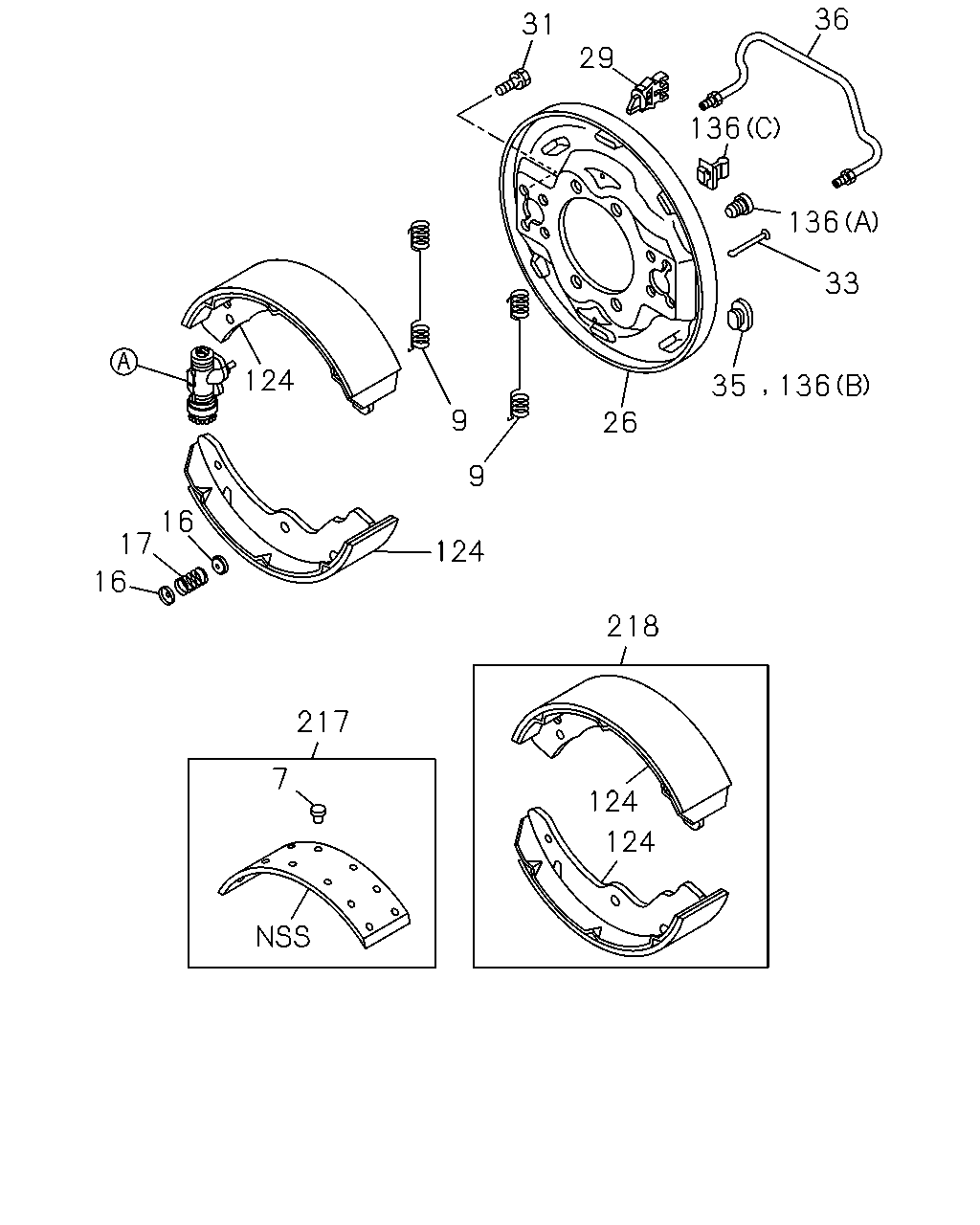

36 31 29 136 136 33 124 136 35 9 26 9 16 17 124 16 218 217 7 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	RIVET; LINING,RR BRK	1-09732-029-0	40	1	0811-		●
9	SPRING; RETURN,BRK SHOE FRT INDEPENDENT SUSPENSION(FF0)	8-97191-707-0	04	1	0902-	●
9	SPRING; RETURN,BRK SHOE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97078-739-0	04	1	0902-	●
9	SPRING; RETURN,BRK SHOE	5-09583-118-0	04	1	0811-		●
16	CUP; SHOE HOLDING FRT INDEPENDENT SUSPENSION(FF0)	8-97191-712-0	08	1	0902-	●
16	CUP; SHOE HOLDING EXC. FRT INDEPENDENT SUSPENSION(FF0)	9-47162-033-0	08	1	0902-	●
16	CUP; SHOE HOLDING	9-47165-096-0	08	1	0811-		●
17	SPRING; SHOE HOLD DOWN FRT INDEPENDENT SUSPENSION(FF0)	8-97191-708-0	04	1	0902-	●
17	SPRING; SHOE HOLD DOWN EXC. FRT INDEPENDENT SUSPENSION(FF0)	9-09940-989-1	04	1	0902-	●
17	SPRING; SHOE HOLD DOWN	5-09580-101-1	04	1	0811-		●
26	PLATE; BACK,RR BRK FRT INDEPENDENT SUSPENSION(FF0)	8-98148-180-0	01	1	0902-	●
26	PLATE; BACK,RR BRK FRT INDEPENDENT SUSPENSION(FF0)	8-98148-181-0	01	1	0902-	●
26	PLATE; BACK,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97093-934-0	01	1	0902-	●
26	PLATE; BACK,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97093-935-0	01	1	0902-	●
26	PLATE; BACK,RR BRK	8-97079-848-0	01	1	0811-		●
26	PLATE; BACK,RR BRK	8-97079-849-0	01	1	0811-		●
29	CLIP; PIPE,BRK FRT INDEPENDENT SUSPENSION(FF0)	8-97191-703-0	02	1	0902-	●
29	CLIP; PIPE,BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94128-307-0	02	1	0902-	●
29	CLIP; PIPE,BRK	8-94128-306-0	02	1	0811-		●
31	BOLT; RR WHEEL CYL FRT INDEPENDENT SUSPENSION(FF0)	8-97191-714-0	16	1	0902-	●
31	BOLT; RR WHEEL CYL EXC. FRT INDEPENDENT SUSPENSION(FF0)	5-09030-036-1	16	1	0902-	●
31	BOLT; RR WHEEL CYL	5-09030-016-1	16	1	0811-		●
33	PIN; SHOE HOLD DOWN FRT INDEPENDENT SUSPENSION(FF0)	8-97191-711-0	04	1	0902-	●
33	PIN; SHOE HOLD DOWN EXC. FRT INDEPENDENT SUSPENSION(FF0)	9-47162-607-0	04	1	0902-	●
33	PIN; SHOE HOLD DOWN	5-47162-001-0	04	1	0811-		●
35	GROMMET; CHECK HOLE FRT INDEPENDENT SUSPENSION(FF0)	8-97191-720-0	02	1	0902-	●
35	GROMMET; CHECK HOLE EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94344-919-0	02	1	0902-	●
35	GROMMET; CHECK HOLE	8-94171-287-0	02	1	0811-		●
36	PIPE; OIL,RR BRK FRT INDEPENDENT SUSPENSION(FF0)	8-97191-702-0	02	1	0902-	●
36	PIPE; OIL,RR BRK EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94128-192-0	02	1	0902-	●
36	PIPE; OIL,RR BRK	8-94154-916-0	02	1	0811-		●
124	SHOE ASM; BRK,RR FRT INDEPENDENT SUSPENSION(FF0)	8-97331-932-0	04	1	0902-	●
124	SHOE ASM; BRK,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97035-085-1	04	1	0902-	●
124	SHOE ASM; BRK,RR	8-97287-778-0	04	1	0811-		●
136	GROMMET FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97191-718-0	08	1	0902-	●
136	GROMMET EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	9-09956-640-0	04	1	0902-	●
136	GROMMET (A)	1-47154-008-0	04	1	0811-		●
136	GROMMET (B)	8-94171-287-0	04	1	0811-		●
217	LINING KIT; RR BRK	5-87831-801-0	01	1	0811-		●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-121-0	01	1	0811-		●
218	SHOE KIT; BRK,RR FRT INDEPENDENT SUSPENSION(FF0)	5-87832-044-0	01	1	0902-	●
218	SHOE KIT; BRK,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	5-87832-045-0	01	1	0902-	●
218	SHOE KIT; BRK,RR	5-87832-047-0	01	1	0811-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
