2-85 — POWER TAKE OFF CONTROL (#49631) — 109 parça

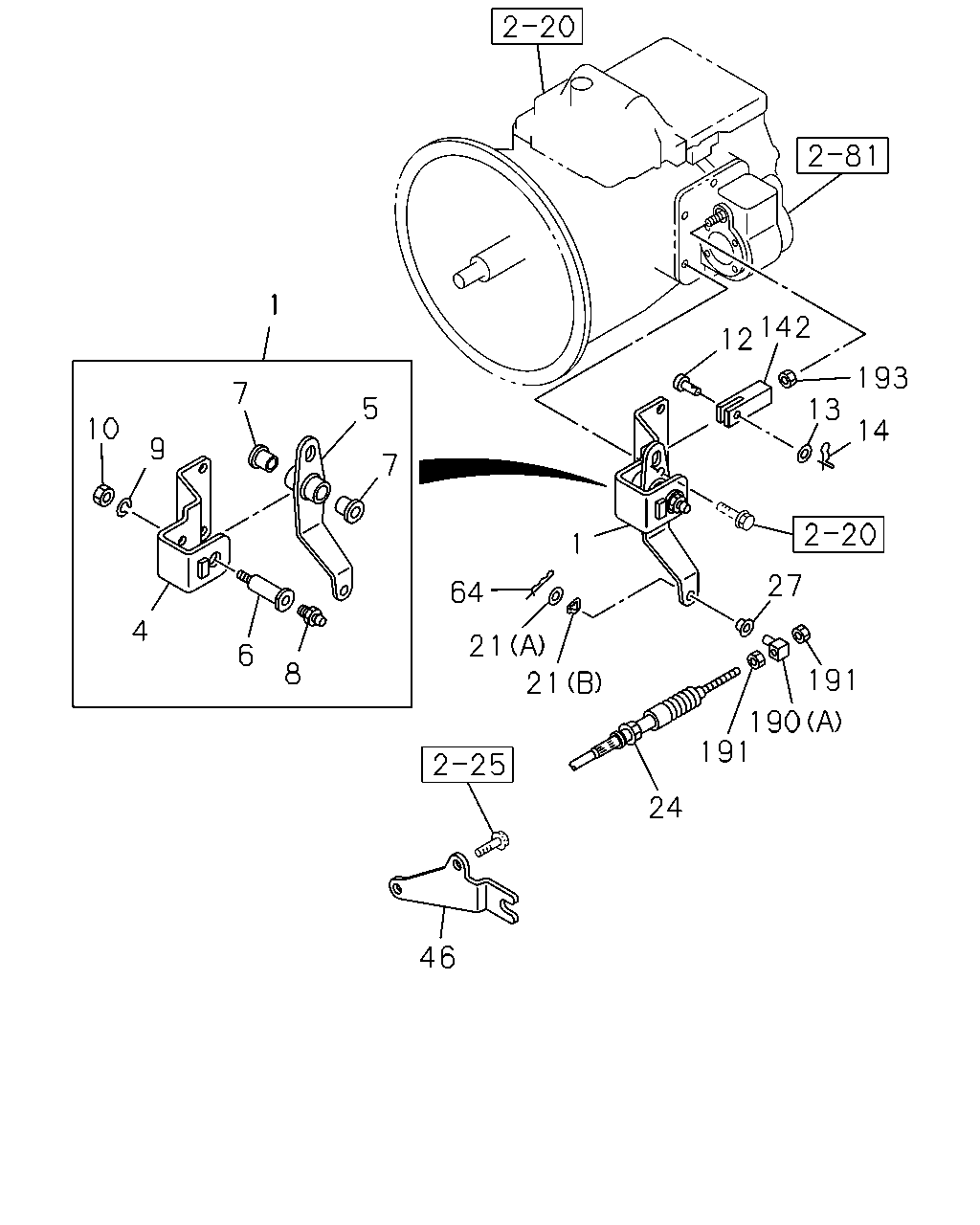

1 142 12 193 7 5 13 10 14 9 7 1 27 64 4 21 21 6 8 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0811-1107
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1308
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1309-
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0811-1107
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1308
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1309-
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0811-1308
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1309-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0811-1107
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1308
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1309-
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0811-1308
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1309-
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	0-90301-406-0	01	1	0811-1308
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT	0-90301-406-0	01	1	1309-
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0811-1308
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1309-
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	0811-1308
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	0-91110-508-0	01	1	1309-
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0811-1308
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1309-
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0811-1308
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1309-
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0811-1308
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1309-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0811-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0811-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3053	8-98117-185-0	01	1	0811-0901
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3053	8-98117-185-0	01	1	0902-0902
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98139-164-0	01	1	0903-1204
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98212-223-0	01	1	1205-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1208-
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	0811-
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	0811-
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) L=27.7	8-94111-137-0	01	1	0811-
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0811-1308
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1309-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	0811-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0811-
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	02	1	0811-
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0811-1308
193	NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1309-

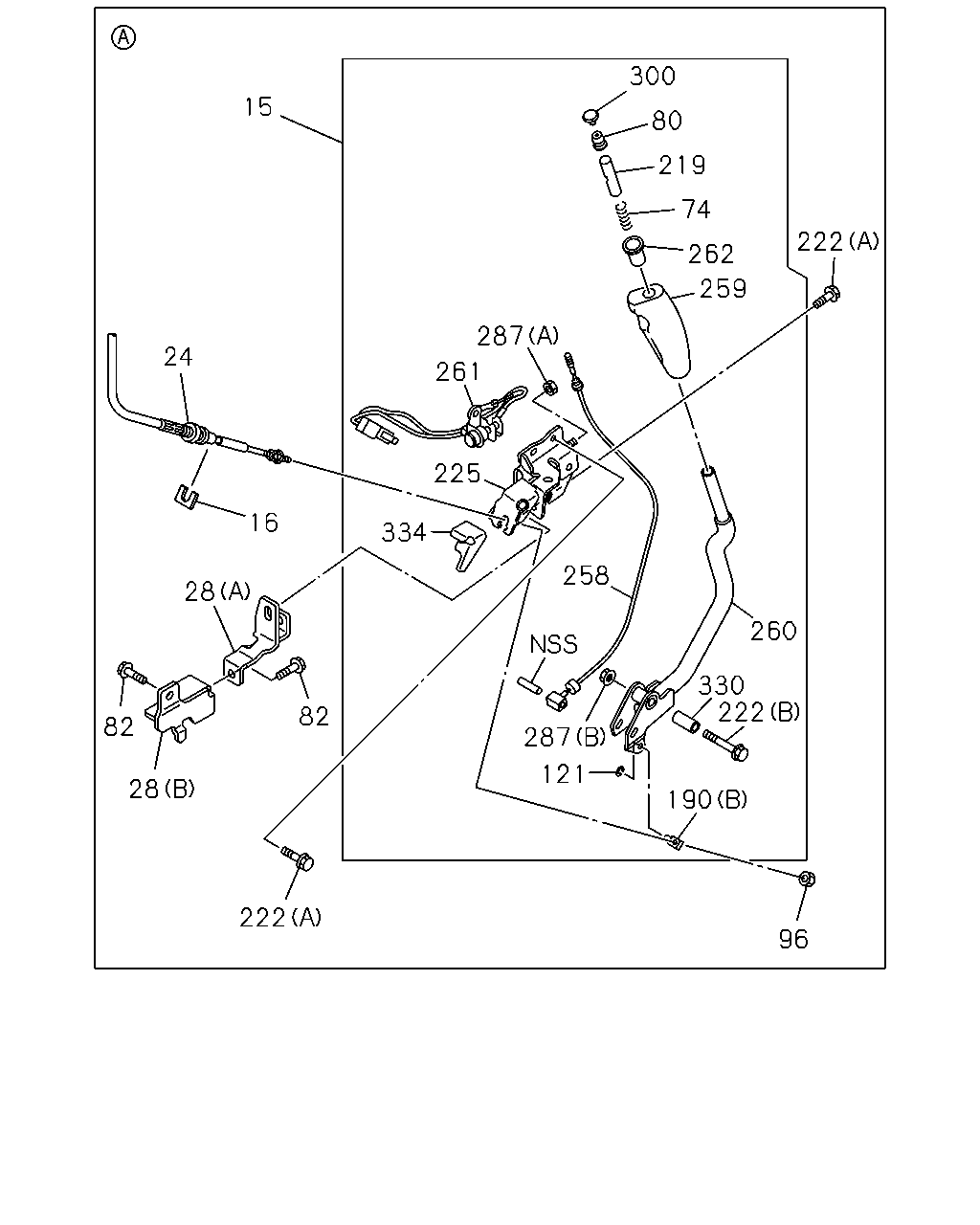

15 300 80 219 74 262 259 222 260 330 222 190 96 121 287 258 287 261 225 334 16 24 28 82 28 82 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	0811-
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0811-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3053	8-98117-185-0	01	1	0811-0901
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3053	8-98117-185-0	01	1	0902-0902
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98139-164-0	01	1	0903-1204
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98212-223-0	01	1	1205-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1208-
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	0811-
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	0811-
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0811-
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0811-
82	BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) M8X20 FLANGE	0-28650-820-0	02	1	0811-
96	NUT PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	01	1	0811-
121	RING; SNAP PTO MANUAL CONTROL(6WC) ID=4	0-91805-504-0	01	1	0811-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	0811-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0811-
219	KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0811-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0811-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28650-820-0	03	1	0811-
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	0811-
258	CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	0811-
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0811-
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	0811-
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	0811-
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0811-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (A) M6	0-91110-506-0	01	1	0811-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (B) M8 FLANGE	0-91180-208-0	01	1	0811-
300	CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0811-
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0811-
334	SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	0811-

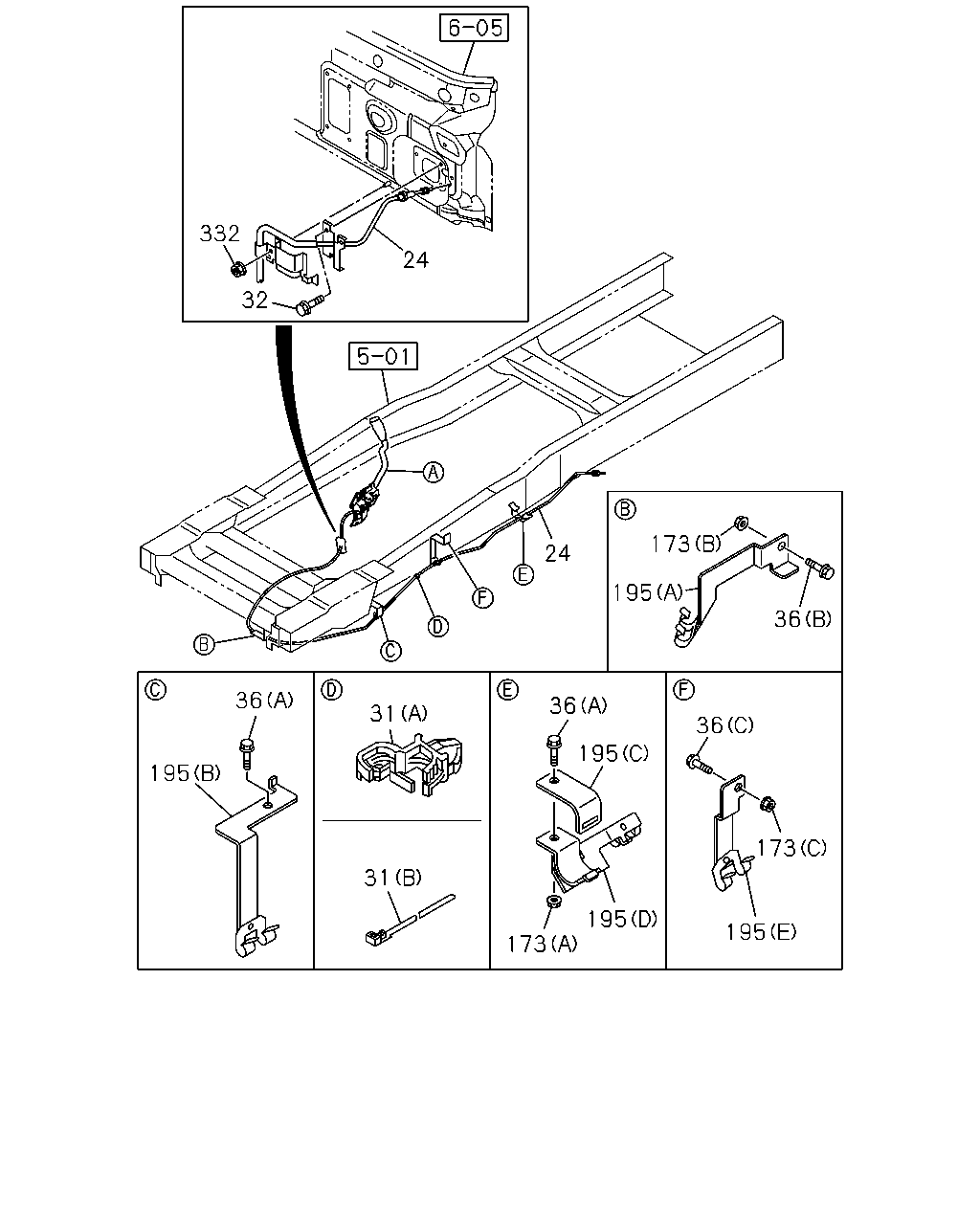

6 332 24 32 5 173 24 195 36 36 36 31 36 195 195 173 31 195 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0811-1308
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1309-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0811-1107
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1308
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1309-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3053	8-98117-185-0	01	1	0811-0901
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3053	8-98117-185-0	01	1	0902-0902
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98139-164-0	01	1	0903-1204
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98212-223-0	01	1	1205-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1208-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (B) L=250	5-09707-030-1	01	1	0811-0901
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) L=250	5-09707-030-1	01	1	0902-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (A) ID=16	8-97040-812-0	01	1	0811-0901
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-97040-812-0	01	1	0902-
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X12 FLANGE	8-97329-610-0	02	1	0811-
36	BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M6X20 FLANGE	0-28650-620-0	01	1	1201-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (B) M14X30 FLANGE	0-28651-430-0	01	1	0811-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (A) M8X25 FLANGE	0-28650-825-0	01	1	0811-0901
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (A) M8X25 FLANGE	0-28650-825-0	01	1	0811-0901
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-1112
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	0902-1112
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	1201-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	1201-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (B) M14 FLANGE	0-91180-114-0	01	1	1112-
173	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M6 FLANGE	0-91180-106-0	01	1	1201-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (A) M8 FLANGE	0-91180-108-0	01	1	0811-0901
173	NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8 FLANGE	0-91180-108-0	01	1	0902-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (B) M14 FLANGE	0-91180-114-0	01	1	0811-1111
195	BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (E)	8-98086-266-0	01	1	1201-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-263-0	01	1	0811-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98086-265-0	01	1	0811-1112
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98086-265-0	01	1	1201-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98117-131-0	01	1	0811-0901
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98117-131-0	01	1	0902-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98117-132-0	01	1	0811-0901
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-132-0	01	1	0902-
332	NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	0811-
