◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81 - POWER TAKE OFF; TRANSMISSION SIDE ▶

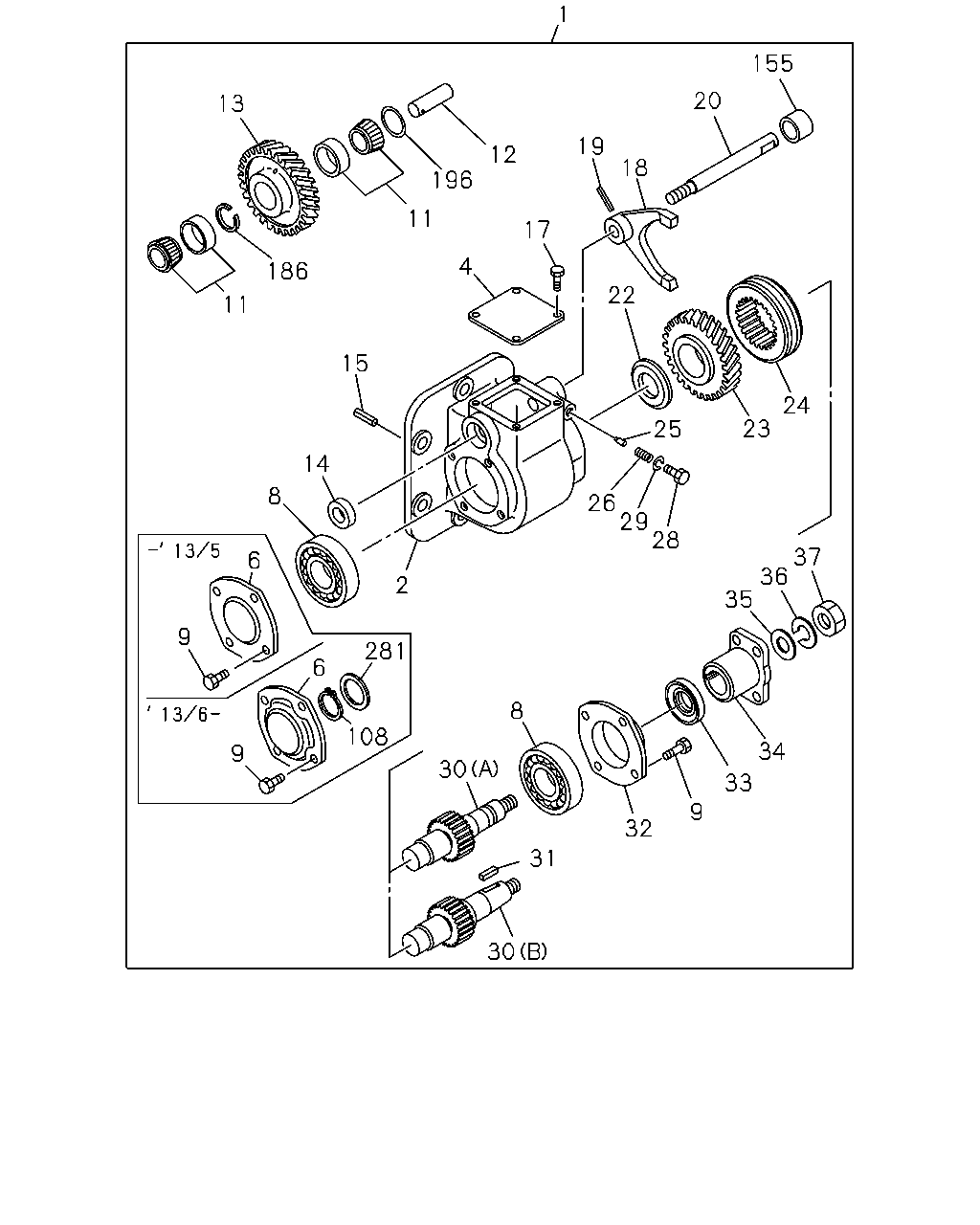

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#49630) — 87 parça
çizim 158654
9 6 281 108 30 8 31 32 9 33 34 30 35 36 37 28 29 26 25 23 24 22 2 6 8 14 9 15 4 17 19 18 20 155 12 196 11 186 11 13 1
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-7 01 1 0811-1210
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98223-523-0 01 1 1211-1305
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98233-783-0 01 1 1306-1308
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YG 		8-98233-783-1 01 1 1309-
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 0811-1308
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-689-2 01 1 1309-1409
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98282-381-0 01 1 1410-
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98046-613-0 01 1 0811-1308
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-613-0 01 1 1309-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98046-612-0 01 1 0811-1305
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98233-778-0 01 1 1306-1308
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-778-0 01 1 1309-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 0811-1308
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62 		8-94343-031-1 02 1 1309-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 08 1 0811-1308
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE 		0-28050-820-0 08 1 1309-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 0811-1308
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK 		8-97106-734-0 02 1 1309-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 0811-1308
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38211-606-0 01 1 1309-
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 0811-1308
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31 		8-97308-700-0 01 1 1309-
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98028-789-0 01 1 0811-1308
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98028-789-0 01 1 1309-
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 0811-1308
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16 		9-09878-613-0 01 1 1309-
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 04 1 0811-1308
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE 		0-28050-820-0 04 1 1309-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 0811-1308
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97224-702-0 01 1 1309-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=25 OD=5 		8-94135-771-0 01 1 0811-1308
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5 		8-94135-771-0 01 1 1309-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98046-623-0 01 1 0811-1308
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-623-0 01 1 1309-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 0811-1308
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38245-603-1 01 1 1309-
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=27 		8-98120-609-0 01 1 0811-1308
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-609-0 01 1 1309-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97231-316-1 01 1 0811-1308
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97231-316-1 01 1 1309-
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 0811-1308
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-94169-071-0 01 1 1309-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 0811-1308
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-09940-380-0 01 1 1309-
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) M8 		8-98038-424-0 01 1 0811-1308
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 		8-98038-424-0 01 1 1309-
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) ID=8.2 		0-91510-808-0 01 1 0811-1308
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2 		0-91510-808-0 01 1 1309-
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 0811-1210
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-98223-518-0 01 1 1211-1305
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (B) 		8-98233-777-0 01 1 1306-1308
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) 		8-98233-777-0 01 1 1309-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=25 		8-98068-088-0 01 1 1211-1308
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 		8-98068-088-0 01 1 1309-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 0811-1308
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97305-794-0 01 1 1309-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 0811-1308
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		1-38159-007-0 01 1 1309-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98046-624-0 01 1 0811-1210
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98223-519-0 01 1 1211-1308
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98223-519-0 01 1 1309-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) ID=15 		0-91610-514-0 01 1 0811-1308
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15 		0-91610-514-0 01 1 1309-
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) ID=14.2 		0-91510-814-0 01 1 0811-1308
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 		0-91510-814-0 01 1 1309-
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) M14 		0-91111-514-0 01 1 0811-1308
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14 		0-91111-514-0 01 1 1309-
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) ID=23.2 		9-09180-025-0 01 1 1306-1308
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2 		9-09180-025-0 01 1 1309-
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) 		8-98037-770-0 01 1 0811-1308
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98037-770-0 01 1 1309-
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 0811-1308
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97106-730-0 01 1 1309-
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 0811-1308
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50 		8-97106-724-0 02 1 1309-
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 0811-1308
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60 		8-97106-725-0 02 1 1309-
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 0811-1308
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65 		8-97106-726-0 02 1 1309-
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 0811-1308
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70 		8-97106-727-0 02 1 1309-
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 0811-1308
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80 		8-97106-728-0 02 1 1309-
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 0811-1308
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 02 1 1309-
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 01 1 1306-1308
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 01 1 1309-
