0-12B — CYLINDER BLOCK (#4963) — 116 parça

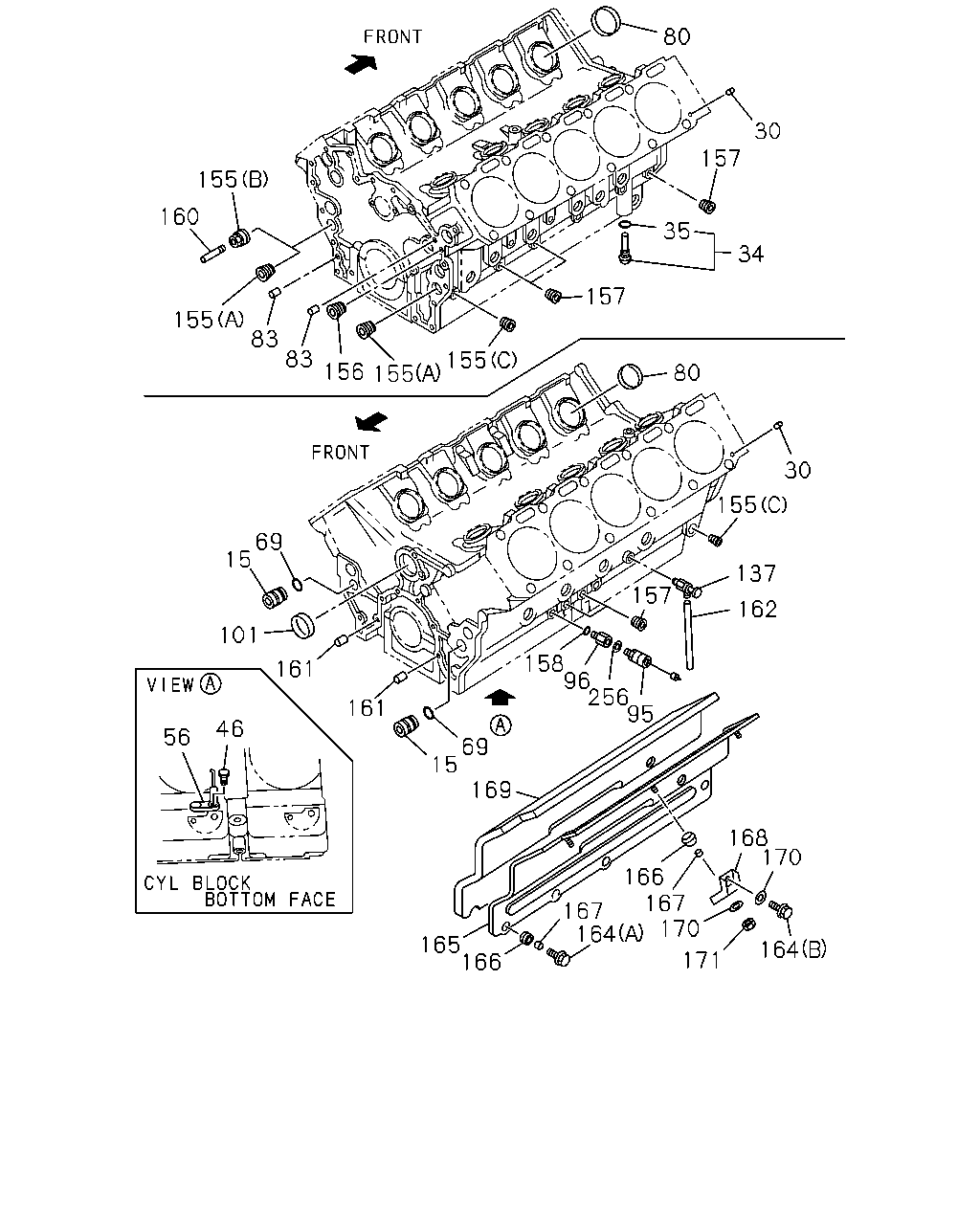

80 30 157 155 160 35 34 157 155 83 83 155 156 80 155 30 155 69 15 157 137 162 101 158 96 256 95 161 161 69 15 46 56 169 168 170 166 167 170 167 164 165 166 164 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9606-9905	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9906-		●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9606-9905	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9906-		●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9606-9905	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9906-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9606-9905	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9906-		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9606-9905	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9906-		●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9606-9905	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	10	1	9906-		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9606-9905	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9906-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9606-9905	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9906-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9606-9905	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9906-		●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9606-9706	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9707-9905	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9906-		●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9606-9905	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9906-		●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9606-9905	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9906-		●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9606-9905	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9906-		●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9606-9905	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9906-		●
155	PLUG; OIL GALLERY END ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) PT1	1-09605-021-0	01	1	9606-9905	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO<SV1> (A) PT1	1-09605-021-0	01	1	9906-		●
155	PLUG; OIL GALLERY END ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) PT1,PT1/8	1-09605-076-0	01	1	9606-9905	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO<SV1> (B) PT1,PT1/8	1-09605-076-1	01	1	9906-		●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO<SV1> (A) PT1	1-09605-021-0	02	1	9606-9905	●
155	PLUG; OIL GALLERY END EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (A) PT1	1-09605-021-0	02	1	9906-		●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9606-9905	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9906-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9606-9905	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9906-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9606-9905	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9906-		●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	9-13342-002-0	01	1	9606-9905	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO<SV1>	9-13342-002-0	01	1	9906-		●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9606-9905	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9906-		●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9606-9905	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9906-		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9> (A) M10X28 FLANGE	0-28181-028-0	03	1	9606-9905	●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9906-		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9606-9905	●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9906-		●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT<SV9>	1-19381-320-1	01	1	9606-9905	●
165	COVER; C/BL SKIRT	1-19381-320-1	01	1	9906-		●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9>	1-09337-020-0	06	1	9606-9905	●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	9906-		●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT<SV9>	5-23332-003-0	06	1	9606-9905	●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	9906-		●
168	BRACKET; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19386-012-3	03	1	9606-9905	●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	9906-		●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19389-148-0	01	1	9606-9705	●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19389-197-0	01	1	9706-9905	●
169	INSULATOR; SIDE COVER	1-19389-197-0	01	1	9906-		●
170	WASHER; COVER ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=26	9-09160-710-0	06	1	9606-9905	●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	9906-		●
171	NUT; COVER & BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-410-0	03	1	9606-9905	●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	9906-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9606-9905	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-		●

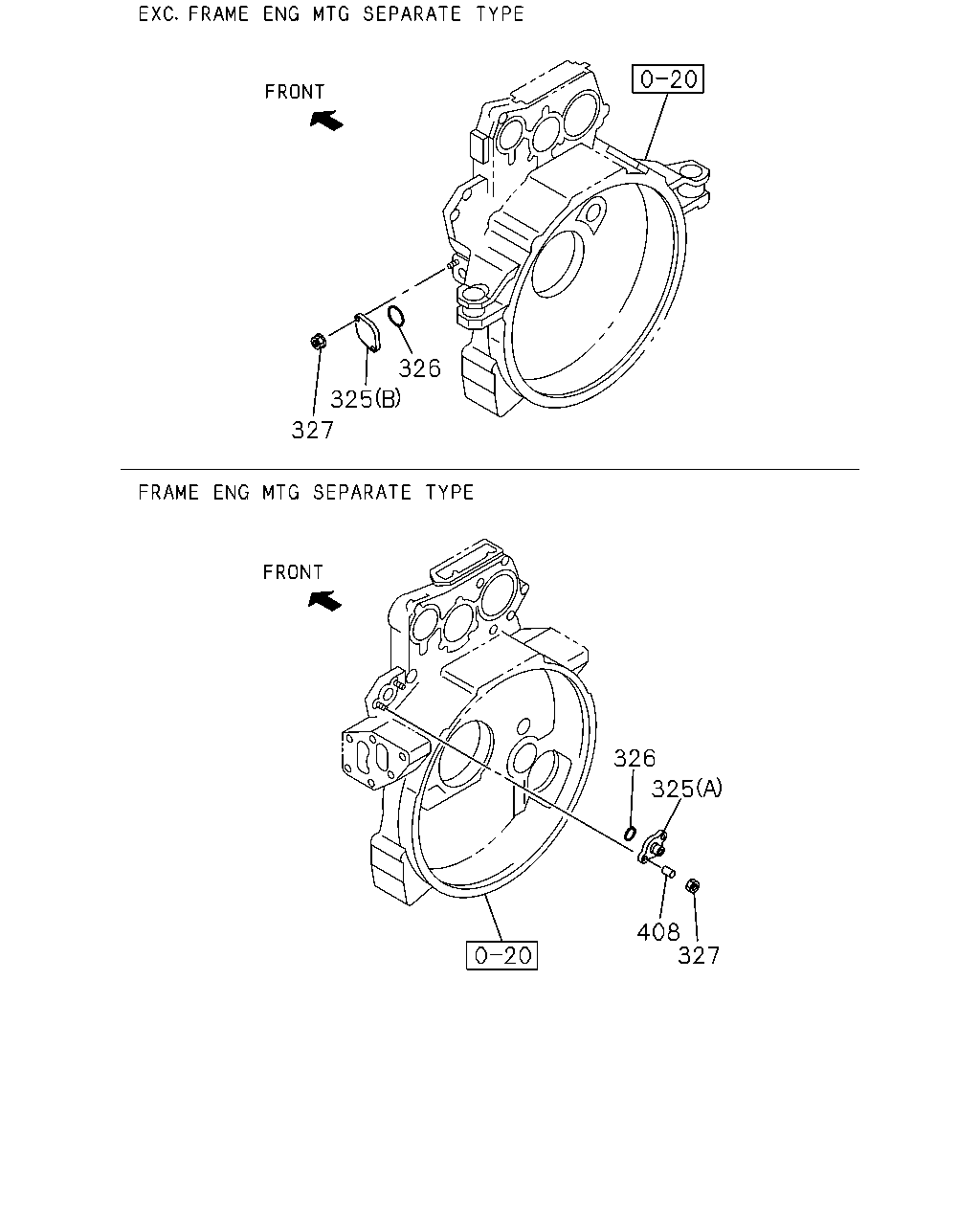

326 325 327 326 325 408 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
325	COVER; OIL FILTER HOLE FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (A)	1-11749-113-0	01	1	9606-9905	●
325	COVER; OIL FILTER HOLE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-11749-074-0	01	1	9606-9905	●
325	COVER; OIL FILTER HOLE (B)	1-11749-074-0	01	1	9906-		●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9606-9905	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9906-		●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9606-9905	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9906-		●
408	TUBE; DIST,FILLER HOLE FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1>	8-94399-936-0	01	1	9606-9905	●

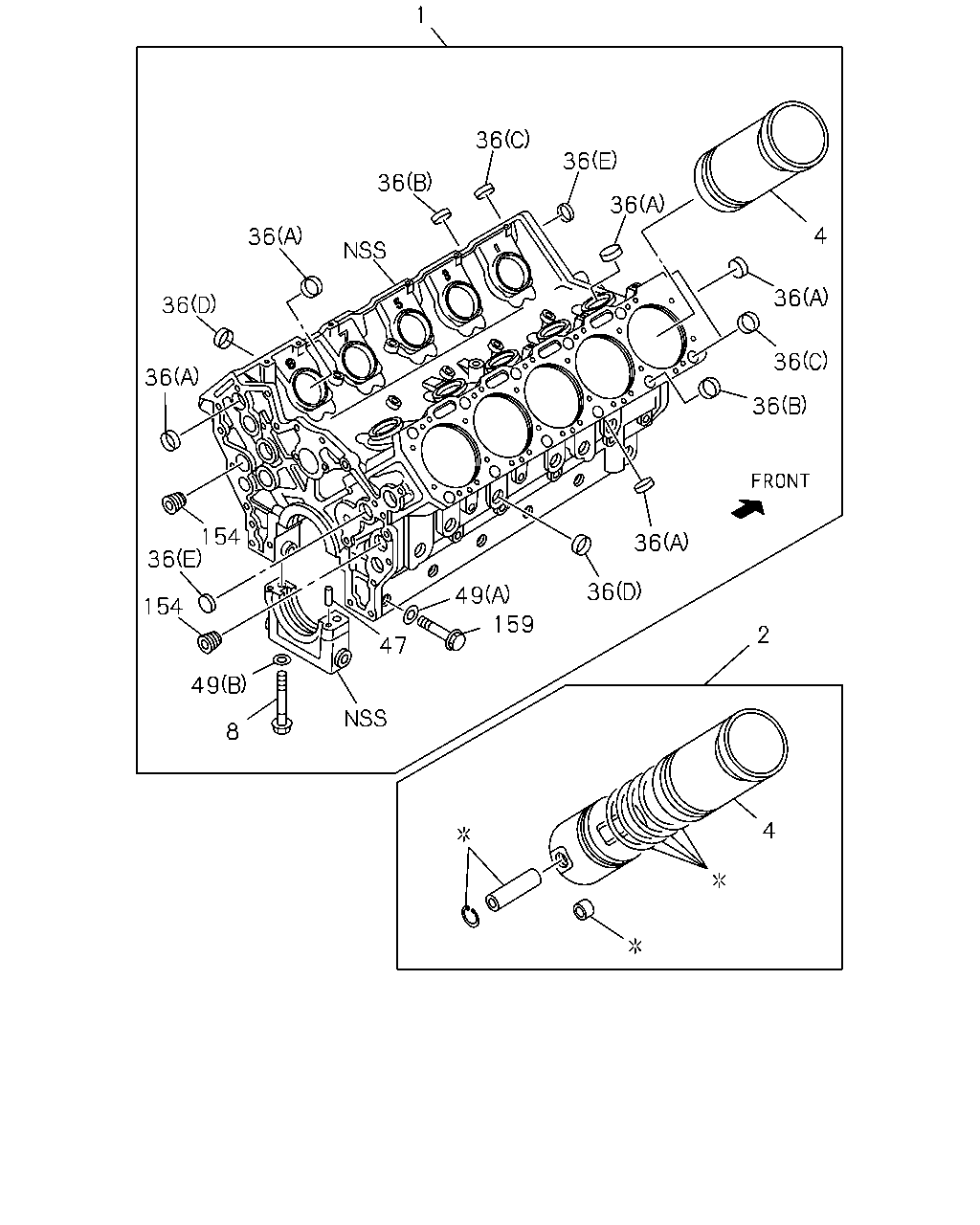

1 36 36 36 36 4 36 36 36 36 36 36 154 36 36 36 49 154 159 2 47 49 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-11210-585-7	01	1	9606-9905	●
1	BLOCK ASM; CYL ENGINE REAR PTO<SV1>	1-11210-585-7	01	1	9906-		●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO<SV1>	1-11210-584-7	01	1	9606-9905	●
1	BLOCK ASM; CYL EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1>	1-11210-584-7	01	1	9906-		●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT<SV9> GRADE=1X	1-87811-789-1	10	1	9606-9905	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-3	10	1	9906-		●
2	LINER SET; ENG CYL ANTI NOISE EQUIPMENT<SV9> GRADE=3X	1-87811-790-1	10	1	9606-9905	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-3	10	1	9906-		●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT<SV9> GRADE=1X	1-87811-807-1	10	1	9702-9905	●
2	LINER SET; ENG CYL EXC. ANTI NOISE EQUIPMENT<SV9> GRADE=3X	1-87811-808-1	10	1	9702-9905	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	10	1	9606-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9810-9905	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	10	1	9906-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	10	1	9606-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9810-9905	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	10	1	9906-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9606-9902	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9903-9905	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9906-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	27	1	9606-9905	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	27	1	9906-		●
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-012-1	08	1	9606-9905	●
36	CUP; SEALING,WATER JACKET (B) OD=32	1-09600-012-1	08	1	9906-		●
36	CUP; SEALING,WATER JACKET (C) OD=25	1-09600-016-0	14	1	9606-9905	●
36	CUP; SEALING,WATER JACKET (C) OD=25	1-09600-016-0	14	1	9906-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-020-0	09	1	9606-9905	●
36	CUP; SEALING,WATER JACKET (D) OD=40	1-09600-020-0	09	1	9906-		●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9606-9905	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9906-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9606-9905	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9906-		●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9606-9905	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9906-		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9606-9905	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9906-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9606-9905	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9906-		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9606-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9811-9905	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9906-		●
