◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#49625) — 44 parça

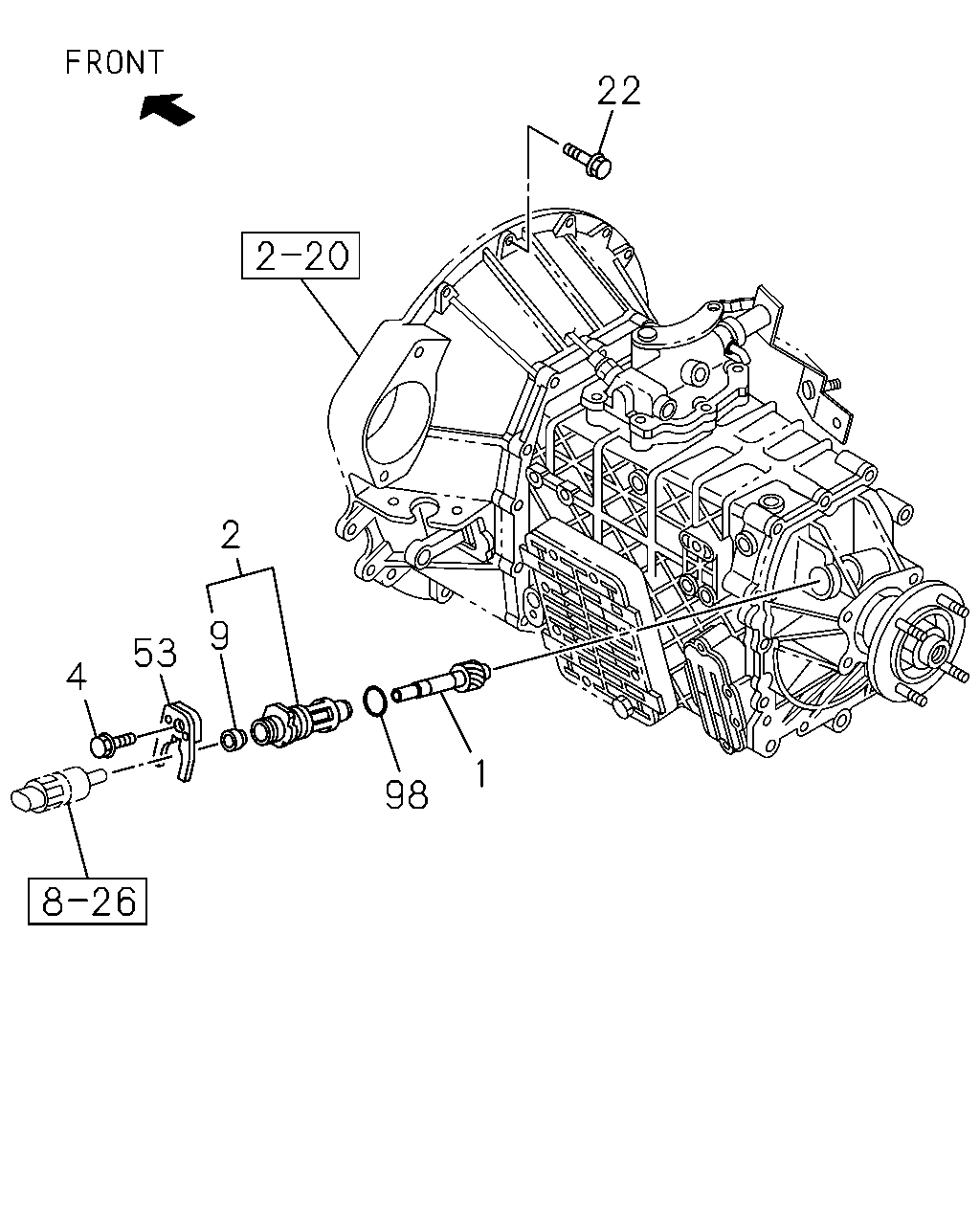

çizim 158648
22 2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=14 		8-97253-561-1 01 1 0811-0901 ●
1 GEAR; DRIVEN,SPD
Z=14 		8-97253-561-1 01 1 0902- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0811-0901 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 0902- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 0811-0901 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0811-0901 ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0902- ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) M10X35 FLANGE 		0-28151-035-0 01 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) M10X35 FLANGE 		0-28151-035-0 01 1 0902-0906 ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 01 1 0907-1301 ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 04 1 1302-1509 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 03 1 1510- ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28156-013-0 01 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28156-013-0 01 1 0902-0906 ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X130 FLANGE 		0-28156-013-0 01 1 0907-1301 ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X130 FLANGE 		0-28156-013-0 01 1 1302-1509 ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X130 FLANGE 		0-28156-013-0 01 1 1510- ● ●
22 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28151-030-0 02 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28151-030-0 02 1 0902-1301 ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 1302-1509 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 03 1 1510- ● ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28151-035-0 03 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28151-035-0 03 1 0902-1301 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 03 1 1302-1509 ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 04 1 1510- ● ●
22 BOLT; TRANS CASE TO ENG
M10X50 FLANGE 		0-28151-050-0 01 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
M10X50 FLANGE 		0-28151-050-0 01 1 0902- ● ●
22 BOLT; TRANS CASE TO ENG
M10X140 FLANGE 		0-28156-014-0 01 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
M10X140 FLANGE 		0-28156-014-0 01 1 0902- ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28151-030-0 01 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28151-030-0 01 1 0902-0906 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 01 1 0907-1301 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 03 1 1302-1509 ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 1510- ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) M10X120 FLANGE 		0-28156-012-0 01 1 0811-0901 ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) M10X120 FLANGE 		0-28156-012-0 01 1 0902-0906 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X120 FLANGE 		0-28156-012-0 01 1 0907-1301 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE 		0-28156-012-0 01 1 1302-1509 ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X120 FLANGE 		0-28156-012-0 01 1 1510- ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0811-0901 ●
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0902- ● ●
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 0811-0901 ●
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 0902- ● ●
