2-03 — CLUTCH PEDAL AND CONTROL (#49618) — 63 parça

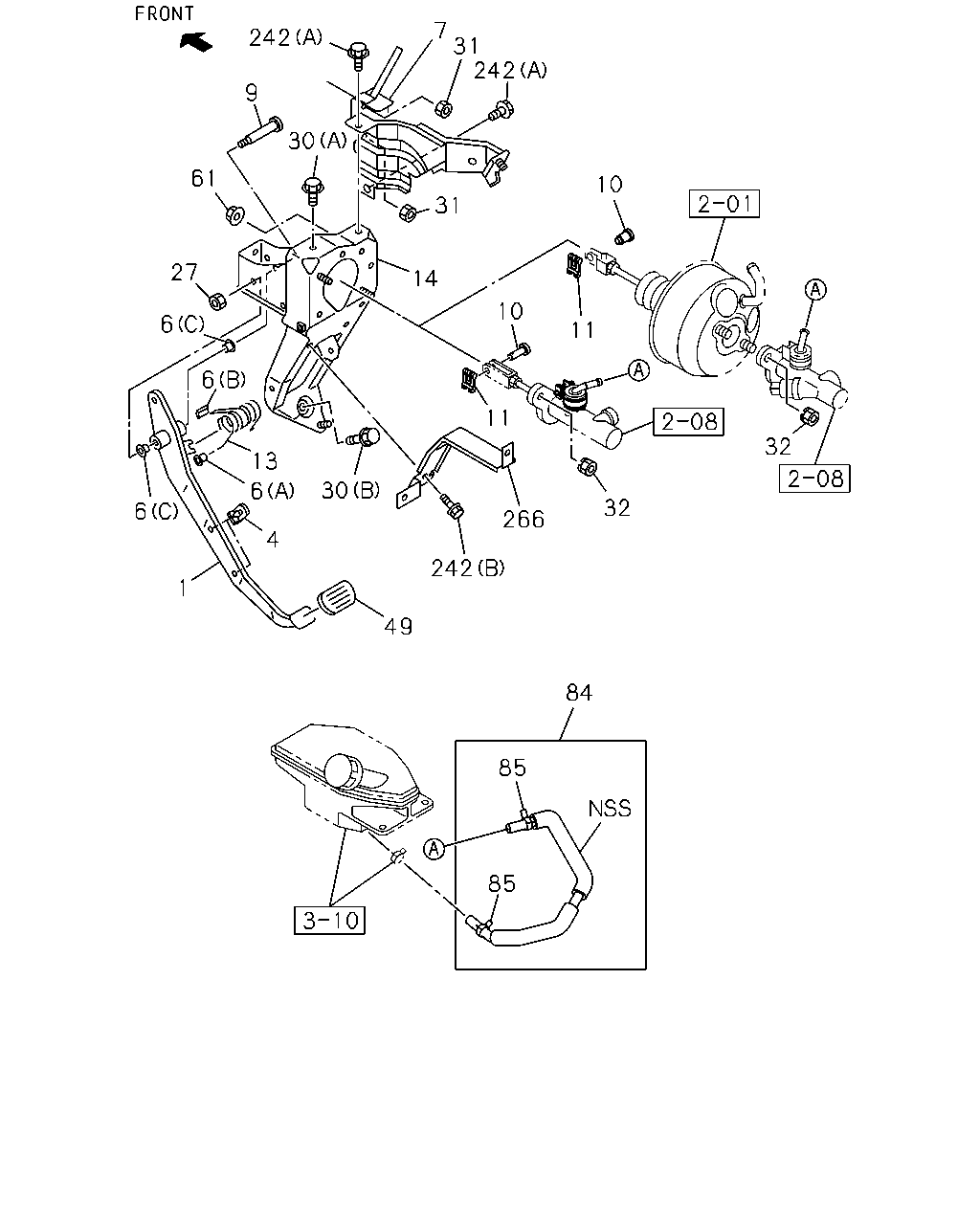

çizim 158635
7 31 242 242 9 30 61 10 31 27 14 6 10 11 6 11 32 13 30 6 6 32 266 4 242 1 49 84 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 0811-0901 ●
1 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 0902- ● ●
1 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 0811-0901 ●
1 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 0902- ● ●
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0811-0901 ●
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0902- ● ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0811-0901 ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0902- ● ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0811-0901 ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0902- ● ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0811-0901 ●
6 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0902- ● ●
7 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98062-632-3 01 1 0811-0901 ●
7 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98062-632-3 01 1 0902-1409 ● ●
7 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98222-746-0 01 1 1410- ● ●
7 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98111-112-1 01 1 0811-0901 ●
7 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98111-112-1 01 1 0902-1409 ● ●
7 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1410- ● ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0811-0901 ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0902- ● ●
10 PIN; CLU PEDAL 8-97387-230-0 01 1 0811-0901 ●
10 PIN; CLU PEDAL 8-97387-230-0 01 1 0902-1007 ● ●
10 PIN; CLU PEDAL 8-98147-657-0 01 1 1008- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 0811-0901 ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 0902- ● ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 0811-0901 ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 0902- ● ●
13 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 0811-0901 ●
13 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 0902- ● ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 0811-0901 ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 0902- ● ●
14 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 0811-0901 ●
14 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 0902- ● ●
27 NUT; FULCRUM PIN
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0811-0901 ●
27 NUT; FULCRUM PIN
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0902- ● ●
30 BOLT; CLU MTG BRKT
(A) M10X25 FLANGE 		0-28661-025-0 01 1 0811-0901 ●
30 BOLT; CLU MTG BRKT
(A) M10X25 FLANGE 		0-28661-025-0 01 1 0902- ● ●
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0811-0901 ●
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0902-0903 ● ●
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ●
31 NUT; MTG BRKT TO BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 0811-0901 ●
31 NUT; MTG BRKT TO BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 0902- ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0811-0901 ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0902- ● ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0811-0901 ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0902- ● ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0811-0901 ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0902- ● ●
84 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98023-512-1 01 1 0811-0901 ●
84 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98023-512-1 01 1 0902-1208 ● ●
84 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1209- ● ●
84 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-423-1 01 1 0811-0901 ●
84 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-423-1 01 1 0902-1208 ● ●
84 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1209- ● ●
85 CLIP; HOSE TO M/CYL 8-98031-178-0 02 1 0811-0901 ●
85 CLIP; HOSE TO M/CYL 8-98031-178-0 02 1 0902-1208 ● ●
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1209- ● ●
242 BOLT; BRKT,CLUTCH
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0811-0901 ●
242 BOLT; BRKT,CLUTCH
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0902- ● ●
242 BOLT; BRKT,CLUTCH
(A) M8X16 FLANGE 		0-28450-816-0 02 1 0811-0901 ●
242 BOLT; BRKT,CLUTCH
(A) M8X16 FLANGE 		0-28450-816-0 02 1 0902- ● ●
266 BRACKET; CLU SWITCH 8-98078-745-4 01 1 0811-0901 ●
266 BRACKET; CLU SWITCH 8-98078-745-4 01 1 0902- ● ●
