1-56 — EXHAUST BRAKE SYSTEM (#49616) — 22 parça

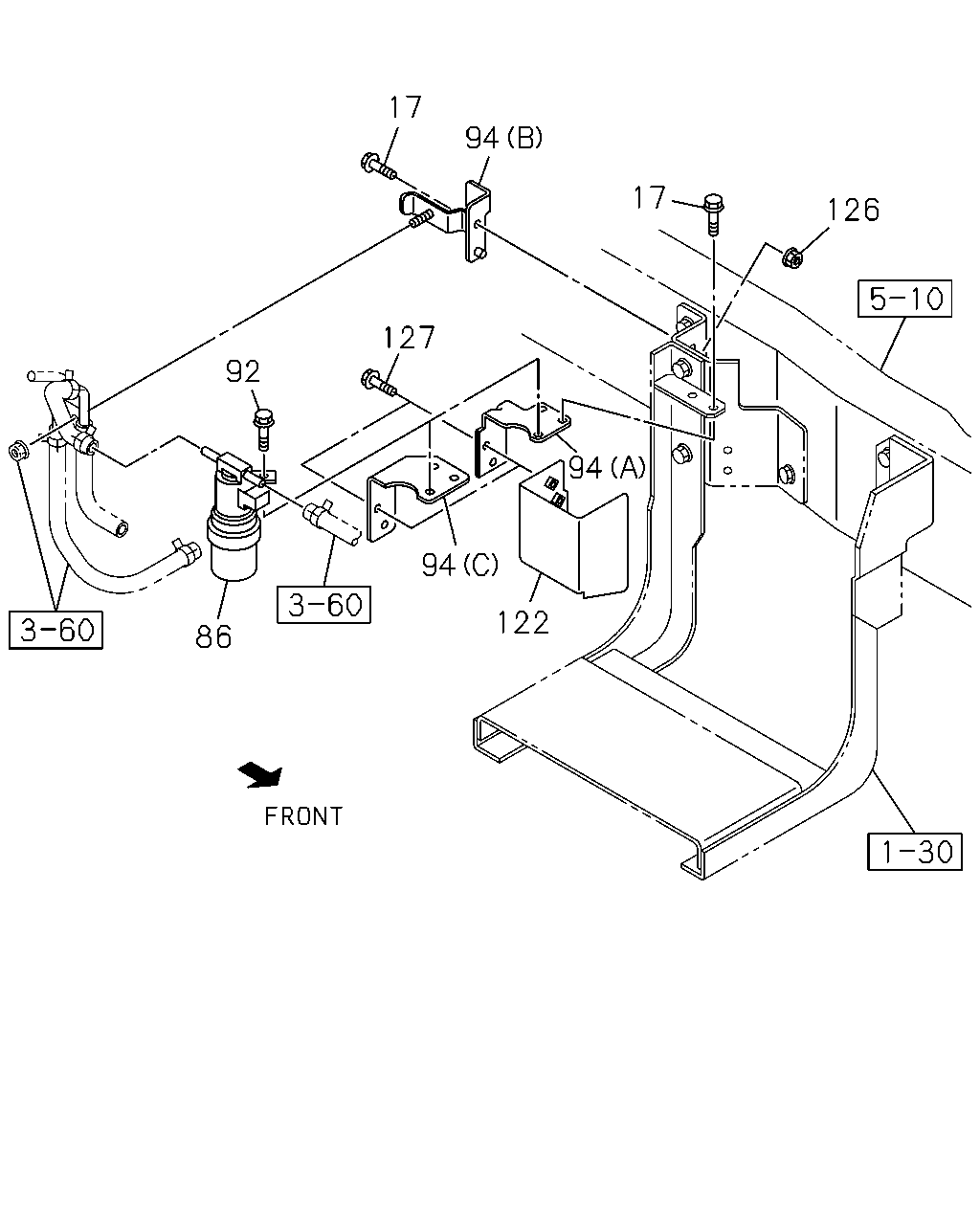

17 94 17 126 127 92 94 94 122 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT WHEEL BASE 3300MM(33W) M8X25 FLANGE	0-28650-825-0	01	1	0811-	●
17	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
17	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
86	VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0811-0901	●
86	VALVE; MAG,EXH BRK	8-98043-344-0	01	1	0902-	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	01	1	0902-	●	●
94	BRACKET; MAG VLV,EXH BRAKE WHEEL BASE 3300MM(33W) (B)	8-98042-694-2	01	1	0811-	●
94	BRACKET; MAG VLV,EXH BRAKE (A)	8-98042-145-2	01	1	0811-0901	●
94	BRACKET; MAG VLV,EXH BRAKE (A)	8-98042-145-2	01	1	0902-1206	●	●
94	BRACKET; MAG VLV,EXH BRAKE (C)	8-98211-757-1	01	1	1207-	●	●
122	PROTECTOR; MAG VLV	8-98098-564-0	01	1	0811-0901	●
122	PROTECTOR; MAG VLV	8-98098-564-0	01	1	0902-	●	●
126	NUT; BRKT WHEEL BASE 3300MM(33W) M8 FLANGE	0-91180-108-0	01	1	0811-	●
127	BOLT; PROTECTOR M6X12 FLANGE	0-28050-612-0	02	1	0811-0901	●
127	BOLT; PROTECTOR M6X12 FLANGE	0-28050-612-0	02	1	0902-	●	●

1 8 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRAKE UNIT; EXH	8-98033-200-1	01	1	0811-0901	●
1	BRAKE UNIT; EXH	8-98033-200-1	01	1	0902-	●	●
5	GASKET; EXH BRAKE UNIT ID=54	8-94328-354-0	02	1	0811-0901	●
5	GASKET; EXH BRAKE UNIT ID=54	8-94328-354-0	02	1	0902-	●	●
8	NUT; EXH BRAKE UNIT FIX M8 W/LK WASHER	8-97581-234-0	04	1	0811-0901	●
8	NUT; EXH BRAKE UNIT FIX M8 W/LK WASHER	8-97581-234-0	04	1	0902-	●	●
