1-50 — EXHAUST PIPE AND SILENCER (#49614) — 168 parça

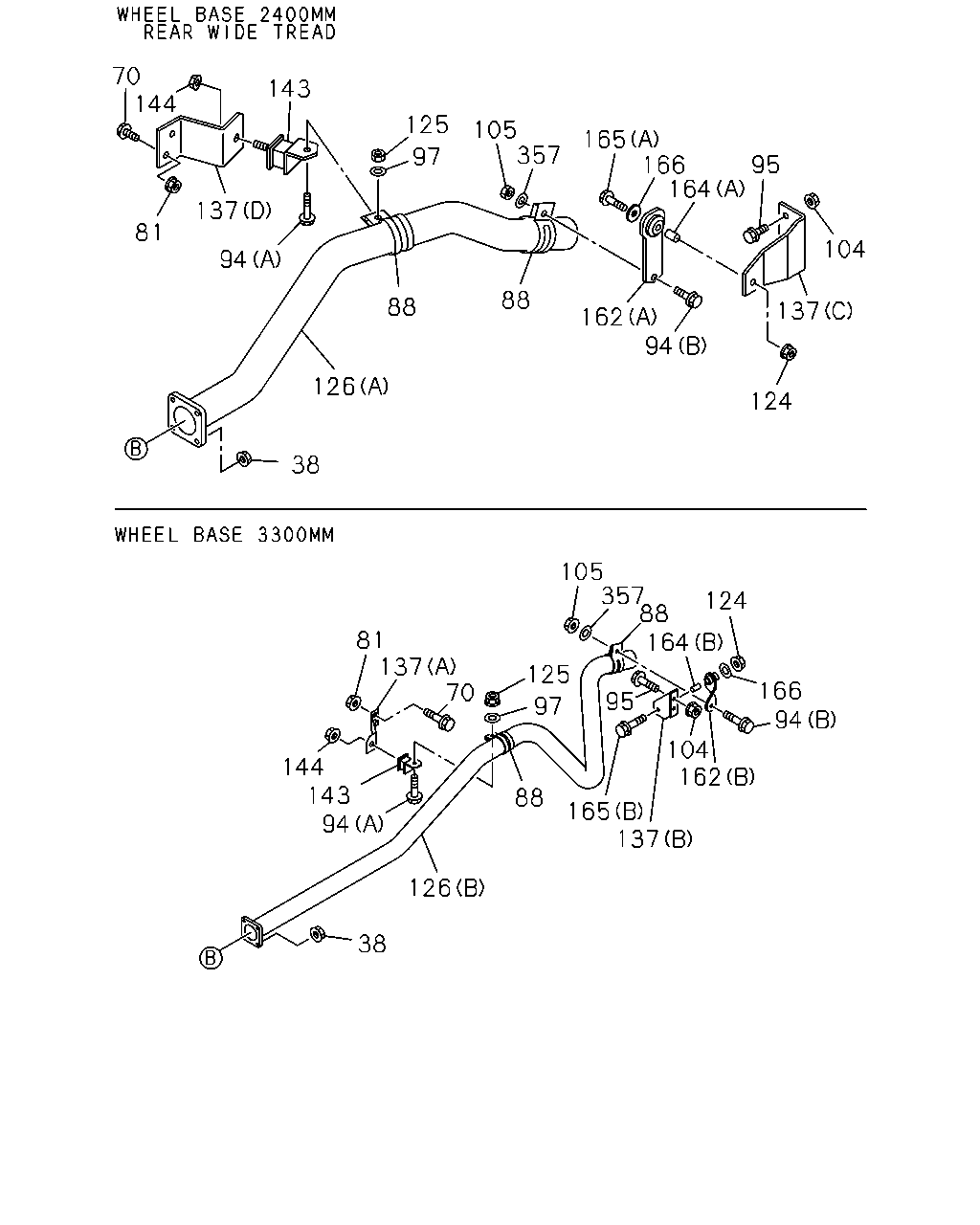

165 166 164 105 357 95 126 125 81 104 88 97 162 88 144 137 94 70 137 81 143 94 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	0811-0901	●
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	0902-	●	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	01	1	0811-	●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	01	1	0811-	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0811-0901	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	0811-0901	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0902-	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	0902-	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0902-		●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0811-0901	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0811-0901	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0902-	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0902-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	0811-0901	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	0902-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0811-0901	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0902-	●	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0811-0901	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0902-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0902-		●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	0811-	●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	02	1	0811-	●
105	NUT; CLAMP M10	0-91110-510-0	01	1	0811-0901	●
105	NUT; CLAMP M10	0-91110-510-0	01	1	0902-	●	●
125	NUT; CLAMP M10	0-91110-510-0	01	1	0811-0901	●
125	NUT; CLAMP M10	0-91110-510-0	01	1	0902-	●	●
126	PIPE; EXH,RR (C)	8-98140-855-0	01	1	0902-		●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	0811-	●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	0811-	●
137	BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	0902-		●
137	BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	0902-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	0811-	●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0811-0901	●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0902-	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (C)	8-98032-149-0	01	1	0902-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0811-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	0811-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0811-0901	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0902-	●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	0902-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	0811-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	0811-0901	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	0902-	●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE	0-28051-045-0	01	1	0902-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0811-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0811-0901	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0902-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0811-0901	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0902-	●	●

2 329 25 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH	8-98075-966-0	01	1	0811-0901	●
1	PIPE; EXH	8-98075-966-0	01	1	0902-	●	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0811-0901	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0902-	●	●
8	BRACKET; EXH PIPE	8-98026-063-0	01	1	0811-0901	●
8	BRACKET; EXH PIPE	8-98026-063-0	01	1	0902-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER	8-98027-805-1	01	1	0811-0901	●
25	PIPE; EXH,BRK VLV TO SILENCER	8-98027-805-1	01	1	0902-	●	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0811-0901	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0902-	●	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	0811-0901	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	0902-	●	●
44	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	02	1	0811-0901	●
44	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	02	1	0902-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE	0-91180-108-0	04	1	0811-0901	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE	0-91180-108-0	04	1	0902-	●	●

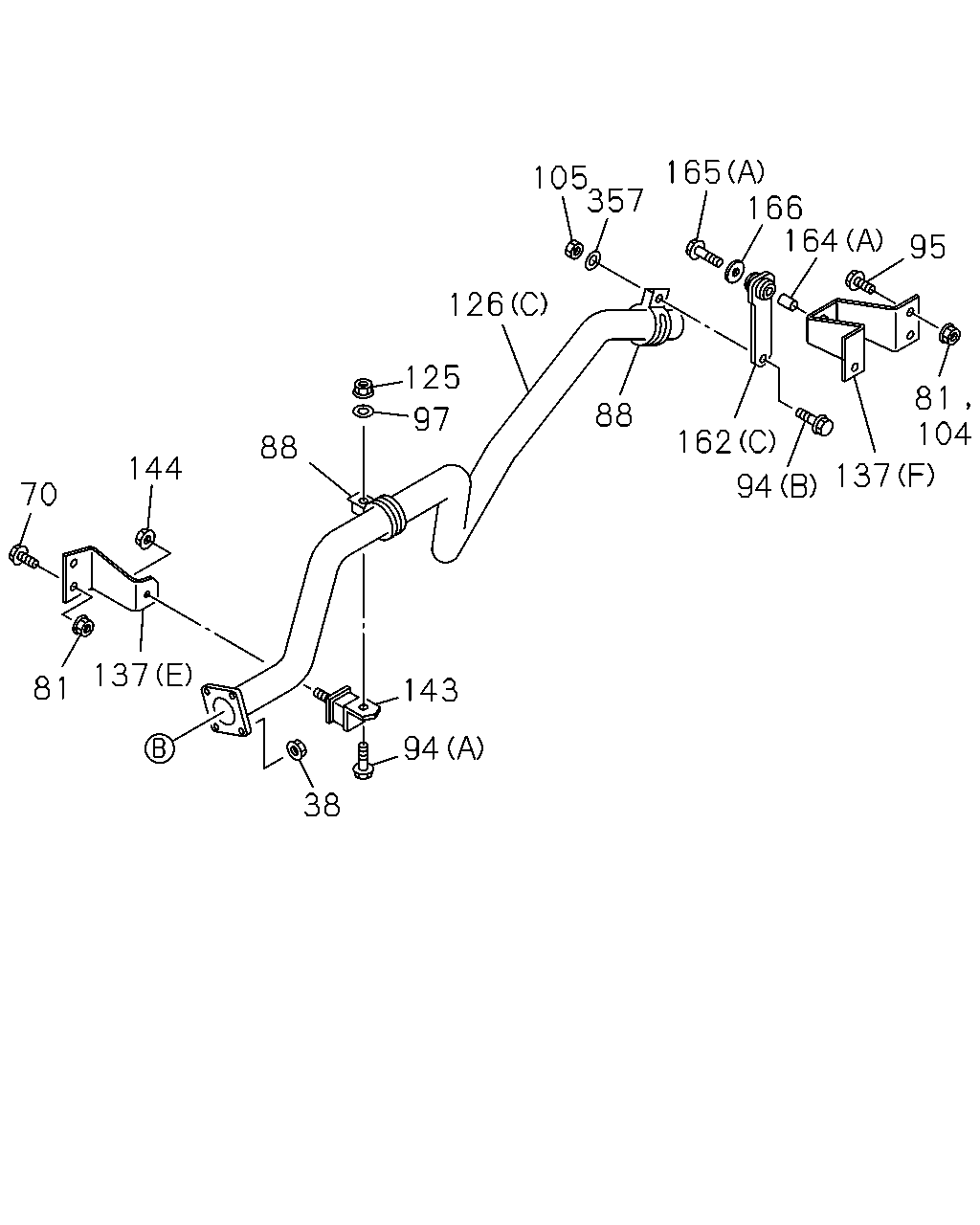

70 144 143 125 105 357 165 166 164 97 95 137 81 104 94 88 88 137 162 94 126 124 38 105 357 88 164 124 81 137 70 125 166 94 95 97 104 162 144 143 94 88 165 137 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	0811-0901	●
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	0902-	●	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	01	1	0811-	●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	01	1	0811-	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0811-0901	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	0811-0901	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0902-	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	0902-	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0902-		●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0811-0901	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0811-0901	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0902-	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0902-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	0811-0901	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	0902-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0811-0901	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0902-	●	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0811-0901	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0902-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0902-		●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	0811-	●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	02	1	0811-	●
105	NUT; CLAMP M10	0-91110-510-0	01	1	0811-0901	●
105	NUT; CLAMP M10	0-91110-510-0	01	1	0902-	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91180-110-0	01	1	0811-	●
125	NUT; CLAMP M10	0-91110-510-0	01	1	0811-0901	●
125	NUT; CLAMP M10	0-91110-510-0	01	1	0902-	●	●
126	PIPE; EXH,RR (C)	8-98140-855-0	01	1	0902-		●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	0811-	●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	0811-	●
137	BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	0902-		●
137	BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	0902-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	0811-	●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	0811-	●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0811-0901	●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0902-	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0811-0901	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (C)	8-98032-149-0	01	1	0902-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0811-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	0811-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0811-0901	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0902-	●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	0902-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	0811-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	0811-0901	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	0902-	●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE	0-28051-045-0	01	1	0902-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0811-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0811-0901	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0902-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0811-0901	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0902-	●	●

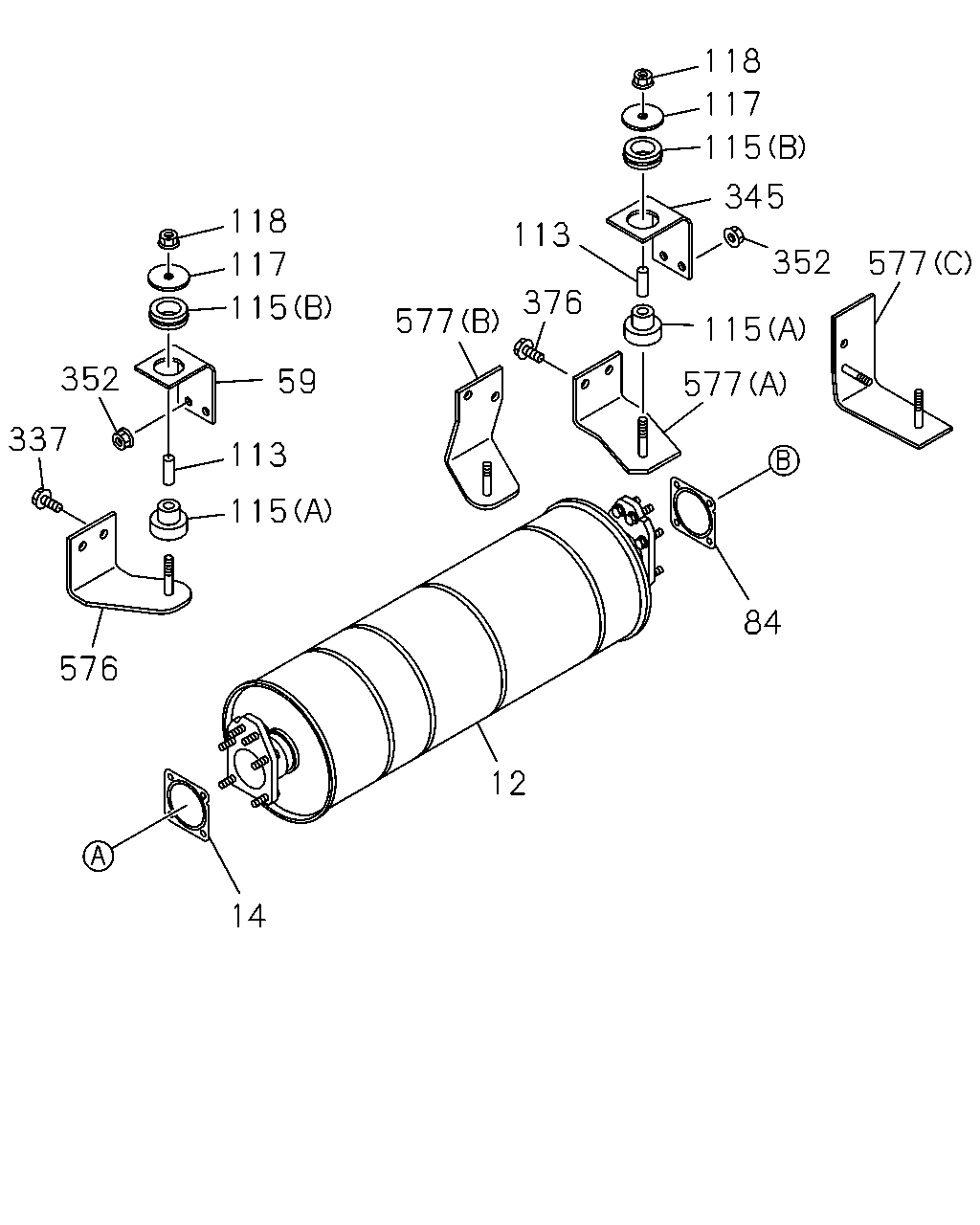

118 117 115 345 118 113 352 577 117 376 115 577 115 352 59 577 337 113 115 84 576 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH	8-98119-994-1	01	1	0811-0901	●
12	SILENCER ASM; EXH	8-98119-994-1	01	1	0902-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	01	1	0811-0901	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	01	1	0902-	●	●
59	BRACKET; EXH SILENCER,FRT	8-98082-156-0	01	1	0811-0901	●
59	BRACKET; EXH SILENCER,FRT	8-98082-156-0	01	1	0902-	●	●
84	GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	0811-0901	●
84	GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	0902-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	02	1	0811-0901	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	02	1	0902-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0811-0901	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0902-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0811-0901	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0902-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0811-0901	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0902-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0811-0901	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0902-	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE	0-28651-030-0	02	1	0811-0901	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE	0-28651-030-0	02	1	0902-	●	●
345	BRACKET; EXH SILENCER,RR	8-98027-822-0	01	1	0811-0901	●
345	BRACKET; EXH SILENCER,RR	8-98027-822-0	01	1	0902-	●	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0811-0901	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0902-	●	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	04	1	0811-0901	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	04	1	0902-	●	●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0811-0901	●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0902-	●	●
576	BRACKET; DPD FRT TO FRAME	8-98067-992-0	01	1	0811-0901	●
576	BRACKET; DPD FRT TO FRAME	8-98067-992-0	01	1	0902-	●	●
577	BRACKET; DPD RR TO FRAME (C)	8-98107-264-0	01	1	0902-		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (B)	8-98107-265-0	01	1	0811-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98107-266-0	01	1	0811-	●
