◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#49613) — 315 parça

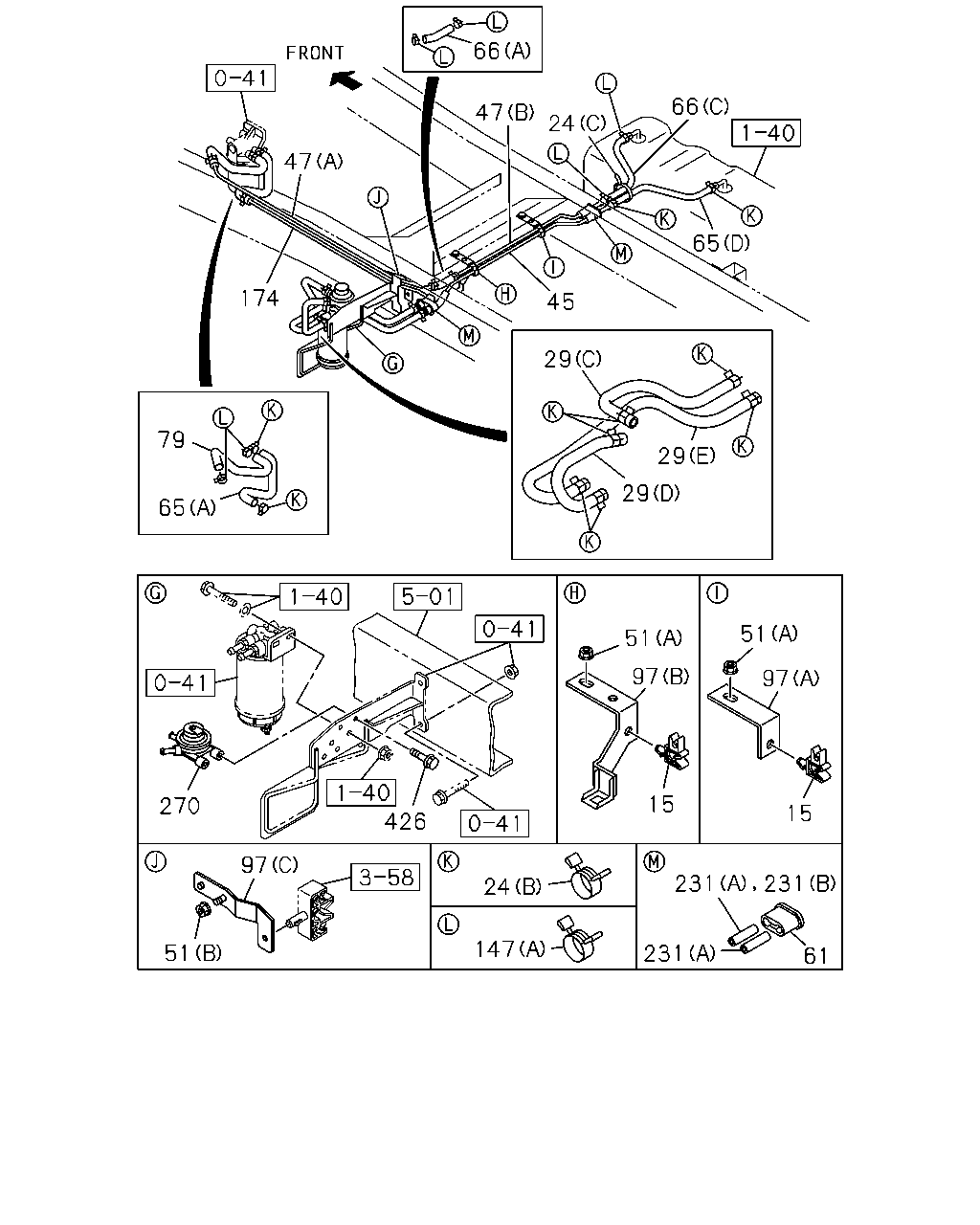

çizim 158626
66 66 47 24 47 65 174 45 29 79 29 29 65 51 51 97 97 15 270 15 426 97 231 24 147 51 231 61 231
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; FUEL PIPE
ID=12 & 6.35 		8-97215-437-0 02 1 0811-0901 ●
15 CLIP; FUEL PIPE
ID=12 & 6.35 		8-97215-437-0 02 1 0902- ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-98008-098-0 02 1 0912- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM(24W) (A) L=250 		5-09707-030-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM(24W) (A) L=250 		5-09707-030-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(A) L=250 		5-09707-030-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W) (C) L=140 		5-09707-031-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 0902- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W) (C) L=140 		5-09707-031-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 08 1 0811-0901 ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 08 1 0902-0911 ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-98008-098-0 08 1 0912- ● ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0811-0901 ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0902- ●
29 HOSE; FUEL
(A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (B) L=200 		8-98081-038-0 01 1 0811-0901 ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (B) L=200 		8-98081-038-0 01 1 0902- ●
29 HOSE; FUEL
(B) L=200 		8-98081-038-0 01 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (C) 		8-98099-502-0 01 1 0811- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (E) 		8-98099-503-0 01 1 0811- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (D) 		8-98105-710-0 01 1 0811- ●
45 PIPE; FUEL,DELIVERY 8-97389-579-3 01 1 0811-0901 ●
45 PIPE; FUEL,DELIVERY 8-97389-579-3 01 1 0902- ● ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97389-594-3 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-833-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
(A) 		8-98110-833-0 01 1 1302- ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-833-0 01 1 1302- ●
47 PIPE; FUEL,RETURN
(B) L=679 		8-98020-778-3 01 1 0811-0901 ●
47 PIPE; FUEL,RETURN
(B) L=679 		8-98020-778-3 01 1 0902- ● ●
47 PIPE; FUEL,RETURN
(A) 		8-98064-630-0 01 1 0811-0901 ●
47 PIPE; FUEL,RETURN
(A) 		8-98064-630-0 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-630-0 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
(A) 		8-98163-294-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98163-294-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98163-294-0 01 1 1302- ●
51 NUT; CLIP,PIPE
(A) M10 		0-91111-510-0 02 1 0811-0901 ●
51 NUT; CLIP,PIPE
(A) M10 		0-91111-510-0 02 1 0902- ● ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE 		0-91180-110-0 01 1 0902- ● ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0811-0901 ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0811-0901 ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0902- ● ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0902- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (B) 		8-98098-175-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (B) 		8-98098-175-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
(B) 		8-98098-175-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98098-176-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98098-176-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
(C) 		8-98098-176-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W) (D) 		8-97389-790-0 01 1 0811- ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-97389-772-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-97389-772-0 01 1 0902- ● ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0811-0901 ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ●
66 HOSE; FUEL,RETURN PIPE
(B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (C) L=500 		8-98057-029-0 01 1 0811- ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 		0-01855-300-0 01 1 0811-0901 ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-777-1 01 1 0902-1005 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98147-758-0 01 1 1006- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98064-802-0 01 1 0811-0901 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98064-802-0 01 1 0902-1005 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-802-0 01 1 0902-1005 ●
97 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 0811-0901 ●
97 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 0902- ● ●
97 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 0811-0901 ●
97 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 0902- ● ●
97 BRACKET; CLIP
(C) 		8-98064-442-0 01 1 0811-0901 ●
97 BRACKET; CLIP
(C) 		8-98064-442-1 01 1 0902- ● ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-94238-568-0 04 1 0902-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=16 		8-94238-568-0 04 1 0902-0911 ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-98008-098-0 04 1 0912- ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=16 		8-98008-098-0 04 1 0912- ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 02 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 02 1 0902-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 02 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 04 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 04 1 0902-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 04 1 0912- ● ●
174 PIPE; FUEL,FEED,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-589-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT 8-97389-589-1 01 1 1302- ●
174 PIPE; FUEL,FEED,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-589-1 01 1 1302- ●
174 PIPE; FUEL,FEED,FRT 8-98064-632-1 01 1 0811-0901 ●
174 PIPE; FUEL,FEED,FRT 8-98064-632-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-632-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-632-1 01 1 1302- ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 0902- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 01 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 01 1 0902- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 02 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 02 1 0902- ● ●
270 PUMP ASM; FUEL 8-98018-187-2 01 1 0811-0901 ●
270 PUMP ASM; FUEL 8-98018-187-4 01 1 0902-1408 ● ●
270 PUMP ASM; FUEL 8-97948-892-0 01 1 1409- ● ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0811-0901 ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ● ●

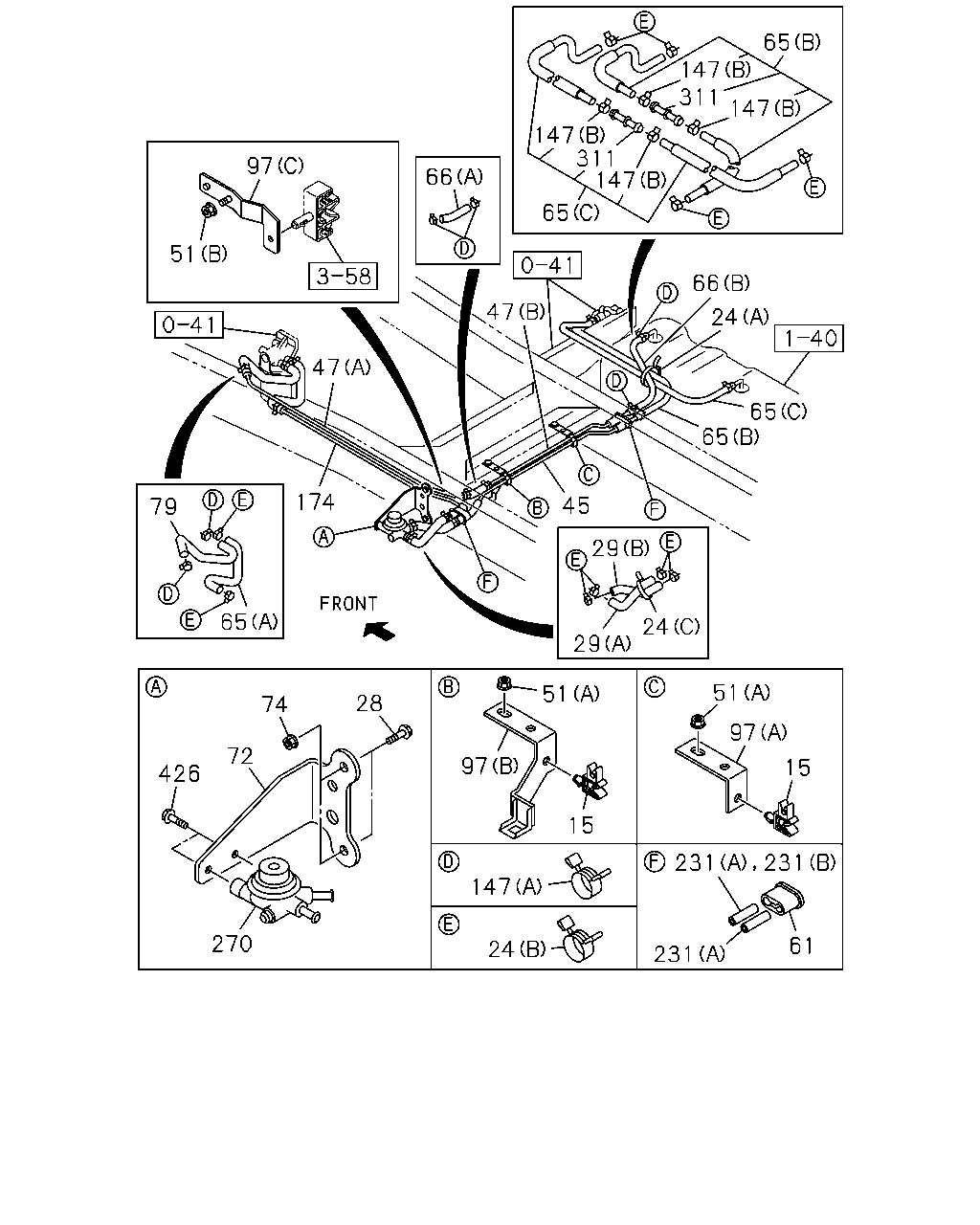

çizim 158628
65 147 311 147 147 311 147 97 66 65 51 66 47 24 47 65 65 174 45 79 29 65 24 29 51 51 28 74 97 72 97 15 426 15 231 147 270 61 24 231 231
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; FUEL PIPE
ID=12 & 6.35 		8-97215-437-0 02 1 0811-0901 ●
15 CLIP; FUEL PIPE
ID=12 & 6.35 		8-97215-437-0 02 1 0902- ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-98008-098-0 02 1 0912- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM(24W) (A) L=250 		5-09707-030-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM(24W) (A) L=250 		5-09707-030-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(A) L=250 		5-09707-030-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W) (C) L=140 		5-09707-031-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 0902- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W) (C) L=140 		5-09707-031-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 08 1 0811-0901 ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 08 1 0902-0911 ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-98008-098-0 08 1 0912- ● ●
28 BOLT; BRKT,FUEL PUMP
WHEEL BASE 2400MM(24W) M10X30 FLANGE 		0-28651-030-0 02 1 0811-0901 ●
28 BOLT; BRKT,FUEL PUMP
WHEEL BASE 2400MM(24W) M10X30 FLANGE 		0-28651-030-0 02 1 0902- ●
28 BOLT; BRKT,FUEL PUMP
M10X30 FLANGE 		0-28651-030-0 02 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0811-0901 ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0902- ●
29 HOSE; FUEL
(A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (B) L=200 		8-98081-038-0 01 1 0811-0901 ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (B) L=200 		8-98081-038-0 01 1 0902- ●
29 HOSE; FUEL
(B) L=200 		8-98081-038-0 01 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (C) 		8-98099-502-0 01 1 0811- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (E) 		8-98099-503-0 01 1 0811- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (D) 		8-98105-710-0 01 1 0811- ●
45 PIPE; FUEL,DELIVERY 8-97389-579-3 01 1 0811-0901 ●
45 PIPE; FUEL,DELIVERY 8-97389-579-3 01 1 0902- ● ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97389-594-3 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-833-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
(A) 		8-98110-833-0 01 1 1302- ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-833-0 01 1 1302- ●
47 PIPE; FUEL,RETURN
(B) L=679 		8-98020-778-3 01 1 0811-0901 ●
47 PIPE; FUEL,RETURN
(B) L=679 		8-98020-778-3 01 1 0902- ● ●
47 PIPE; FUEL,RETURN
(A) 		8-98064-630-0 01 1 0811-0901 ●
47 PIPE; FUEL,RETURN
(A) 		8-98064-630-0 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-630-0 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
(A) 		8-98163-294-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98163-294-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98163-294-0 01 1 1302- ●
51 NUT; CLIP,PIPE
(A) M10 		0-91111-510-0 02 1 0811-0901 ●
51 NUT; CLIP,PIPE
(A) M10 		0-91111-510-0 02 1 0902- ● ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE 		0-91180-110-0 01 1 0902- ● ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0811-0901 ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0811-0901 ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0902- ● ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0902- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (B) 		8-98098-175-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (B) 		8-98098-175-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
(B) 		8-98098-175-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98098-176-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98098-176-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
(C) 		8-98098-176-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W) (D) 		8-97389-790-0 01 1 0811- ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-97389-772-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-97389-772-0 01 1 0902- ● ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0811-0901 ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ●
66 HOSE; FUEL,RETURN PIPE
(B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (C) L=500 		8-98057-029-0 01 1 0811- ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 		0-01855-300-0 01 1 0811-0901 ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ● ●
72 BRACKET; FUEL PUMP & FILTER
WHEEL BASE 2400MM(24W) 		8-98107-370-0 01 1 0811-0901 ●
72 BRACKET; FUEL PUMP & FILTER
WHEEL BASE 2400MM(24W) 		8-98107-370-0 01 1 0902- ●
72 BRACKET; FUEL PUMP & FILTER 8-98107-370-0 01 1 0902- ●
74 NUT; BRKT,FUEL PUMP
WHEEL BASE 2400MM(24W) M10 FLANGE 		0-91180-110-0 02 1 0811-0901 ●
74 NUT; BRKT,FUEL PUMP
WHEEL BASE 2400MM(24W) M10 FLANGE 		0-91180-110-0 02 1 0902- ●
74 NUT; BRKT,FUEL PUMP
M10 FLANGE 		0-91180-110-0 02 1 0902- ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-777-1 01 1 0902-1005 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98147-758-0 01 1 1006- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98064-802-0 01 1 0811-0901 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98064-802-0 01 1 0902-1005 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-802-0 01 1 0902-1005 ●
97 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 0811-0901 ●
97 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 0902- ● ●
97 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 0811-0901 ●
97 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 0902- ● ●
97 BRACKET; CLIP
(C) 		8-98064-442-0 01 1 0811-0901 ●
97 BRACKET; CLIP
(C) 		8-98064-442-1 01 1 0902- ● ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-94238-568-0 04 1 0902-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=16 		8-94238-568-0 04 1 0902-0911 ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-98008-098-0 04 1 0912- ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=16 		8-98008-098-0 04 1 0912- ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 02 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 02 1 0902-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 02 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 04 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 04 1 0902-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 04 1 0912- ● ●
174 PIPE; FUEL,FEED,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-589-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT 8-97389-589-1 01 1 1302- ●
174 PIPE; FUEL,FEED,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-589-1 01 1 1302- ●
174 PIPE; FUEL,FEED,FRT 8-98064-632-1 01 1 0811-0901 ●
174 PIPE; FUEL,FEED,FRT 8-98064-632-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-632-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-632-1 01 1 1302- ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 0902- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 01 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 01 1 0902- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 02 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 02 1 0902- ● ●
270 PUMP ASM; FUEL 8-98018-187-2 01 1 0811-0901 ●
270 PUMP ASM; FUEL 8-98018-187-4 01 1 0902-1408 ● ●
270 PUMP ASM; FUEL 8-97948-892-0 01 1 1409- ● ●
311 JOINT; HOSE
WHEEL BASE 2400MM(24W) 		8-97353-668-0 02 1 0811-0901 ●
311 JOINT; HOSE
WHEEL BASE 2400MM(24W) 		8-97353-668-0 02 1 0902- ●
311 JOINT; HOSE 8-97353-668-0 02 1 0902- ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0811-0901 ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ● ●
çizim 158629
66 66 47 24 47 65 174 45 29 79 29 29 65 51 51 97 97 15 270 15 426 97 231 24 147 51 231 61 231
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; FUEL PIPE
ID=12 & 6.35 		8-97215-437-0 02 1 0811-0901 ●
15 CLIP; FUEL PIPE
ID=12 & 6.35 		8-97215-437-0 02 1 0902- ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 02 1 0811-0901 ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 02 1 0902-0911 ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-98008-098-0 02 1 0912- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM(24W) (A) L=250 		5-09707-030-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
WHEEL BASE 2400MM(24W) (A) L=250 		5-09707-030-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(A) L=250 		5-09707-030-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W) (C) L=140 		5-09707-031-1 01 1 0811-0901 ●
24 CLIP; FUEL HOSE
(C) L=140 		5-09707-031-1 01 1 0902- ● ●
24 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W) (C) L=140 		5-09707-031-1 01 1 0902- ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 08 1 0811-0901 ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-94238-568-0 08 1 0902-0911 ● ●
24 CLIP; FUEL HOSE
(B) ID=16 		8-98008-098-0 08 1 0912- ● ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0811-0901 ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0902- ●
29 HOSE; FUEL
(A) L=200 SERVICED BY L=3000 		0-01259-300-0 01 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (B) L=200 		8-98081-038-0 01 1 0811-0901 ●
29 HOSE; FUEL
WHEEL BASE 2400MM(24W) (B) L=200 		8-98081-038-0 01 1 0902- ●
29 HOSE; FUEL
(B) L=200 		8-98081-038-0 01 1 0902- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (C) 		8-98099-502-0 01 1 0811- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (E) 		8-98099-503-0 01 1 0811- ●
29 HOSE; FUEL
WHEEL BASE 3300MM(33W) (D) 		8-98105-710-0 01 1 0811- ●
45 PIPE; FUEL,DELIVERY 8-97389-579-3 01 1 0811-0901 ●
45 PIPE; FUEL,DELIVERY 8-97389-579-3 01 1 0902- ● ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97389-594-3 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-833-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
(A) 		8-98110-833-0 01 1 1302- ●
47 PIPE; FUEL,RETURN
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-833-0 01 1 1302- ●
47 PIPE; FUEL,RETURN
(B) L=679 		8-98020-778-3 01 1 0811-0901 ●
47 PIPE; FUEL,RETURN
(B) L=679 		8-98020-778-3 01 1 0902- ● ●
47 PIPE; FUEL,RETURN
(A) 		8-98064-630-0 01 1 0811-0901 ●
47 PIPE; FUEL,RETURN
(A) 		8-98064-630-0 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98064-630-0 01 1 0902-1005 ●
47 PIPE; FUEL,RETURN
(A) 		8-98163-294-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98163-294-0 01 1 1006-1301 ●
47 PIPE; FUEL,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98163-294-0 01 1 1302- ●
51 NUT; CLIP,PIPE
(A) M10 		0-91111-510-0 02 1 0811-0901 ●
51 NUT; CLIP,PIPE
(A) M10 		0-91111-510-0 02 1 0902- ● ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
51 NUT; CLIP,PIPE
(B) M10 FLANGE 		0-91180-110-0 01 1 0902- ● ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0811-0901 ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0811-0901 ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0902- ● ●
61 GROMMET; PIPE TO FRAME 8-98038-801-0 01 1 0902- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (B) 		8-98098-175-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (B) 		8-98098-175-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
(B) 		8-98098-175-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98098-176-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2400MM(24W) (C) 		8-98098-176-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
(C) 		8-98098-176-1 01 1 0902- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W) (D) 		8-97389-790-0 01 1 0811- ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-97389-772-0 01 1 0811-0901 ●
65 HOSE; FUEL,DELIVERY PIPE
(A) 		8-97389-772-0 01 1 0902- ● ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0811-0901 ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ●
66 HOSE; FUEL,RETURN PIPE
(B) L=400 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ●
66 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W) (C) L=500 		8-98057-029-0 01 1 0811- ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 		0-01855-300-0 01 1 0811-0901 ●
66 HOSE; FUEL,RETURN PIPE
(A) L=120 SERVICED BY L=3000 		0-01855-300-0 01 1 0902- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-777-1 01 1 0902-1005 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98147-758-0 01 1 1006- ● ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98064-802-0 01 1 0811-0901 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN 8-98064-802-0 01 1 0902-1005 ●
79 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-802-0 01 1 0902-1005 ●
97 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 0811-0901 ●
97 BRACKET; CLIP
(A) 		8-98006-480-1 01 1 0902- ● ●
97 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 0811-0901 ●
97 BRACKET; CLIP
(B) 		8-98039-929-1 01 1 0902- ● ●
97 BRACKET; CLIP
(C) 		8-98064-442-0 01 1 0811-0901 ●
97 BRACKET; CLIP
(C) 		8-98064-442-1 01 1 0902- ● ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-94238-568-0 04 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-94238-568-0 04 1 0902-0911 ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=16 		8-94238-568-0 04 1 0902-0911 ●
147 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2400MM(24W) (B) ID=16 		8-98008-098-0 04 1 0912- ●
147 CLIP; FUEL PIPE TO HOSE
(B) ID=16 		8-98008-098-0 04 1 0912- ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 02 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 02 1 0902-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 02 1 0912- ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 04 1 0811-0901 ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-94238-610-0 04 1 0902-0911 ● ●
147 CLIP; FUEL PIPE TO HOSE
(A) ID=12 		8-98150-358-0 04 1 0912- ● ●
174 PIPE; FUEL,FEED,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-589-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT 8-97389-589-1 01 1 1302- ●
174 PIPE; FUEL,FEED,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97389-589-1 01 1 1302- ●
174 PIPE; FUEL,FEED,FRT 8-98064-632-1 01 1 0811-0901 ●
174 PIPE; FUEL,FEED,FRT 8-98064-632-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-632-1 01 1 0902-1301 ●
174 PIPE; FUEL,FEED,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98064-632-1 01 1 1302- ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(B) OD=17 L=50 		8-94157-054-1 01 1 0902- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 01 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 01 1 0902- ● ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 02 1 0811-0901 ●
231 RUBBER; SUPPORT,FUEL PIPE
(A) OD=16.5 L=50 		8-97214-235-0 02 1 0902- ● ●
270 PUMP ASM; FUEL 8-98018-187-2 01 1 0811-0901 ●
270 PUMP ASM; FUEL 8-98018-187-4 01 1 0902-1408 ● ●
270 PUMP ASM; FUEL 8-97948-892-0 01 1 1409- ● ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0811-0901 ●
426 BOLT; FUEL PUMP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
