1-40 — FUEL TANK (#49612) — 73 parça

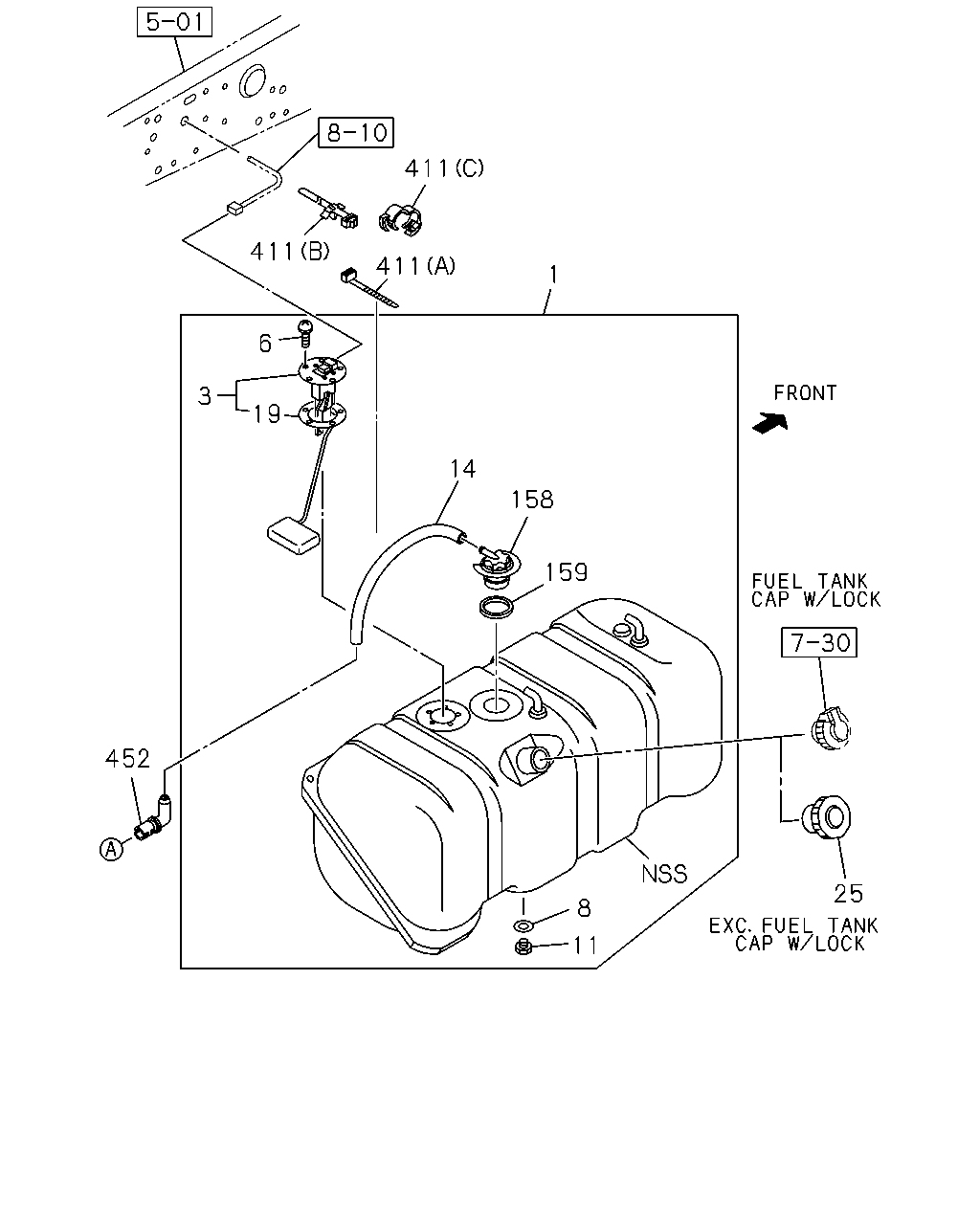

411 411 411 6 3 19 14 158 159 8 11 25 1 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100 LITTER<N02> 1003X375X380 100L	8-98021-295-6	01	1	0811-	●
1	TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0811-0901	●
1	TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0902-	●
1	TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	0902-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-704-0	01	1	0811-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER<7GX>	8-98056-703-0	01	1	0811-0901	●
3	UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER<7GX>	8-98056-703-0	01	1	0902-	●
3	UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	0902-		●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	0-36220-512-0	05	1	0811-0901	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X12 W/LK WASHER	0-36220-512-0	05	1	0902-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	0811-0901	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	0902-	●	●
11	PLUG; DRAIN,FUEL TANK M8X12 FLANGE	0-28050-812-0	01	1	0811-0901	●
11	PLUG; DRAIN,FUEL TANK M8X12 FLANGE	0-28050-812-0	01	1	0902-	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 75 LITTER<7GX> L=320	8-98157-805-0	01	1	0811-	●
14	HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	0811-		●
14	HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	0811-	●
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0811-0901	●
19	GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0902-	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0811-0901	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0902-	●	●
158	VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0811-0901	●
158	VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0902-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0811-0901	●
159	SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0902-	●	●
411	CLIP; FUEL TANK UNIT HARNESS (C) ID=20	8-94241-972-0	01	1	0811-0901	●
411	CLIP; FUEL TANK UNIT HARNESS (C) ID=20	8-94241-972-0	01	1	0902-	●	●
411	CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0811-0901	●
411	CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0902-	●	●
411	CLIP; FUEL TANK UNIT HARNESS (A) L=140	5-09707-031-1	02	1	0811-0901	●
411	CLIP; FUEL TANK UNIT HARNESS (A) L=140	5-09707-031-1	02	1	0902-	●	●
452	BREATHER; FUEL TANK	8-97357-261-0	01	1	0811-0901	●
452	BREATHER; FUEL TANK	8-97357-261-0	01	1	0902-	●	●

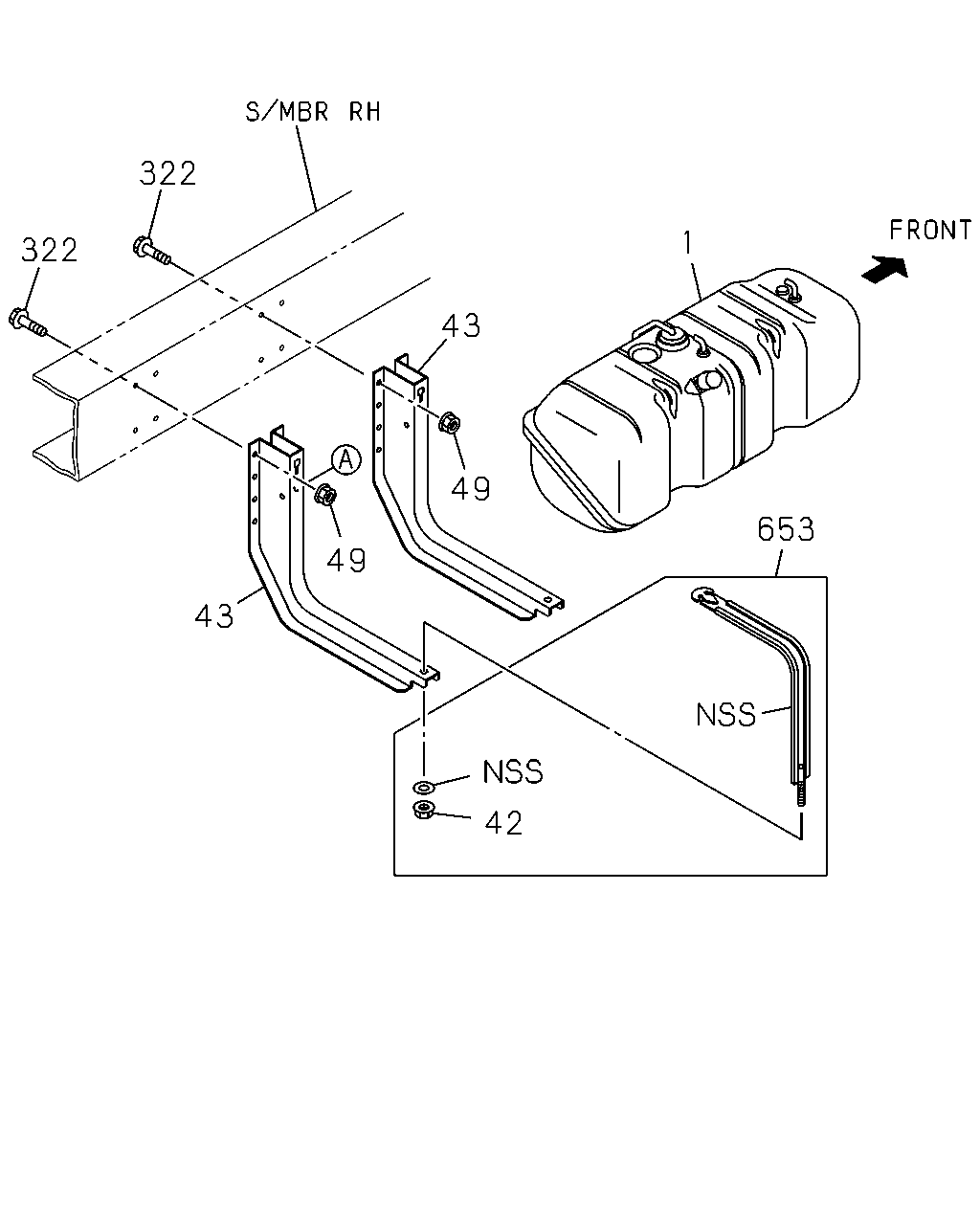

322 322 43 49 49 43 1 653 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100 LITTER<N02> 1003X375X380 100L	8-98021-295-6	01	1	0811-	●
1	TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0811-0901	●
1	TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	0902-	●
1	TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	0902-		●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0811-0901	●
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0902-	●	●
43	BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> FRONT	8-98061-738-1	01	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> REAR	8-98061-739-1	01	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> FRONT	8-97384-056-1	01	1	0811-0901	●
43	BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> FRONT	8-97384-056-1	01	1	0902-	●
43	BRACKET; FUEL TANK FRONT	8-97384-056-1	01	1	0902-		●
43	BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> REAR	8-97384-081-1	01	1	0811-0901	●
43	BRACKET; FUEL TANK FUEL TANK 75 LITTER<7GX> REAR	8-97384-081-1	01	1	0902-	●
43	BRACKET; FUEL TANK REAR	8-97384-081-1	01	1	0902-		●
49	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0811-0901	●
49	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0902-	●	●
322	BOLT; BRKT FIX M10X30 FLANGE	0-28661-030-0	08	1	0811-0901	●
322	BOLT; BRKT FIX M10X30 FLANGE	0-28661-030-0	08	1	0902-	●	●
653	BAND KIT; FUEL TANK	5-87411-970-0	02	1	0811-0901	●
653	BAND KIT; FUEL TANK	5-87411-970-0	02	1	0902-	●	●

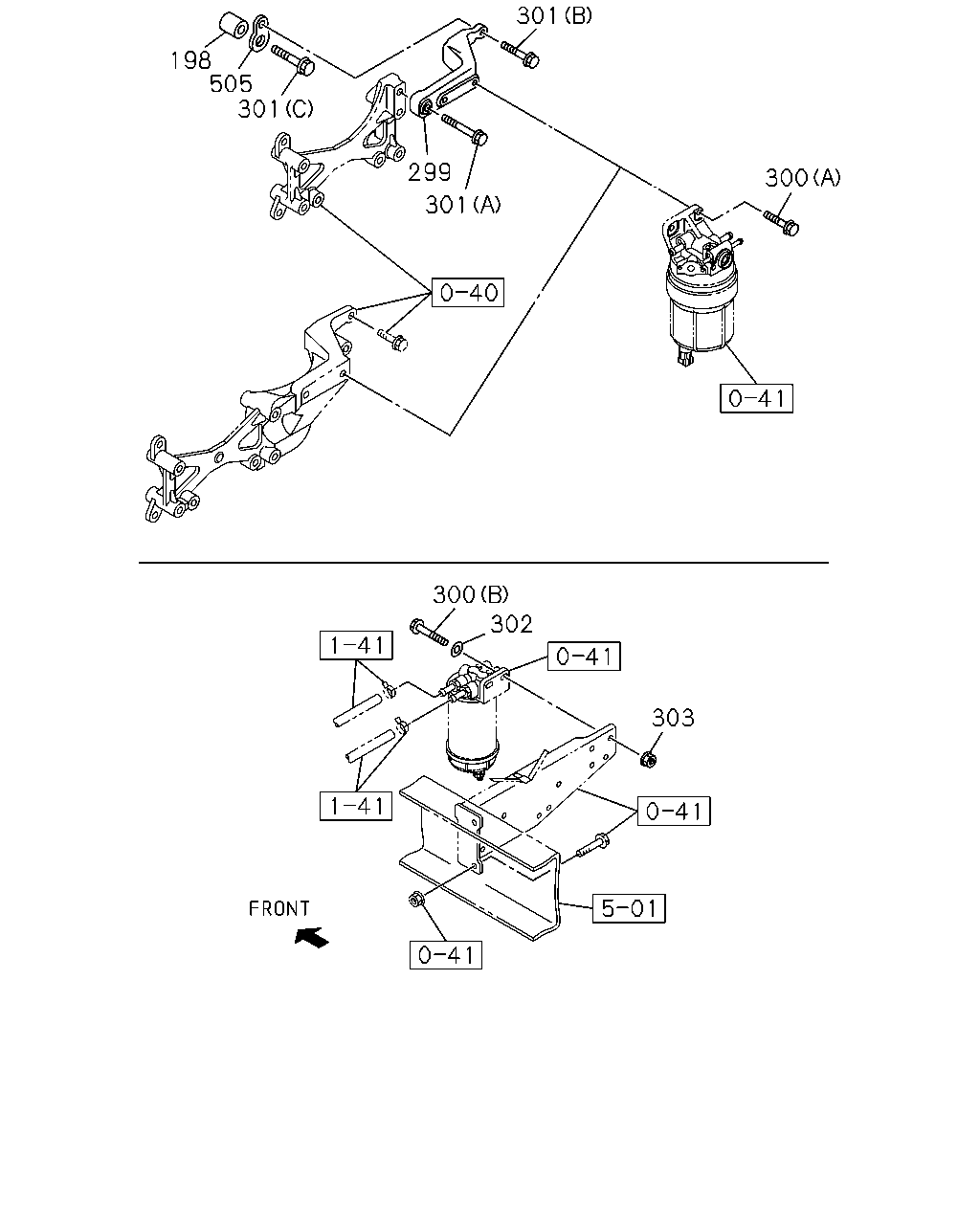

301 198 505 301 299 300 301 300 302 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
198	SPACER EXC. KD PREPARATORY PACK<6HF>	8-98081-509-0	01	1	0811-0901	●
198	SPACER EXC. KD PREPARATORY PACK<6HF>	8-98081-509-0	01	1	0902-1001	●	●
299	BRACKET; FUEL FILTER EXC. KD PREPARATORY PACK<6HF>	8-98009-087-4	01	1	0811-0901	●
299	BRACKET; FUEL FILTER EXC. KD PREPARATORY PACK<6HF>	8-98009-087-4	01	1	0902-1001	●	●
300	BOLT; BRKT TO BODY (B) M10X40 FLANGE	0-28651-040-0	02	1	0811-0901	●
300	BOLT; BRKT TO BODY (B) M10X40 FLANGE	0-28651-040-0	02	1	0902-	●	●
300	BOLT; BRKT TO BODY EXC. KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE	0-28650-825-0	02	1	0811-0901	●
300	BOLT; BRKT TO BODY EXC. KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE	0-28650-825-0	02	1	0902-	●	●
301	BOLT; BRKT TO SEDIMENTER EXC. KD PREPARATORY PACK<6HF> (B) M8X40 FLANGE	0-28060-840-0	01	1	0811-0901	●
301	BOLT; BRKT TO SEDIMENTER EXC. KD PREPARATORY PACK<6HF> (B) M8X40 FLANGE	0-28060-840-0	01	1	0902-1001	●	●
301	BOLT; BRKT TO SEDIMENTER EXC. KD PREPARATORY PACK<6HF> (A) M8X66 FLANGE	8-98081-507-0	01	1	0811-0901	●
301	BOLT; BRKT TO SEDIMENTER EXC. KD PREPARATORY PACK<6HF> (A) M8X66 FLANGE	8-98081-507-0	01	1	0902-1001	●	●
301	BOLT; BRKT TO SEDIMENTER EXC. KD PREPARATORY PACK<6HF> (C) M14X58 FLANGE	8-98081-508-0	01	1	0811-0901	●
301	BOLT; BRKT TO SEDIMENTER EXC. KD PREPARATORY PACK<6HF> (C) M14X58 FLANGE	8-98081-508-0	01	1	0902-1001	●	●
302	WASHER; PL,SEDIMENTER ID=10.5 OD=26	0-91614-710-0	02	1	0811-0901	●
302	WASHER; PL,SEDIMENTER ID=10.5 OD=26	0-91614-710-0	02	1	0902-	●	●
303	NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0811-0901	●
303	NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	0902-	●	●
505	BRACKET EXC. KD PREPARATORY PACK<6HF>	8-98081-486-0	01	1	0811-0901	●
505	BRACKET EXC. KD PREPARATORY PACK<6HF>	8-98081-486-0	01	1	0902-1001	●	●
