1-31 — AIR DUCT (#49610) — 179 parça

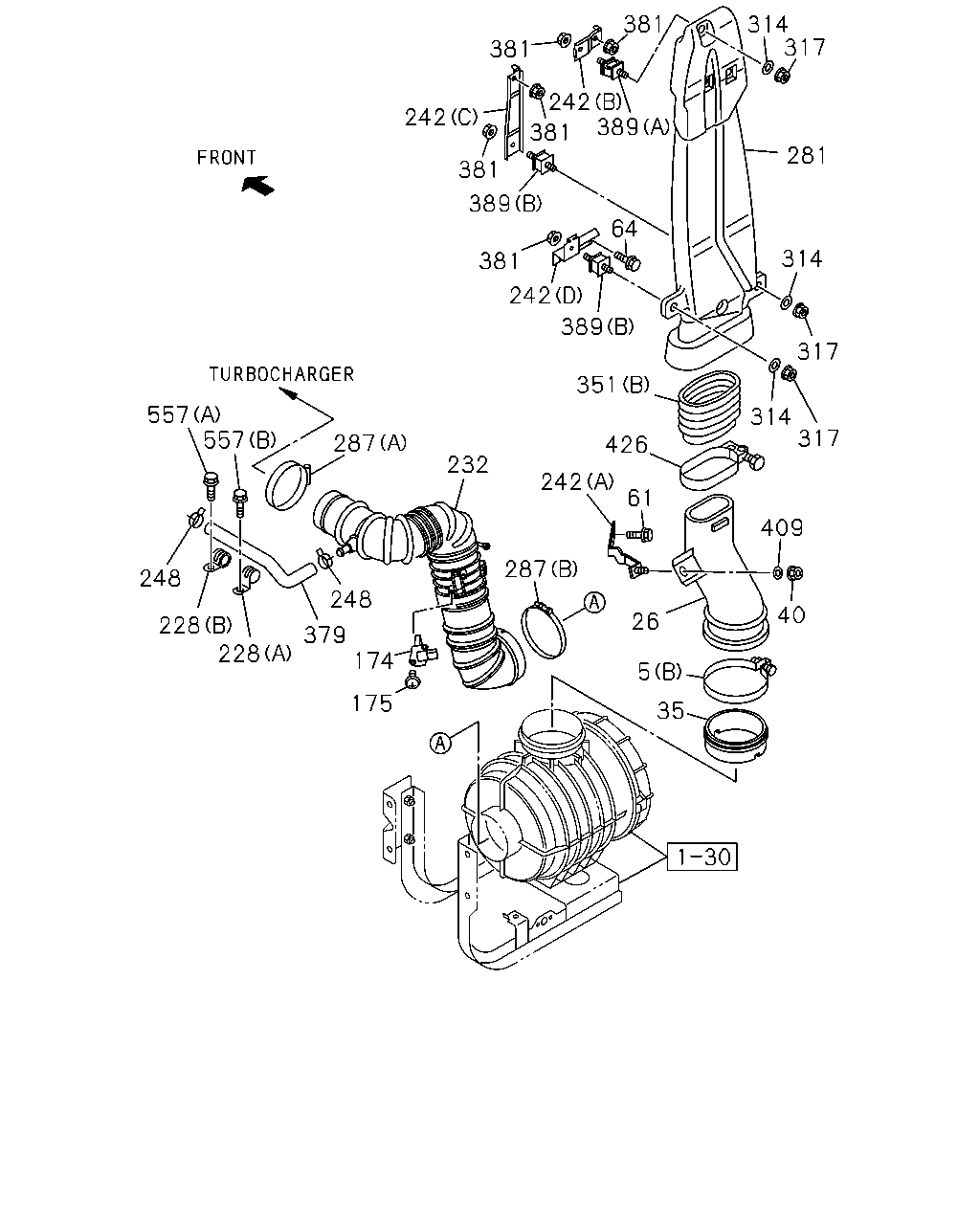

381 314 317 381 242 389 242 381 281 381 389 64 314 381 242 389 317 351 557 557 314 317 287 426 232 242 61 409 287 248 248 40 26 228 228 379 174 5 175 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (A) ID=58-79	1-09707-136-0	01	1	0901-0901	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (A) ID=58-79	1-09707-136-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79	1-09707-136-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (D) ID=60-65	8-98096-418-0	01	1	0901-0901	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (D) ID=60-65	8-98096-418-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-0901	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-0901	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-0901	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	0811-0812	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-0901	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-0901	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (D) ID=58-76	1-09707-203-0	01	1	0811-0811	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	0812-0812	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-0901	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-0901	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0811-0901	●
5	CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0902-	●	●
26	DUCT; AIR INT	8-98023-339-0	01	1	0811-0901	●
26	DUCT; AIR INT	8-98023-339-0	01	1	0902-	●	●
35	SEAL; DUCT,INT	8-98029-332-0	01	1	0811-0901	●
35	SEAL; DUCT,INT	8-98029-332-0	01	1	0902-	●	●
40	NUT; AIR INT DUCT M10 FLANGE	0-91180-110-0	01	1	0811-0901	●
40	NUT; AIR INT DUCT M10 FLANGE	0-91180-110-0	01	1	0902-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	0-28650-825-0	01	1	0811-0901	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	0-28650-825-0	01	1	0902-	●	●
64	BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0811-0901	●
64	BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0902-	●	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0811-0901	●
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0902-	●	●
175	BOLT; AIR FLOW CONT SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0811-0901	●
175	BOLT; AIR FLOW CONT SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0902-	●	●
228	CLIP; PCV HOSE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0811-0901	●
228	CLIP; PCV HOSE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0902-1001	●	●
228	CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1002-	●	●
228	CLIP; PCV HOSE (B) ID=22 L=22	5-83574-045-0	01	1	0811-0901	●
228	CLIP; PCV HOSE (B) ID=22 L=22	5-83574-045-0	01	1	0902-1001	●	●
228	CLIP; PCV HOSE (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1002-	●	●
232	HOSE; CONN	8-98048-136-1	01	1	0811-0901	●
232	HOSE; CONN	8-98048-136-1	01	1	0902-1503	●	●
232	HOSE; CONN	8-98290-770-0	01	1	1504-	●	●
242	BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0811-0901	●
242	BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0811-0901	●
242	BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0811-0901	●
242	BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0811-0901	●
242	BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0902-	●	●
242	BRACKET; AIR DUCT (E)	8-98079-905-2	01	1	0811-0901	●
242	BRACKET; AIR DUCT (E)	8-98079-905-2	01	1	0902-	●	●
242	BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0811-0901	●
242	BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0902-1411	●	●
242	BRACKET; AIR DUCT (G)	8-98108-313-1	01	1	1412-	●	●
248	CLIP; RUBBER HOSE ID=21.7	8-97203-074-0	02	1	0811-0901	●
248	CLIP; RUBBER HOSE ID=21.7	8-97203-074-0	02	1	0902-	●	●
281	DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	0811-0901	●
281	DUCT; AIR,VERTICAL INT	8-97369-706-0	01	1	0902-	●	●
287	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=70-90	8-98122-372-0	01	1	1002-	●	●
287	CLIP; AIR DUCT (A) ID=65-85	8-98133-350-0	01	1	0811-0812	●
287	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (A) ID=65-85	8-98133-350-0	01	1	0901-0901	●
287	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> (A) ID=65-85	8-98133-350-0	01	1	0902-1001	●	●
287	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=65-85	8-98133-350-0	01	1	1002-	●	●
287	CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	0811-0901	●
287	CLIP; AIR DUCT (B) ID=117	9-09915-075-1	01	1	0902-	●	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	0811-0901	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	0902-	●	●
317	NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0811-0901	●
317	NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0902-	●	●
351	DUCT; AIR (A)	8-98067-267-0	01	1	0811-0901	●
351	DUCT; AIR (A)	8-98067-267-0	01	1	0902-	●	●
351	DUCT; AIR (B)	8-98115-594-0	01	1	0811-0901	●
351	DUCT; AIR (B)	8-98115-594-0	01	1	0902-	●	●
379	HOSE; RUBBER	8-98045-343-0	01	1	0811-0901	●
379	HOSE; RUBBER	8-98045-343-0	01	1	0902-	●	●
381	NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0811-0901	●
381	NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0902-	●	●
381	NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0811-0901	●
381	NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0902-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0811-0901	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0902-	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-98036-826-0	02	1	0811-0901	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-98036-826-0	02	1	0902-	●	●
409	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0811-0901	●
409	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	0902-	●	●
426	CLIP; DUCT D=101.6	9-09915-502-1	01	1	0811-0901	●
426	CLIP; DUCT D=101.6	9-09915-502-1	01	1	0902-	●	●
557	BOLT; HOSE CLIP (A) M6X10 FLANGE	0-28050-610-0	01	1	0811-0901	●
557	BOLT; HOSE CLIP (A) M6X10 FLANGE	0-28050-610-0	01	1	0902-	●	●
557	BOLT; HOSE CLIP (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	0811-0901	●
557	BOLT; HOSE CLIP (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	0902-	●	●

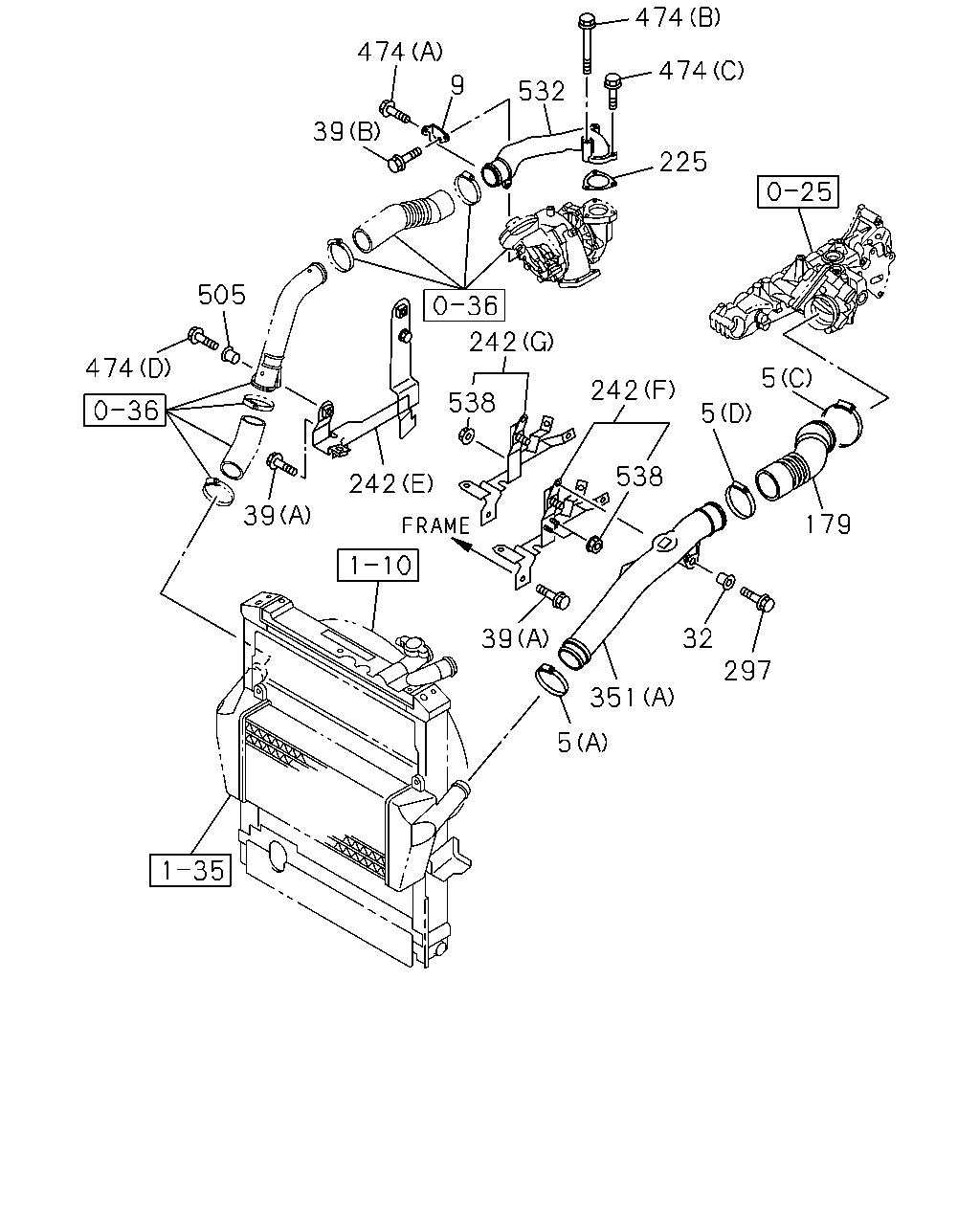

474 532 225 242 474 39 505 474 39 242 538 242 5 5 179 32 297 351 5 39 538 474 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (A) ID=58-79	1-09707-136-0	01	1	0901-0901	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (A) ID=58-79	1-09707-136-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=58-79	1-09707-136-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (D) ID=60-65	8-98096-418-0	01	1	0901-0901	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (D) ID=60-65	8-98096-418-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	01	1	1002-	●	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-0901	●
5	CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>,IDENTIFICATION LABEL FORKD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-0901	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-0901	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	0811-0812	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-0901	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-0901	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (D) ID=58-76	1-09707-203-0	01	1	0811-0811	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	0812-0812	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-0901	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-0901	●
5	CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0902-1001	●	●
5	CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0811-0901	●
5	CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0902-	●	●
9	BRACKET; INT PIPE	8-98009-086-0	01	1	0811-0901	●
9	BRACKET; INT PIPE	8-98009-086-0	01	1	0902-	●	●
32	RUBBER; AIR DUCT MTG OD=23	8-97105-689-6	01	1	0811-0901	●
32	RUBBER; AIR DUCT MTG OD=23	8-97105-689-6	01	1	0902-	●	●
39	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0811-0901	●
39	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0902-	●	●
39	BOLT; BRKT (B) M8X14 FLANGE	8-97378-075-0	01	1	0811-0901	●
39	BOLT; BRKT (B) M8X14 FLANGE	8-97378-075-0	01	1	0902-	●	●
179	HOSE; AIR INT	8-98050-920-2	01	1	0811-0901	●
179	HOSE; AIR INT	8-98050-920-2	01	1	0902-	●	●
225	GASKET; AIR PIPE ID=47	8-97202-328-1	01	1	0811-0901	●
225	GASKET; AIR PIPE ID=47	8-97202-328-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0811-0901	●
242	BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0811-0901	●
242	BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0811-0901	●
242	BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0902-	●	●
242	BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0811-0901	●
242	BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0902-	●	●
242	BRACKET; AIR DUCT (E)	8-98079-905-2	01	1	0811-0901	●
242	BRACKET; AIR DUCT (E)	8-98079-905-2	01	1	0902-	●	●
242	BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0811-0901	●
242	BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0902-1411	●	●
242	BRACKET; AIR DUCT (G)	8-98108-313-1	01	1	1412-	●	●
297	BOLT; DUCT M8X35 FLANGE	0-28650-835-0	01	1	0811-0901	●
297	BOLT; DUCT M8X35 FLANGE	0-28650-835-0	01	1	0902-	●	●
351	DUCT; AIR (A)	8-98067-267-0	01	1	0811-0901	●
351	DUCT; AIR (A)	8-98067-267-0	01	1	0902-	●	●
351	DUCT; AIR (B)	8-98115-594-0	01	1	0811-0901	●
351	DUCT; AIR (B)	8-98115-594-0	01	1	0902-	●	●
474	BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	0811-0901	●
474	BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	0902-	●	●
474	BOLT; PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0811-0901	●
474	BOLT; PIPE (A) M8X16 FLANGE	0-28050-816-0	01	1	0902-	●	●
474	BOLT; PIPE (C) M6X30 FLANGE	0-28650-630-0	01	1	0811-0901	●
474	BOLT; PIPE (C) M6X30 FLANGE	0-28650-630-0	01	1	0902-	●	●
474	BOLT; PIPE (D) M8X35 FLANGE	0-28650-835-0	01	1	0811-0901	●
474	BOLT; PIPE (D) M8X35 FLANGE	0-28650-835-0	01	1	0902-	●	●
505	RUBBER; MTG OD=23	8-97105-689-6	01	1	0811-0901	●
505	RUBBER; MTG OD=23	8-97105-689-6	01	1	0902-	●	●
532	PIPE; INTAKE	8-97385-203-1	01	1	0811-0901	●
532	PIPE; INTAKE	8-97385-203-1	01	1	0902-1303	●	●
532	PIPE; INTAKE	8-98237-771-1	01	1	1304-	●	●
538	NUT; PLATE,AIR DUCT M6 FLANGE	0-91180-106-0	02	1	0811-0901	●
538	NUT; PLATE,AIR DUCT M6 FLANGE	0-91180-106-0	02	1	0902-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
