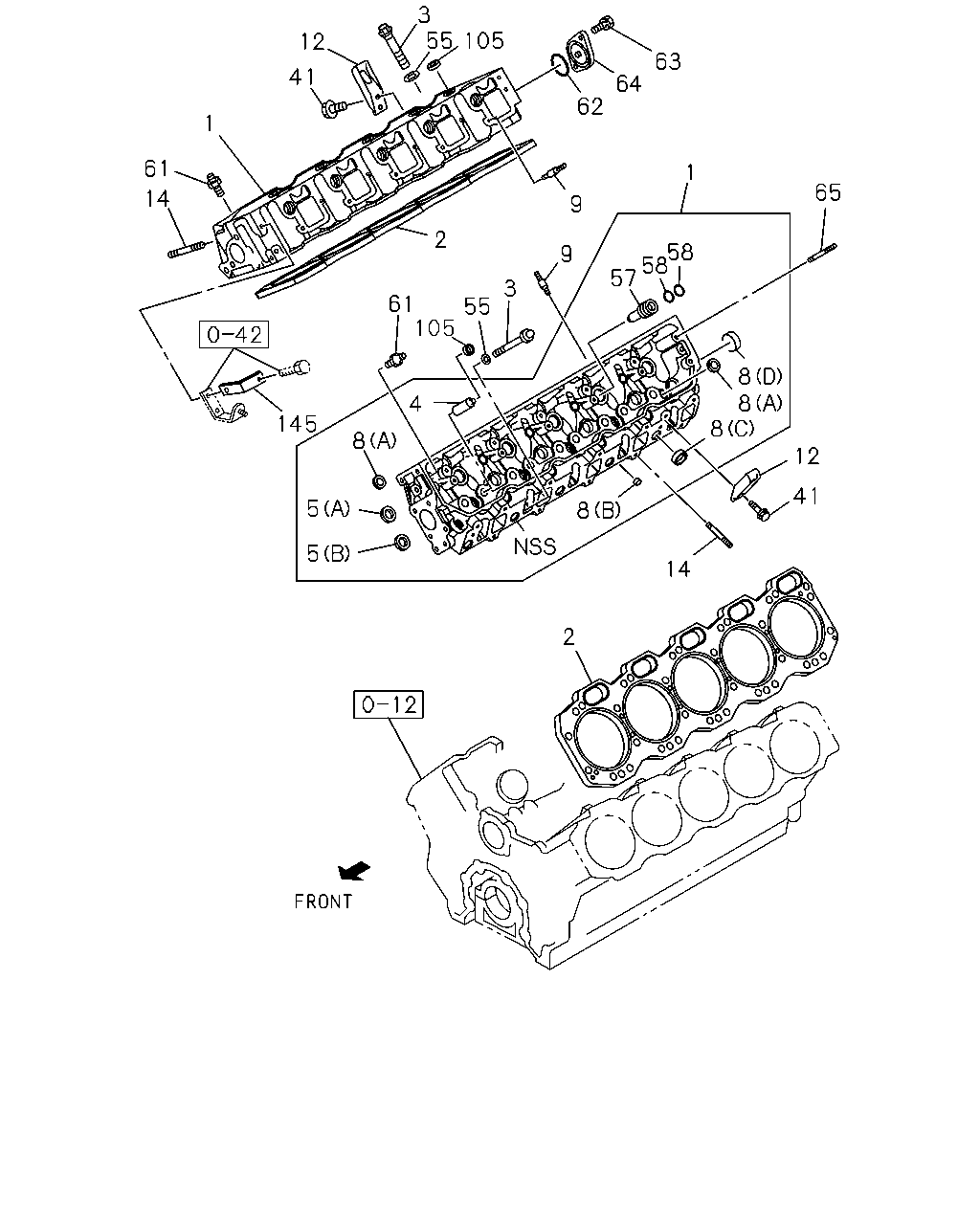

1 |
HEAD ASM; CYL
RH BANK
|
1-11110-793-1 |
01 |
1 |
9606-9705 |
● |
|
| |
1 |
HEAD ASM; CYL
RH BANK
|
1-11110-850-0 |
01 |
1 |
9706-9905 |
● |
|
| |
1 |
HEAD ASM; CYL
RH BANK
|
1-11110-850-2 |
01 |
1 |
9906- |
|
● |
| |
1 |
HEAD ASM; CYL
RH BANK
|
1-11110-794-1 |
01 |
1 |
9606-9705 |
● |
|
| |
1 |
HEAD ASM; CYL
LH BANK
|
1-11110-851-0 |
01 |
1 |
9706-9905 |
● |
|
| |
1 |
HEAD ASM; CYL
LH BANK
|
1-11110-851-2 |
01 |
1 |
9906- |
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-250-0 |
02 |
1 |
9606-9705 |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-261-0 |
02 |
1 |
9706-9905 |
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-261-1 |
02 |
1 |
9906- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
M14X140
|
1-09070-033-1 |
24 |
1 |
9606-9902 |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X140
|
1-09070-139-0 |
24 |
1 |
9903-9905 |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X140
|
1-09070-139-0 |
24 |
1 |
9906- |
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
M14X80 FLANGE
|
1-09070-034-1 |
20 |
1 |
9606-9902 |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X80 FLANGE
|
1-09070-138-0 |
20 |
1 |
9903-9905 |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X80 FLANGE
|
1-09070-138-0 |
20 |
1 |
9906- |
|
● |
| |
4 |
GUIDE; VLV
|
1-11721-004-0 |
20 |
1 |
9606-9905 |
● |
|
| |
4 |
GUIDE; VLV
|
1-11721-004-0 |
20 |
1 |
9906- |
|
● |
| |
5 |
SEAT; VLV INSERT
(A) EXHAUST
|
1-11711-054-0 |
10 |
1 |
9606-9705 |
● |
|
| |
5 |
SEAT; VLV INSERT
(A) EXHAUST
|
1-11711-071-0 |
10 |
1 |
9706-9905 |
● |
|
| |
5 |
SEAT; VLV INSERT
(A) EXHAUST
|
1-11711-071-0 |
10 |
1 |
9906- |
|
● |
| |
5 |
SEAT; VLV INSERT
(B) INLET
|
1-11715-078-0 |
10 |
1 |
9606-9905 |
● |
|
| |
5 |
SEAT; VLV INSERT
(B) INLET
|
1-11715-078-0 |
10 |
1 |
9906- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(D)
OD=45
|
1-09600-005-1 |
01 |
1 |
9606-9905 |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(D)
OD=45
|
1-09600-005-1 |
01 |
1 |
9906- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(B)
OD=12
|
1-09600-010-1 |
20 |
1 |
9606-9905 |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(B)
OD=12
|
1-09600-010-1 |
20 |
1 |
9906- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=22
|
1-09600-011-2 |
28 |
1 |
9606-9905 |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=22
|
1-09600-011-2 |
28 |
1 |
9906- |
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-1 |
10 |
1 |
9606-9905 |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-1 |
10 |
1 |
9906- |
|
● |
| |
9 |
STUD; INL MANIF
M10X13,M10X17 L=65
|
1-09309-008-0 |
20 |
1 |
9606-9905 |
● |
|
| |
9 |
STUD; INL MANIF
M10X13,M10X17 L=65
|
1-09309-008-0 |
20 |
1 |
9906- |
|
● |
| |
12 |
HANGER; ENG,RR
FRONT
|
1-11777-164-0 |
02 |
1 |
9606-9905 |
● |
|
| |
12 |
HANGER; ENG,RR
FRONT
|
1-11777-164-0 |
02 |
1 |
9906- |
|
● |
| |
14 |
STUD; EXH MANIF
M10X95 L=110
|
1-09302-063-0 |
20 |
1 |
9606-9905 |
● |
|
| |
14 |
STUD; EXH MANIF
M10X95 L=110
|
1-09302-063-0 |
20 |
1 |
9906- |
|
● |
| |
41 |
BOLT; ENG HANGER
FRONT
M12X26
|
1-09000-535-1 |
04 |
1 |
9606-9905 |
● |
|
| |
41 |
BOLT; ENG HANGER
FRONT
M12X26
|
1-09000-535-1 |
04 |
1 |
9906- |
|
● |
| |
55 |
WASHER; PL,CYL HD TO BLOCK
ID=14.2
|
1-09503-050-0 |
44 |
1 |
9606-9905 |
● |
|
| |
55 |
WASHER; PL,CYL HD TO BLOCK
ID=14.2
|
1-09503-050-0 |
44 |
1 |
9906- |
|
● |
| |
57 |
SLEEVE; NOZZLE HOLDER
|
1-11129-017-0 |
10 |
1 |
9606-9905 |
● |
|
| |
57 |
SLEEVE; NOZZLE HOLDER
|
1-11129-017-0 |
10 |
1 |
9906- |
|
● |
| |
58 |
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-592-0 |
20 |
1 |
9606-9905 |
● |
|
| |
58 |
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-592-0 |
20 |
1 |
9906- |
|
● |
| |
61 |
CONNECTOR; LEAK OFF PIPE
|
1-09669-015-0 |
02 |
1 |
9606-9905 |
● |
|
| |
61 |
CONNECTOR; LEAK OFF PIPE
|
1-09669-015-0 |
02 |
1 |
9906- |
|
● |
| |
62 |
GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-425-0 |
01 |
1 |
9606-9905 |
● |
|
| |
62 |
GASKET; COVER,WATER JACKET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-425-0 |
01 |
1 |
9906- |
|
● |
| |
63 |
BOLT; CVR,WATER JACKET
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9606-9905 |
● |
|
| |
63 |
BOLT; CVR,WATER JACKET
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9906- |
|
● |
| |
64 |
COVER; WATER JACKET
|
1-11119-013-1 |
01 |
1 |
9606-9905 |
● |
|
| |
64 |
COVER; WATER JACKET
|
1-11119-013-1 |
01 |
1 |
9906- |
|
● |
| |
65 |
STUD; ROCKER OIL FEED
M10X88 L=103
|
1-09300-025-0 |
02 |
1 |
9606-9905 |
● |
|
| |
65 |
STUD; ROCKER OIL FEED
M10X88 L=103
|
1-09300-025-0 |
02 |
1 |
9906- |
|
● |
| |
105 |
SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
20 |
1 |
9606-9905 |
● |
|
| |
105 |
SEAL; OIL VLV STEM
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-12569-017-0 |
20 |
1 |
9906- |
|
● |
| |
145 |
BRACKET
|
1-09709-072-0 |
01 |
1 |
9606-9905 |
● |
|
| |
145 |
BRACKET
|
1-09709-072-0 |
01 |
1 |
9906- |
|
● |
