Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#49608) — 34 parça
Tümü
A - NMR6SN
B - NMR6SE
◀

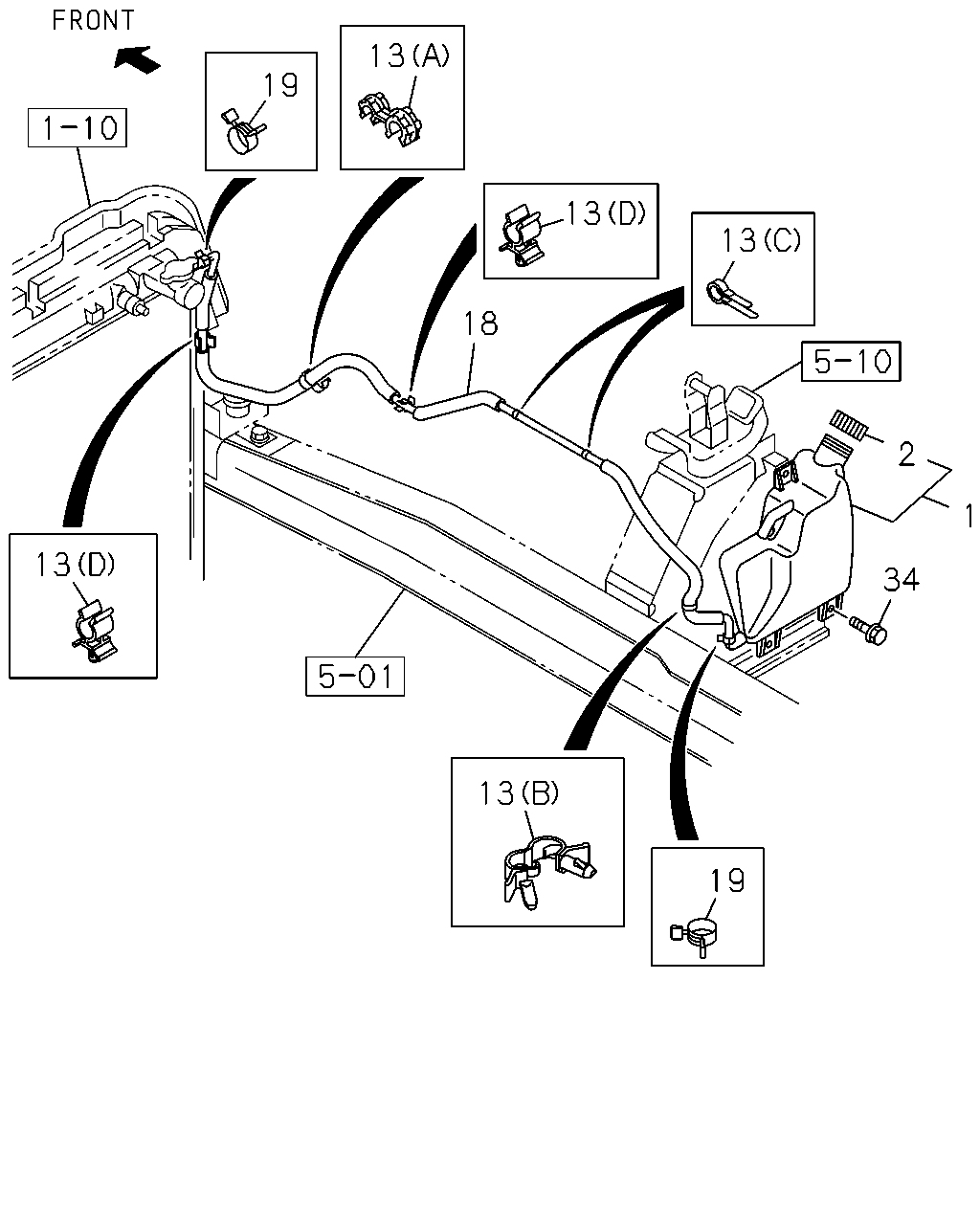

[111A] SURGE TANK AND HOSE (21 parça)

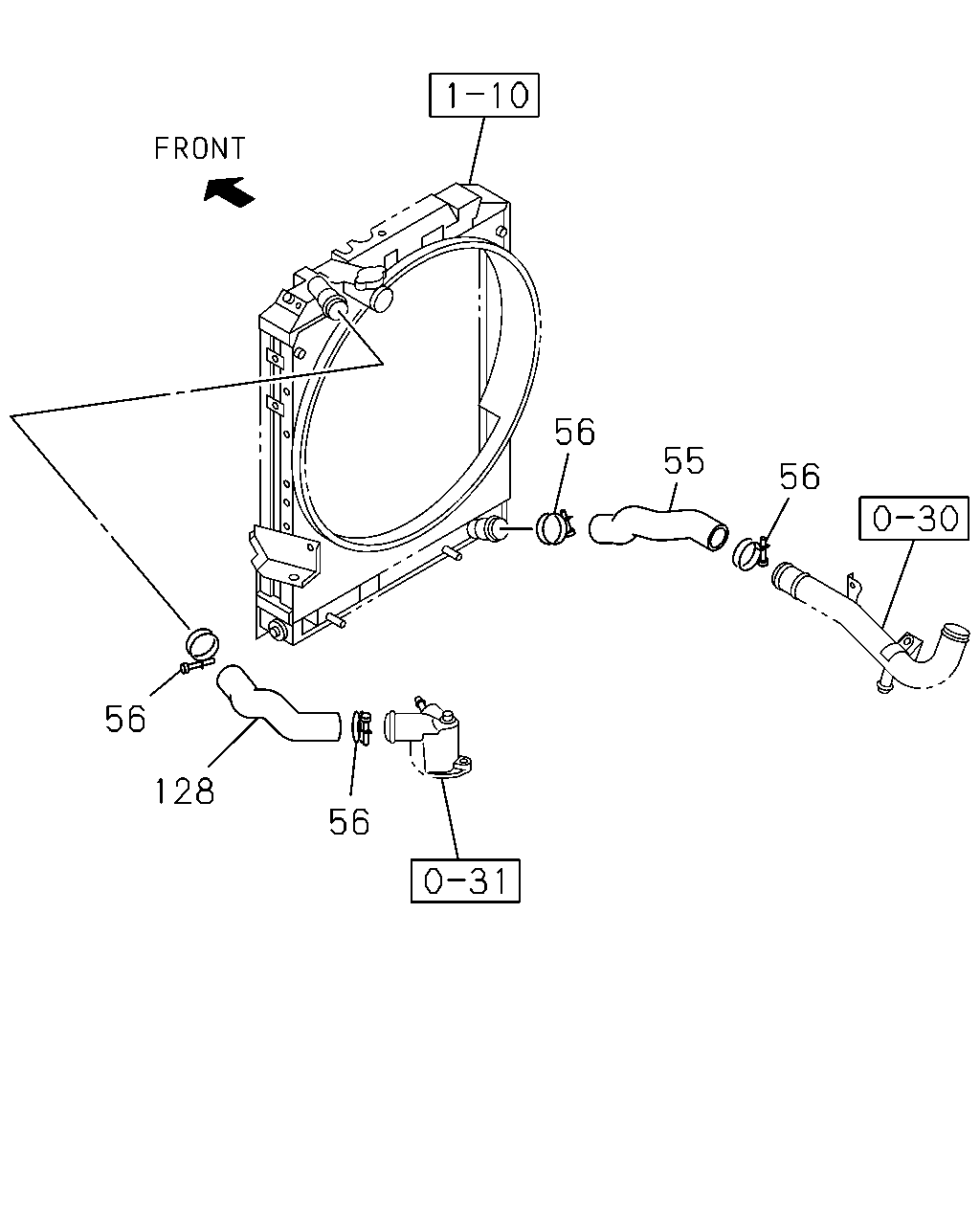

[111A] RADIATOR HOSE (13 parça)
▶
13
19
13
13
18
2
1
13
34
13
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-97387-632-1
01
1
0811-0901
●
1
TANK; SURGE,RAD
8-97387-632-1
01
1
0902-1010
●
●
1
TANK; SURGE,RAD
8-98178-179-0
01
1
1011-
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0811-0901
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0902-1010
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1011-
●
●
13
CLIP; HOSE,SURGE TANK
(B) ID=13-18 L=14.5
1-09709-290-0
01
1
0811-0901
●
13
CLIP; HOSE,SURGE TANK
(B) ID=13-18 L=14.5
1-09709-290-0
01
1
0902-
●
●
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47
5-09700-319-0
02
1
0811-0901
●
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47
5-09700-319-0
02
1
0902-
●
●
13
CLIP; HOSE,SURGE TANK
(A) ID=10 & 12
8-94416-613-0
01
1
0811-0901
●
13
CLIP; HOSE,SURGE TANK
(A) ID=10 & 12
8-94416-613-0
01
1
0902-
●
●
13
CLIP; HOSE,SURGE TANK
(D) ID=12
8-98029-256-0
02
1
0811-0901
●
13
CLIP; HOSE,SURGE TANK
(D) ID=12
8-98029-256-0
02
1
0902-
●
●
18
HOSE; RAD TO SURGE TANK
8-98023-219-1
01
1
0811-0901
●
18
HOSE; RAD TO SURGE TANK
8-98023-219-1
01
1
0902-
●
●
19
CLIP; HOSE,SURGE TANK
ID=12
8-94238-610-0
02
1
0811-0901
●
19
CLIP; HOSE,SURGE TANK
ID=12
8-94238-610-0
02
1
0902-0911
●
●
19
CLIP; HOSE,SURGE TANK
ID=12
8-98150-358-0
02
1
0912-
●
●
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
0811-0901
●
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
0902-
●
●
56
55
56
56
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
55
HOSE; WATER,RAD OUTLET
8-97383-814-1
01
1
0811-0901
●
55
HOSE; WATER,RAD OUTLET
8-97383-814-1
01
1
0902-
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98036-282-0
01
1
0811-0901
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98036-282-0
01
1
0902-0902
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
01
1
0902-0906
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
02
1
0907-
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98036-282-0
03
1
0811-0901
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98036-282-0
03
1
0902-0902
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
03
1
0902-0906
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
01
1
0907-
●
●
56
CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
01
1
0907-
●
●
128
HOSE; WATER,RAD INL
8-97383-812-1
01
1
0811-0901
●
128
HOSE; WATER,RAD INL
8-97383-812-1
01
1
0902-
●
●
