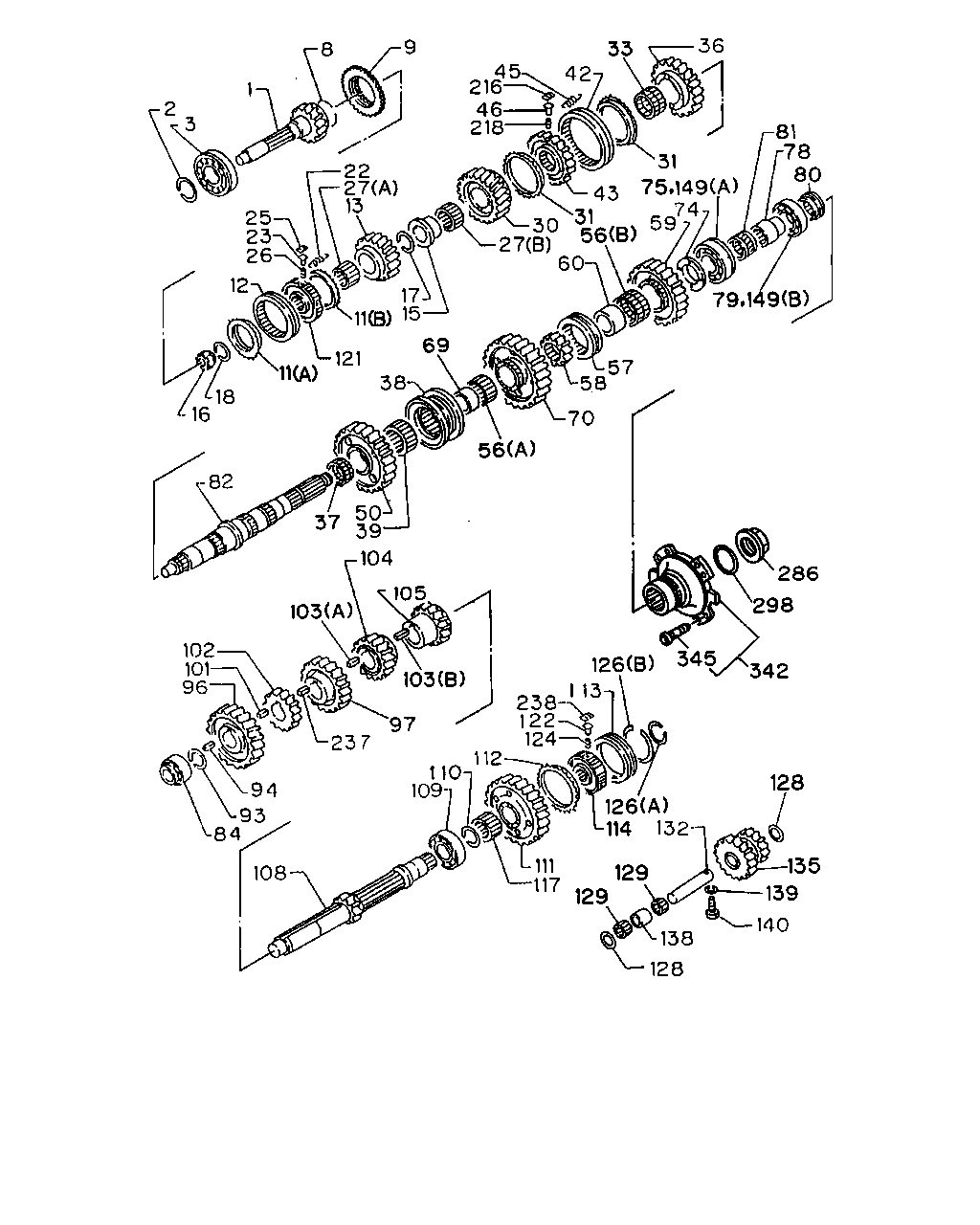

2-26 — MANUAL TRANSMISSION GEAR (#496) — 144 parça

2 3 1 8 9 36 33 42 45 216 46 218 22 27 13 25 23 26 12 81 78 80 31 75 149 74 59 43 31 56 30 60 27 79 149 57 58 70 56 69 38 17 15 11 121 11 18 16 82 50 39 37 104 105 286 298 342 345 126 113 238 122 124 126 132 114 128 135 139 140 138 128 129 129 117 111 112 110 109 108 84 93 94 237 97 103 103 102 101 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-520-0	01	1	8902-9001	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	8902-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	8902-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	8902-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	8902-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	8902-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9307-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	8902-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	8902-	●	●
11	RING; BLOCK,5TH & 6TH (A),(B) Z=54	1-33265-290-2	02	1	8902-9406	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9407-		●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9407-		●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	8902-	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	8902-9001	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	8902-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	8902-	●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	8902-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	8902-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	8902-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	8902-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	8902-	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	8902-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	8902-9205	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	02	1	9206-		●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	8902-9205	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	02	1	9206-		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	8902-	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	8902-9111	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-376-3	02	1	9112-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	8902-9205	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-		●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	8902-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	8902-9205	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-		●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	8902-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	8902-	●	●
42	SLEEVE	1-33262-133-2	01	1	8902-	●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-154-4	01	1	8902-9204	●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-178-2	01	1	9205-		●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	8902-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	8902-	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	8902-	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	8902-9205	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	8902-9205	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-		●
57	SLEEVE; REV	1-33262-112-1	01	1	8902-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	8902-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	8902-9001	●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-		●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	8902-9302	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	8902-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-		●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	8902-9001	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-1	01	1	9002-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	8902-	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	8902-9306	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	8902-9306	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	8902-	●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	8902-9203	●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	8902-9205	●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-028-0	01	1	8902-9001	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-021-3	01	1	8902-9001	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-0	01	1	9002-9306		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9307-		●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-021-3	01	1	9002-9306		●
81	GEAR; 7TH,MAIN Z=22	1-33254-001-0	01	1	8902-8909	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	8910-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	8902-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	8902-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	8902-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	8902-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	8902-	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	8902-9001	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	8902-9001	●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	8902-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	8902-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	8902-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	8902-	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	8902-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	8902-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	8902-9001	●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110		●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	8902-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	8902-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	8902-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	8902-	●	●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	8902-9203	●	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	8902-	●	●
114	HUB; CLU,7TH	1-33261-152-1	01	1	8902-9204	●	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9205-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	8902-9205	●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9412-9601		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	8902-9204	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	8902-	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	8902-	●	●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	8902-	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	8902-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	8902-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	8902-	●	●
132	SHAFT; REV	1-33351-016-1	01	1	8902-	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	8902-9001	●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	8902-	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	8902-9205	●	●
140	BOLT; LK PIECE M10X16	9-02351-016-0	01	1	8902-9002	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9003-9205		●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	8902-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	8902-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	8902-	●	●
238	INSERT	1-33263-025-2	03	1	8902-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	8902-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	8902-	●	●
342	FLANGE; OUTPUT	1-37243-170-2	01	1	8902-9001	●
342	FLANGE; OUTPUT	1-37243-171-4	01	1	9002-		●
342	FLANGE; OUTPUT	1-37243-108-1	01	1	8712-9001			●	●
342	FLANGE; OUTPUT	1-37243-202-0	01	1	9002-			●
342	FLANGE; OUTPUT	1-37243-205-0	01	1	9002-					●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	8902-9001	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9002-9412		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-		●

342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
342	FLANGE; OUTPUT	1-37243-170-2	01	1	8902-9001	●
342	FLANGE; OUTPUT	1-37243-171-4	01	1	9002-		●
342	FLANGE; OUTPUT	1-37243-108-1	01	1	8712-9001			●	●
342	FLANGE; OUTPUT	1-37243-202-0	01	1	9002-			●
342	FLANGE; OUTPUT	1-37243-205-0	01	1	9002-					●
