◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#49593) — 28 parça

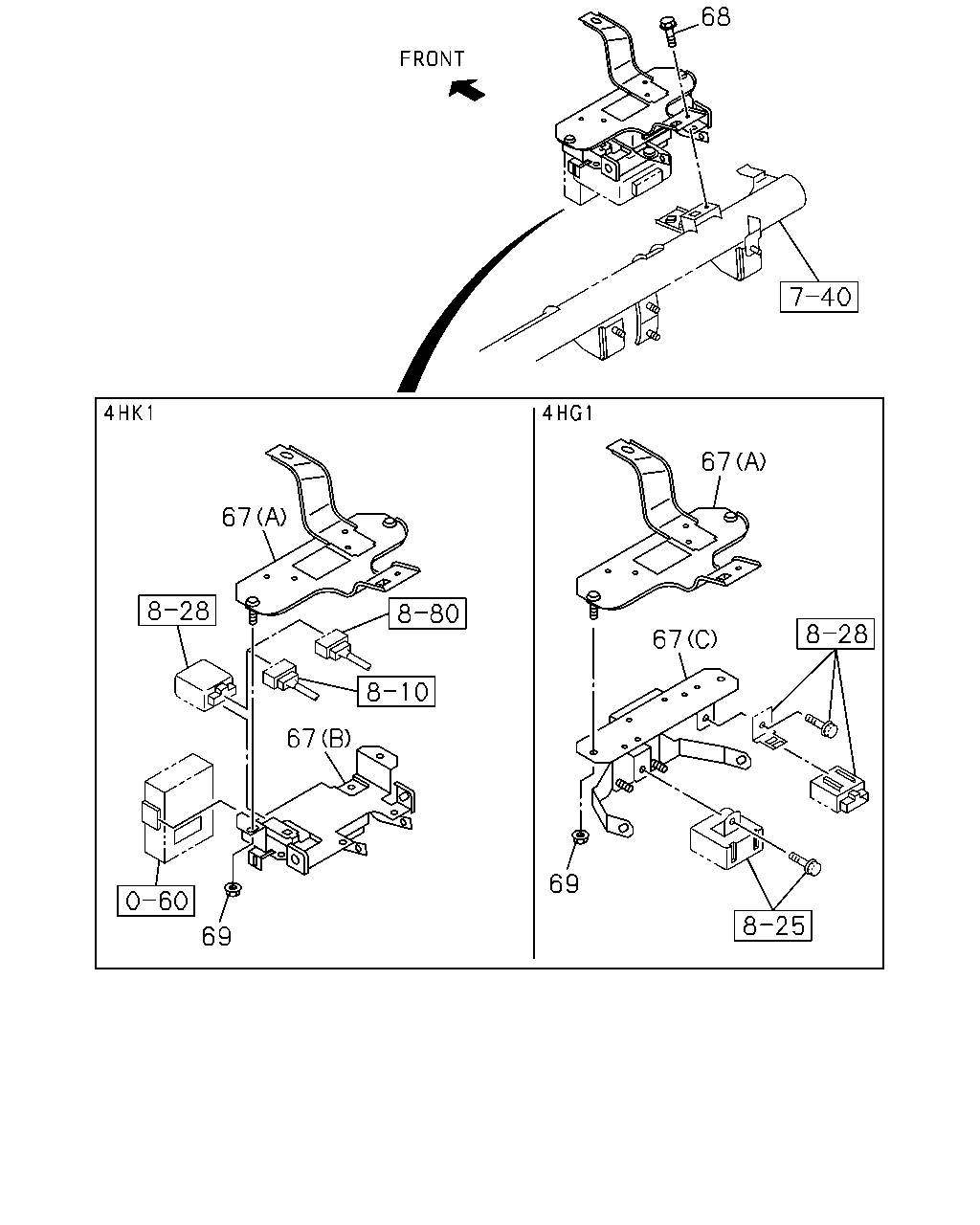

çizim 176464
68 67 67 69 67 67 69
BalonParca AdiParca NoAdetTipApplied Date
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98022-206-2 01 1 1012-1111
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98203-057-0 01 1 1112-1207
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98217-377-0 01 1 1208-1212
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98237-555-0 01 1 1301-1404
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98217-377-0 01 1 1405-1405
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-377-0 01 1 1406-1406
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98217-377-0 01 1 1407-
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C) 		8-98110-224-1 01 1 1012-1212
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C) 		8-98232-506-0 01 1 1301-1301
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C) 		8-98110-224-1 01 1 1302-1405
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98110-224-1 01 1 1406-
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 1012-
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1012-
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-

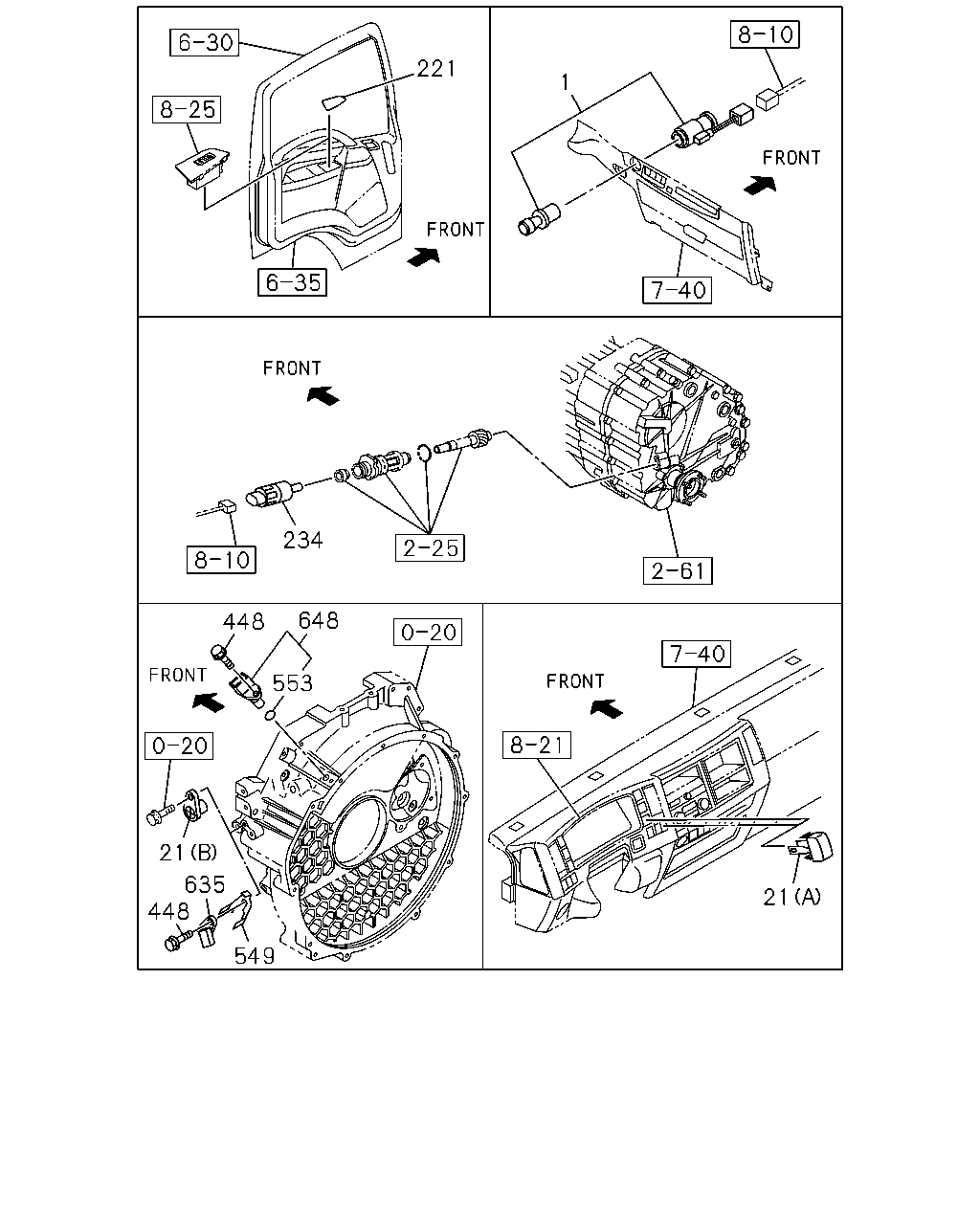

çizim 176469
221 1 234 448 648 553 21 635 448 549 21
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1012-
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 09.748 (B) 		8-97101-974-0 01 1 1211-
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 02 1 1012-1511
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1512-
21 09.744 COVER; HOLE
EXC. AUTO CRUISE CONT<K30> 16.081 (A) 		8-98025-954-1 01 1 1512-
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1012-
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1012-
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1012-1405
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1406-
448 02.500 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012-
549 02.510 SHEET
4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 1012-
553 02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012-
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 1012-
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
