8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#49592) — 91 parça
çizim 176451
39
BalonParca AdiParca NoAdetTipApplied Date
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1012-
çizim 176463
151 154 315
BalonParca AdiParca NoAdetTipApplied Date
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-

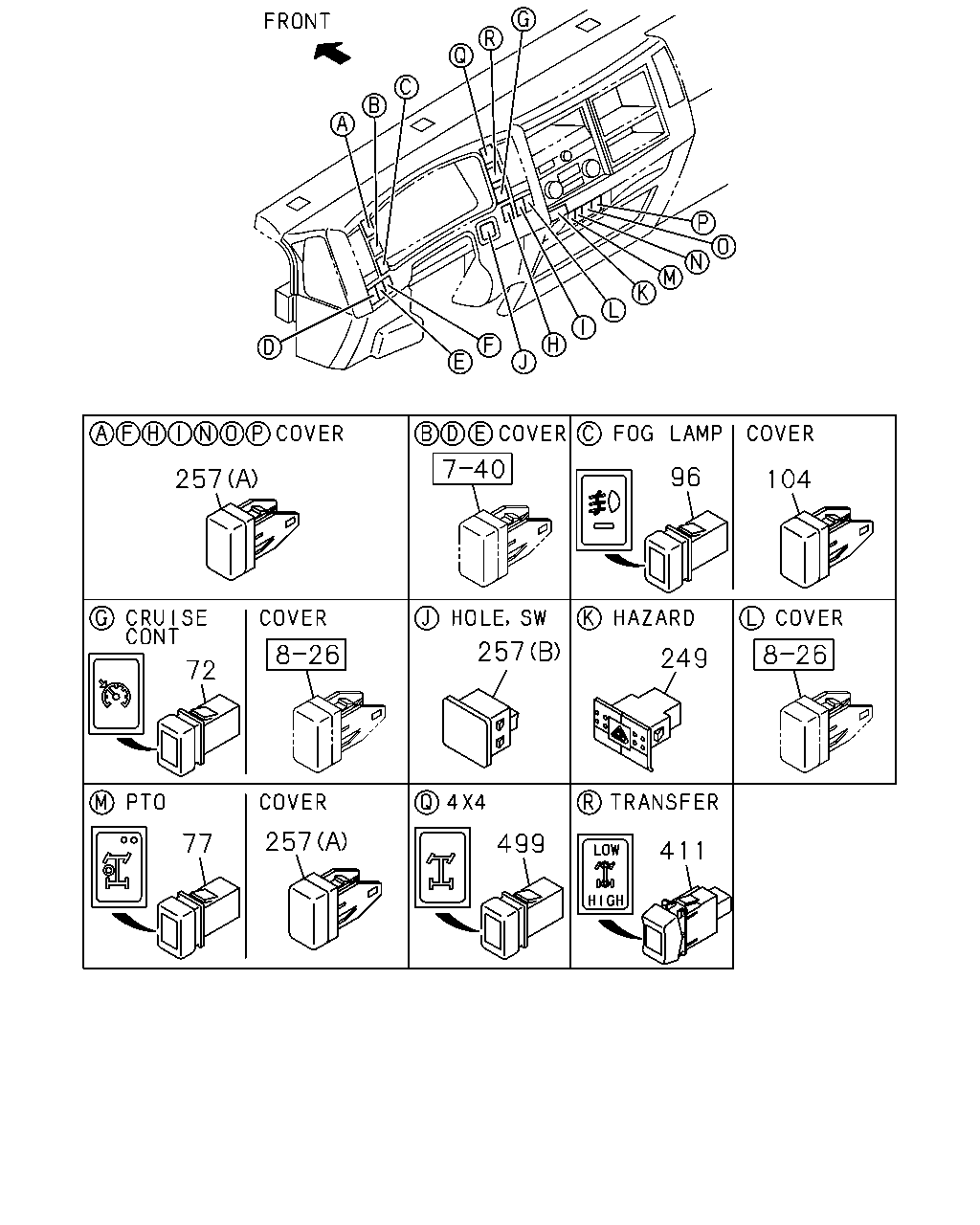

çizim 176468
257 72 77 257 257 499 411 249 96 104
BalonParca AdiParca NoAdetTipApplied Date
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-98011-344-1 01 1 1512-
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-4 01 1 1012-
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1012-
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1012-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1012-
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ) (B) 		8-98029-914-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012-
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1012-
411 09.755 SWITCH; TRANSFER 8-97613-967-1 01 1 1012-
499 09.755 SWITCH; 4X4 8-97386-914-3 01 1 1012-

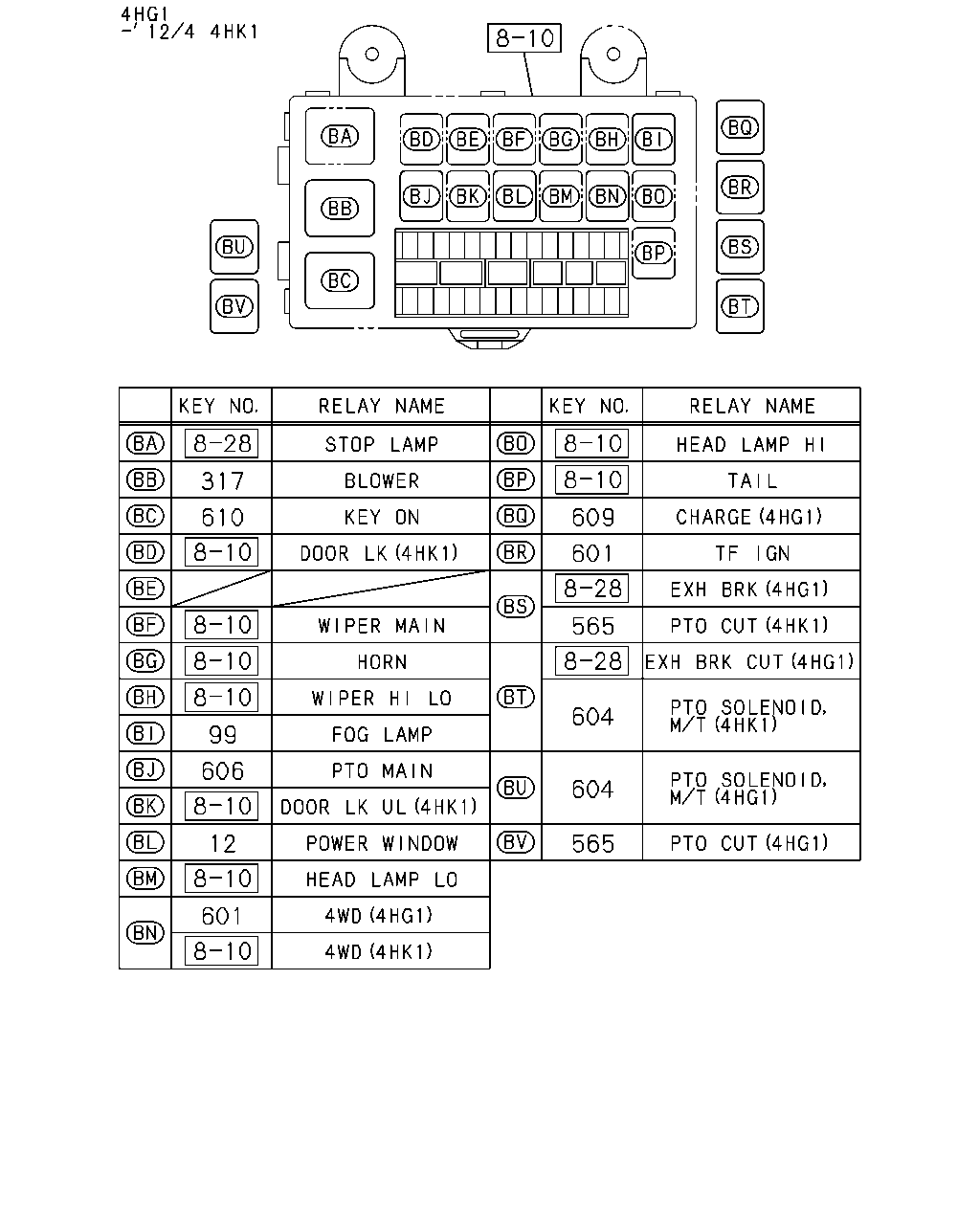

çizim 176479
317 610 609 601 565 604 99 606 604 12 565 601
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
601 02.510 RELAY; 4WD
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
601 02.510 RELAY; 4WD
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1012-
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-

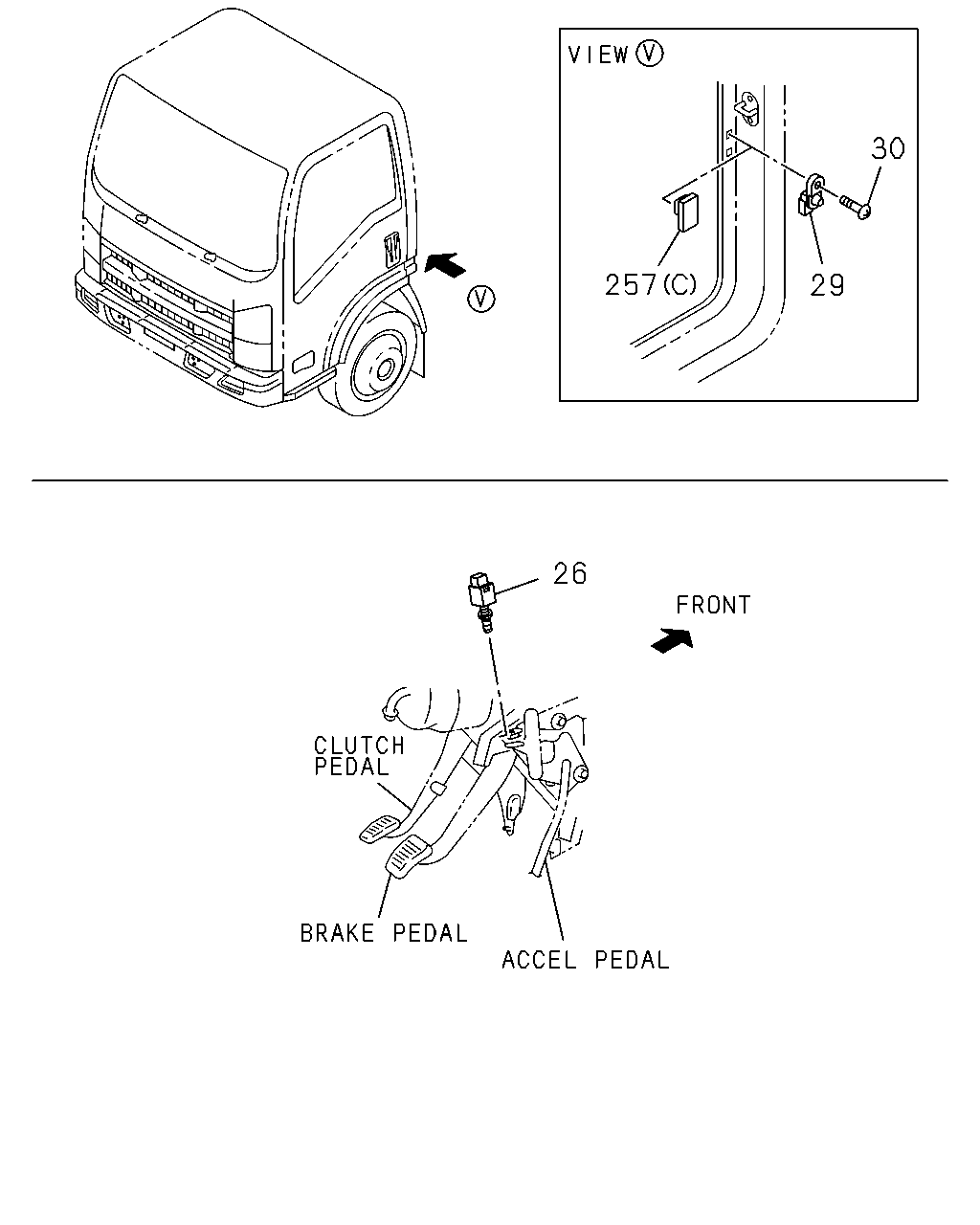

çizim 176484
30 257 29 26
BalonParca AdiParca NoAdetTipApplied Date
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1012-1012
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1012-
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1012-
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ) (B) 		8-98029-914-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012-
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1012-

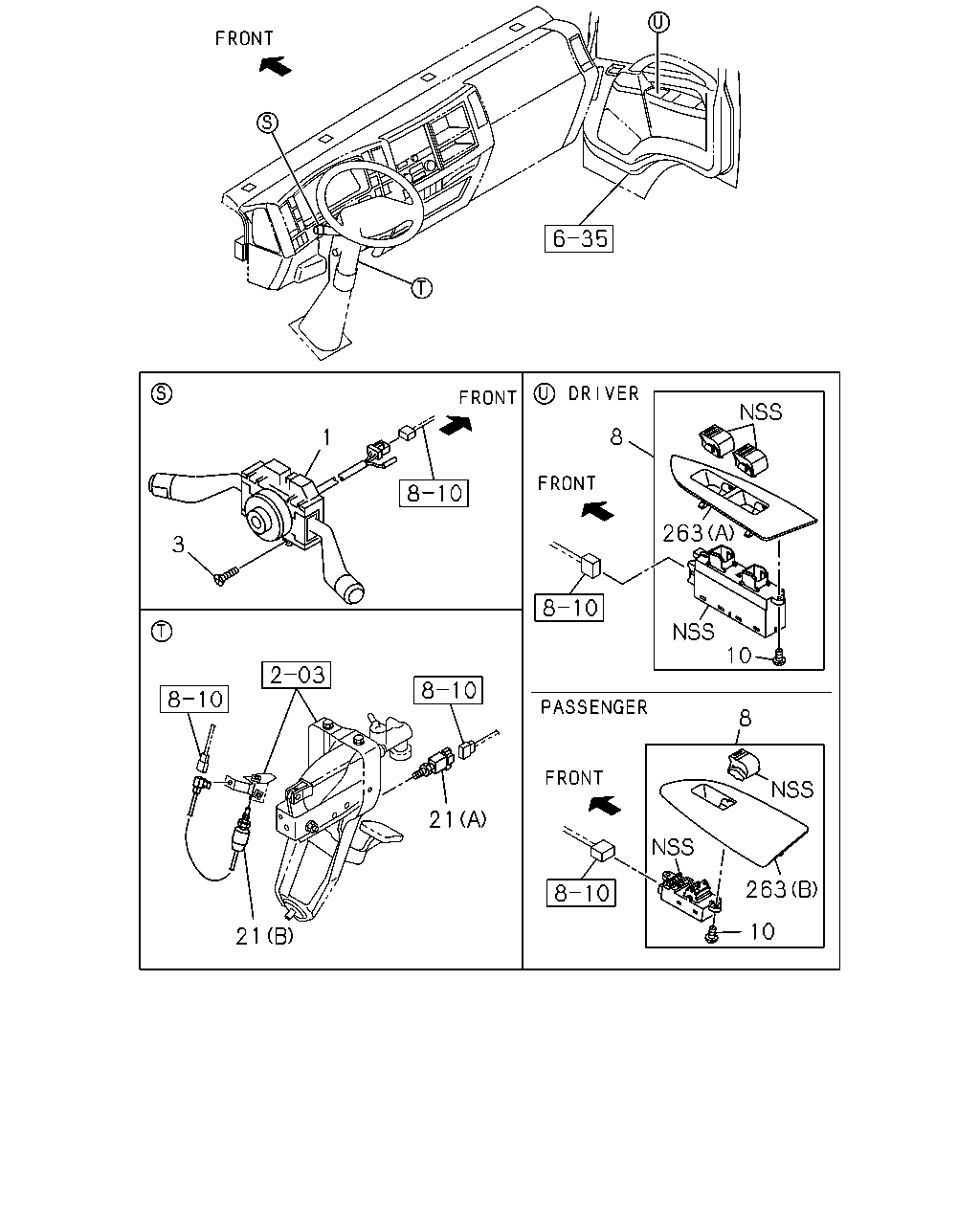

çizim 176505
8 1 263 3 10 8 21 263 10 21
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98333-396-0 01 1 1512-
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) AUTO CRUISE CONT<K30> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13> 		8-98333-395-0 01 1 1512-
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1108-1310
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1311-1509
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1108-1310
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1311-1509
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98070-010-1 01 1 1012-1310
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-749-0 01 1 1311-1509
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-749-0 01 1 1510-1511
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AUTO CRUISE CONT<K30> 		8-98243-749-0 01 1 1512-
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 1012-1310
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1311-1509
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1510-1511
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 		8-98243-748-0 01 1 1512-
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98114-334-1 01 1 1012-1310
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-760-0 01 1 1311-1509
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-760-0 01 1 1510-1511
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AUTO CRUISE CONT<K30> 		8-98243-760-0 01 1 1512-
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98114-333-1 01 1 1012-1310
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1311-1509
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1510-1511
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 		8-98243-759-0 01 1 1512-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1012-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1012-1509
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-751-0 01 1 1510-
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 1012-1509
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-418-0 01 1 1510-
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1012-
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 (A) 		8-94109-863-0 01 1 1012-1509
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 (A) 		8-94109-863-0 01 1 1510-
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-97358-248-0 01 1 1012-1509
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-97358-248-0 01 1 1510-
21 02.575 SWITCH; CLU
(B) 		8-97620-841-0 01 1 1012-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1012-
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1012-

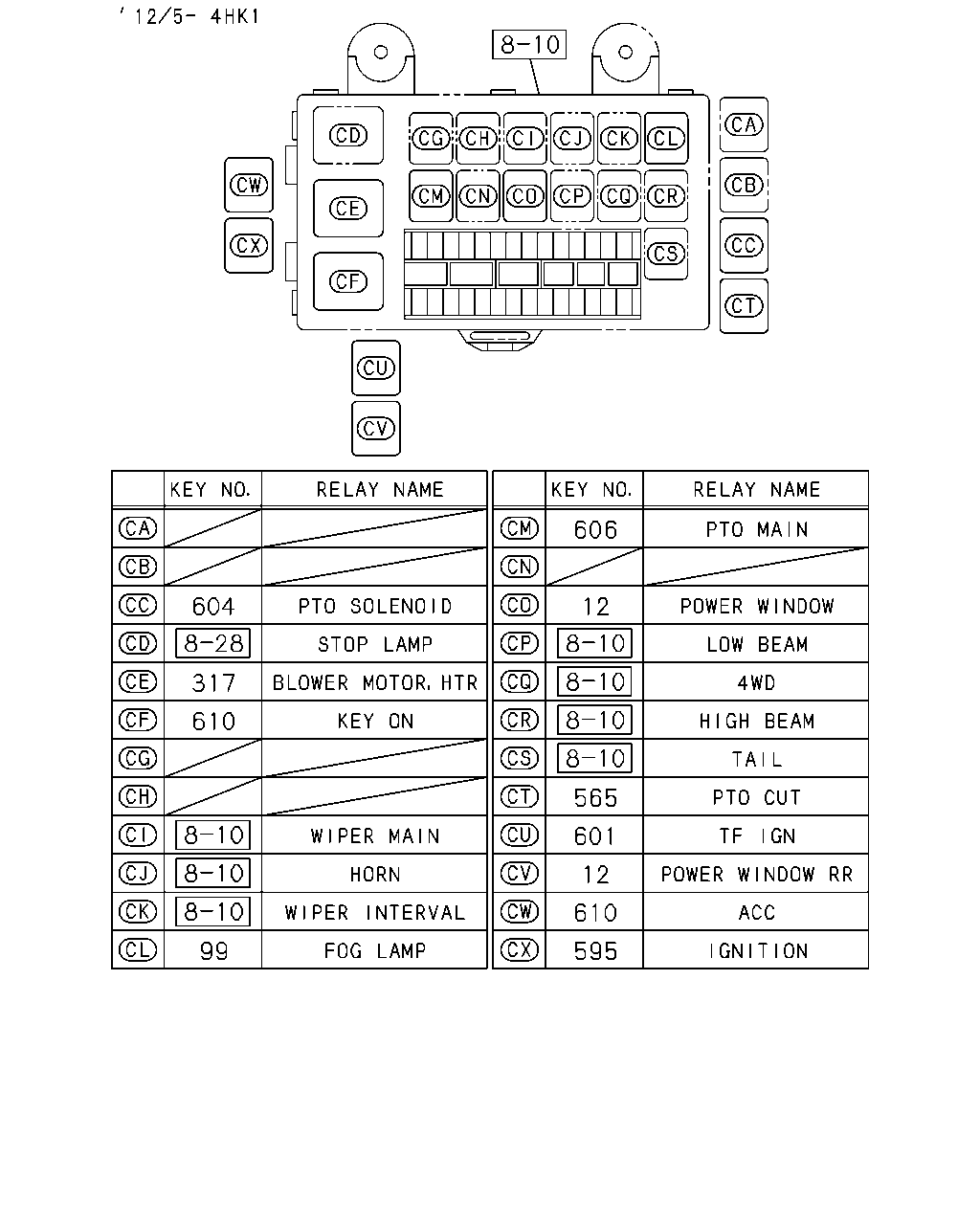

çizim 283394
606 604 12 317 610 565 601 12 610 99 595
BalonParca AdiParca NoAdetTipApplied Date
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
601 02.510 RELAY; 4WD
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
601 02.510 RELAY; 4WD
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1012-
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-
