Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#49590) — 27 parça

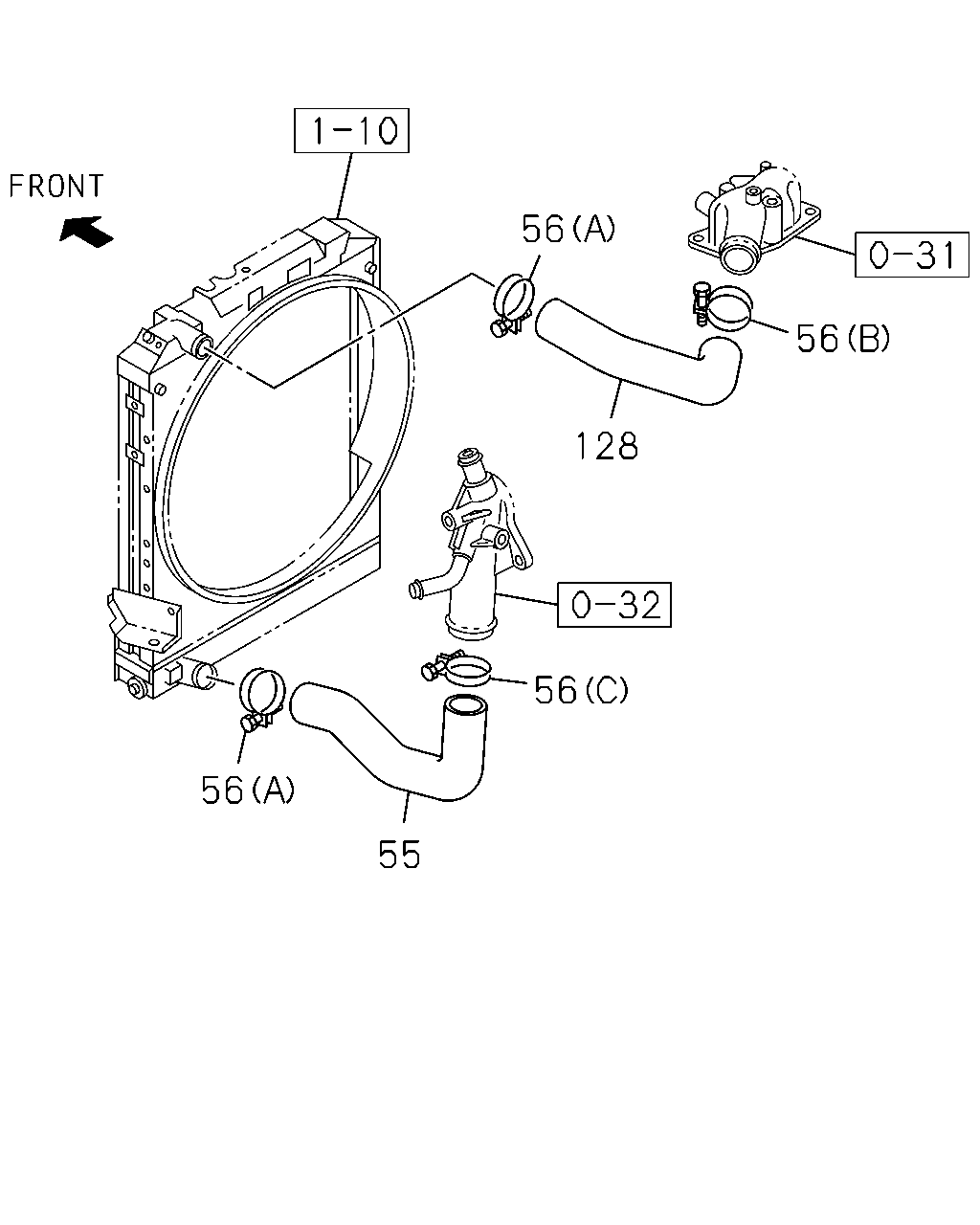

56 56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ)	8-97387-525-0	01	1	1012-
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH)	8-98095-579-0	01	1	1012-
56	01.166 CLIP; WATER HOSE,RAD 00.413 (B) ID=52	1-09704-057-0	01	1	1012-
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1012-
56	01.166 CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1012-
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-97387-524-0	01	1	1012-
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH)	8-98095-578-0	01	1	1012-

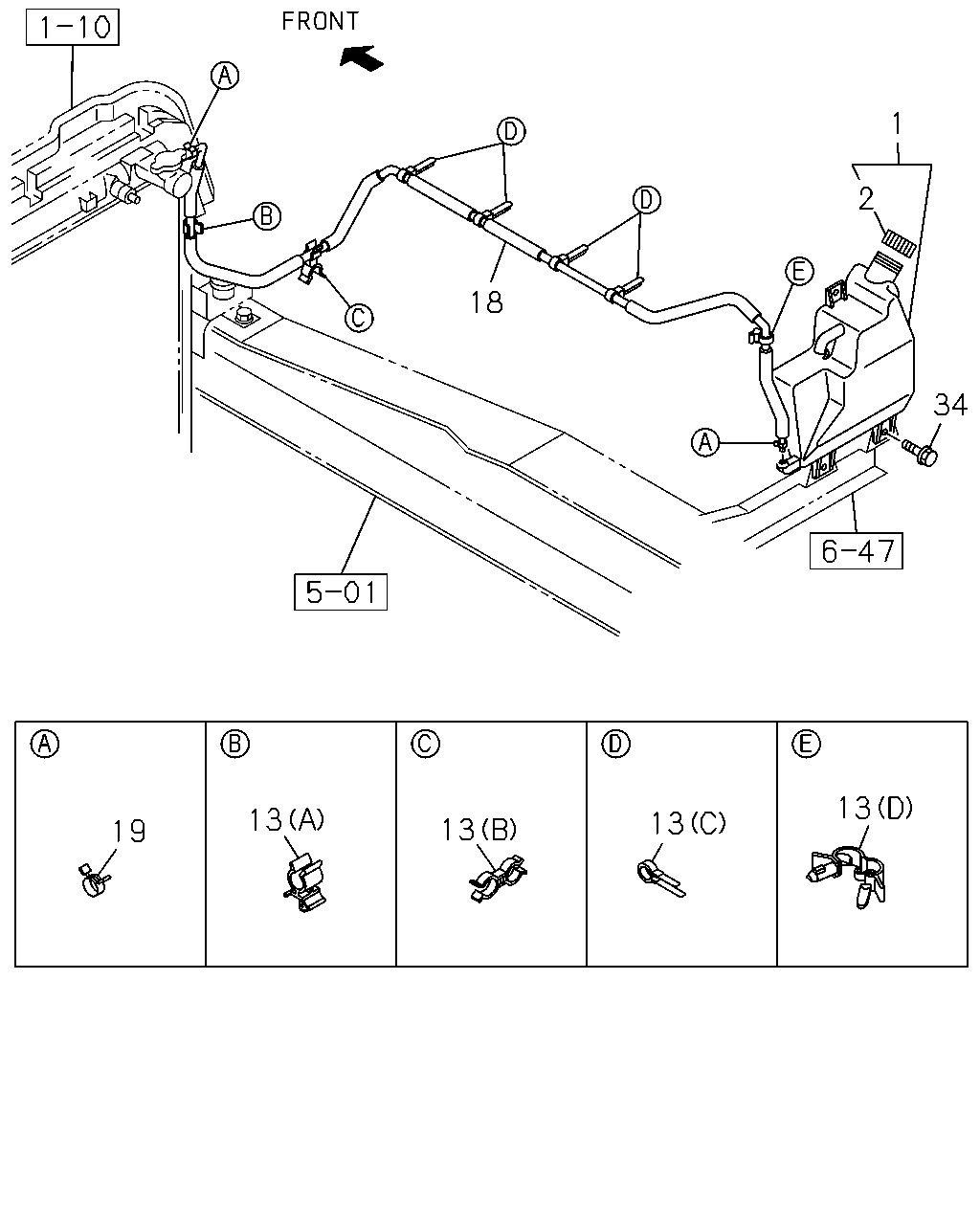

1 2 18 34 13 13 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1012-
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (A) ID=12	8-98029-256-0	01	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1012-
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ)	8-98049-557-0	01	1	1012-
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH) L=1490	8-98095-673-0	01	1	1012-
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-

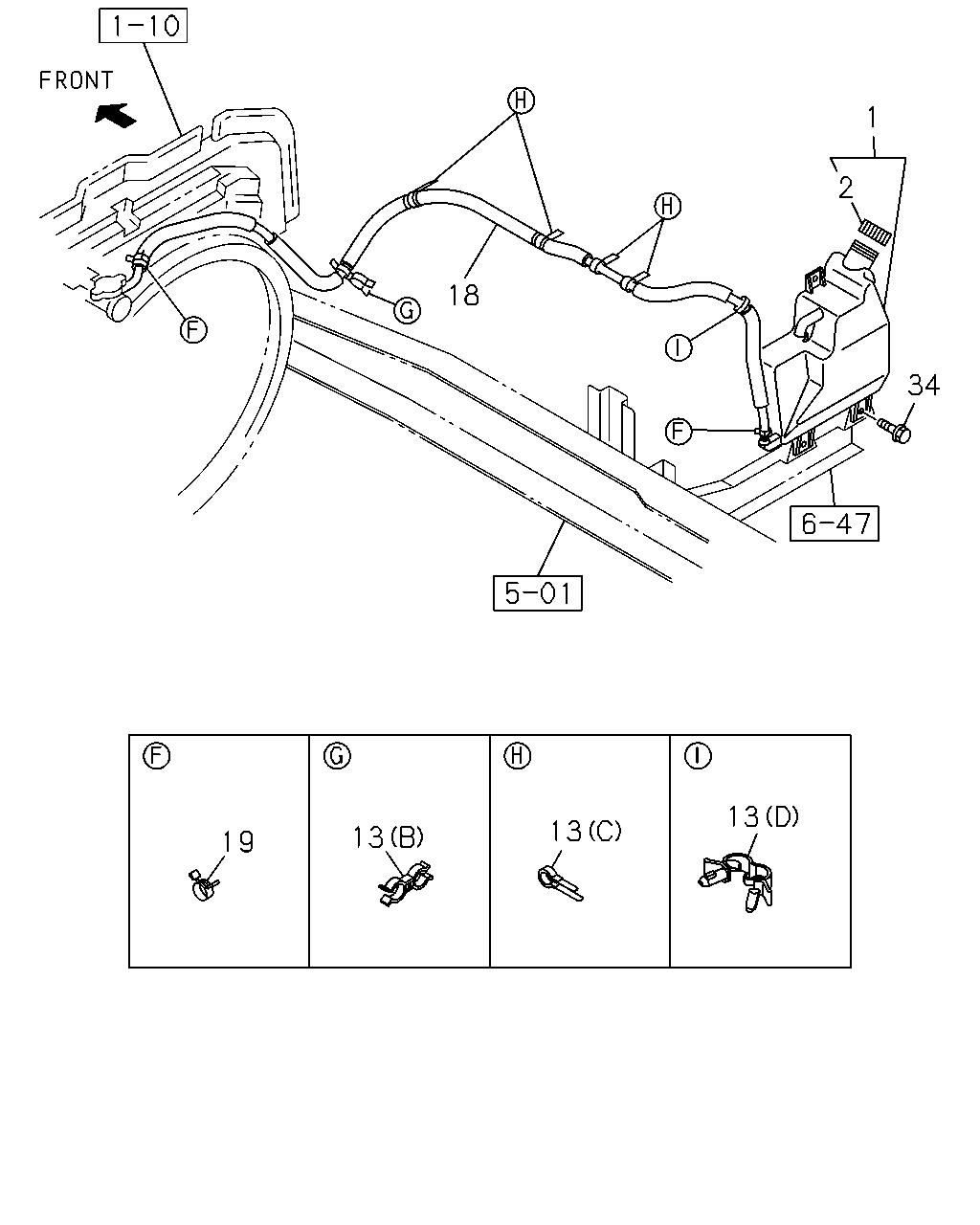

1 2 18 34 13 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1012-
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (A) ID=12	8-98029-256-0	01	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1012-
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1012-
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ)	8-98049-557-0	01	1	1012-
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH) L=1490	8-98095-673-0	01	1	1012-
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-
