◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶

1-10 — RADIATOR (#49589) — 96 parça

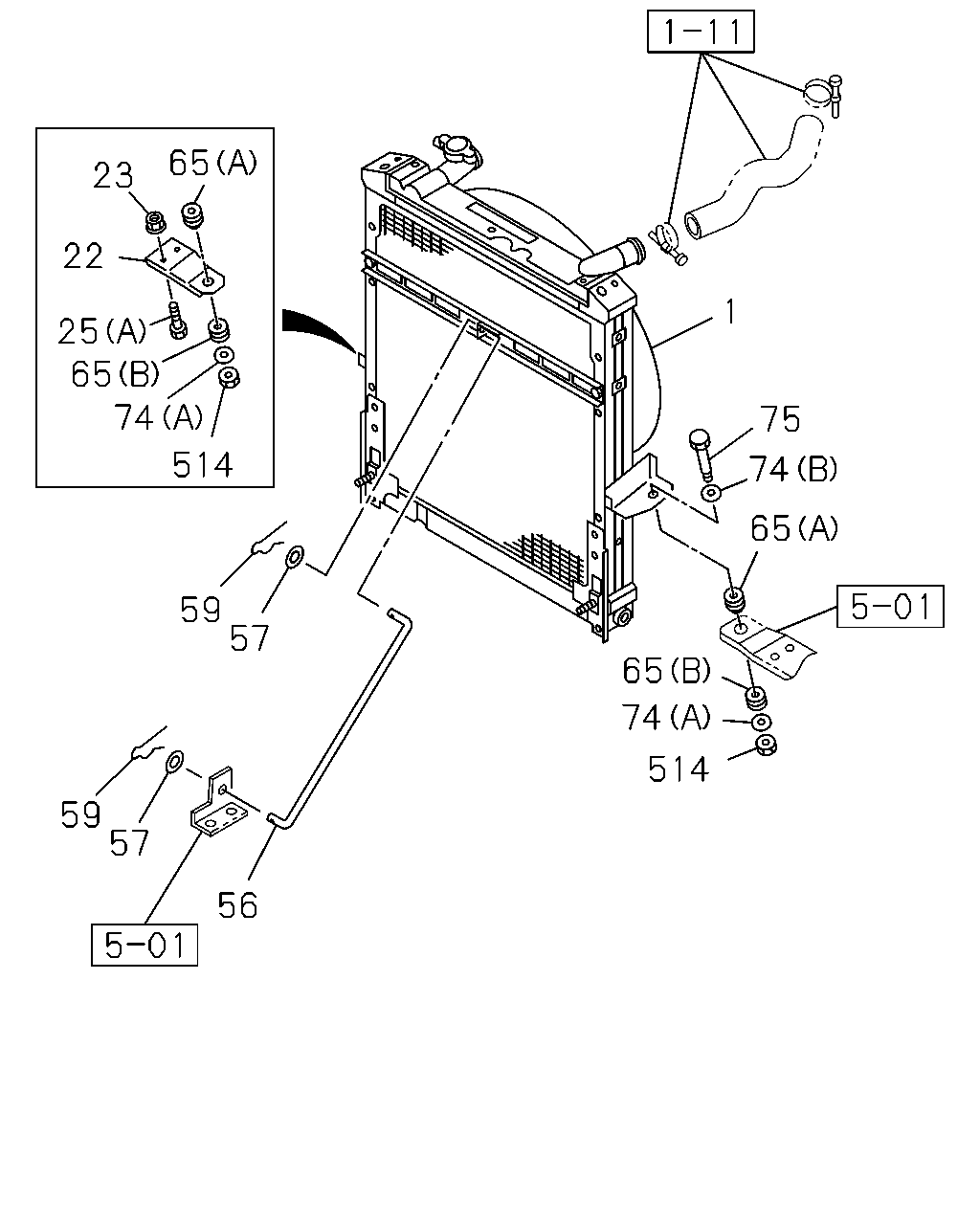

65 23 22 1 25 65 74 75 514 74 65 59 57 65 74 514 59 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G>	8-98245-667-1	01	1	1512-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98149-358-0	01	1	1012-1308
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98245-666-1	01	1	1309-1511
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. COUNTRY ALGERIA<D2G>	8-98245-666-1	01	1	1512-
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-916-0	01	1	1012-1201
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-588-2	01	1	1202-
22	01.270 BRACKET; RAD MTG	8-97074-093-0	01	1	1012-
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1012-
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98101-270-0	01	1	1012-
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-
74	01.270 WASHER; PL,CUSHION RUBBER (B) ID=10.5	0-91610-710-0	01	1	1012-
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	1012-
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-

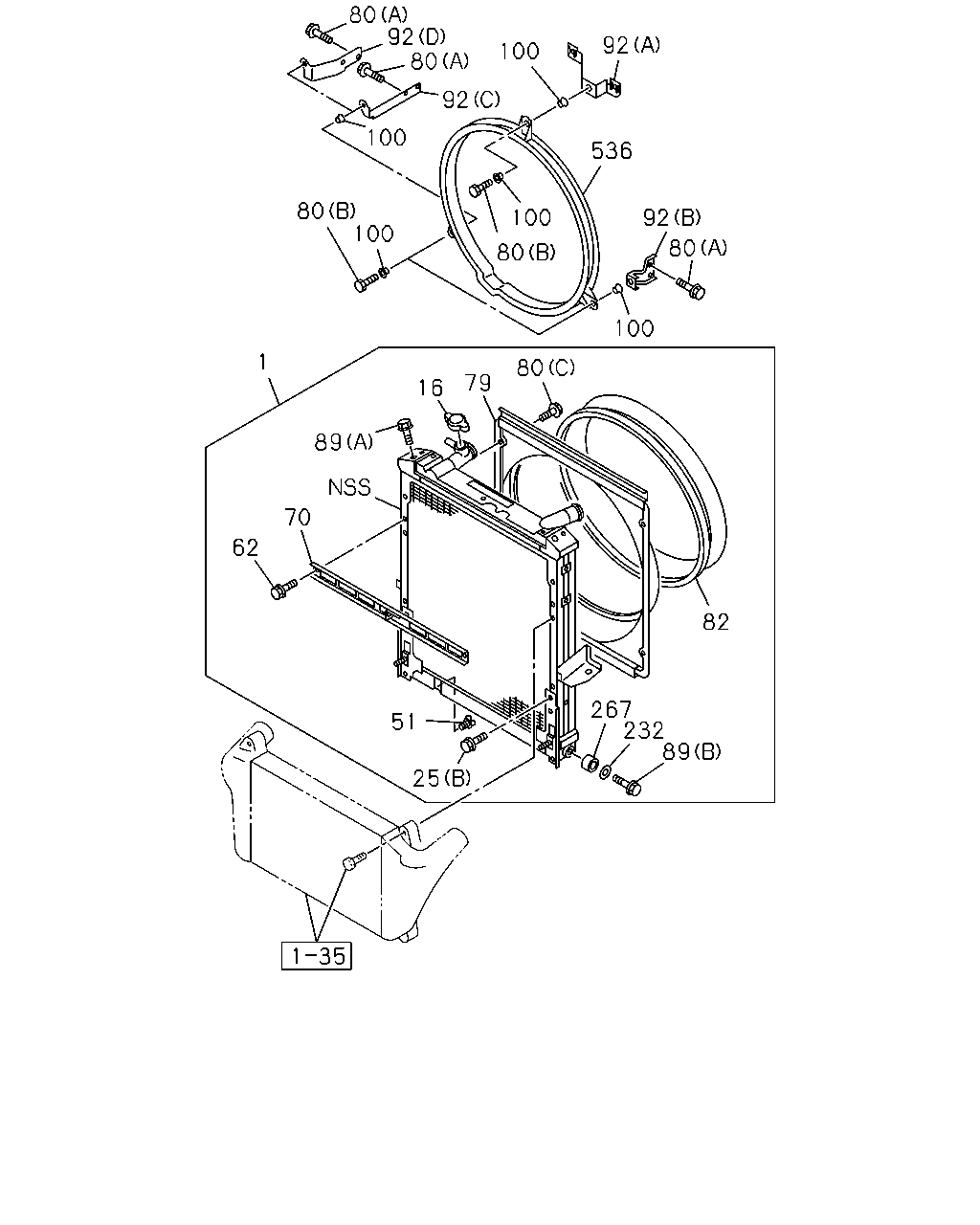

80 92 80 92 100 92 100 536 80 100 92 100 80 80 100 1 80 79 16 89 70 62 82 267 232 89 51 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G>	8-98245-667-1	01	1	1512-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98149-358-0	01	1	1012-1308
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98245-666-1	01	1	1309-1511
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. COUNTRY ALGERIA<D2G>	8-98245-666-1	01	1	1512-
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-916-0	01	1	1012-1201
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-588-2	01	1	1202-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ)	8-97239-187-0	01	1	1012-1511
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) EXC. COUNTRY ALGERIA<D2G>	8-97239-187-0	01	1	1512-
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-98096-226-0	01	1	1012-1511
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-98096-226-0	01	1	1512-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G>	8-98096-226-0	01	1	1512-
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1012-
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-
70	01.271 STAY; RAD	8-98034-644-0	01	1	1012-
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98004-326-0	01	1	1012-1308
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98245-715-0	01	1	1309-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1109-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1109-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1109-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-1104
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (C) M6X12	8-98039-672-0	02	1	1012-1401
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (C) M6X12	8-98039-672-0	04	1	1402-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1012-1104
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-1104
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98006-478-0	01	1	1012-
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	1109-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1109-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1109-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	1012-1104
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1012-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1012-1104
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1012-1104
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ)	1-09337-027-0	06	1	1109-
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ)	1-09337-027-0	06	1	1012-1104
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1012-1308
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	8-98141-232-0	02	1	1309-
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1012-
536	01.020 SHROUD; FAN 4HK1-TCN ENG(RDQ) 01.277	8-97350-995-0	01	1	1109-
536	01.020 SHROUD; FAN 4HK1-TCN ENG(RDQ) 01.277	8-97350-995-0	01	1	1012-1104

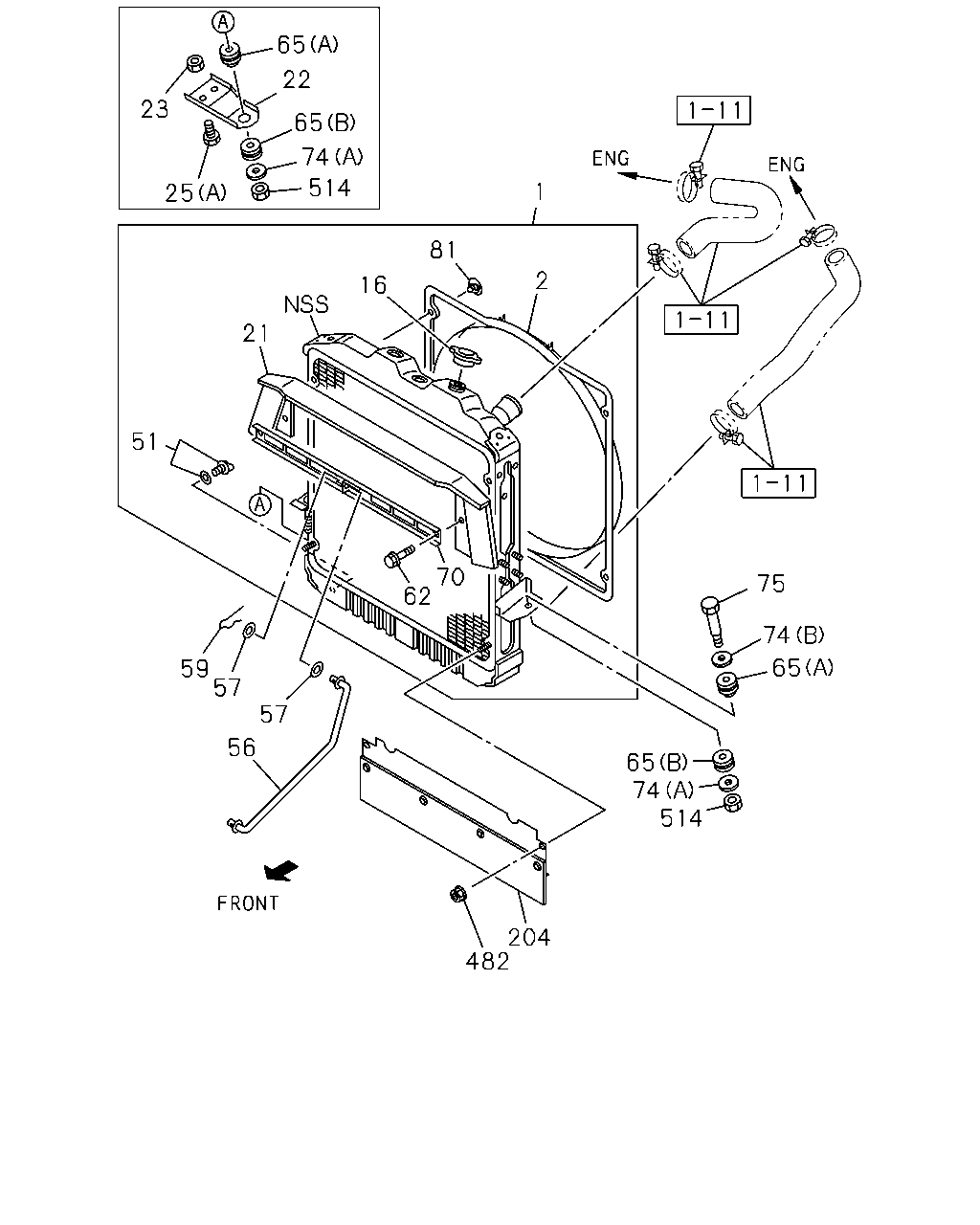

65 22 23 65 74 514 1 25 81 2 16 21 51 70 62 75 74 65 59 57 57 56 65 74 514 204 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G>	8-98245-667-1	01	1	1512-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98149-358-0	01	1	1012-1308
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98245-666-1	01	1	1309-1511
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) EXC. COUNTRY ALGERIA<D2G>	8-98245-666-1	01	1	1512-
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-916-0	01	1	1012-1201
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-588-2	01	1	1202-
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-98095-606-0	01	1	1012-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ)	8-97239-187-0	01	1	1012-1511
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) EXC. COUNTRY ALGERIA<D2G>	8-97239-187-0	01	1	1512-
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-98096-226-0	01	1	1012-1511
16	01.203 CAP; RAD 4HG1 ENG(RJH)	8-98096-226-0	01	1	1512-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) COUNTRY ALGERIA<D2G>	8-98096-226-0	01	1	1512-
21	01.276 SEAL; RAD 4HG1 ENG(RJH)	8-98097-689-0	01	1	1012-1201
22	01.270 BRACKET; RAD MTG	8-97074-093-0	01	1	1012-
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	1012-
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98101-270-0	01	1	1012-
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-
70	01.271 STAY; RAD	8-98034-644-0	01	1	1012-
74	01.270 WASHER; PL,CUSHION RUBBER (B) ID=10.5	0-91610-710-0	01	1	1012-
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	1012-
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	02	1	1012-
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH)	8-97387-572-1	01	1	1012-1112
482	01.277 NUT; AIR GUIDE 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
