Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

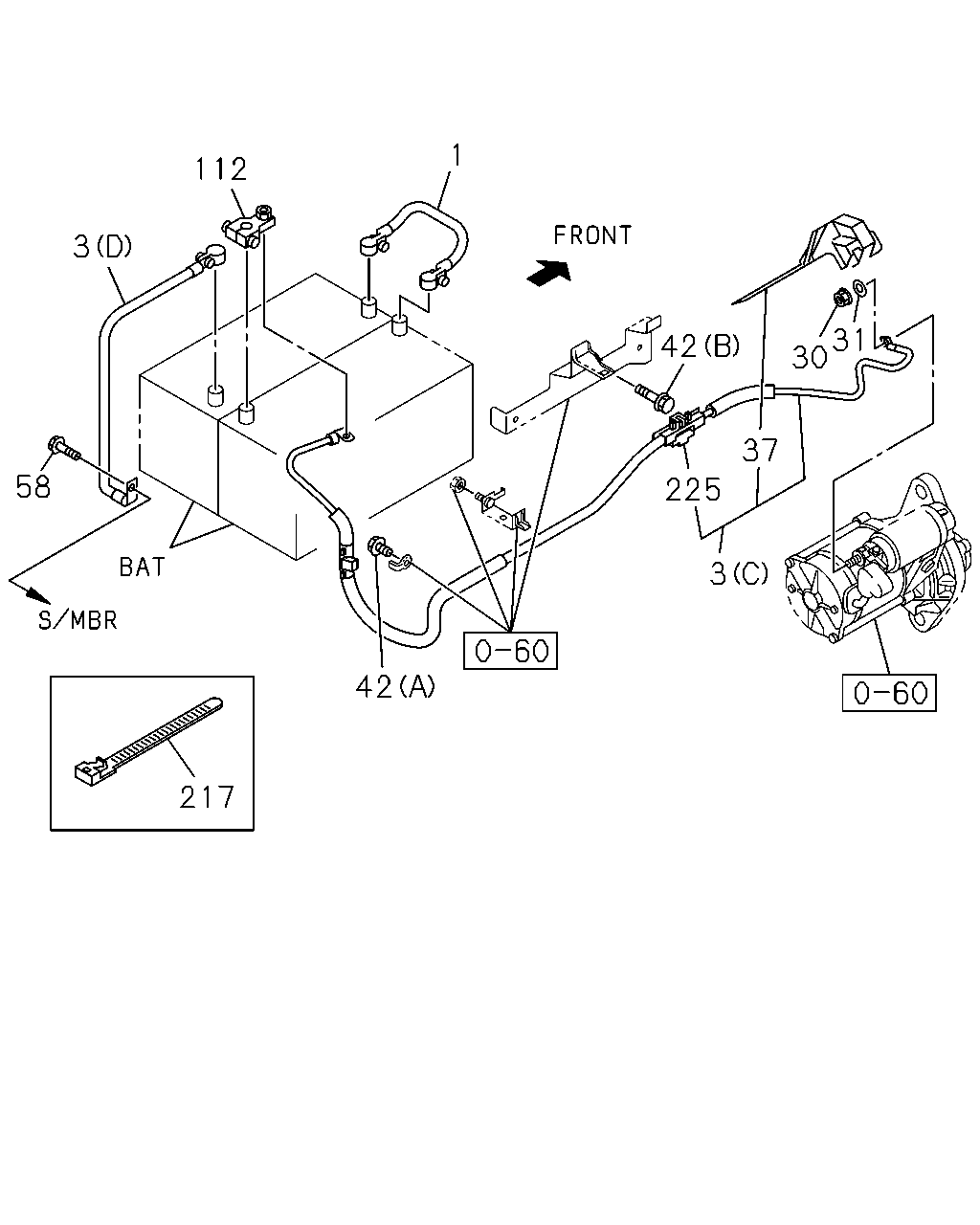

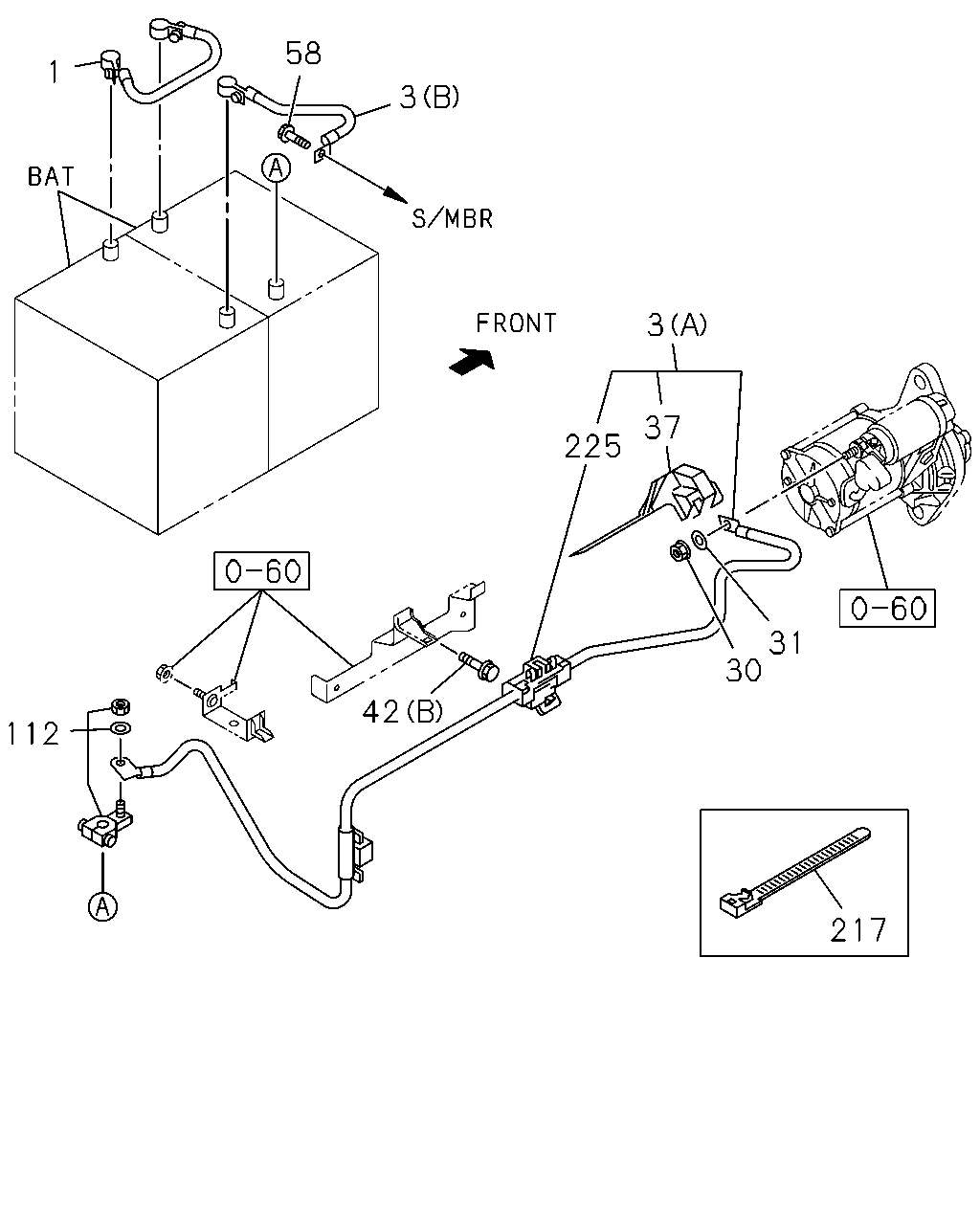

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#49577) — 58 parça

1 58 3 3 225 37 31 30 112 42 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1012-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EURO1 SPECIFICATION(NT1) EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1302-1409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98294-695-0	01	1	1410-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) BATTERY 115E41L<8MA> (C)	8-98137-187-1	01	1	1012-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) BATTERY 115E41L<8MA> (C)	8-98294-738-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. EURO1 SPECIFICATION(NT1),BATTERY 115E41L<8MA> (A)	8-98137-179-1	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. BATTERY 115E41L<8MA> (A)	8-98137-179-1	01	1	1302-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. BATTERY 115E41L<8MA> (A)	8-98294-737-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98056-339-1	01	1	1012-1203	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98201-105-0	01	1	1204-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98070-230-2	01	1	1012-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98294-721-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. EURO1 SPECIFICATION(NT1),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ,BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1302-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ,BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (B) L=200	8-98056-337-1	01	1	1012-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1012-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1012-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1012-1301	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1302-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	1012-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1012-	●	●
217	02.343 CLIP; BAND,CABLE IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140	5-09707-031-1	01	1	1101-		●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1012-1301	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1302-1409	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●

112 1 3 58 217 42 225 3 37 30 31 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1012-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EURO1 SPECIFICATION(NT1) EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98137-178-1	01	1	1302-1409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (A)	8-98294-695-0	01	1	1410-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) BATTERY 115E41L<8MA> (C)	8-98137-187-1	01	1	1012-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) BATTERY 115E41L<8MA> (C)	8-98294-738-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. EURO1 SPECIFICATION(NT1),BATTERY 115E41L<8MA> (A)	8-98137-179-1	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. BATTERY 115E41L<8MA> (A)	8-98137-179-1	01	1	1302-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. BATTERY 115E41L<8MA> (A)	8-98294-737-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98056-339-1	01	1	1012-1203	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> (D) L=400	8-98201-105-0	01	1	1204-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98070-230-2	01	1	1012-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98294-721-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. EURO1 SPECIFICATION(NT1),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1012-1301	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ,BATTERY 115E41L<8MA> (A)	8-98067-966-4	01	1	1302-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ,BATTERY 115E41L<8MA> (A)	8-98294-718-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41L<8MA> (B) L=200	8-98056-337-1	01	1	1012-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1012-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1012-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1012-1301	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1302-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	1012-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1012-	●	●
217	02.343 CLIP; BAND,CABLE IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140	5-09707-031-1	01	1	1101-		●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1012-1301	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1302-1409	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
