◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51302 - NPS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#49568) — 190 parça

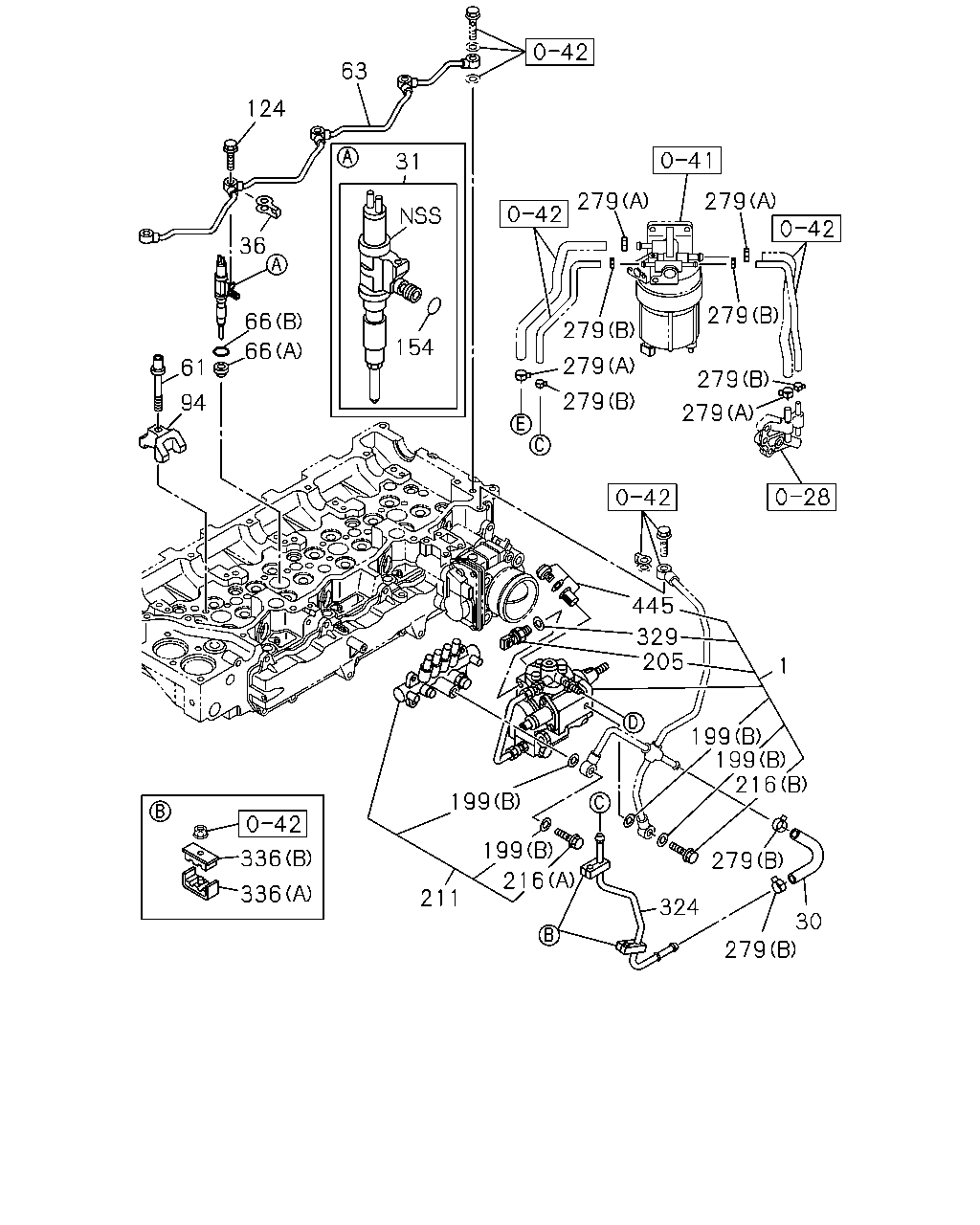

çizim 176547
279 279 279 279 279 279 279 279 31 154 63 124 36 61 66 94 66 445 329 205 1 199 199 216 279 30 279 324 216 199 199 211 336 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-101-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1012- ●
30 03.163 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 1012- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 1012-1312 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) 		8-94326-439-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1012- ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 1012-1106 ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1012- ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 06 1 1012- ●
324 03.330 PIPE; FUEL RETURN 8-98036-173-0 01 1 1012- ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1201 ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1012- ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1012- ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ●
çizim 176548
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 1012- ●
32 03.332 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 1012- ●
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 1012- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 1012- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 8-94329-555-0 04 1 1012- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 1012- ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 1012- ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.10 		8-97027-432-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.20 		8-97027-433-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.30 		8-97027-434-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.40 		8-97027-435-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.50 		8-97027-436-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.52 		8-97027-437-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.54 		8-97027-438-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.56 		8-97027-439-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.58 		8-97027-440-0 AR 1 1012- ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 1012- ●

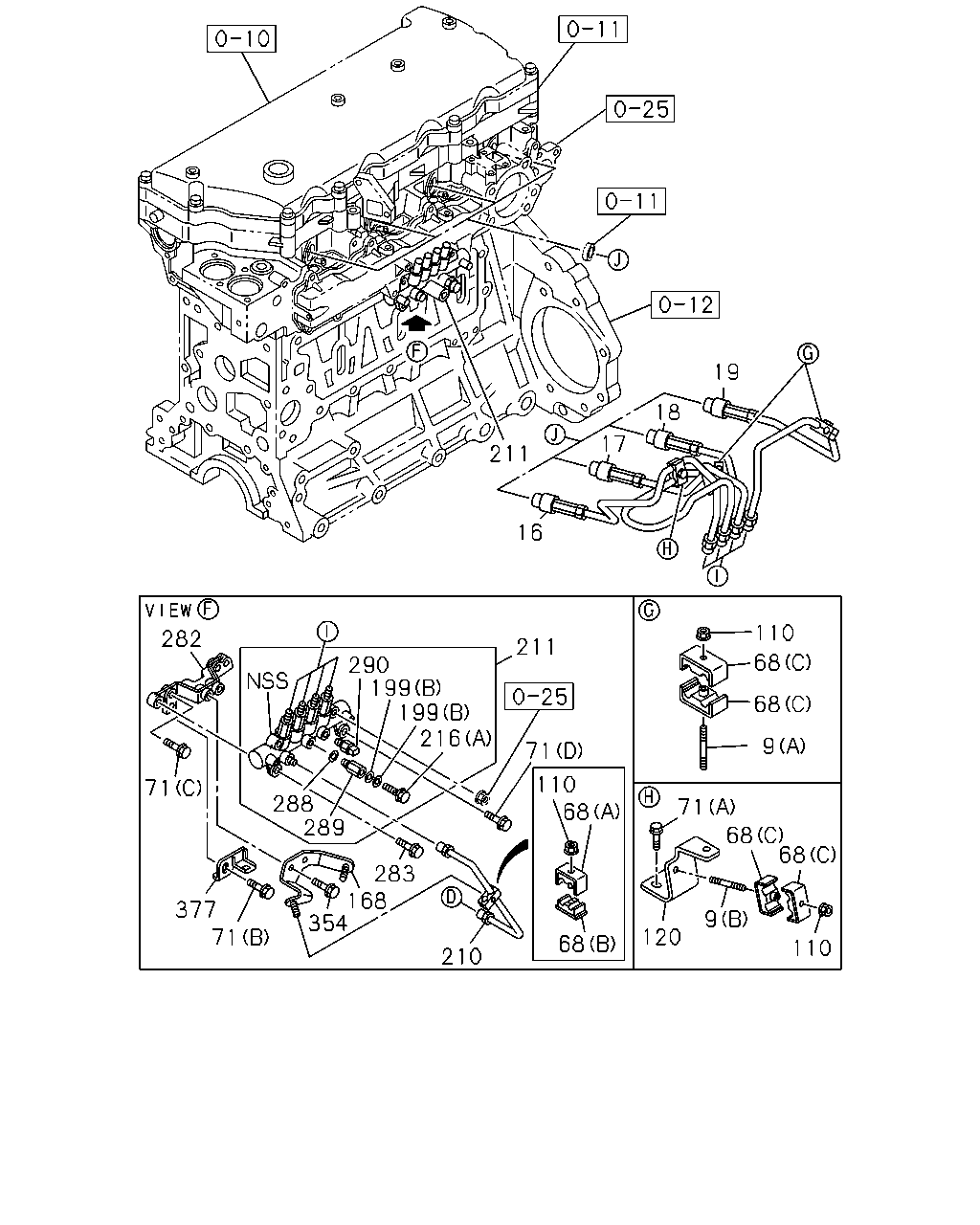

çizim 176549
19 211 18 17 16 110 282 211 68 290 199 199 216 68 9 71 110 68 71 288 289 71 68 68 283 168 354 377 71 9 120 68 110 210
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1012- ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
71 03.162 BOLT; BRKT
EURO3 SPECIFICATION(NT3) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1211- ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1012- ●
168 03.890 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1012- ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 1012- ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ●
282 03.163 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ●
283 03.330 BOLT; COMMON RAIL
03.275 M8X25 FLANGE 		0-28050-825-0 01 1 1012- ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1012- ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
377 03.332 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3) 		8-97310-438-1 02 1 1211- ●
377 03.332 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) 		8-97310-438-1 01 1 1012- ●

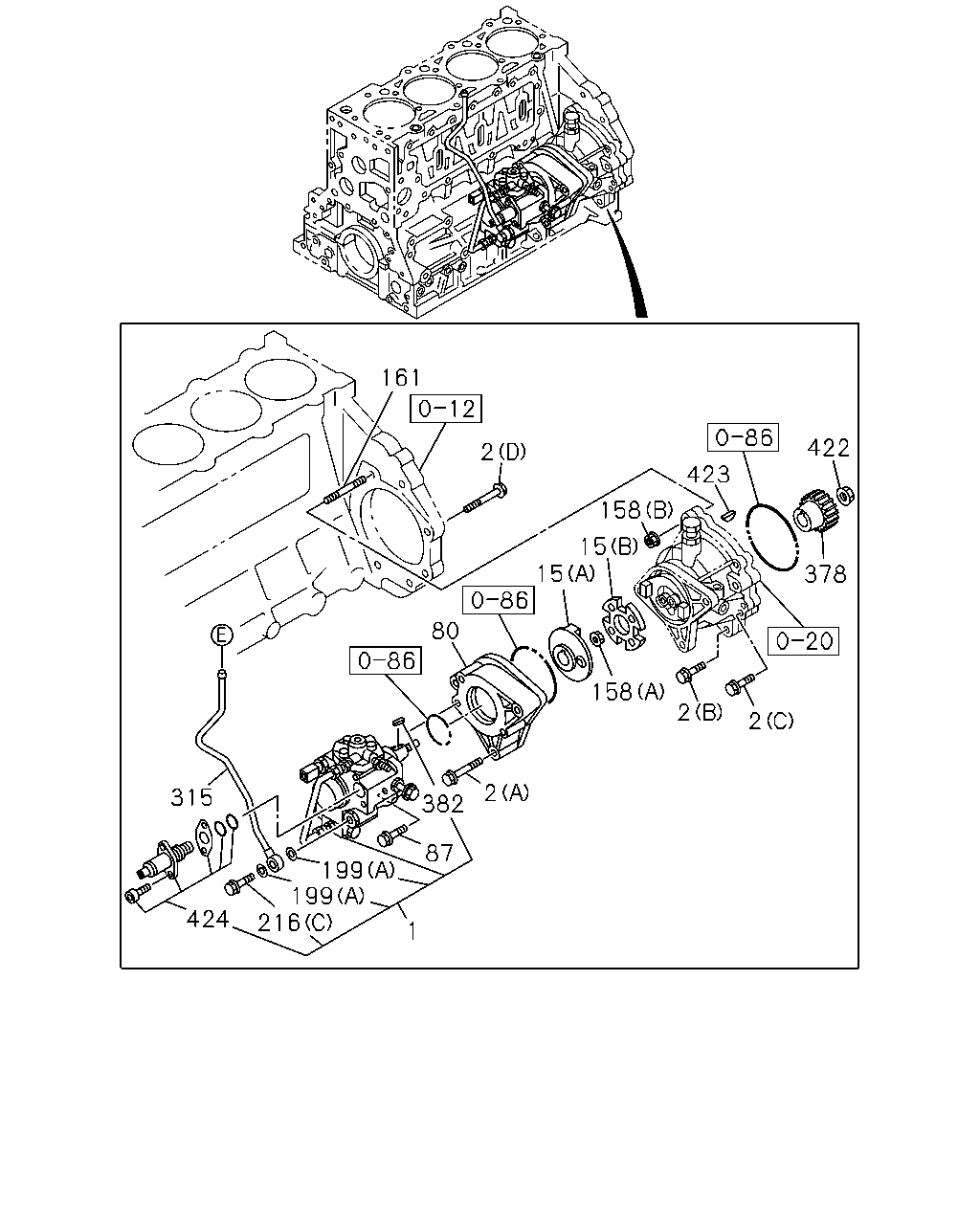

çizim 176550
161 422 2 423 158 15 15 378 80 158 2 2 2 315 382 87 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-101-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
(F) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1012- ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1012- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012- ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1012- ●
158 03.330 NUT; INJ PUMP
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ●
158 03.330 NUT; INJ PUMP
07.529 (A) M14 FLANGE 		0-91180-114-0 01 1 1012- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1012- ●
199 03.332 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1012- ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1012- ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1012- ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1201 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 1012- ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 1012- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ●

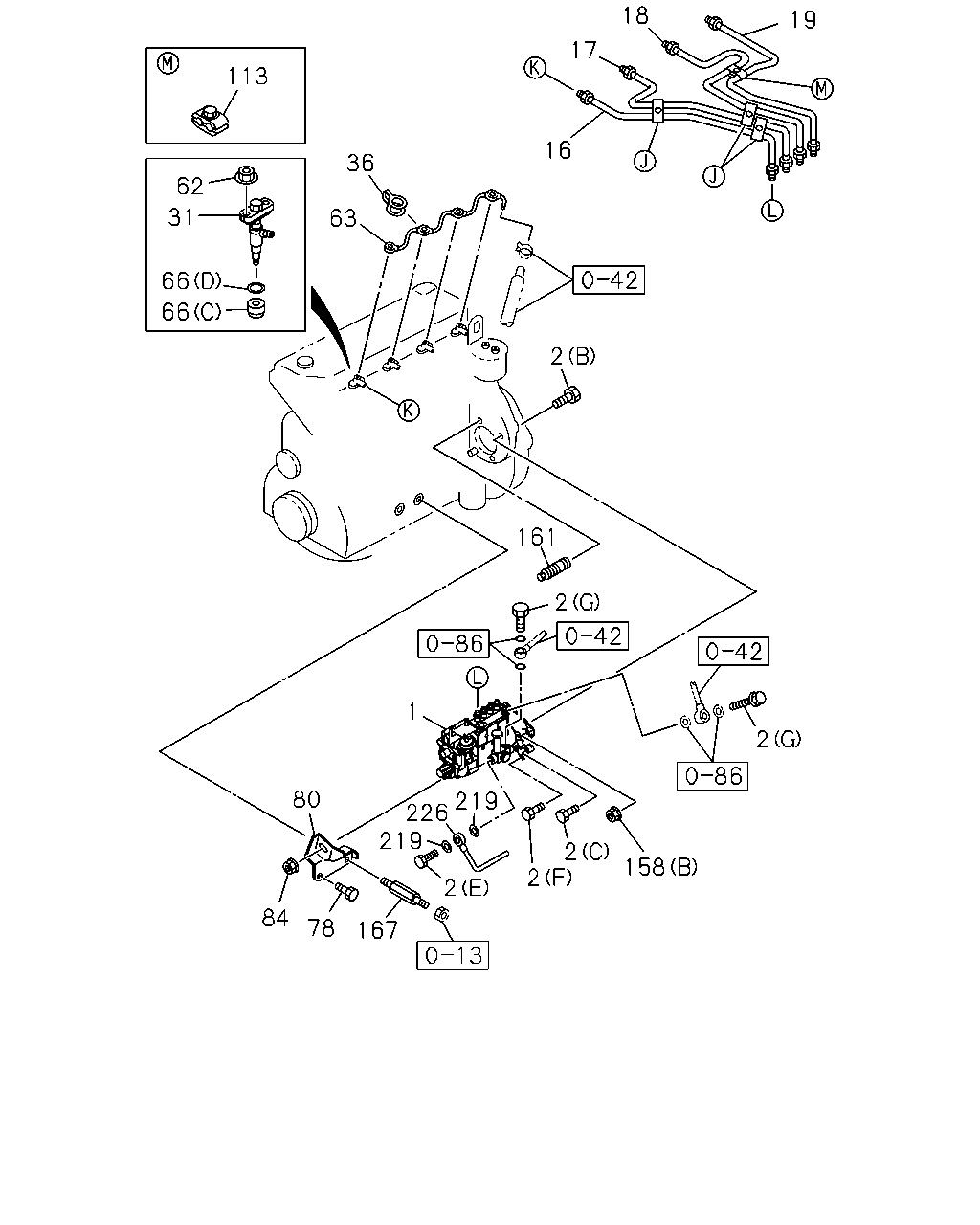

çizim 176552
18 19 17 113 16 36 62 31 63 66 66 2 161 2 1 2 219 226 219 80 2 2 158 2 84 78 167
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-101-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) 		8-97385-476-0 01 1 1012- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
(F) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
03.162 (G) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ●
2 03.330 BOLT; INJ PUMP
00.685 (A) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ●
2 03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ 8-97609-788-6 04 1 1012- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 1012-1312 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) 		8-94326-439-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1012- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012- ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ●
113 03.162 CLIP; INJ PIPE 8-97213-050-0 04 1 1012- ●
158 03.330 NUT; INJ PUMP
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ●
158 03.330 NUT; INJ PUMP
07.529 (A) M14 FLANGE 		0-91180-114-0 01 1 1012- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 1012- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
