0-36 — TURBOCHARGER SYSTEM (#49566) — 100 parça

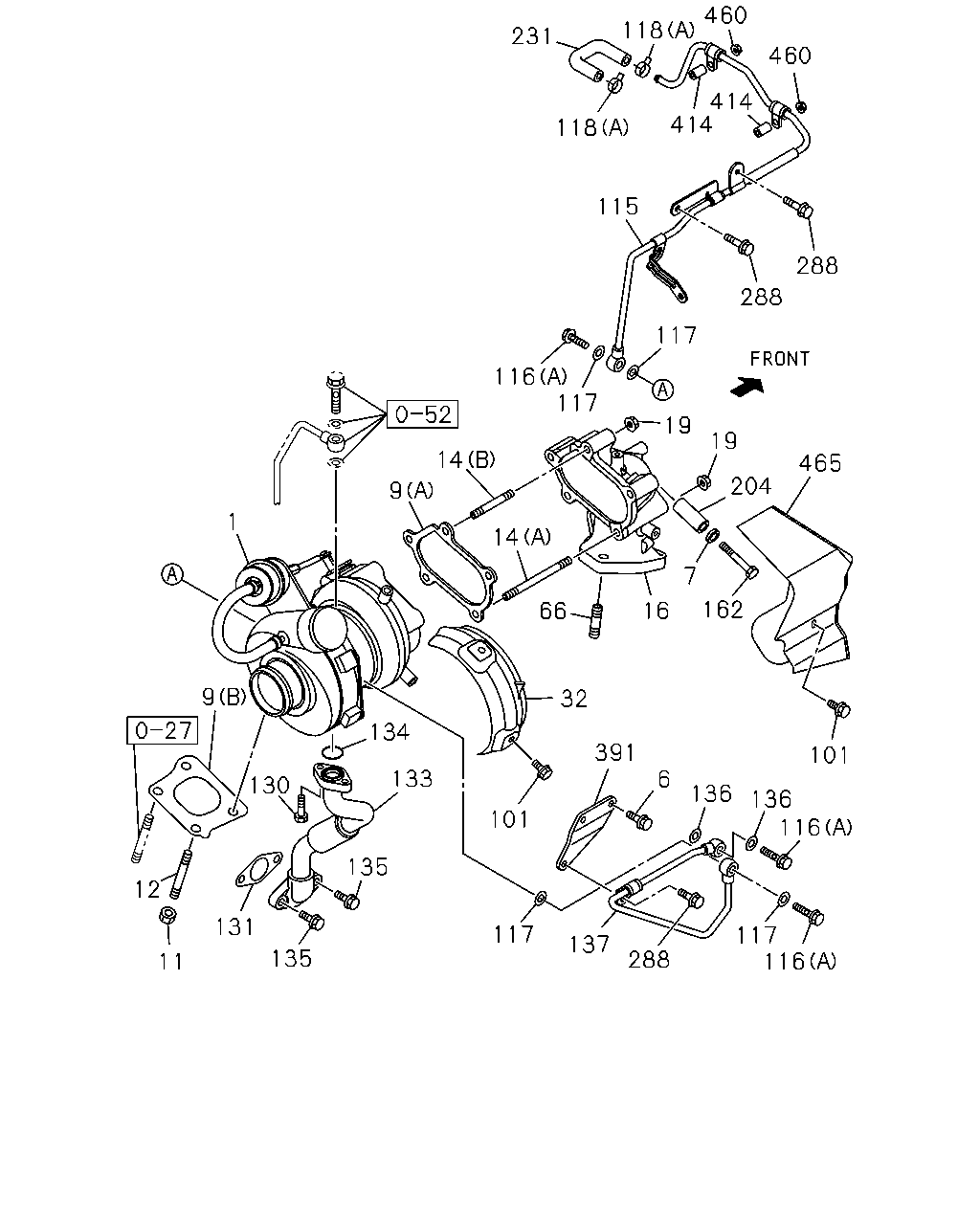

116 117 116 136 101 136 6 391 32 66 16 162 7 204 465 19 19 288 137 117 101 133 134 135 135 131 11 12 130 9 1 9 14 14 117 117 288 288 116 115 118 118 414 414 460 460 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-98000-031-2	01	1	1211-
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2)	8-98079-569-2	01	1	1012-
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1012-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1012-
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1012-
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1012-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1012-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	1012-
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1012-
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98096-928-0	01	1	1012-
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1211-
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	05	1	1211-
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (B) ID=20	1-09707-084-1	06	1	1211-
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1012-
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1012-
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98063-840-0	01	1	1012-
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1012-
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	1012-
414	03.602 SPACER EURO2 SPECIFICATION(NT2) 01.429 M8X10	1-11369-081-0	02	1	1012-
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	1012-1204
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-

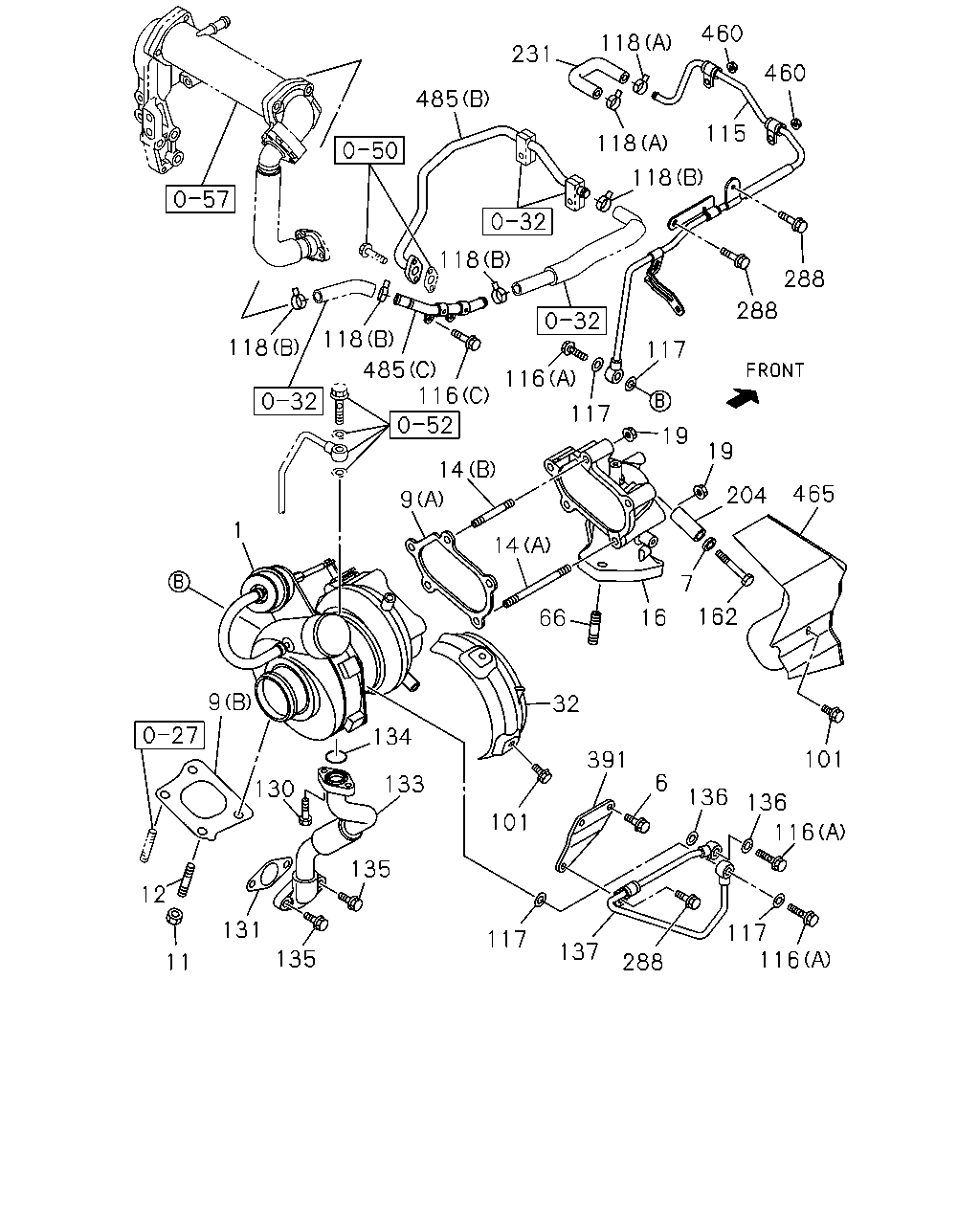

11 12 131 135 135 130 133 134 1 9 101 117 137 391 136 136 116 117 116 101 162 16 14 14 116 118 118 118 116 9 117 19 19 117 118 118 118 231 485 115 460 460 288 288 465 204 7 66 32 6 288 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-98000-031-2	01	1	1211-
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2)	8-98079-569-2	01	1	1012-
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	1012-
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97374-412-0	01	1	1012-
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	1012-
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	1012-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1012-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	1012-
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	1012-
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1012-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98096-928-0	01	1	1012-
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1211-
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	05	1	1211-
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	1012-
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (B) ID=20	1-09707-084-1	06	1	1211-
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1012-
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1012-
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98063-840-0	01	1	1012-
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-
288	03.342 BOLT; WATER PIPE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1012-
391	03.342 BRACKET; WATER PIPE	8-97371-730-0	01	1	1012-
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-97351-167-0	01	1	1012-1204
465	03.602 PROTECTOR; HEAT,EXH ADAPTER	8-98176-248-0	01	1	1205-
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1211-
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1211-
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1211-

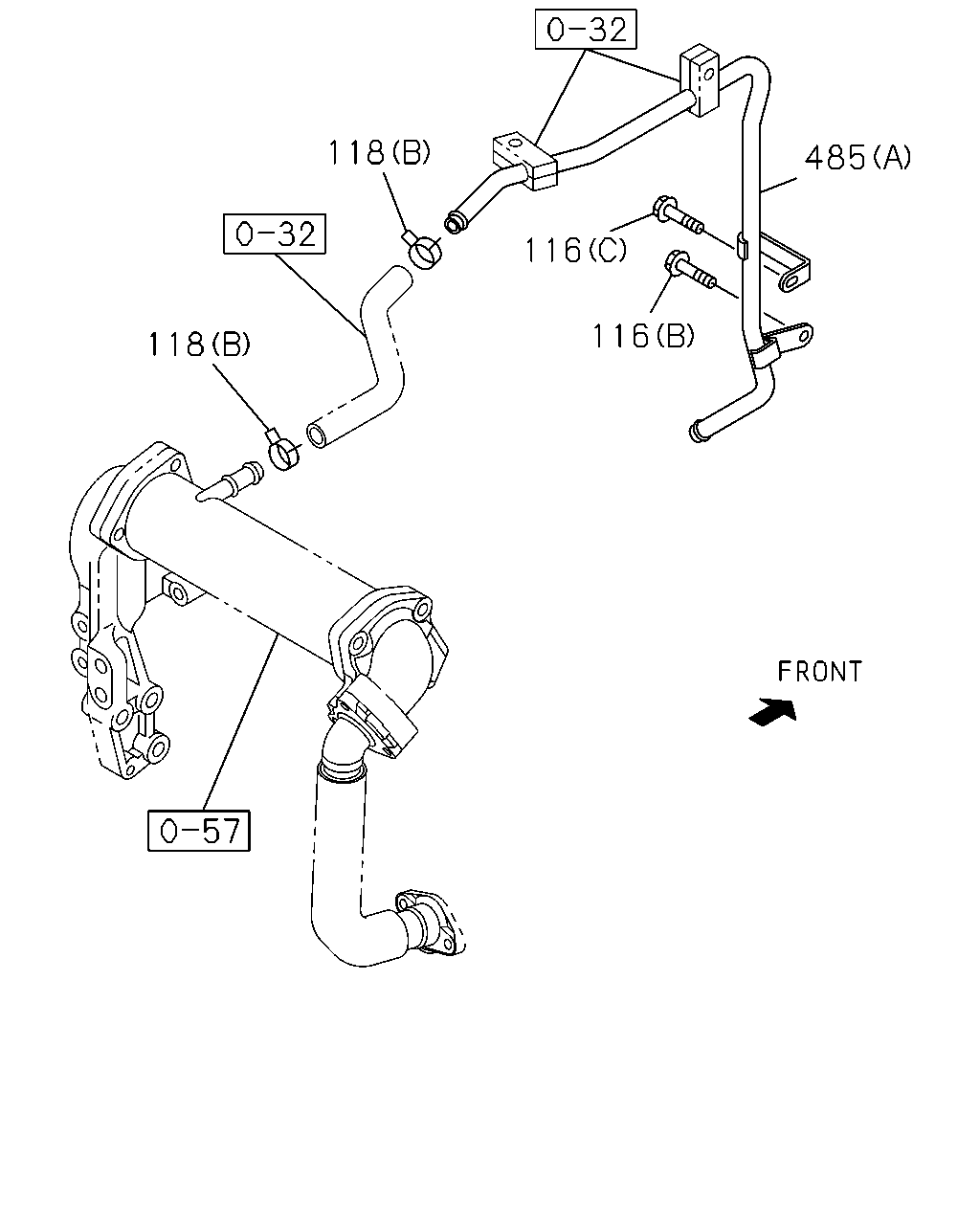

118 116 116 485 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1211-
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	05	1	1211-
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 08.846 (B) ID=20	1-09707-084-1	06	1	1211-
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1012-
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1211-
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-98041-637-1	01	1	1211-
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1211-

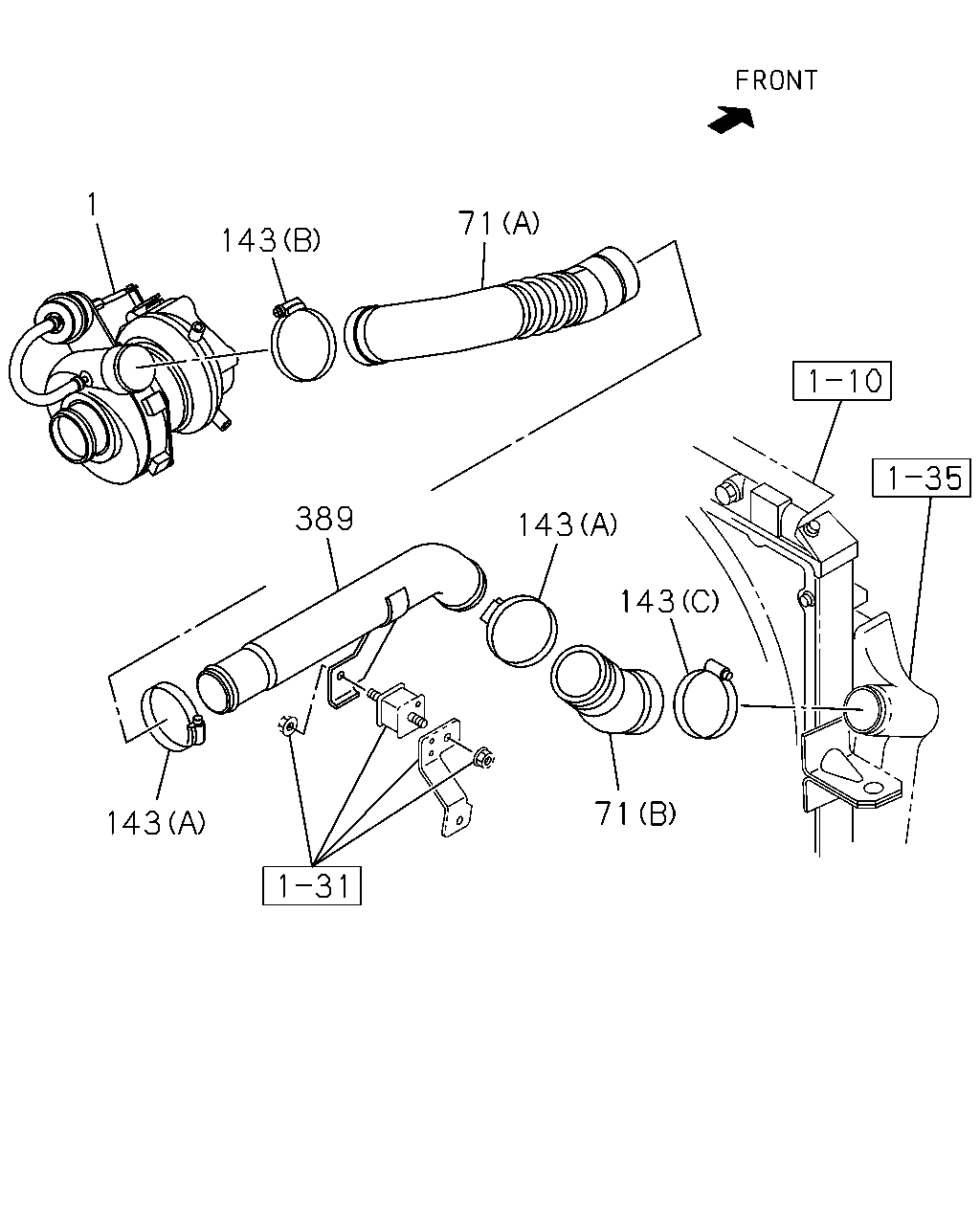

143 143 389 71 143 1 143 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-98000-031-2	01	1	1211-
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION(NT2)	8-98079-569-2	01	1	1012-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98059-964-1	01	1	1012-1208
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	1209-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98070-958-1	01	1	1012-1208
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98070-958-1	01	1	1209-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	1012-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1012-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1012-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	1012-
