0-32 — WATER PIPING; ENGINE (#49563) — 18 parça

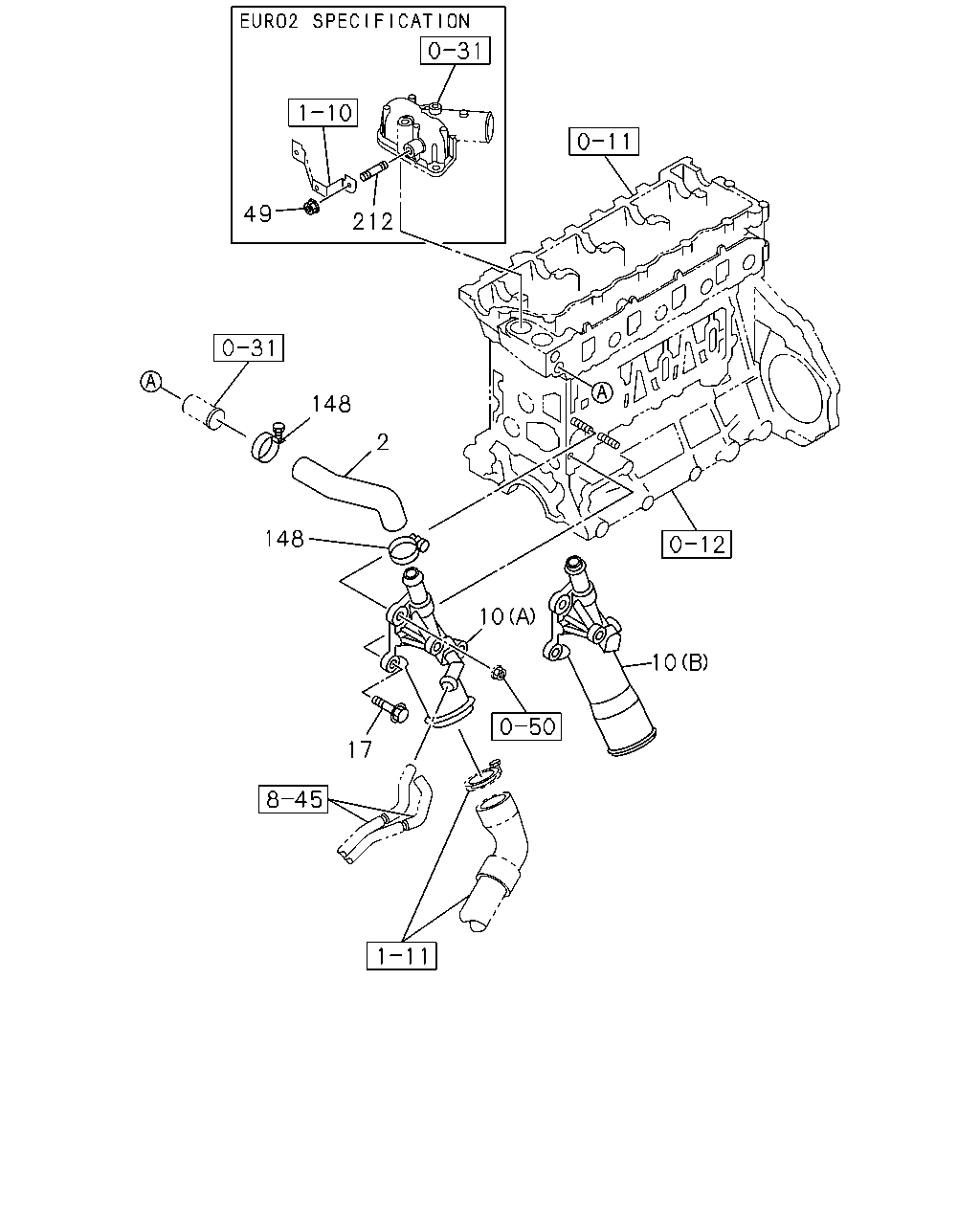

çizim 176539
49 212 148 2 148 10 10 17
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 1012- ●
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1012- ●
10 01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98212-009-0 01 1 1203- ●
10 01.153 PIPE; SUCTION
(A) 		8-98166-992-0 01 1 1012-1202 ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98166-992-0 01 1 1203- ●
10 01.153 PIPE; SUCTION
(A) 		8-98166-991-0 01 1 1012- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 1012- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 1012- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 1012- ●

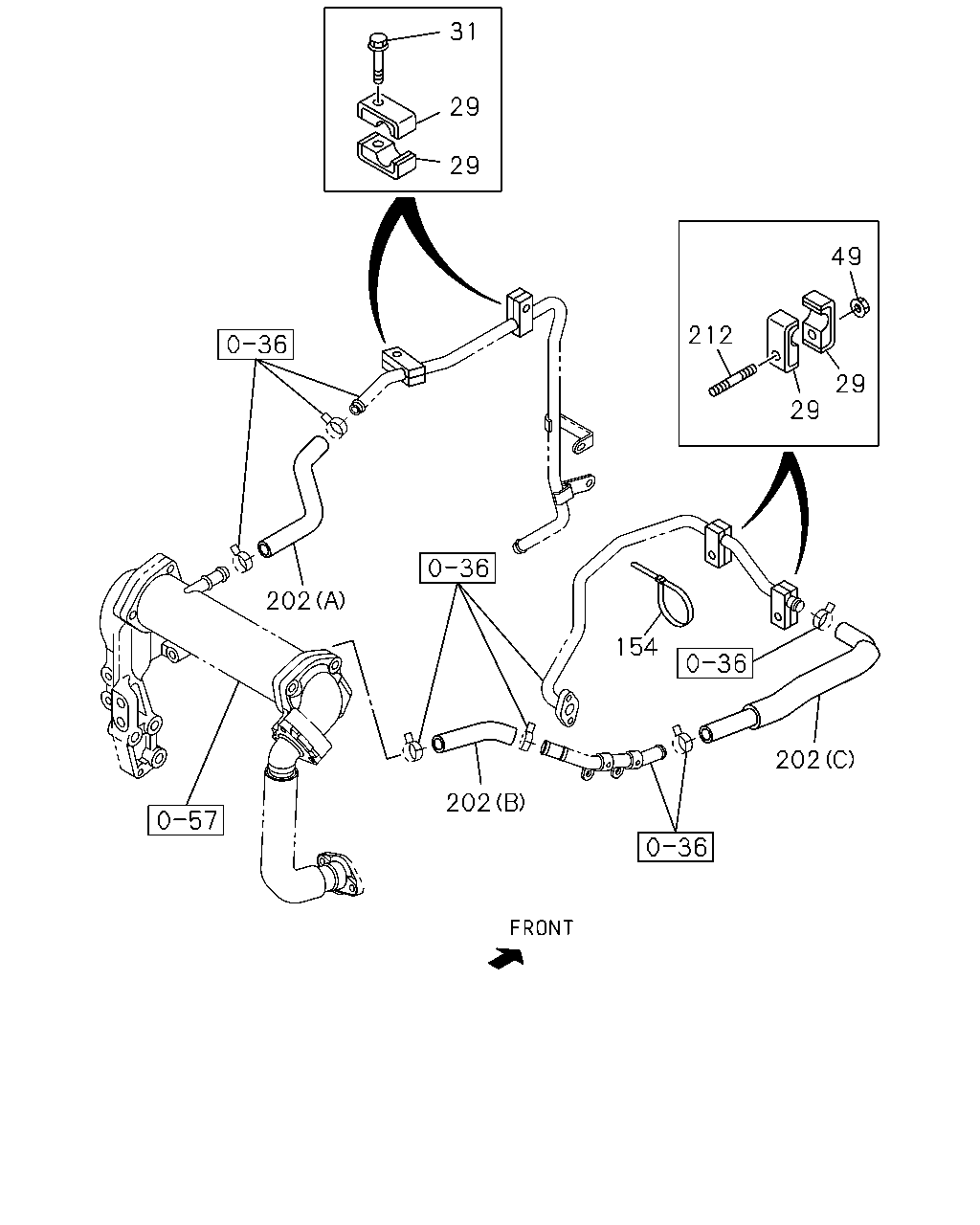

çizim 331139
31 29 29 202 202 154 202 212 29 29 49
BalonParca AdiParca NoAdetTipApplied Date A B
29 01.166 CLIP; PIPE
EURO3 SPECIFICATION(NT3) ID=17 L=17 		1-09701-284-0 08 1 1211- ●
31 01.159 BOLT; CLIP
EURO3 SPECIFICATION(NT3) 02.277 M8X40 FLANGE 		0-28050-840-0 02 1 1211- ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
154 01.153 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3) 02.559 L=170.3 		1-09987-182-0 01 1 1211- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (A) 		8-97386-586-1 01 1 1211- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-382-0 01 1 1211- ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (C) 		8-98097-605-1 01 1 1211- ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 1012- ●
