◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#4955) — 155 parça

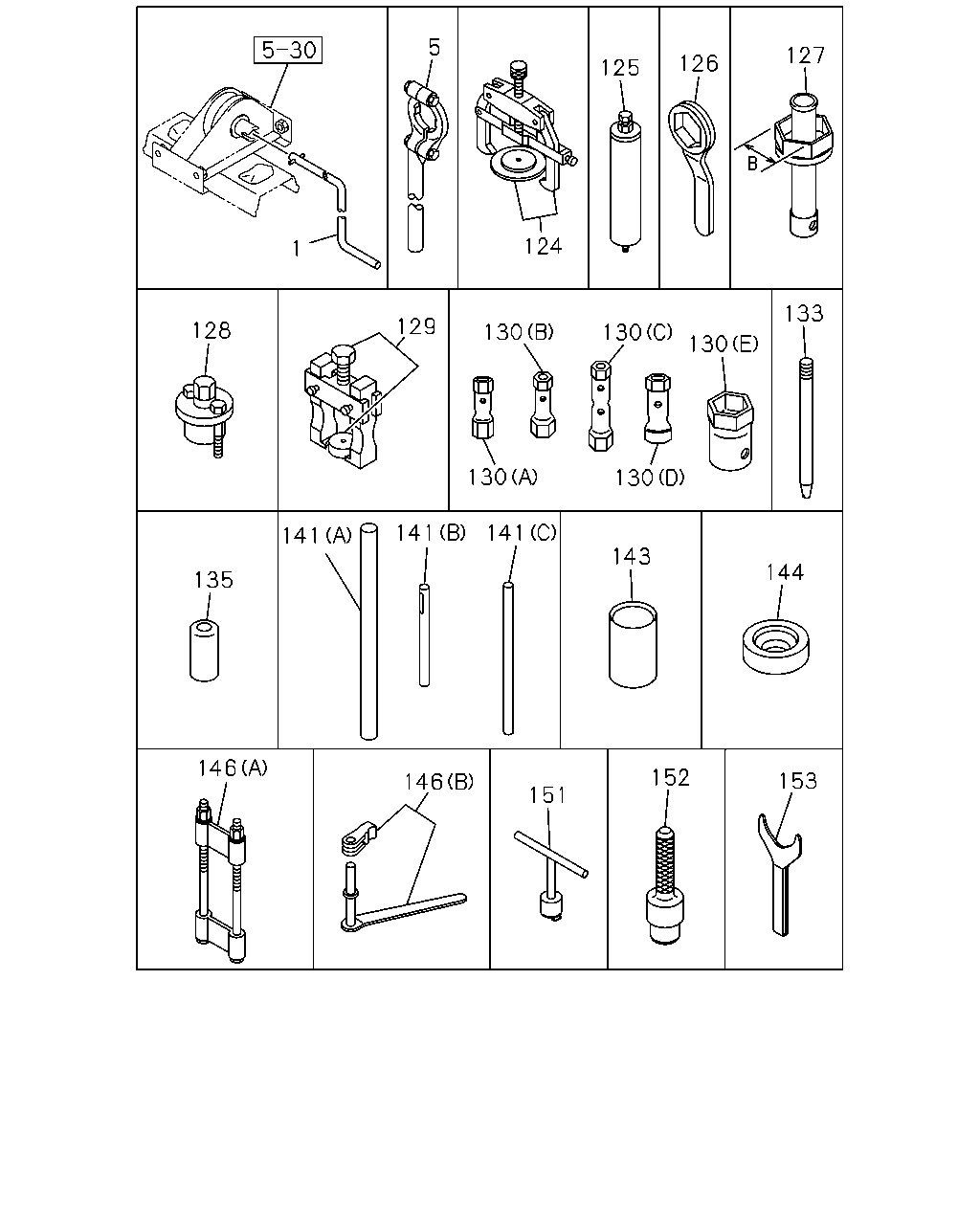

çizim 39285
5 127 126 125 124 1 133 129 128 130 130 130 130 130 141 141 141 143 144 135 146 152 153 146 151
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9603- ● ● ●
5 WRENCH ASM; NUT,MAINSHAFT
ZF M/T<X9E> 		1-85110-010-0 01 1 9603- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9603- ● ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9603- ● ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9603- ● ● ●
127 WRENCH ASM; HUB BRG NUT
REARWARD L=400 B=105 		9-85113-509-0 01 1 9603- ● ● ●
127 WRENCH ASM; HUB BRG NUT
FORWARD L=400 B=116 		9-85113-524-0 01 1 9603- ● ● ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 9603- ● ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9603- ● ● ●
130 WRENCH; BOX
(E) B=63 		9-85111-368-0 01 1 9603- ● ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9603- ● ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9603- ● ● ●
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9603- ● ● ●
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 9603- ● ● ●
133 WRENCH; NUT STARTER
V TYPE ENG<91L> 		1-85221-030-0 02 1 9603- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9603- ● ● ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9603- ● ● ●
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9603- ● ● ●
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 9603- ● ● ●
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 9603- ● ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 9603- ● ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 9603- ● ● ●
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 9603- ● ● ●
146 REPLACER KIT; LEAF SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-85237-016-0 01 1 9603- ● ● ●
146 REPLACER KIT; LEAF SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-85237-017-0 01 1 9603- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 9603- ● ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9603- ● ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9603- ● ● ●

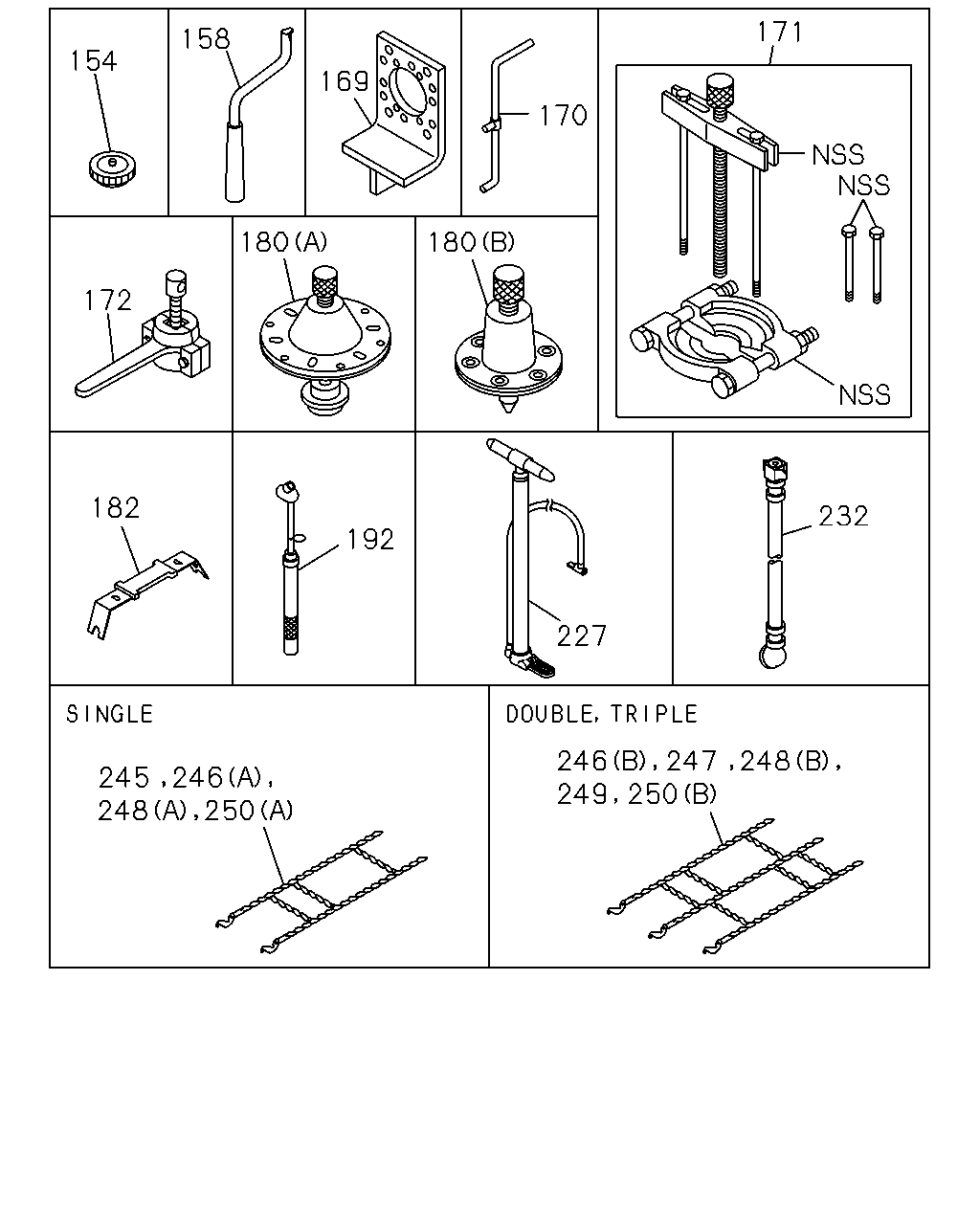

çizim 39319
171 158 169 154 170 180 180 172 182 232 192 227 248 246 247 249 250 245 246 248 250
BalonParca AdiParca NoAdetTipApplied Date A B C
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9603- ● ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9603- ● ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9603- ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9603- ● ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9603- ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9603- ● ● ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9603- ● ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9603- ● ● ●
182 REMOVER ASM 1-85239-008-0 01 1 9603- ● ● ●
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9603-9912 ● ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0001- ● ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9603- ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 9603- ● ●
245 CHAIN; TIRE,SINGLE
TIRE 900-20 9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 9603- ● ● ●
246 CHAIN; TIRE,1000-20,SINGLE
(A) 10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 9603- ● ● ●
246 CHAIN; TIRE,1000-20,SINGLE
(B) 11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 9603- ● ● ●
247 CHAIN; TIRE,750-20,DOUBLE
TIRE 900-20 9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 9603-9901 ● ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
(A) 10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 9603-9901 ● ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
(B) 11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 9603-9901 ● ● ●
249 CHAIN; TIRE,TRIPLE
TIRE 900-20 9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 9603- ● ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
(A) 10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 9603- ● ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
(B) 11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 9603- ● ● ●

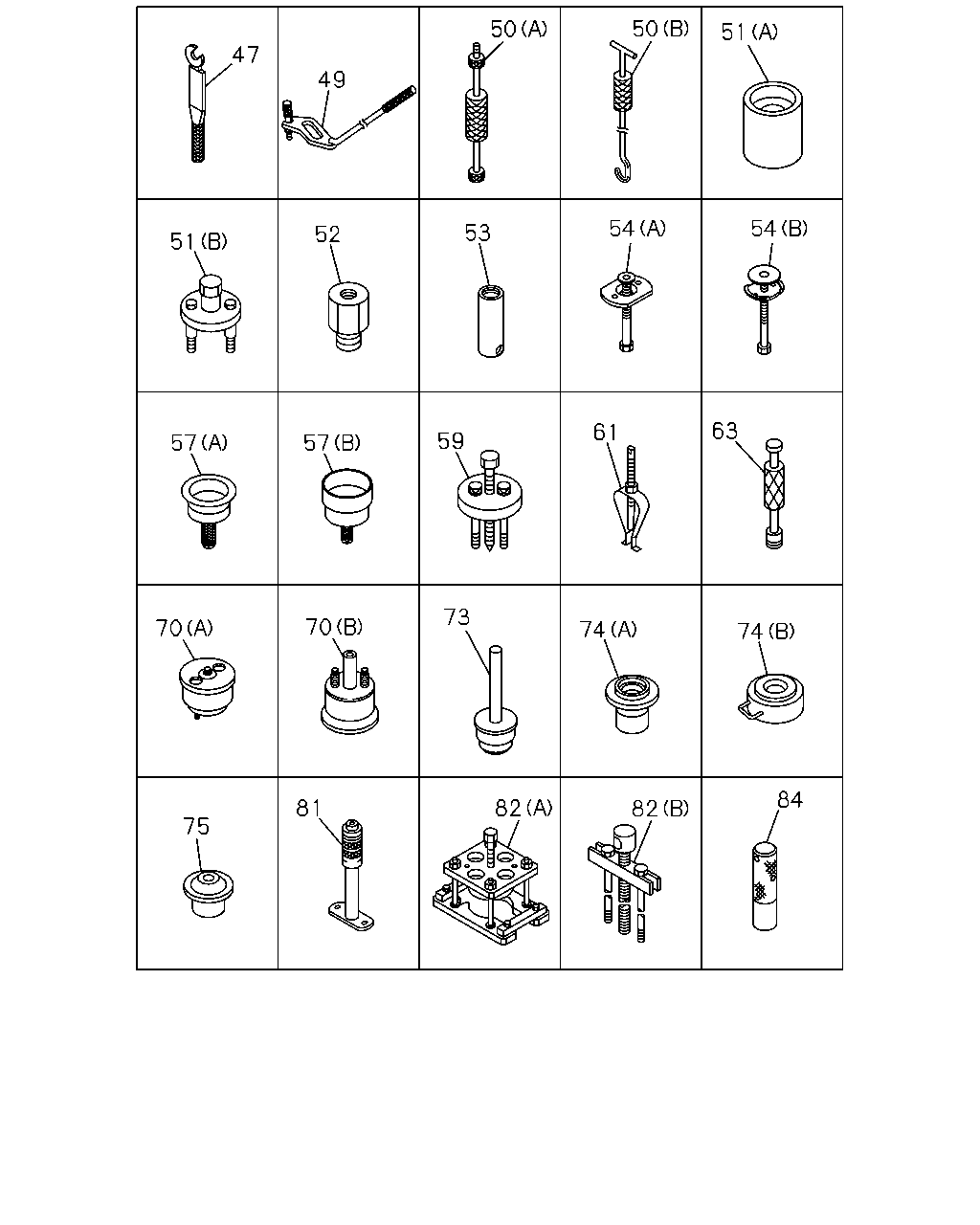

çizim 39454
50 50 51 47 49 54 54 53 52 51 63 61 59 57 57 73 70 70 74 74 84 82 81 82 75
BalonParca AdiParca NoAdetTipApplied Date A B C
47 WRENCH ASM; UNIVERSAL,INJ PUMP
V TYPE ENG<91L> 		1-85220-018-0 01 1 9603- ● ●
49 REPLACER ASM; VALVE
V TYPE ENG<91L> 		1-85235-001-0 01 1 9603- ● ●
50 REPLACER; NOZZLE HOLDER
L TYPE ENG<90L> (A) L=300 		1-85230-013-0 01 1 9603- ● ● ●
50 REPLACER; NOZZLE HOLDER
V TYPE ENG<91L> (B) L=500 		1-85230-007-0 01 1 9603- ● ●
51 PULLER ASM; WATER PUMP
L TYPE ENG<90L> (A) 		1-85220-047-0 01 1 9603- ● ● ●
51 PULLER ASM; WATER PUMP
V TYPE ENG<91L> (B) 		1-85210-028-0 01 1 9603- ● ●
52 REMOVER; WATER PUMP
L TYPE ENG<90L> 		1-85210-062-0 01 1 9603- ● ● ●
53 PULLER; TAPER BUSHING
L TYPE ENG<90L> 		1-85210-063-0 01 1 9603- ● ● ●
54 PULLER; THERMOSTAT SEAL
L TYPE ENG<90L> (B) 		1-85210-067-0 01 1 9603- ● ● ●
54 PULLER; THERMOSTAT SEAL
V TYPE ENG<91L> (A) 		1-85210-029-0 01 1 9603- ● ●
57 TOOL; SETTING CRANK GEAR
L TYPE ENG<90L> (B) OD=162 		1-85220-045-0 01 1 9603- ● ● ●
57 TOOL; SETTING CRANK GEAR
V TYPE ENG<91L> (A) OD=175 		1-85221-028-0 01 1 9603- ● ●
59 PULLER ASM; TIMING GEAR
6WA1 TC-S(56L) 		1-85210-065-0 01 1 9603-9805 ● ● ●
59 PULLER ASM; TIMING GEAR
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 		1-85210-065-0 01 1 9806- ● ● ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9603- ● ● ●
63 PULLER; NOZZLE SLEEVE
L TYPE ENG<90L> 		1-85210-026-0 01 1 9603- ● ● ●
70 TOOL; SETTING,OIL SEAL
L TYPE ENG<90L> (A) 		1-85220-043-0 01 1 9603- ● ● ●
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL SEAL 		1-85220-051-0 01 1 9603- ● ●
70 TOOL; SETTING,OIL SEAL
V TYPE ENG<91L> (B) FOR OIL THROWER 		1-85220-053-0 01 1 9603- ● ●
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 9603- ● ● ●
74 TOOL; SETTING,INJ PUMP BRG
V TYPE ENG<91L> (A) 		1-85220-019-0 01 1 9603- ● ●
74 TOOL; SETTING,INJ PUMP BRG
V TYPE ENG<91L> (B) 		1-85220-020-1 01 1 9603- ● ●
75 TOOL; SETTING,OIL SEAL
L TYPE ENG<90L> 		1-85220-049-0 01 1 9603- ● ● ●
81 PULLER; BRG CAP
V TYPE ENG<91L> 		1-85210-015-0 01 1 9603- ● ●
82 PULLER ASM; CR/SHF GEAR
L TYPE ENG<90L> (A) 		1-85210-064-0 01 1 9603- ● ● ●
82 PULLER ASM; CR/SHF GEAR
V TYPE ENG<91L> (B) 		9-85211-139-0 01 1 9603- ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> INLET VALVE 		1-85221-136-0 01 1 9603-9612 ● ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> INLET VALVE 		1-85221-187-0 01 1 9701- ● ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> EXHAUST VALVE 		1-85221-140-1 01 1 9603-9612 ● ● ●
84 REPLACER; VALVE SEAL
L TYPE ENG<90L> EXHAUST VALVE 		1-85221-184-0 01 1 9701- ● ● ●

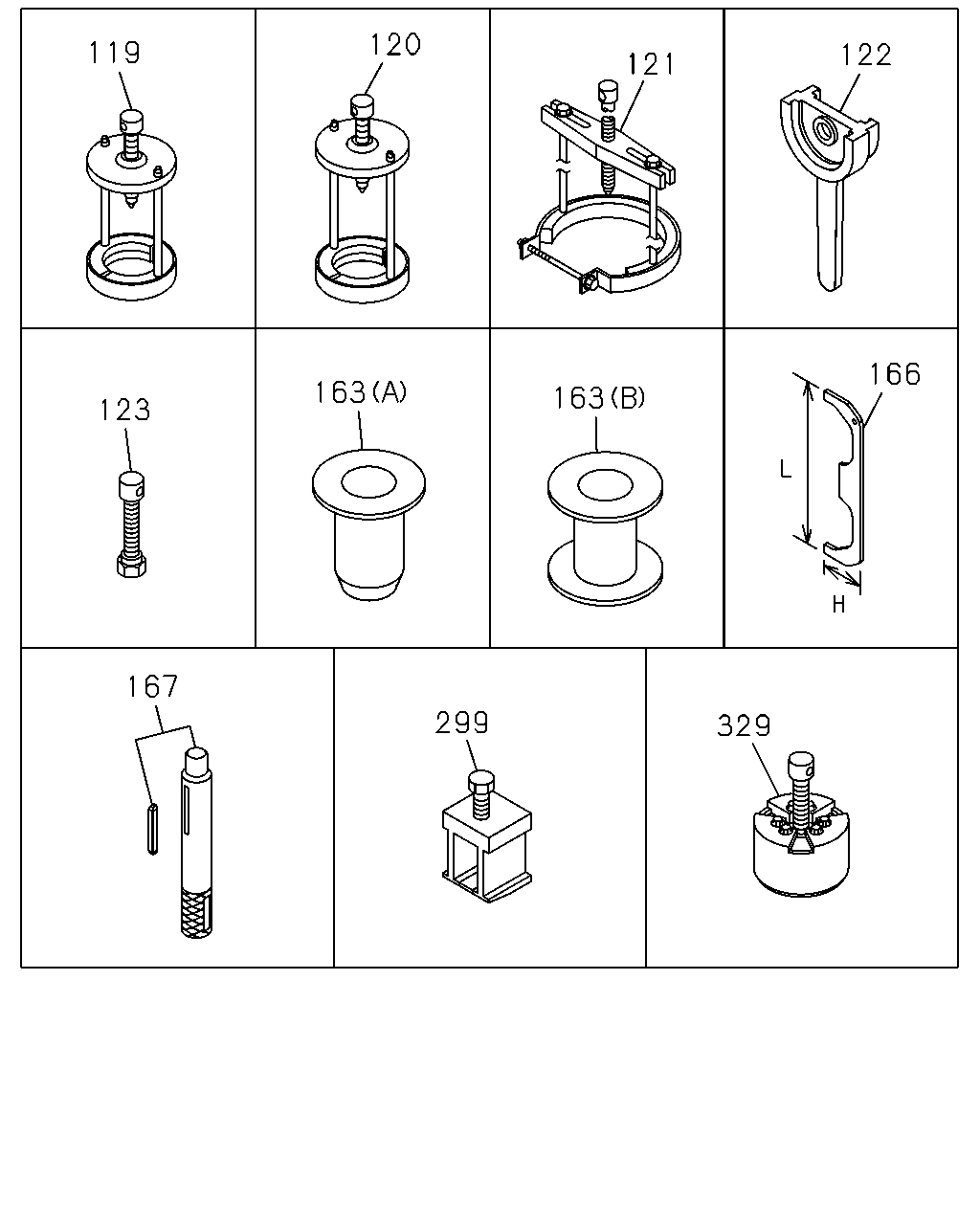

çizim 39516
120 119 122 121 166 163 163 123 167 299 329
BalonParca AdiParca NoAdetTipApplied Date A B C
119 PULLER ASM; TOP GEAR BRG
ISUZU M/T<X9A> L=235 		9-85210-190-0 01 1 9603- ● ● ●
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 9603- ● ● ●
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> 		1-85210-069-0 01 1 9603- ● ● ●
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 9603- ● ● ●
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 9603- ● ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 9603- ● ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 9603- ● ● ●
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=17.5 		1-85253-010-0 01 1 9603-9901 ● ● ●
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=17.5 		1-85253-010-0 01 1 9902- ● ●
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 9603- ● ●
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 9603- ● ● ●
299 PULLER ASM; TRANS CONTROL
ZF M/T<X9E> 		1-85210-081-0 01 1 9603-9901 ● ●
329 PULLER ASM; SLINGER
V TYPE ENG<91L> ID=124 		1-85220-052-0 01 1 9603- ● ●
çizim 39720
35 34 33 32 4 31 42 43 30 17 13 17 12 9 29 29 29 23 22 21 20 27 363
BalonParca AdiParca NoAdetTipApplied Date A B C
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 9603- ● ● ●
9 WRENCH; WHEEL PIN
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440 		1-85113-015-1 01 1 9603- ● ● ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450 		1-85111-033-1 01 1 9603- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9603- ● ● ●
13 WRENCH; MONKEY
L=255 L=255 		1-85117-002-1 01 1 9603- ● ● ●
17 HAMMER
(A) L=310 		9-85121-406-0 01 1 9603- ● ● ●
17 HAMMER
V TYPE ENG<91L> (B) L=150 		1-85220-021-0 01 1 9603- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9603- ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9603- ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9603- ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9603- ● ● ●
27 WRENCH; OPEN END 5.5X7
8X10 		9-99592-108-0 01 1 9603-9901 ● ● ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 9603- ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9603- ● ● ●
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 9603- ● ● ●
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9603- ● ● ●
31 WRENCH; 12 9-09590-012-0 01 1 9603- ● ● ●
32 WRENCH; 14 9-09590-014-0 01 1 9603- ● ● ●
33 WRENCH; 17 9-09590-017-0 01 1 9603- ● ● ●
34 WRENCH; 19 9-09590-019-0 01 1 9603- ● ● ●
35 WRENCH; 22 9-09590-022-0 01 1 9603- ● ● ●
42 HANDLE; SLIDING 9-09590-512-0 01 1 9603- ● ● ●
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9603- ● ● ●
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9902- ● ● ●
çizim 39723
40 39 38 37 115 36 189 193 237 208 230
BalonParca AdiParca NoAdetTipApplied Date A B C
36 WRENCH; 24 9-85111-377-0 01 1 9603- ● ● ●
37 WRENCH; 27 9-85111-375-0 01 1 9603- ● ● ●
38 WRENCH; 32 9-85111-358-0 01 1 9603- ● ● ●
39 WRENCH; 36 9-85111-374-0 01 1 9603- ● ● ●
40 WRENCH; 41 9-85111-356-0 01 1 9603- ● ● ●
115 PLIER 5-85171-001-0 01 1 9603- ● ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9603- ● ● ●
193 JACK ASM
15TON 		1-85510-019-1 01 1 9603- ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9603- ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9603- ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9603- ● ● ●
çizim 39883
85 87 87 86 87 89 88 87 99 102 90 93 95 296 114 191 106 218 219
BalonParca AdiParca NoAdetTipApplied Date A B C
85 REPLACER ASM; VALVE SPR
6WA1 TC-S(56L) 		1-85235-010-0 01 1 9603-9609 ● ● ●
85 REPLACER ASM; VALVE SPR
6WA1 TC-S(56L) 		1-85235-013-0 01 1 9610-9901 ● ● ●
85 REPLACER ASM; VALVE SPR
L TYPE ENG<90L> 		1-85235-013-0 01 1 9902- ● ● ●
86 REPLACER; FLYWHEEL
V TYPE ENG<91L> 		1-85230-006-0 01 1 9603- ● ●
87 TOOL; PISTON
6WA1 TC-S(56L) (B) 		1-85220-046-0 01 1 9603-9901 ● ● ●
87 TOOL; PISTON
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) 		1-85220-046-0 01 1 9902- ● ●
87 TOOL; PISTON
6WG1 TC-R(75L) (C) 		1-85220-059-0 01 1 9905-9909 ● ● ●
87 TOOL; PISTON
6WG1 TC-C(72L),6WG1 TC-R(75L) (C) 		1-85220-059-0 01 1 9910- ● ● ●
87 TOOL; PISTON
V TYPE ENG<91L> (A) 		1-85220-058-0 01 1 9603-9806 ● ●
87 TOOL; PISTON
V TYPE ENG<91L> (D) 		1-85220-082-0 01 1 9807- ● ●
88 TOOL; CONNROD BUSHING
V TYPE ENG<91L> 		1-85220-002-0 01 1 9603- ● ●
89 TOOL; PISTON RING
6WA1 TC-S(56L) 		1-85221-029-0 01 1 9603-9901 ● ● ●
89 TOOL; PISTON RING
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 		1-85221-029-0 01 1 9902- ● ●
89 TOOL; PISTON RING
6WG1 TC-R(75L) 		1-85221-025-0 01 1 9905-9909 ● ● ●
89 TOOL; PISTON RING
6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-85221-025-0 01 1 9910- ● ● ●
89 TOOL; PISTON RING
V TYPE ENG<91L> 		1-85221-029-0 01 1 9603- ● ●
90 PULLER; INJ PUMP BRG
V TYPE ENG<91L> 		1-85210-039-0 01 1 9603- ● ●
93 SETTING KIT; VALVE GUIDE
V TYPE ENG<91L> L=260 		9-85231-202-0 01 1 9603- ● ●
95 SETTING TOOL; BRIDGE GUIDE
L TYPE ENG<90L> 		9-85221-324-0 01 1 9603- ● ● ●
99 WRENCH; CYL HD BOLT
V TYPE ENG<91L> 		1-85115-013-0 01 1 9603- ● ●
102 ADAPTER; COMP GAGE
L TYPE ENG<90L> 		1-85317-019-0 01 1 9603- ● ● ●
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 9603- ● ● ●
114 WRENCH; INJ PUMP
V TYPE ENG<91L> 		1-85220-027-0 01 1 9603- ● ●
191 ADAPTER
V TYPE ENG<91L> 		1-85317-002-0 01 1 9603- ● ●
218 PLUG
V TYPE ENG<91L> 		1-15629-043-0 01 1 9603- ● ●
219 GASKET
V TYPE ENG<91L> 		9-09720-555-0 01 1 9603- ● ●
296 REPLACER; SLINGER
L TYPE ENG<90L> 		1-85210-027-0 01 1 9603- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
