Sayfa 9-01 - Isuzu EPC

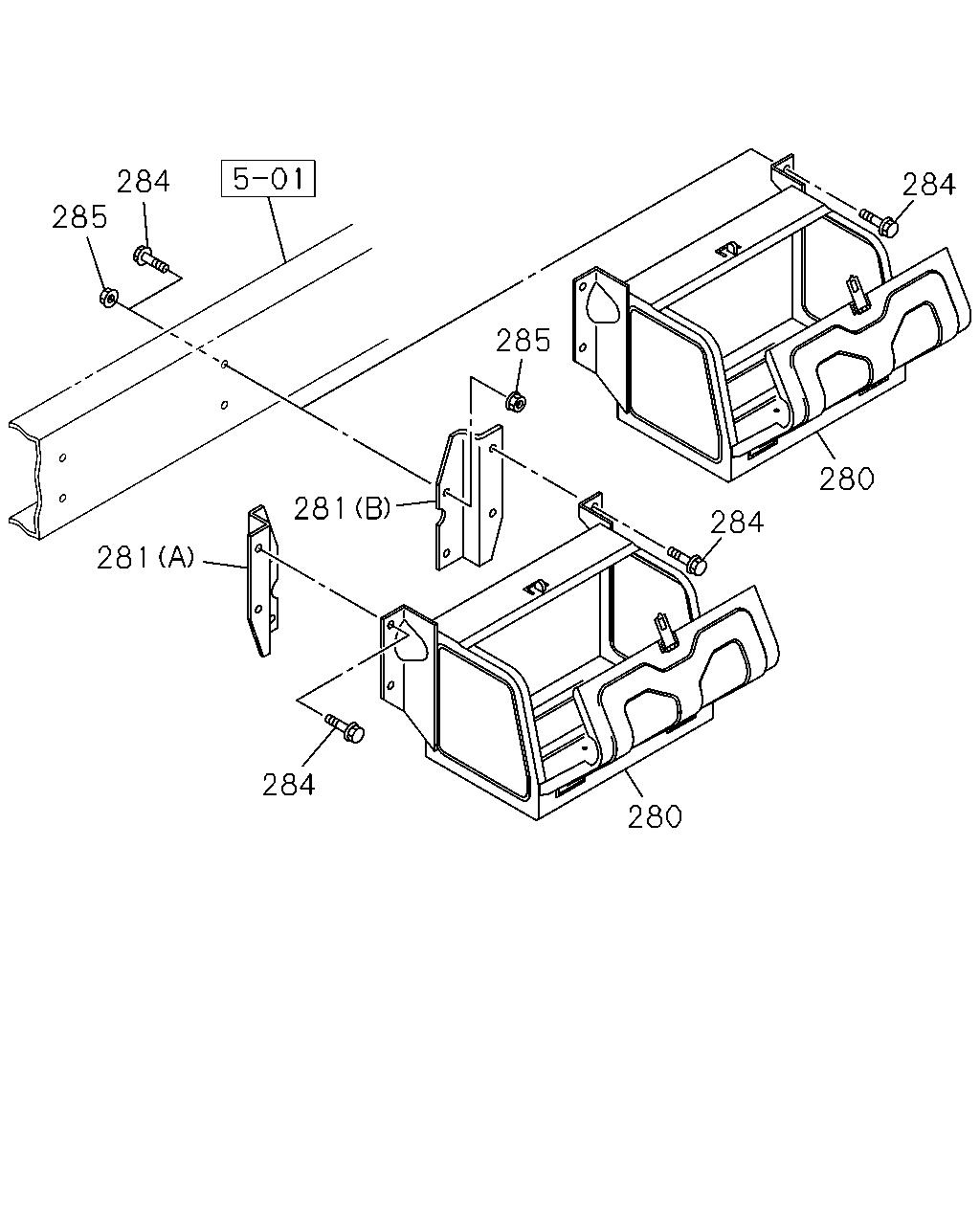

284 285 281 284 281 280 284 280 284 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1012-1507	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1508-	●	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1012-1507	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1508-	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	1508-		●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1012-1507	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1508-	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	1508-		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1507	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1507	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1508-		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1507	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1508-	●	●

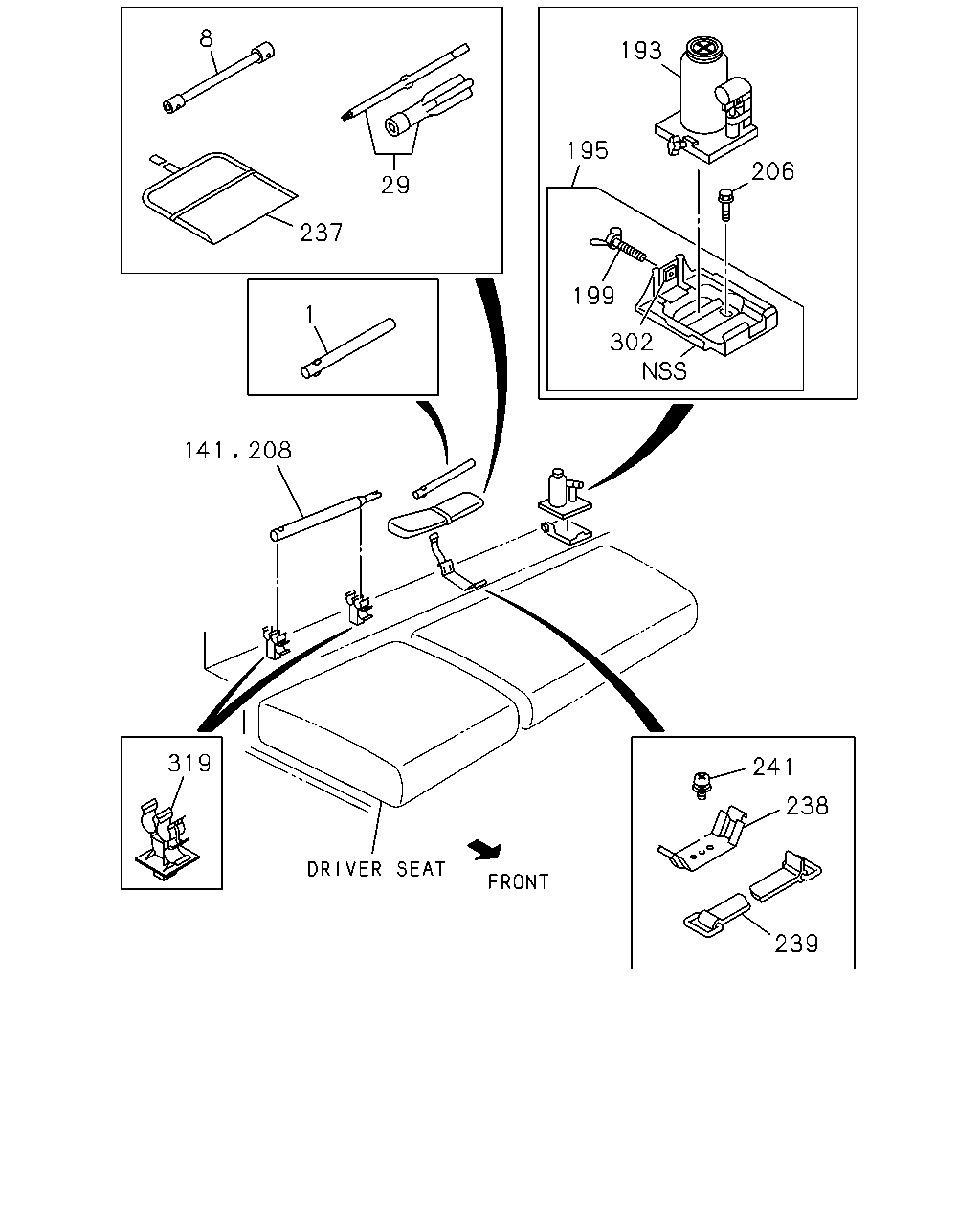

8 29 237 193 195 206 199 141 208 302 319 241 238 239 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 L=280	1-85515-007-0	01	1	1012-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER L=280	8-98181-251-0	01	1	1109-1507	●
1	07.629 HANDLE; SPARE TIRE CARRIER L=280	8-98181-251-0	01	1	1508-	●	●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1012-1507	●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1508-	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1012-1507	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1508-	●	●
141	08.821 HANDLE; WRENCH 08.820 L=580	8-98181-249-0	01	1	1508-		●
193	08.820 JACK ASM 5TON	8-98114-045-0	01	1	1012-1507	●
193	08.820 JACK ASM 5TON	8-98114-045-0	01	1	1508-	●	●
195	08.820 BRACKET; JACK	8-94273-287-7	01	1	1508-		●
195	08.820 BRACKET; JACK	8-97589-376-2	01	1	1012-	●
199	08.820 BOLT; JACK M8X30 WING	8-94279-018-1	01	1	1508-		●
199	08.820 BOLT; JACK M8X30 WING	8-98005-536-0	01	1	1012-	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	1508-		●
206	08.820 SCREW; OIL JACK BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
208	08.820 HANDLE; JACK L=580	1-85515-005-1	01	1	1012-1108	●
208	08.820 HANDLE; JACK L=580	8-98181-249-0	01	1	1109-	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1012-1507	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1508-	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	1012-	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1012-1507	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1508-	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	1012-	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	1508-		●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1012-	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1012-1507	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1508-	●	●

450 450

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1508-		●
	450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	1508-		●
