8-90 — RADIO AND TV (#49546) — 49 parça

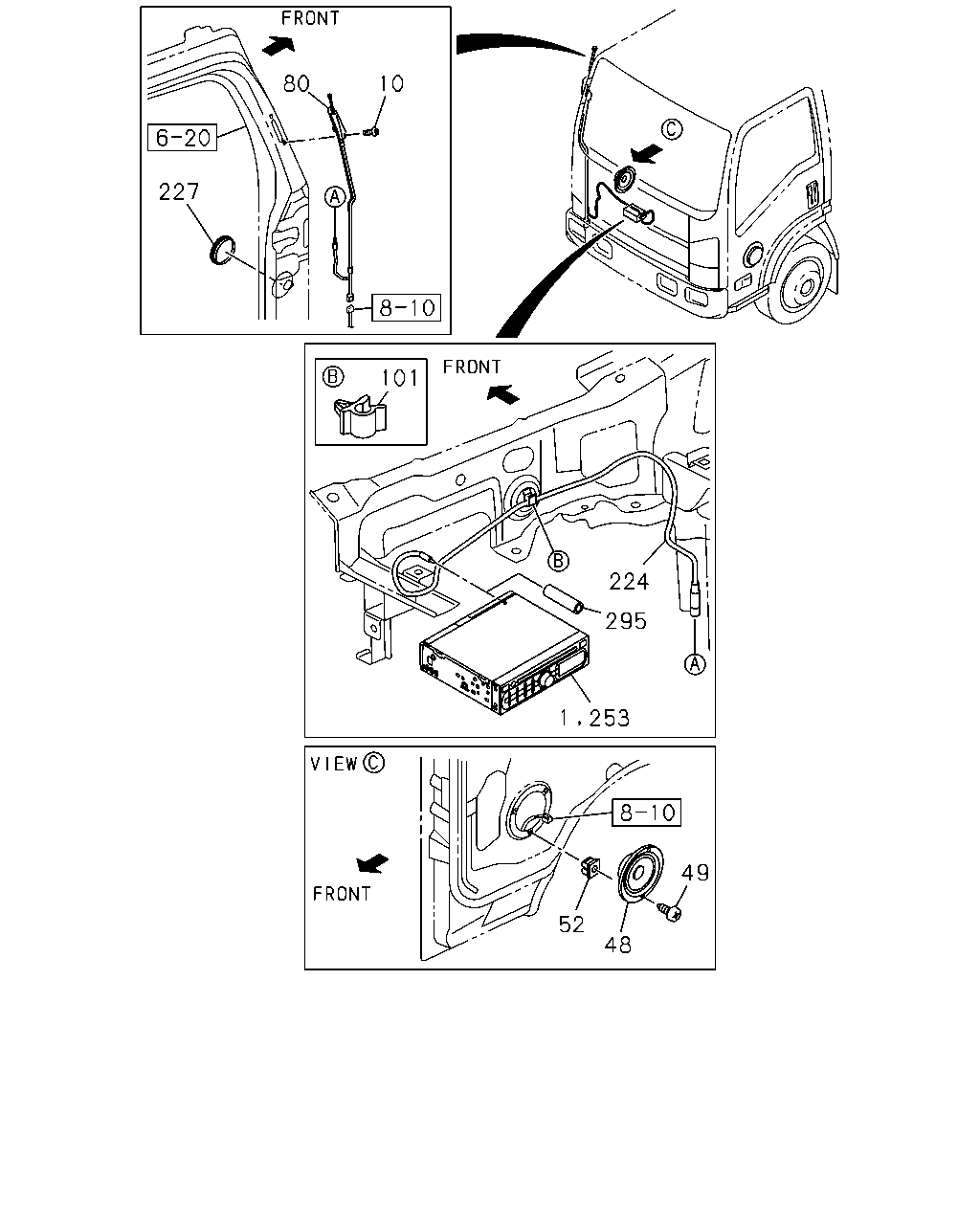

çizim 176241
80 10 227 101 224 295 52 48 49 1 253
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 1012-1507 ●
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 1508- ● ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1012-1507 ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1508- ● ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1012-1507 ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1508- ● ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1012-1507 ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1508- ● ●
52 09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1012-1507 ●
52 09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1508- ● ●
80 09.645 ANTENNA 8-97387-265-3 01 1 1012-1507 ●
80 09.645 ANTENNA 8-97387-265-3 01 1 1508- ● ●
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 1012-1507 ●
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 1508- ● ●
224 09.647 CABLE; EXT,FEEDER
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98029-970-1 01 1 1012-1212 ●
224 09.647 CABLE; EXT,FEEDER
4HK1-TCN ENG(RDQ) EXC. FOG LAMP<T96>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98029-970-1 01 1 1012-1212 ●
224 09.647 CABLE; EXT,FEEDER
4HG1 ENG(RJH) 		8-98029-970-1 01 1 1012-1212 ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1301-1507 ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 1508- ● ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 1012-1507 ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 1508- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1012-1507 ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1508- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 1012-1507 ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 1508- ● ●
295 09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 		8-98095-617-1 01 1 1012-1507 ●
295 09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 		8-98095-617-1 01 1 1508- ● ●

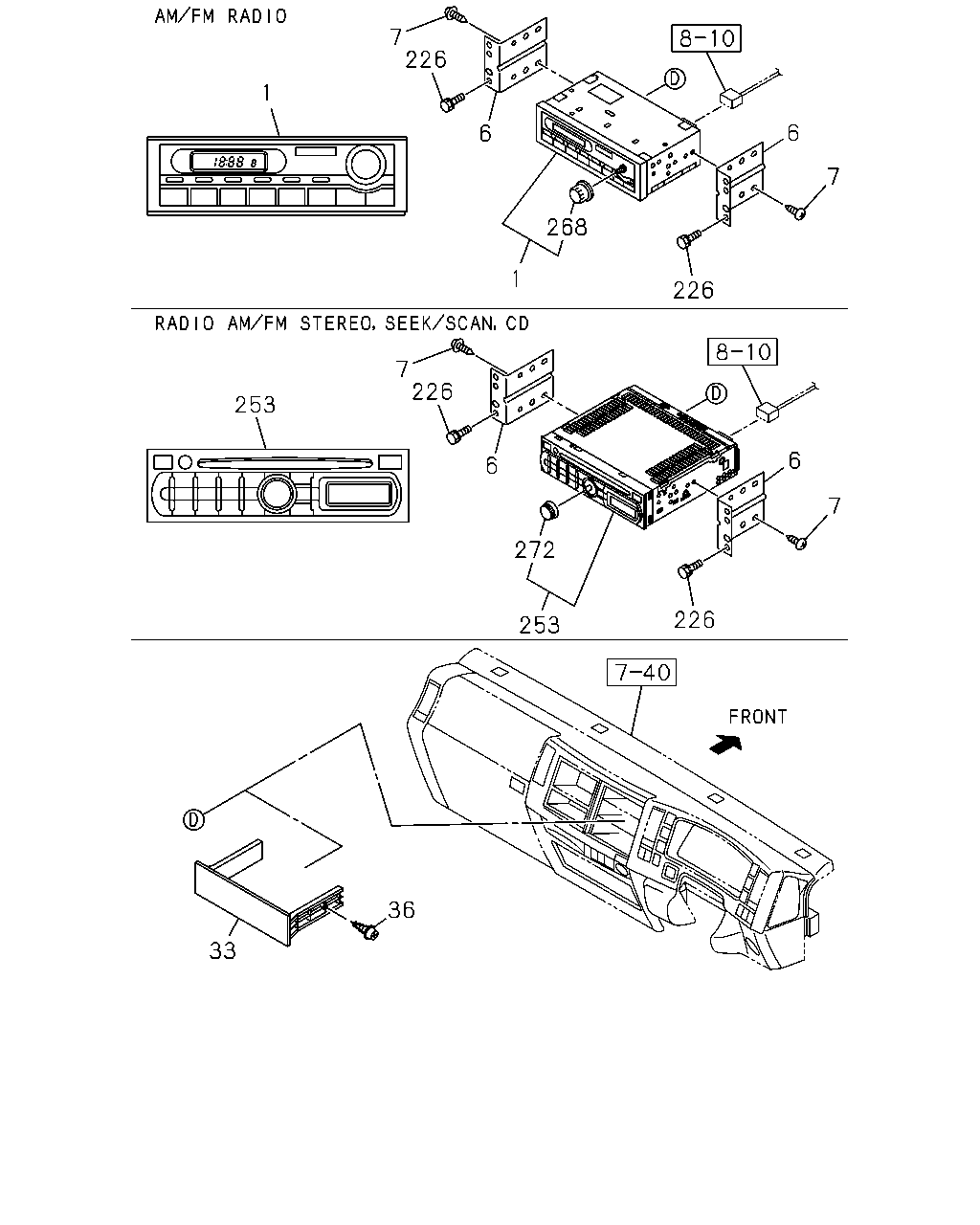

çizim 176252
7 1 253 7 226 6 1 226 268 6 6 226 272 253 226 6 7 7 36 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 1012-1507 ●
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 1508- ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1012-1507 ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1508- ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1012-1507 ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1508- ● ●
33 09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 1012-1507 ●
33 09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 1508- ● ●
36 09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012-1507 ●
36 09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1508- ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1012-1012 ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1101-1212 ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301-1507 ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1508- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1012-1507 ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 1508- ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 1012-1507 ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 1508- ● ●
268 09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 1012-1507 ●
268 09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 1508- ● ●
272 09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 1012-1507 ●
272 09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 1508- ● ●
