◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#49542) — 8 parça

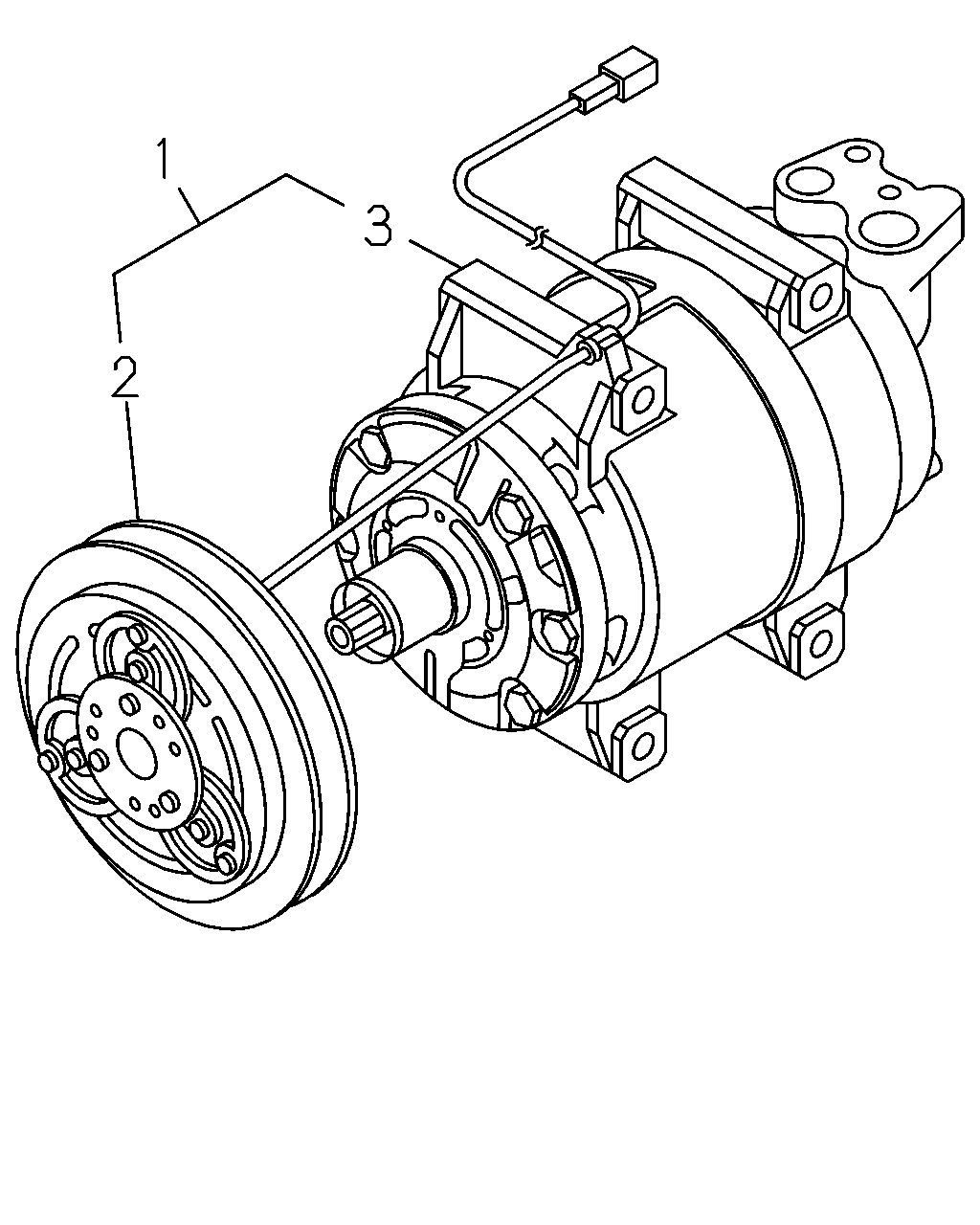

çizim 176249
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98037-146-2 01 1 1012-1211 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98214-321-0 01 1 1212-1410 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98286-197-0 01 1 1411-1507 ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VALEO 		8-98286-197-0 01 1 1508- ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98208-773-1 01 1 1012-1507 ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98208-773-1 01 1 1508- ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-531-1 01 1 1012-1507 ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-531-1 01 1 1508- ● ●
