Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#49540) — 365 parça

30 30 207 59 66 61 16 61 1 72 67 44 45 56 2 34 2 48 135 29 72 236 73 155 30 72 100 77 35 30 93 30 2 219 52 133 101 162 244 162 133 243 68 236 235 237 239 240 240 238 235 234 212 101 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

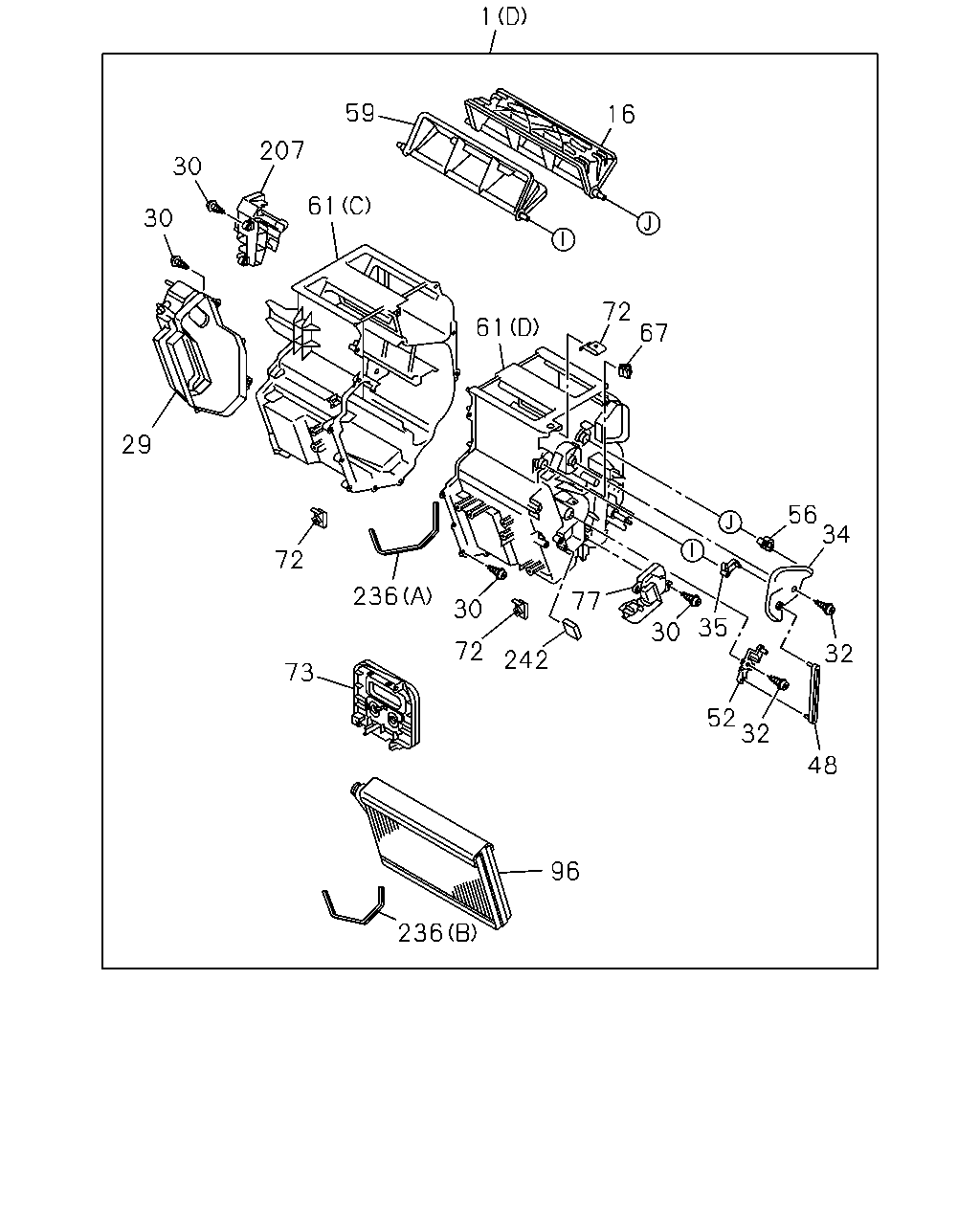

1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98062-757-1	01	1	1012-1301	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1302-1507	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1508-	●	●

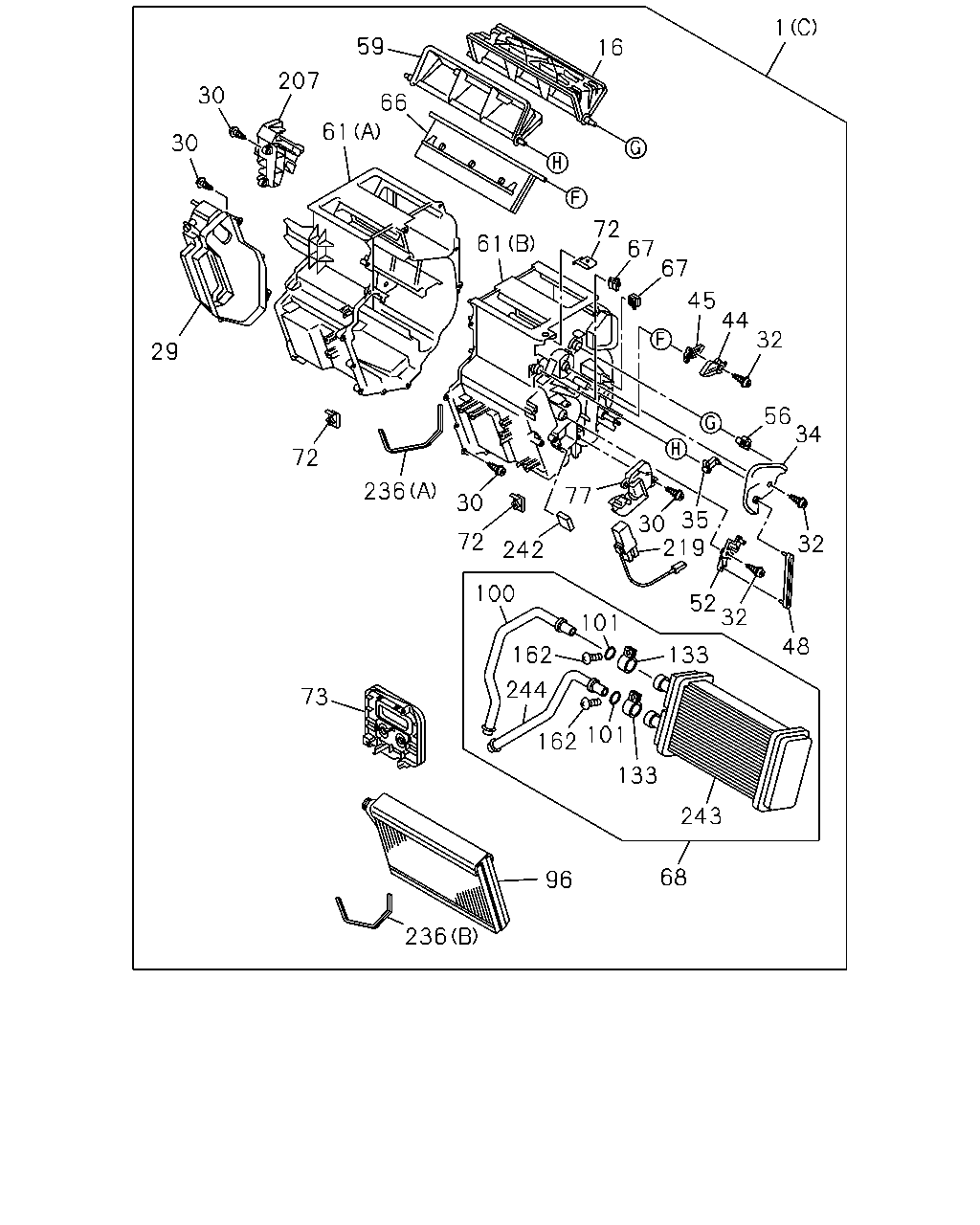

1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1012-1507	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1508-	●	●

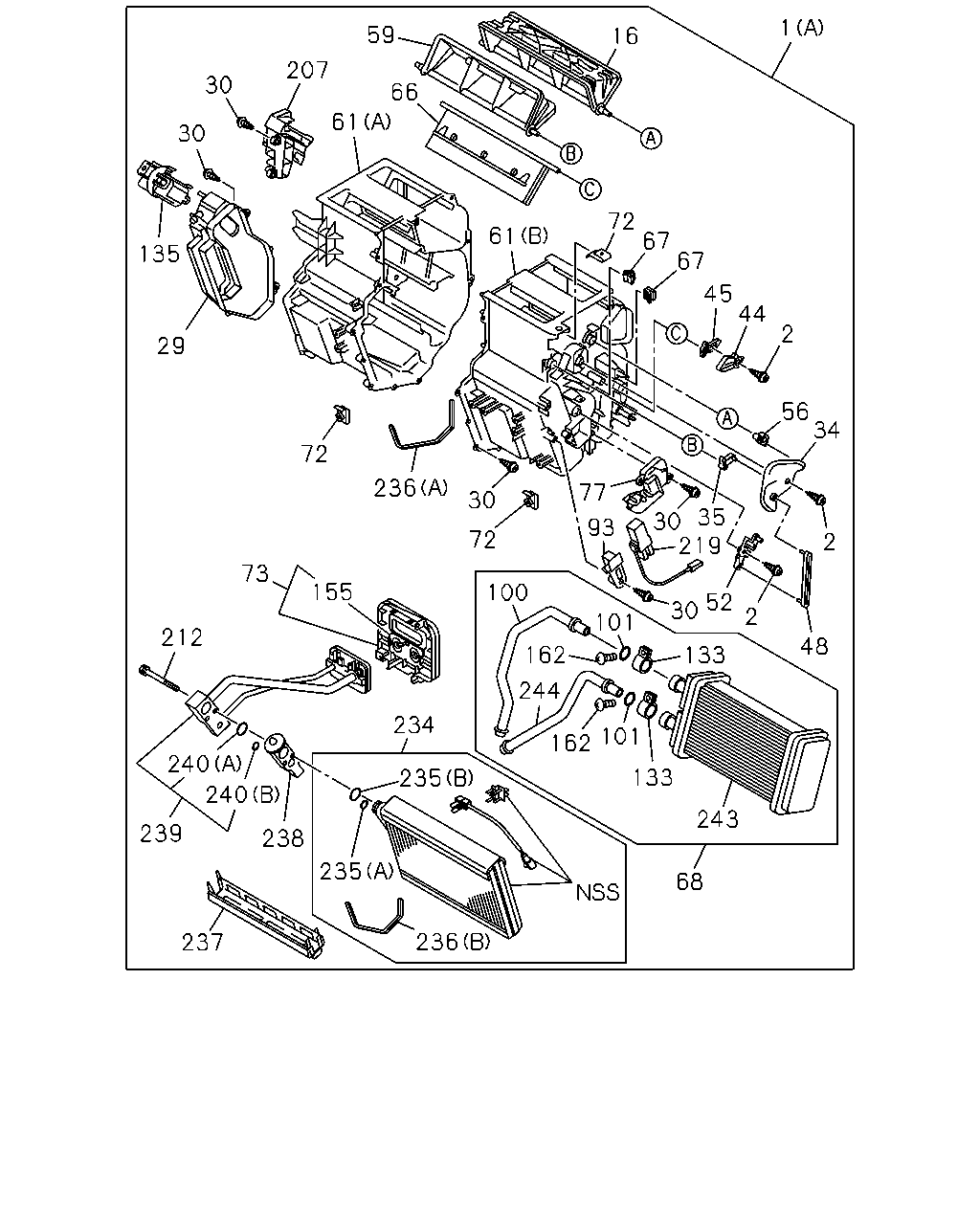

1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1012-1507	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1508-	●	●

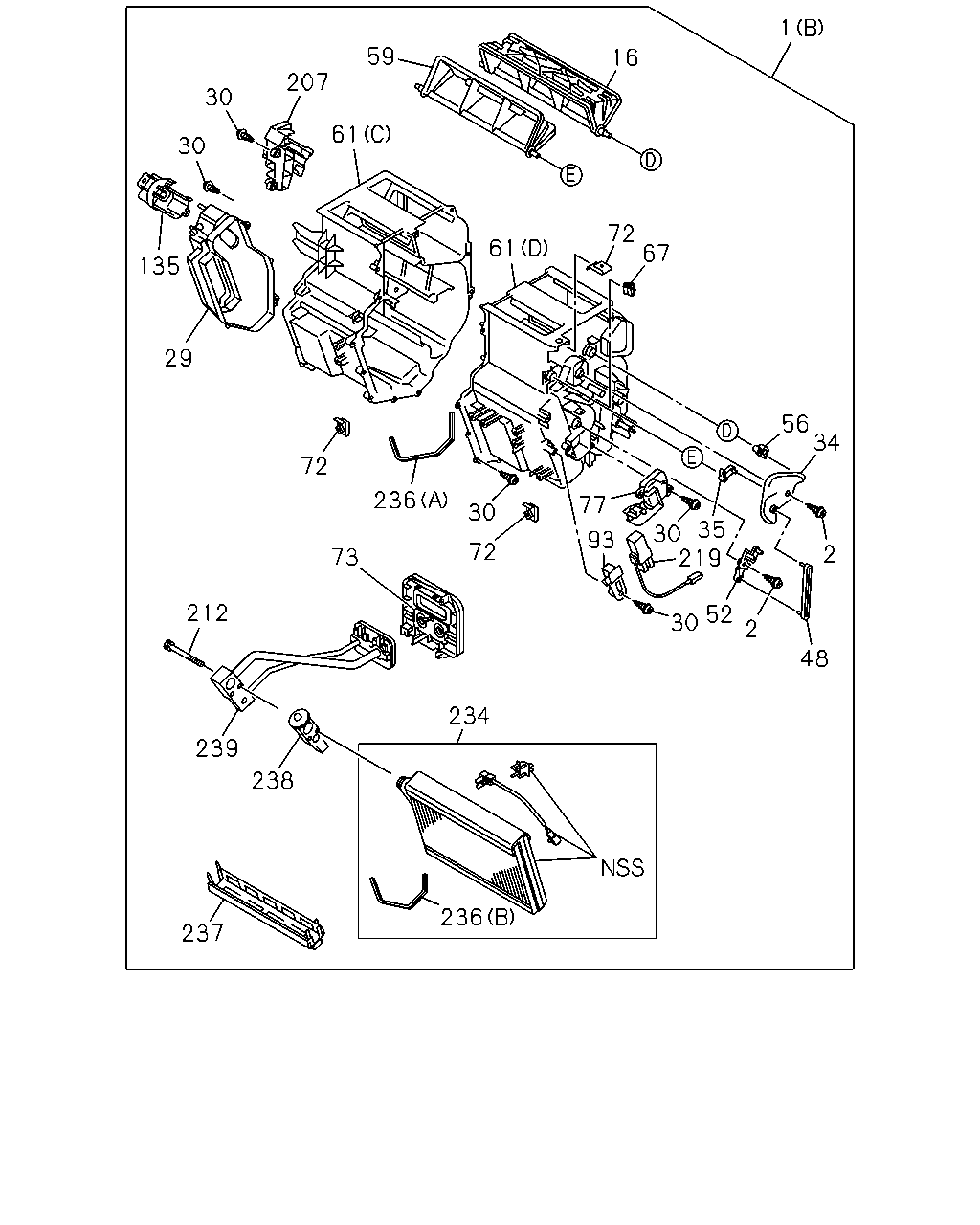

1	08.845 HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1012-	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1012-1507	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1508-	●	●
2	08.854 SCREW; LEVER COOLER WO/HEATER(C65) 08.852 M4X16	8-98047-416-0	02	1	1012-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1012-1507	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1012-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1508-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-1507	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1508-	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1012-1301	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-1507	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1508-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1012-1507	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1508-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1012-1507	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1508-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1012-1507	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1508-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1012-1507	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1508-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1012-1507	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1508-	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1012-1507	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1508-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1012-1507	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1508-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1012-1507	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1508-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1012-1507	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1508-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1012-1507	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1012-1507	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1012-1507	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1508-	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1012-1507	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1508-	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1012-1507	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1508-	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1012-1301	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1012-	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1012-1507	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1508-	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1012-1507	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1508-	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1012-1507	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1508-	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1012-1507	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1508-	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1012-1507	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1508-	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1012-1507	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1508-	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1012-1507	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1508-	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1012-1507	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1508-	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1012-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1302-1507	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1508-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1012-1507	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1508-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1012-1507	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1508-	●	●
219	08.854 AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1012-	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1012-1507	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1508-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1012-1507	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1508-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-1507	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1508-	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1012-1507	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1508-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1012-1507	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1508-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1012-1507	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1508-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1012-1507	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1508-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1012-1507	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1508-	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1012-1507	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1508-	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1012-1507	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1508-	●	●

1 16 59 66 61 207 61 30 30 29 72 236 72 242 30 30 35 219 52 32 48 32 34 56 32 44 45 67 67 72 101 133 133 243 68 96 236 73 100 162 244 101 162 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98062-757-1	01	1	1012-1301	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1302-1507	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1508-	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1012-1507	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1508-	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1012-1507	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1508-	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1012-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1012-1507	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1012-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1508-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-1507	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1508-	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1012-1301	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-1507	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1508-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1012-1507	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1508-	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1012-1507	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1508-	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1012-1507	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1508-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1012-1507	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1508-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1012-1507	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1508-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1012-1507	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1508-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1012-1507	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1508-	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1012-1507	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1508-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1012-1507	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1508-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1012-1507	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1508-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1012-1507	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1508-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1012-1507	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1012-1507	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1012-1507	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1508-	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1012-1507	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1508-	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1012-1507	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1508-	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1012-1301	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1012-	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1012-1507	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1508-	●	●
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1012-1301	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-1507	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1508-	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1012-1507	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1508-	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1012-1507	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1508-	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1012-1507	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1508-	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1012-1507	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1508-	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1012-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1302-1507	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1508-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1012-1507	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1508-	●	●
219	08.854 AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1012-	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1508-	●	●
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1012-1411	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1412-1507	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1508-	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1012-1507	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1508-	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1012-1507	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1508-	●	●

1 16 67 72 61 59 207 61 30 30 29 72 236 30 72 242 77 30 35 56 34 32 48 32 52 96 236 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98062-757-1	01	1	1012-1301	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1302-1507	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1508-	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1012-1507	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1508-	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1012-1507	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1508-	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1012-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1012-1507	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1012-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1508-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-1507	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1508-	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1012-1301	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-1507	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1508-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1012-1507	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1508-	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1012-1507	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16	8-98047-416-0	02	1	1508-	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1012-1507	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1508-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1012-1507	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1508-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1012-1507	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1508-	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1012-1507	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1508-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1012-1507	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1508-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1012-1507	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1508-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1012-1507	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1012-1507	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1012-1507	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1508-	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1012-1507	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1508-	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1012-1301	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1012-	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1012-1507	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1508-	●	●
96	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1012-1301	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-1507	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1508-	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1012-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1302-1507	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1508-	●	●
242	08.855 GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1012-1411	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1412-1507	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1508-	●	●

30 135 30 207 59 61 72 29 73 236 72 30 77 30 2 52 48 2 219 30 93 56 34 35 67 72 61 212 239 238 237 236 234 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98062-757-1	01	1	1012-1301	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1302-1507	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39) (D)	8-98214-400-1	01	1	1508-	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1012-1507	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1508-	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1012-1507	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1508-	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1012-	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1012-1507	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1508-	●	●
2	08.854 SCREW; LEVER COOLER WO/HEATER(C65) 08.852 M4X16	8-98047-416-0	02	1	1012-	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1012-1507	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-387-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39)	8-98231-367-0	01	1	1508-	●	●
29	08.857 COVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1012-1301	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1302-1507	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1508-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1302-1507	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1508-	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1012-1301	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1302-1507	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING	8-97957-708-0	20	1	1508-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1012-1507	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1508-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1012-1507	●
34	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-389-0	01	1	1508-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1012-1507	●
35	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-392-0	01	1	1508-	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1012-1507	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-391-0	01	1	1508-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1012-1507	●
52	08.852 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-390-0	01	1	1508-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1012-1507	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-393-0	01	1	1508-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1012-1507	●
59	08.845 SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-386-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-98077-422-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-98077-423-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1508-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1012-1507	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1012-1507	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-98047-417-0	01	1	1508-	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1012-1507	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1508-	●	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1012-1507	●
72	08.845 NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6	8-98047-428-0	03	1	1508-	●	●
73	08.845 PLATE; HTR UNIT FORGED AIR VENTILATION(C39)	8-98077-419-0	01	1	1012-1301	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1012-1507	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1508-	●	●
73	08.845 PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1012-	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1012-1507	●
77	08.857 COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-414-0	01	1	1508-	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1012-1507	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1508-	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1012-1507	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1508-	●	●
207	08.845 CLAMP; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1012-1301	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1302-1507	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1508-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1012-1507	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1508-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1012-1507	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1508-	●	●
219	08.854 AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1012-	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1012-1507	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98047-420-0	01	1	1508-	●	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1012-1507	●
236	08.855 GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98047-421-0	01	1	1508-	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1012-1507	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1508-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1012-1507	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1508-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1012-1507	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
